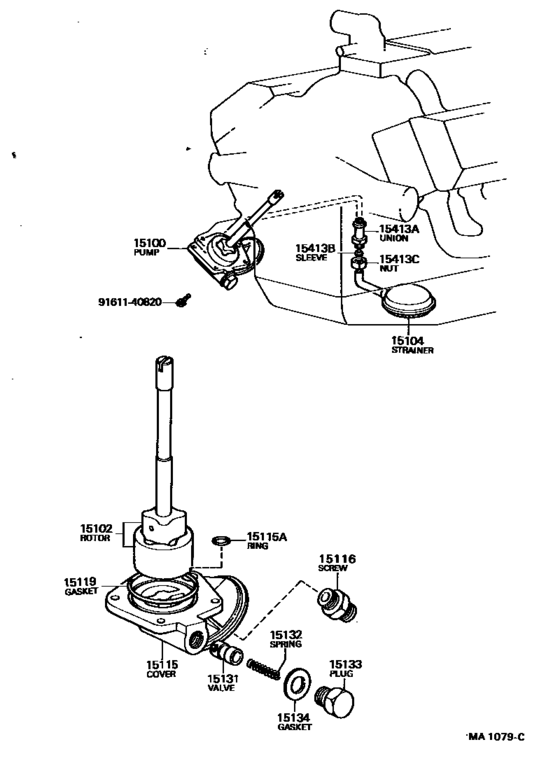

Engine Oil Pump ([11.1967 - ] (6711- )) Diagram Toyota CENTURY
- Year
- 1967 - 1973
- Sales region
- Japan
- Frame
- VG20
- ENGINE
- 3V
- TRANSMISSION
- ATM
- From
- 11.1967
- To
- 02.1973
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15100
|
15100
15100-51010 Pump Assy, Oil[11.1967 - 02.1973] 3V..VG20 |
15100-51010 |
US $442.62 |
||
| replacement | |||||
|
15100
|
15100
15100-52010
Pump Assy, Oil
[11.1967 - 02.1973] 3V..VG20 |
15100-52010 |
— | ||
|
15102
|
15102
15102-51010
Rotor Set, Oil Pump
[11.1967 - 09.1982] 3V,4V#..VG2#,3# |
15102-51010 |
— | ||
|
15104
|
15104
15104-51010
Strainer Sub-Assy, Oil
[11.1967 - 09.1982] 3V,4V#..VG2#,3# |
15104-51010 |
— | ||
|
15115
|
15115
15115-51010 Cover, Oil Pump[11.1967 - 02.1973] 3V..VG20 |
15115-51010 |
US $126.67 |
||
| replacement | |||||
|
15115
|
15115
15115-52010 Cover, Oil Pump[11.1967 - 02.1973] 3V..VG20 |
15115-52010 |
US $77.17 |
||
|
15115A
|
15115A
90301-13009 Ring, O(For Oil Pump Cover)[11.1967 - 04.1982] 3V,4V#..VG2#,3# |
90301-13009 |
US $3.20 |
||
| replacement | |||||
|
15115A
|
15115A
96711-24014 Ring, O(For Shift Lever)[11.1967 - 04.1982] 3V,4V#..VG2#,3# |
96711-24014 |
US $2.62 |
||
|
15116
|
15116
15116-50010 Screw, Oil Cleaner Set[11.1967 - 09.1982] 3V,4V#..VG2#,3# |
15116-50010 |
US $11.07 |
||
|
15119
|
15119
15119-51010 Gasket, Oil Pump CoverOIL PUMP COVER [11.1967 - 04.1982] 3V,4V#..VG2#,3# |
15119-51010 |
US $11.21 |
||
|
15131
|
15131
15131-41010
Valve, Oil Pump Relief
[11.1967 - 09.1982] 3V,4V#..VG2#,3# |
15131-41010 |
— | ||
|
15132
|
15132
15132-40010 Spring, Oil Pump Relief Valve[11.1967 - 09.1982] 3V,4V#..VG2#,3# |
15132-40010 |
from US $2.96 |
||
|
15133
|
15133
15133-20010 Plug, Oil Pump Relief Valve[11.1967 - 09.1982] 3V,4V#..VG2#,3# |
15133-20010 |
US $6.56 |
||
|
15134
|
15134
15134-20010 Gasket, Oil Pump Relief Valve[11.1967 - 09.1982] 3V,4V#..VG2#,3# |
15134-20010 |
from US $2.03 |
||
|
15413A
|
15413A
90404-20117 Union(For Oil Pump Outlet Pipe)[11.1967 - 08.1969] 3V..VG20 |
90404-20117 |
US $13.98 |
||
| replacement | |||||
|
15413A
|
15413A
90404-20174 Union(For Oil Pump Outlet Pipe)[11.1967 - 08.1969] 3V..VG20 |
90404-20174 |
US $13.83 |
||
|
15413A
|
15413A
90404-20174 Union(For Oil Pump Outlet Pipe)[08.1969 - 09.1982] 3V,4V#..VG2#,3# |
90404-20174 |
US $13.83 |
||
|
15413B
|
15413B
90410-15006 Sleeve, Ball(For Oil Pump Outlet Pipe)[11.1967 - 09.1982] 3V,4V#..VG2#,3# |
90410-15006 |
US $3.49 |
||
|
15413C
|
15413C
90402-20017 Nut, Union(For Oil Pump Outlet Pipe)[11.1967 - 08.1969] 3V..VG20 |
90402-20017 |
US $3.06 |
||
| replacement | |||||
|
15413C
|
15413C
90402-20053 Nut, Union(For Oil Pump Outlet Pipe)[11.1967 - 08.1969] 3V..VG20 |
90402-20053 |
US $5.39 |
||
|
15413C
|
15413C
90402-20053 Nut, Union(For Oil Pump Outlet Pipe)[08.1969 - 09.1982] 3V,4V#..VG2#,3# |
90402-20053 |
US $5.39 |
||
|
9161140820
|
9161140820
91611-40820
Bolt(For Intake Manifold To Exhaust Manifold)
|
91611-40820 |
— | ||
