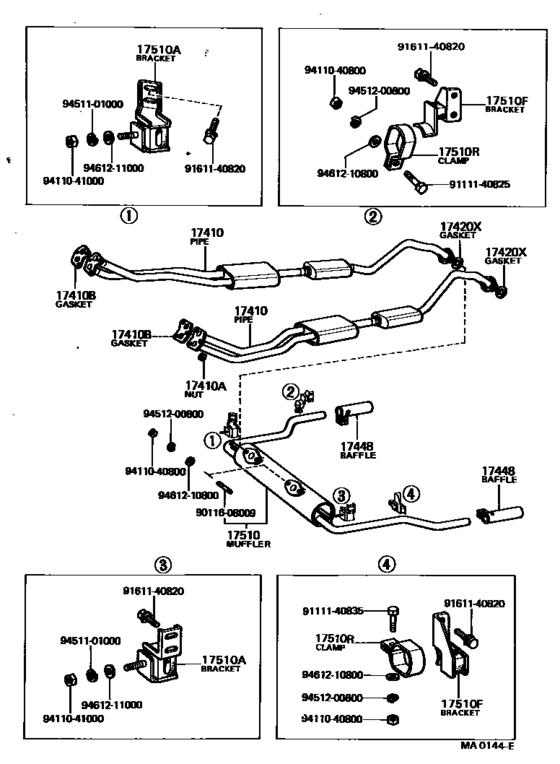

Exhaust Pipe ([11.1967 - 02.1973] (6711-7302)) Diagram Toyota CENTURY
- Year
- 1967 - 1973
- Sales region
- Japan
- Frame
- VG20
- ENGINE
- 3V
- TRANSMISSION
- ATM
- From
- 11.1967
- To
- 02.1973
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17410
|
17410
17401-51010
Pipe Assy, Exhaust, Front
[11.1967 - 03.1968] 3V..VG20 RH |
17401-51010 |
— | ||
|
17410
|
17410
17401-51011
Pipe Assy, Exhaust, Front
[03.1968 - 02.1970] 3V..VG20 RH |
17401-51011 |
— | ||
|
17410
|
17410
17401-51013 Pipe Assy, Exhaust, Front[02.1970 - 07.1970] 3V..VG20 RH |
17401-51013 |
US $318.86 |
||
| replacement | |||||
|
17410
|
17410
17401-51014
Pipe Assy, Exhaust, Front
[02.1970 - 07.1970] 3V..VG20 RH |
17401-51014 |
— | ||
|
17410
|
17410
17401-51014
Pipe Assy, Exhaust, Front
[07.1970 - 02.1973] 3V..VG20 RH |
17401-51014 |
— | ||
|
17410
|
17410
17402-51010
Pipe Assy, Exhaust, Front
[11.1967 - 03.1968] 3V..VG20 LH |
17402-51010 |
— | ||
|
17410
|
17410
17402-51011
Pipe Assy, Exhaust, Front
[03.1968 - 02.1970] 3V..VG20 LH |
17402-51011 |
— | ||
|
17410
|
17410
17402-51013 Pipe Assy, Exhaust, Front[02.1970 - 07.1970] 3V..VG20 LH |
17402-51013 |
US $298.48 |
||
| replacement | |||||
|
17410
|
17410
17402-51014
Pipe Assy, Exhaust, Front
[02.1970 - 07.1970] 3V..VG20 LH |
17402-51014 |
— | ||
|
17410
|
17410
17402-51014
Pipe Assy, Exhaust, Front
[07.1970 - 02.1973] 3V..VG20 LH |
17402-51014 |
— | ||
|
17410A
|
17410A
90170-10049
Nut, Exhaust Pipe Set Stud Bolt
[11.1967 - 12.1970] 3V..VG20 |
90170-10049 |
— | ||
| replacement | |||||
|
17410A
|
17410A
90170-10199 Nut, Exhaust Pipe Set Stud Bolt[11.1967 - 12.1970] 3V..VG20 |
90170-10199 |
US $4 |
||
|
17410A
|
17410A
90179-10118 Nut, Exhaust Pipe Set Stud BoltEXHAUST PIPE SET STUD BOLT [12.1970 - 08.1978] 3V,4V#..VG2#,30 |
90179-10118 |
US $4.32 |
||
|
17410B
|
17410B
17451-41010
Gasket, Exhaust Pipe
[11.1967 - 02.1973] 3V..VG20 |
17451-41010 |
— | ||
| replacement | |||||
|
17410B
|
17410B
17451-28010 Gasket, Exhaust Pipe[11.1967 - 02.1973] 3V..VG20 |
17451-28010 |
US $12.80 |
||
|
17420X
|
17420X
90917-06001
Gasket(For Manifold Extension)
[11.1967 - 09.1982] 3V,4V#..VG2#,3# |
90917-06001 |
— | ||
| replacement | |||||
|
17420X
|
17420X
90917-06038 Gasket, Exhaust Pipe[11.1967 - 09.1982] 3V,4V#..VG2#,3# |
90917-06038 |
from US $2.34 |
||
|
17448
|
17448
17431-51010
Baffle, Tail Pipe
[11.1967 - 11.1968] 3V..VG20 RH |
17431-51010 |
— | ||
|
17448
|
17448
17432-51010
Baffle, Tail Pipe
[11.1967 - 11.1968] 3V..VG20 LH |
17432-51010 |
— | ||
|
17448
|
17448
17448-51010
Baffle, Tail Pipe
[11.1968 - 05.1974] 3V,4V..VG2# |
17448-51010 |
— | ||
|
17510
|
17510
17510-51012
Muffler Assy
[11.1967 - 11.1968] 3V..VG20 |
17510-51012 |
— | ||
|
17510
|
17510
17510-51013 Muffler Assy[11.1968 - 07.1970] 3V..VG20 |
17510-51013 |
US $720.72 |
||
| replacement | |||||
|
17510
|
17510
17510-52010
Muffler Assy
[11.1968 - 07.1970] 3V..VG20 |
17510-52010 |
— | ||
|
17510
|
17510
17510-51015
Muffler Assy
[07.1970 - 02.1973] 3V..VG20 |
17510-51015 |
— | ||
| replacement | |||||
|
17510
|
17510
17510-52010
Muffler Assy
[07.1970 - 02.1973] 3V..VG20 |
17510-52010 |
— | ||
|
17510A
|
17510A
17566-51010
Bracket, Muffler, Front
[11.1967 - 05.1975] 3V,4V..VG2# RH |
17566-51010 |
— | ||
|
17510A
|
17510A
17567-51010
Bracket, Muffler, Front
[11.1967 - 05.1975] 3V,4V..VG2# LH |
17567-51010 |
— | ||
|
17510F
|
17510F
17561-51010 Bracket, Muffler, RearMUFFLER, REAR [11.1967 - 05.1975] 3V,4V..VG2# RH |
17561-51010 |
US $17.18 |
||
|
17510F
|
17510F
17562-51010
Bracket, Muffler, Rear
[11.1967 - 05.1975] 3V,4V..VG2# LH |
17562-51010 |
— | ||
|
17510R
|
17510R
90461-23079 Clamp(For Exhaust Gas Diffuser Setting)EXHAUST TAIL PIPE(FOR FRONT) [11.1967 - 05.1975] 3V,4V..VG2# |
90461-23079 |
US $3.35 |
||
|
9011608009
|
9011608009
90116-08009 Bolt(For Intake Manifold To Exhaust Manifold)STUD(FOR MANIFOLD TO CARBURETOR) |
90116-08009 |
US $3.44 |
||
|
9111140825
|
9111140825
91111-40825
Bolt(For Clutch Master Cylinder Setting)
|
91111-40825 |
— | ||
| replacement | |||||
|
9111140825
|
9111140825
91111-50825 Bolt(For Clutch Master Cylinder Setting) |
91111-50825 |
US $3.04 |
||
|
9111140835
|
9111140835
91111-40835 New Genuine Part |
91111-40835 |
US $4.22 |
||
|
9161140820
|
9161140820
91611-40820
Bolt(For Intake Manifold To Exhaust Manifold)
|
91611-40820 |
— | ||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $1.09 |
||
|
9411041000
|
9411041000
94110-41000 Nut(For Steering Damper) |
94110-41000 |
US $2.56 |
||
|
9451101000
|
9451101000
94511-01000 Washer(For Rear Drive Shaft) |
94511-01000 |
US $1.76 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.80 |
||
|
9451208800
|
9451208800
94512-08800
New Genuine Part
|
94512-08800 |
— | ||
|
9461210800
|
9461210800
94612-10800 Washer, Plate(For Repair Actuator Set) |
94612-10800 |
from US $0.86 |
||
|
9461211000
|
9461211000
94612-11000 Plate, Spring Set |
94612-11000 |
US $2.72 |
||
