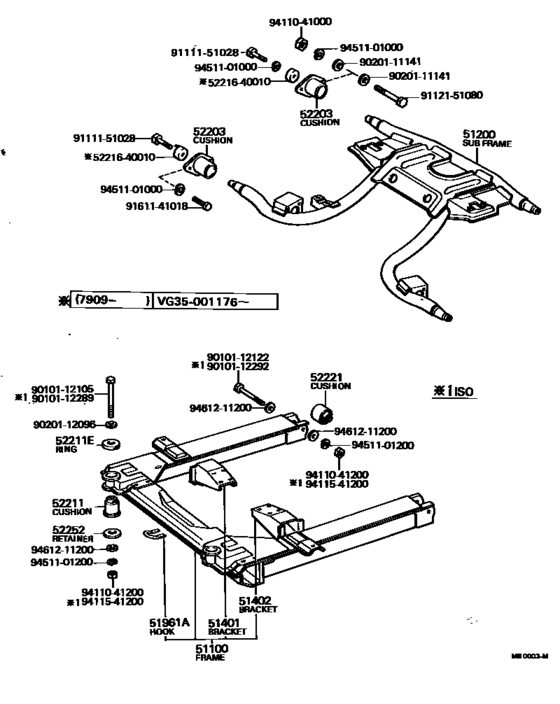

Frame ([11.1967 - ] (6711- )) Diagram Toyota CENTURY
- Year
- 1967 - 1973
- Sales region
- Japan
- Frame
- VG20
- ENGINE
- 3V
- TRANSMISSION
- ATM
- From
- 11.1967
- To
- 02.1973
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51100
|
51100
51100-40030
Frame Assy
[11.1967 - 02.1973] VG20 |
51100-40030 |
— | ||
|
51200
|
51200
51200-40010
Sub Frame Assy, Rear
[11.1967 - 02.1973] VG20 |
51200-40010 |
— | ||
|
51401
|
51401
51425-40020
Bracket Sub-Assy, Engine Front Mounting, Rh
[11.1967 - 09.1982] VG2#,3# |
51425-40020 |
— | ||
|
51402
|
51402
51426-40020
Bracket Sub-Assy, Engine Front Mounting, Lh
[11.1967 - 09.1982] VG2#,3# |
51426-40020 |
— | ||
|
51961A
|
51961A
51961-40010
Hook, No.3
[11.1967 - 09.1982] VG2#,3# |
51961-40010 |
— | ||
|
52203
|
52203
52203-40011
Cushion Sub-Assy, Rear Frame
[11.1967 - 09.1982] VG2#,3# |
52203-40011 |
— | ||
|
52211
|
52211
52201-40011 Cushion, Body Mounting, No.1 Upper[11.1967 - 09.1982] VG2#,3# |
52201-40011 |
US $31.60 |
||
|
52211E
|
52211E
90562-46029
Ring(For Body Mounting No.1 Cushion)
[11.1967 - 09.1982] VG2#,3# |
90562-46029 |
— | ||
|
52221
|
52221
52202-40020
Cushion, Body Mount, No.2 Upper
[11.1967 - 09.1982] VG2#,3# |
52202-40020 |
— | ||
|
52252
|
52252
52252-40011
Retainer, Front Frame Rebound Stopper
[11.1967 - 09.1982] VG2#,3# |
52252-40011 |
— | ||
|
5221640010
|
5221640010
52216-40010
Spacer, Body Mounting
|
52216-40010 |
— | ||
|
9010112105
|
9010112105
90101-12105 New Genuine Part |
90101-12105 |
US $6.55 |
||
|
9010112122
|
9010112122
90101-12122
New Genuine Part
|
90101-12122 |
— | ||
|
9010112289
|
9010112289
90101-12289
New Genuine Part
|
90101-12289 |
— | ||
|
9010112292
|
9010112292
90101-12292
New Genuine Part
|
90101-12292 |
— | ||
|
9020111141
|
9020111141
90201-11141
New Genuine Part
|
90201-11141 |
— | ||
|
9020112096
|
9020112096
90201-12096 Washer, Rear Brake Shoe Guide Bolt |
90201-12096 |
US $2.56 |
||
|
9111151028
|
9111151028
91111-51028 New Genuine Part |
91111-51028 |
US $3.20 |
||
|
9112151080
|
9112151080
91121-51080 Shaft, Clutch Pedal |
91121-51080 |
US $5.76 |
||
|
9161141018
|
9161141018
91611-41018 Bolt(for Transaxle & Engine Setting) |
91611-41018 |
US $2.04 |
||
| replacement | |||||
|
9161141018
|
9161141018
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
US $2.08 |
||
|
9411041000
|
9411041000
94110-41000 Nut(For Steering Damper) |
94110-41000 |
US $2.56 |
||
|
9411041200
|
9411041200
94110-41200 New Genuine Part |
94110-41200 |
US $2.34 |
||
|
9411541200
|
9411541200
94115-41200
Nut
|
94115-41200 |
— | ||
| replacement | |||||
|
9411541200
|
9411541200
94130-61200 Nut |
94130-61200 |
from US $0.99 |
||
|
9451101000
|
9451101000
94511-01000 Washer(For Rear Drive Shaft) |
94511-01000 |
US $1.76 |
||
|
9451101200
|
9451101200
94511-01200 WASHER |
94511-01200 |
from US $0.60 |
||
|
9461211200
|
9461211200
94612-11200 Washer |
94612-11200 |
from US $0.74 |
||
