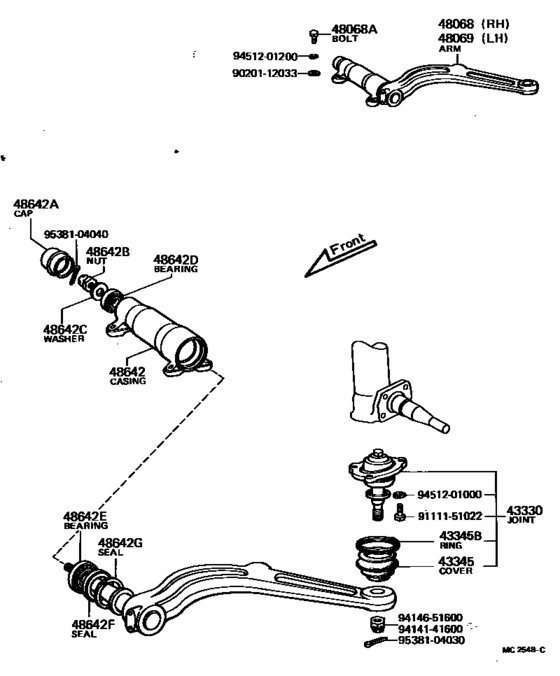

Front Axle Arm & Steering Knuckle ([11.1967 - ] (6711- )) Diagram Toyota CENTURY
- Year
- 1967 - 1973
- Sales region
- Japan
- Frame
- VG20
- ENGINE
- 3V
- TRANSMISSION
- ATM
- From
- 11.1967
- To
- 02.1973
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
43330
|
43330
43330-49015 Joint Assy, Lower Ball, FrontLOWER BALL, FRONT [11.1967 - 09.1982] VG2#,3# |
43330-49015 |
US $112.11 |
||
|
43345
|
43345
43345-40010 Cover, Lower Ball Joint DustLOWER BALL JOINT DUST [11.1967 - 09.1982] VG2#,3# |
43345-40010 |
US $8.44 |
||
|
43345B
|
43345B
90522-44016
Ring, Set (For Lower Ball Joint Dust Cover)
[11.1967 - 09.1982] VG2#,3# |
90522-44016 |
— | ||
|
48068
|
48068
48620-40010 Arm Sub-Assy, Front Suspension, Lower No.1 Rh[11.1967 - 08.1969] VG20 |
48620-40010 |
US $1,346.80 |
||
| replacements | |||||
|
48068
|
48068
48620-40013
Arm Sub-Assy, Front Suspension, Lower No.1 Rh
[11.1967 - 08.1969] VG20 |
48620-40013 |
— | ||
|
48068
|
48068
90101-12301
Bolt, Knuckle Stopper
[11.1967 - 08.1969] VG20 |
90101-12301 |
— | ||
|
48068
|
48068
48620-40013
Arm Sub-Assy, Front Suspension, Lower No.1 Rh
[08.1969 - 02.1973] VG20 |
48620-40013 |
— | ||
|
48068A
|
48068A
90101-12234
Bolt, Knuckle Stopper
[11.1967 - 08.1969] VG20 |
90101-12234 |
— | ||
|
48068A
|
48068A
90101-12301
Bolt, Knuckle Stopper
[08.1969 - 09.1982] VG2#,3# |
90101-12301 |
— | ||
|
48069
|
48069
48640-40010
Arm Sub-Assy, Front Suspension, Lower No.1 Lh
[11.1967 - 08.1969] VG20 |
48640-40010 |
— | ||
| replacements | |||||
|
48069
|
48069
48640-40013
Arm Sub-Assy, Front Suspension, Lower No.1 Lh
[11.1967 - 08.1969] VG20 |
48640-40013 |
— | ||
|
48069
|
48069
90101-12301
Bolt, Knuckle Stopper
[11.1967 - 08.1969] VG20 |
90101-12301 |
— | ||
|
48069
|
48069
48640-40013
Arm Sub-Assy, Front Suspension, Lower No.1 Lh
[08.1969 - 02.1973] VG20 |
48640-40013 |
— | ||
|
48642
|
48642
48642-40010 Casing, Lower Arm Shaft[11.1967 - 08.1969] VG20 |
48642-40010 |
US $164.53 |
||
| replacements | |||||
|
48642
|
48642
48642-40011
Casing, Lower Arm Shaft
[11.1967 - 08.1969] VG20 |
48642-40011 |
— | ||
|
48642
|
48642
90101-12301
Bolt, Knuckle Stopper
[11.1967 - 08.1969] VG20 |
90101-12301 |
— | ||
|
48642
|
48642
48642-40011
Casing, Lower Arm Shaft
[08.1969 - 09.1982] VG2#,3# |
48642-40011 |
— | ||
|
48642A
|
48642A
43423-55010 Cap, Front Hub Grease[11.1967 - 09.1982] VG2#,3# |
43423-55010 |
US $5.82 |
||
|
48642B
|
48642B
90171-22027
Nut, Castle(For Lower Arm Shaft)
[11.1967 - 09.1982] VG2#,3# |
90171-22027 |
— | ||
|
48642C
|
48642C
90201-23266
Washer, Plate(For Lower Arm Shaft)
[11.1967 - 09.1982] VG2#,3# |
90201-23266 |
— | ||
|
48642D
|
48642D
90368-26013 Bearing(For Lower Arm Shaft)TAPERED ROLLER (FOR FRONT AXLE INNER BEARING) [11.1967 - 09.1982] VG2#,3# |
90368-26013 |
US $24.61 |
||
|
48642E
|
48642E
90368-44033
Bearing(For Lower Arm Shaft)
[11.1967 - 09.1982] VG2#,3# |
90368-44033 |
— | ||
|
48642F
|
48642F
90311-55100
Seal, Oil(For Lower Arm Shaft)
[02.1969 - 09.1982] VG2#,3# |
90311-55100 |
— | ||
|
48642F
|
48642F
90311-60087
Seal, Oil(For Lower Arm Shaft)
[11.1967 - 02.1969] VG20 |
90311-60087 |
— | ||
|
48642G
|
48642G
90303-57040
Seal, Dust(For Lower Arm Shaft)
[11.1967 - 02.1969] VG20 |
90303-57040 |
— | ||
|
9020112033
|
9020112033
90201-12033 Washer, Shift Lever Shaft Housing, No.1 |
90201-12033 |
US $2.56 |
||
|
9111151022
|
9111151022
91111-51022 New Genuine Part |
91111-51022 |
US $2.91 |
||
|
9414141600
|
9414141600
94141-41600 New Genuine Part |
94141-41600 |
US $3.06 |
||
| replacement | |||||
|
9414141600
|
9414141600
94146-41600 New Genuine Part |
94146-41600 |
US $3.35 |
||
|
9414651600
|
9414651600
94146-51600 New Genuine Part |
94146-51600 |
US $2.04 |
||
|
9451201000
|
9451201000
94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-01000 |
from US $0.76 |
||
|
9451201200
|
9451201200
94512-01200 Washer |
94512-01200 |
from US $0.76 |
||
|
9538104030
|
9538104030
95381-04030 PIN |
95381-04030 |
from US $0.78 |
||
|
9538104040
|
9538104040
95381-04040 Pin, Oil Pump Valve Spring Setting |
95381-04040 |
US $1.60 |
||
