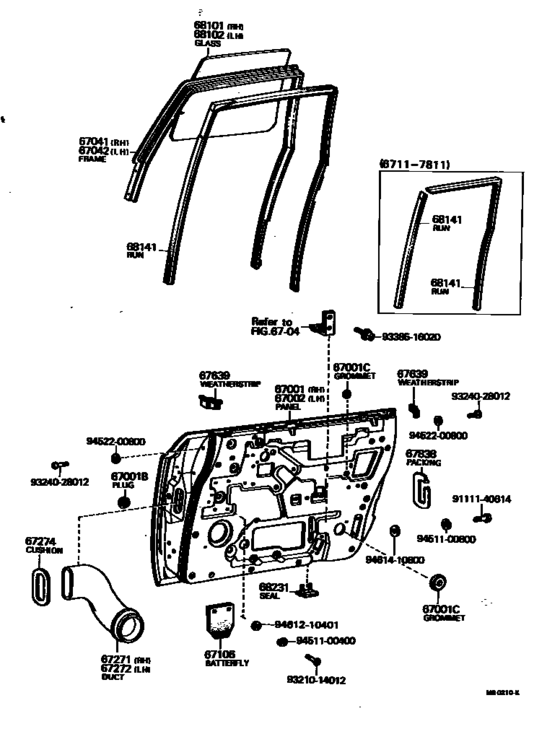

Front Door Panel & Glass ([11.1967 - ] (6711- )) Diagram Toyota CENTURY
- Year
- 1967 - 1973
- Sales region
- Japan
- Frame
- VG20
- ENGINE
- 3V
- TRANSMISSION
- ATM
- From
- 11.1967
- To
- 02.1973
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67001
|
67001
67001-91404
Panel Sub-Assy, Front Door, Rh
[11.1967 - 03.1970] VG20..A,C,D |
67001-91404 |
— | ||
|
67001
|
67001
67001-91408
Panel Sub-Assy, Front Door, Rh
[07.1970 - 02.1973] VG20..A,C,D |
67001-91408 |
— | ||
|
67001
|
67001
67001-91409
Panel Sub-Assy, Front Door, Rh
[03.1970 - 07.1970] VG20..A,C,D |
67001-91409 |
— | ||
|
67001C
|
67001C
90015-30025 Grommet(For Front Door Panel)[11.1967 - 08.1970] VG20 OD=20,ID=16 |
90015-30025 |
US $1.75 |
||
| replacement | |||||
|
67001C
|
67001C
90480-20276 Grommet(For Instrument Panel)[11.1967 - 08.1970] VG20 OD=20,ID=16 |
90480-20276 |
US $1.89 |
||
|
67001C
|
67001C
90015-30029 Grommet(For Front Door Panel)[11.1967 - 08.1970] VG20 OD=35,ID=29 |
90015-30029 |
US $2.48 |
||
| replacement | |||||
|
67001C
|
67001C
90480-35279
Grommet(For Front Door Panel)
[11.1967 - 08.1970] VG20 OD=35,ID=29 |
90480-35279 |
— | ||
|
67001C
|
67001C
90480-20276 Grommet(For Instrument Panel)[08.1970 - 09.1982] VG2#,3# OD=30,ID=16 |
90480-20276 |
US $1.89 |
||
|
67001C
|
67001C
90480-35279
Grommet(For Front Door Panel)
[08.1970 - 09.1982] VG2#,3# OD=35,ID=29 |
90480-35279 |
— | ||
|
67002
|
67002
67002-91404
Panel Sub-Assy, Front Door, Lh
[11.1967 - 03.1970] VG20..A,C,D |
67002-91404 |
— | ||
|
67002
|
67002
67002-91409
Panel Sub-Assy, Front Door, Lh
[07.1970 - 02.1973] VG20..A,C,D |
67002-91409 |
— | ||
|
67002
|
67002
67002-91410
Panel Sub-Assy, Front Door, Lh
[03.1970 - 07.1970] VG20..A,C,D |
67002-91410 |
— | ||
|
67041
|
67041
67041-91401
Frame Sub-Assy, Front Door Window, Rh
[11.1967 - 09.1982] VG2#,3# |
67041-91401 |
— | ||
|
67042
|
67042
67042-91401
Frame Sub-Assy, Front Door Window, Lh
[11.1967 - 09.1982] VG2#,3# |
67042-91401 |
— | ||
|
67271
|
67271
67271-91401
Duct, Front Door Air, Rh
[11.1967 - 02.1973] VG20 |
67271-91401 |
— | ||
|
67272
|
67272
67272-91401
Duct, Front Door Air, Lh
[11.1967 - 02.1973] VG20 |
67272-91401 |
— | ||
|
67274
|
67274
67274-91401
Cushion, Air Duct
[07.1968 - 02.1973] VG20 |
67274-91401 |
— | ||
|
67639
|
67639
67638-91402 Weatherstrip, Front Door Corner[11.1967 - 09.1982] VG2#,3# |
67638-91402 |
US $2.18 |
||
|
67838
|
67838
67851-91401
Packing, Front Door Lock Hole
[11.1967 - 02.1973] VG20 |
67851-91401 |
— | ||
|
68101
|
68101
68111-91401
Glass Sub-Assy, Front Door, Rh
[11.1967 - 09.1982] VG2#,3# *TT,T=5.0 |
68111-91401 |
— | ||
|
68102
|
68102
68112-91401
Glass Sub-Assy, Front Door, Lh
[11.1967 - 09.1982] VG2#,3# *TT,T=5.0 |
68112-91401 |
— | ||
|
68141
|
68141
68130-91401
Run, Front Door Glass
[11.1967 - 02.1968] VG20 RR |
68130-91401 |
— | ||
|
68141
|
68141
68130-91402 Run, Front Door GlassFRONT DOOR GLASS [02.1968 - 11.1978] VG2#,30 L=900 |
68130-91402 |
US $31.60 |
||
|
68141
|
68141
68140-91401
Run, Front Door Glass
[11.1967 - 02.1968] VG20 FR |
68140-91401 |
— | ||
|
68141
|
68141
68140-91402 Run, Front Door Glass[02.1968 - 11.1978] VG2#,30 L=1400 |
68140-91402 |
US $46.30 |
||
| replacement | |||||
|
68141
|
68141
68150-91403 Run, Rear Door Glass[02.1968 - 11.1978] VG2#,30 L=1400 |
68150-91403 |
US $46.30 |
||
|
68231
|
68231
68231-91401 Seal, Front Door Drain Hole Dust[11.1967 - 09.1982] VG2#,3# |
68231-91401 |
US $3.35 |
||
|
9111140614
|
9111140614
91111-40614
New Genuine Part
|
91111-40614 |
— | ||
| replacement | |||||
|
9111140614
|
9111140614
91111-50614 New Genuine Part |
91111-50614 |
US $3.20 |
||
|
9321014012
|
9321014012
93210-14012 New Genuine Part |
93210-14012 |
US $2.18 |
||
|
9324028012
|
9324028012
93240-28012 New Genuine Part |
93240-28012 |
US $1.75 |
||
|
9338516020
|
9338516020
93385-16020
New Genuine Part
|
93385-16020 |
— | ||
| replacement | |||||
|
9338516020
|
9338516020
93385-26020 New Genuine Part |
93385-26020 |
US $1.44 |
||
|
9451100400
|
9451100400
94511-00400 WASHERSPRING |
94511-00400 |
US $3.20 |
||
|
9451100600
|
9451100600
94511-00600 Washer, Lock, No.2 |
94511-00600 |
US $1.92 |
||
|
9452200800
|
9452200800
94522-00800 New Genuine Part |
94522-00800 |
US $1.46 |
||
|
9461210401
|
9461210401
94612-10401 New Genuine Part |
94612-10401 |
US $1.31 |
||
|
9461410600
|
9461410600
94614-10600
Washer (For Primary Regulator Valve)
|
94614-10600 |
— | ||
| replacement | |||||
|
9461410600
|
9461410600
94613-10601 Washer (For Primary Regulator Valve) |
94613-10601 |
US $1.12 |
||
