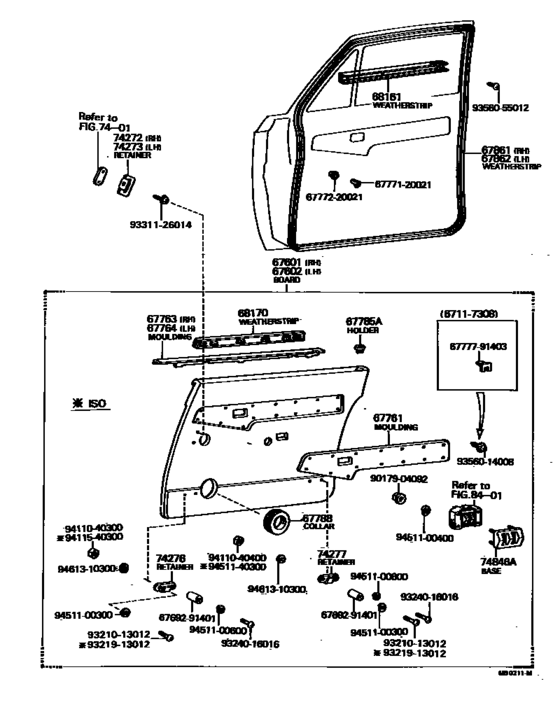

Front Door Panel & Glass ([11.1967 - ] (6711- )) Diagram Toyota CENTURY
- Year
- 1967 - 1973
- Sales region
- Japan
- Frame
- VG20
- ENGINE
- 3V
- TRANSMISSION
- ATM
- From
- 11.1967
- To
- 02.1973
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67601
|
67601
67610-91405-01 Board Sub-Assy, Front Door Trim, Rh[11.1967 - 08.1973] VG2#..ATM D-BLUE & BLUE,BLACK,TRIM8# |
67610-91405-01 |
US $607.15 |
||
| replacement | |||||
|
67601
|
67601
67610-91405-14
Board Sub-Assy, Front Door Trim, Rh
[11.1967 - 08.1973] VG2#..ATM D-BLUE & BLUE,BLACK,TRIM8# |
67610-91405-14 |
— | ||
|
67601
|
67601
67610-91405-02 Board Sub-Assy, Front Door Trim, Rh[11.1967 - 08.1973] VG2#..ATM G-GRAY & GREEN,RED/MAROON,TRIM6# |
67610-91405-02 |
US $607.15 |
||
| replacement | |||||
|
67601
|
67601
67610-91405-07
Board Sub-Assy, Front Door Trim, Rh
[11.1967 - 08.1973] VG2#..ATM G-GRAY & GREEN,RED/MAROON,TRIM6# |
67610-91405-07 |
— | ||
|
67601
|
67601
67610-91405-03 Board Sub-Assy, Front Door Trim, Rh[11.1967 - 08.1973] VG2#..ATM CREAM & BROWN,GRAY,TRIM5# |
67610-91405-03 |
US $607.15 |
||
| replacement | |||||
|
67601
|
67601
67610-91405-06
Board Sub-Assy, Front Door Trim, Rh
[11.1967 - 08.1973] VG2#..ATM CREAM & BROWN,GRAY,TRIM5# |
67610-91405-06 |
— | ||
|
67601
|
67601
67610-91405-04 Board Sub-Assy, Front Door Trim, Rh[11.1967 - 08.1973] VG2#..ATM B-GRAY & GRAY,BLUE,TRIM4# |
67610-91405-04 |
US $607.15 |
||
| replacement | |||||
|
67601
|
67601
67610-91405-13
Board Sub-Assy, Front Door Trim, Rh
[11.1967 - 08.1973] VG2#..ATM B-GRAY & GRAY,BLUE,TRIM4# |
67610-91405-13 |
— | ||
|
67601
|
67601
67610-91405-05
Board Sub-Assy, Front Door Trim, Rh
[11.1967 - 08.1973] VG2#..ATM B-GRAY & RED,BEIGE |
67610-91405-05 |
— | ||
|
67602
|
67602
67620-91405-01 Board Sub-Assy, Front Door Trim, Lh[11.1967 - 08.1973] VG2#..ATM D-BLUE & BLUE,BLACK,TRIM8# |
67620-91405-01 |
US $607.15 |
||
| replacement | |||||
|
67602
|
67602
67620-91405-14
Board Sub-Assy, Front Door Trim, Lh
[11.1967 - 08.1973] VG2#..ATM D-BLUE & BLUE,BLACK,TRIM8# |
67620-91405-14 |
— | ||
|
67602
|
67602
67620-91405-02 Board Sub-Assy, Front Door Trim, Lh[11.1967 - 08.1973] VG2#..ATM G-GRAY & GREEN,RED/MAROON,TRIM6# |
67620-91405-02 |
US $607.15 |
||
| replacement | |||||
|
67602
|
67602
67620-91405-07
Board Sub-Assy, Front Door Trim, Lh
[11.1967 - 08.1973] VG2#..ATM G-GRAY & GREEN,RED/MAROON,TRIM6# |
67620-91405-07 |
— | ||
|
67602
|
67602
67620-91405-03 Board Sub-Assy, Front Door Trim, Lh[11.1967 - 08.1973] VG2#..ATM CREAM & BROWN,GRAY,TRIM5# |
67620-91405-03 |
US $607.15 |
||
| replacement | |||||
|
67602
|
67602
67620-91405-06
Board Sub-Assy, Front Door Trim, Lh
[11.1967 - 08.1973] VG2#..ATM CREAM & BROWN,GRAY,TRIM5# |
67620-91405-06 |
— | ||
|
67602
|
67602
67620-91405-04 Board Sub-Assy, Front Door Trim, Lh[11.1967 - 08.1973] VG2#..ATM B-GRAY & GRAY,BLUE,TRIM4# |
67620-91405-04 |
US $607.15 |
||
| replacement | |||||
|
67602
|
67602
67620-91405-13
Board Sub-Assy, Front Door Trim, Lh
[11.1967 - 08.1973] VG2#..ATM B-GRAY & GRAY,BLUE,TRIM4# |
67620-91405-13 |
— | ||
|
67602
|
67602
67620-91405-05
Board Sub-Assy, Front Door Trim, Lh
[11.1967 - 08.1973] VG2#..ATM B-GRAY & RED,BEIGE |
67620-91405-05 |
— | ||
|
67761
|
67761
67761-91403
Moulding, Front Door Trim
[11.1967 - 05.1974] VG2#..A,C,D RH |
67761-91403 |
— | ||
|
67761
|
67761
67762-91403
Moulding, Front Door Trim
[11.1967 - 05.1974] VG2#..A,C,D LH |
67762-91403 |
— | ||
|
67763
|
67763
67765-91401
Moulding, Front Door Trim, Upper Rh
[11.1967 - 11.1978] VG2#,30 |
67765-91401 |
— | ||
|
67764
|
67764
67766-91401
Moulding, Front Door Trim, Upper Lh
[11.1967 - 11.1978] VG2#,30 |
67766-91401 |
— | ||
|
67785A
|
67785A
67887-91401 Holder, Door Locking Button Collar(For Front Door)[11.1967 - 09.1980] VG2#,3# |
67887-91401 |
US $10.77 |
||
| replacement | |||||
|
67785A
|
67785A
67785-91401 Holder, Door Locking Button Collar(For Front Door)[11.1967 - 09.1980] VG2#,3# |
67785-91401 |
US $24.61 |
||
|
67788
|
67788
67788-91401
Collar, Front Door Trim
[11.1967 - 08.1973] VG2# |
67788-91401 |
— | ||
|
67861
|
67861
67861-91401 Weatherstrip, Front Door, Rh[11.1967 - 02.1968] VG20 |
67861-91401 |
US $202.38 |
||
| replacement | |||||
|
67861
|
67861
67861-91404 Weatherstrip, Front Door, Rh[11.1967 - 02.1968] VG20 |
67861-91404 |
US $200.93 |
||
|
67861
|
67861
67861-91402 Weatherstrip, Front Door, Rh[02.1968 - 11.1973] VG2# |
67861-91402 |
US $202.38 |
||
| replacement | |||||
|
67861
|
67861
67861-91404 Weatherstrip, Front Door, Rh[02.1968 - 11.1973] VG2# |
67861-91404 |
US $200.93 |
||
|
67862
|
67862
67862-91401 Weatherstrip, Front Door, Lh[11.1967 - 02.1968] VG20 |
67862-91401 |
US $202.38 |
||
| replacement | |||||
|
67862
|
67862
67862-91404 Weatherstrip, Front Door, Lh[11.1967 - 02.1968] VG20 |
67862-91404 |
US $200.93 |
||
|
67862
|
67862
67862-91402 Weatherstrip, Front Door, Lh[02.1968 - 11.1973] VG2# |
67862-91402 |
US $202.38 |
||
| replacement | |||||
|
67862
|
67862
67862-91404 Weatherstrip, Front Door, Lh[02.1968 - 11.1973] VG2# |
67862-91404 |
US $200.93 |
||
|
68161
|
68161
68160-91401
Weatherstrip, Front Door Glass, Outer
[04.1969 - 11.1978] VG2#,30 RH |
68160-91401 |
— | ||
|
68161
|
68161
68260-91401
Weatherstrip, Front Door Glass, Outer
[04.1969 - 11.1978] VG2#,30 LH |
68260-91401 |
— | ||
|
68170
|
68170
68170-91402
Weatherstrip Assy, Front Door Glass, Inner
[11.1967 - 11.1978] VG2#,30 |
68170-91402 |
— | ||
|
74272
|
74272
74272-91401
Retainer, Front Door Armrest Front, Rh
[11.1967 - 09.1982] VG2#,3# |
74272-91401 |
— | ||
|
74273
|
74273
74273-91401
Retainer, Front Door Armrest Front, Lh
[11.1967 - 09.1982] VG2#,3# |
74273-91401 |
— | ||
|
74276
|
74276
67775-91401 Retainer, Door Armrest Lower, No.1[11.1967 - 11.1978] VG2#,30 FR-RH,RR-LH |
67775-91401 |
US $10.77 |
||
| replacement | |||||
|
74276
|
74276
67775-91402
Retainer, Door Armrest Lower, No.1
[11.1967 - 11.1978] VG2#,30 FR-RH,RR-LH |
67775-91402 |
— | ||
|
74277
|
74277
67776-91401 Retainer, Door Armrest Lower, No.2[11.1967 - 11.1978] VG2#,30 FR-LH,RR-RH |
67776-91401 |
US $10.77 |
||
| replacement | |||||
|
74277
|
74277
67776-91402
Retainer, Door Armrest Lower, No.2
[11.1967 - 11.1978] VG2#,30 FR-LH,RR-RH |
67776-91402 |
— | ||
|
74846A
|
74846A
74846-91401
Base, Door Window Switch
[11.1967 - 08.1968] VG20..A,C,D |
74846-91401 |
— | ||
|
74846A
|
74846A
74846-91403
Base, Door Window Switch
[08.1968 - 05.1974] VG2#..A,C,D |
74846-91403 |
— | ||
|
6769291401
|
6769291401
67692-91401
Cover, Front Door Inner Trim, Lh
|
67692-91401 |
— | ||
|
6777120021
|
6777120021
67771-20021 Retainer(For Front Door Trim Board) |
67771-20021 |
US $2.48 |
||
| replacement | |||||
|
6777120021
|
6777120021
67771-20022 Retainer(For Front Door Trim Board) |
67771-20022 |
from US $1.35 |
||
|
6777220021
|
6777220021
67772-20021 Cap, Front Door Trim Retainer |
67772-20021 |
from US $0.96 |
||
|
6777791403
|
6777791403
67777-91403
Pocket, Front Door Trim, Rh
|
67777-91403 |
— | ||
|
9017904092
|
9017904092
90179-04092
NUT
|
90179-04092 |
— | ||
| replacement | |||||
|
9017904092
|
9017904092
90179-04001 NUT |
90179-04001 |
US $2.88 |
||
|
9321013012
|
9321013012
93210-13012
New Genuine Part
|
93210-13012 |
— | ||
| replacement | |||||
|
9321013012
|
9321013012
93210-13014 New Genuine Part |
93210-13014 |
US $1.75 |
||
|
9321913012
|
9321913012
93219-13012
New Genuine Part
|
93219-13012 |
— | ||
|
9324016016
|
9324016016
93240-16016 New Genuine Part |
93240-16016 |
US $1.60 |
||
|
9331126014
|
9331126014
93311-26014 New Genuine Part |
93311-26014 |
US $1.75 |
||
|
9356014008
|
9356014008
93560-14008 New Genuine Part |
93560-14008 |
US $1.16 |
||
|
9356055012
|
9356055012
93560-55012 New Genuine Part |
93560-55012 |
from US $1.92 |
||
|
9411040300
|
9411040300
94110-40300 New Genuine Part |
94110-40300 |
US $2.18 |
||
|
9411040400
|
9411040400
94110-40400 New Genuine Part |
94110-40400 |
US $2.18 |
||
|
9411540300
|
9411540300
94115-40300
New Genuine Part
|
94115-40300 |
— | ||
|
9451100300
|
9451100300
94511-00300
New Genuine Part
|
94511-00300 |
— | ||
|
9451100400
|
9451100400
94511-00400 WASHERSPRING |
94511-00400 |
US $3.20 |
||
|
9451100600
|
9451100600
94511-00600 Washer, Lock, No.2 |
94511-00600 |
US $1.92 |
||
|
9451140300
|
9451140300
94511-40300
New Genuine Part
|
94511-40300 |
— | ||
|
9461310300
|
9461310300
94613-10300 New Genuine Part |
94613-10300 |
US $0.87 |
||
