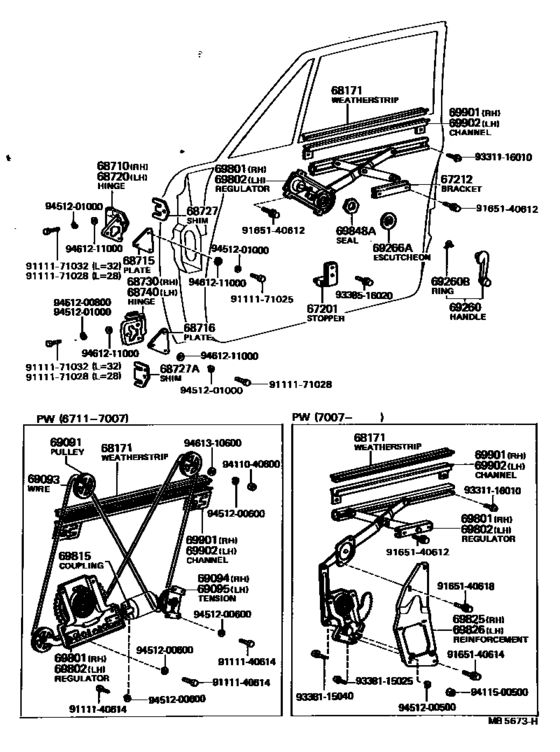

Front Door Window Regulator & Hinge ([11.1967 - ] (6711- )) Diagram Toyota CENTURY
- Year
- 1967 - 1973
- Sales region
- Japan
- Frame
- VG20
- ENGINE
- 3V
- TRANSMISSION
- ATM
- From
- 11.1967
- To
- 02.1973
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
68171
|
68171
68171-40010
Weatherstrip, Front Door Glass Channel
[11.1967 - 07.1970] VG20..A,C,D W/*PW |
68171-40010 |
— | ||
|
68171
|
68171
68171-91403 Weatherstrip, Front Door Glass Channel[07.1970 - 09.1982] VG2#,3# |
68171-91403 |
US $36.55 |
||
|
68710
|
68710
68710-40011 Hinge Assy, Front Door, Upper Rh[03.1970 - 08.1977] VG2#,30 |
68710-40011 |
US $60.72 |
||
| replacement | |||||
|
68710
|
68710
68710-40030
Hinge Assy, Front Door, Upper Rh
[03.1970 - 08.1977] VG2#,30 |
68710-40030 |
— | ||
|
68710
|
68710
68710-40020
Hinge Assy, Front Door, Upper Rh
[11.1967 - 03.1970] VG20 |
68710-40020 |
— | ||
|
68715
|
68715
68743-91402
Plate, Front Door Hinge, Upper
[11.1967 - 03.1970] VG20 |
68743-91402 |
— | ||
|
68715
|
68715
68743-91403
Plate, Front Door Hinge, Upper
[03.1970 - 09.1982] VG2#,3# T=6.0 |
68743-91403 |
— | ||
|
68716
|
68716
68744-91402
Plate, Front Door Hinge, Lower
[11.1967 - 11.1968] VG20 |
68744-91402 |
— | ||
|
68716
|
68716
68744-91403
Plate, Front Door Hinge, Lower
[11.1968 - 03.1970] VG20 |
68744-91403 |
— | ||
|
68716
|
68716
68744-91404
Plate, Front Door Hinge, Lower
[03.1970 - 09.1982] VG2#,3# T=6.0 |
68744-91404 |
— | ||
|
68720
|
68720
68710-40011 Hinge Assy, Front Door, Upper Rh[03.1970 - 08.1977] VG2#,30 |
68710-40011 |
US $60.72 |
||
| replacement | |||||
|
68720
|
68720
68710-40030
Hinge Assy, Front Door, Upper Rh
[03.1970 - 08.1977] VG2#,30 |
68710-40030 |
— | ||
|
68720
|
68720
68710-40020
Hinge Assy, Front Door, Upper Rh
[11.1967 - 03.1970] VG20 |
68710-40020 |
— | ||
|
68727
|
68727
68727-91402
Shim, Front Door Hinge, Upper
[11.1967 - 03.1970] VG20 |
68727-91402 |
— | ||
|
68727
|
68727
68727-91403
Shim, Front Door Hinge, Upper
[03.1970 - 09.1982] VG2#,3# |
68727-91403 |
— | ||
|
68727A
|
68727A
68728-91401
Shim, Front Door Hinge, Lower
[11.1967 - 03.1970] VG20 |
68728-91401 |
— | ||
|
68727A
|
68727A
68728-91402
Shim, Front Door Hinge, Lower
[03.1970 - 09.1982] VG2#,3# |
68728-91402 |
— | ||
|
68730
|
68730
68730-40011
Hinge Assy, Front Door, Lower Rh
[03.1970 - 09.1982] VG2#,3# |
68730-40011 |
— | ||
|
68730
|
68730
68730-40020
Hinge Assy, Front Door, Lower Rh
[11.1967 - 03.1970] VG20 |
68730-40020 |
— | ||
|
68740
|
68740
68740-40011
Hinge Assy, Front Door, Lower Lh
[03.1970 - 09.1982] VG2#,3# |
68740-40011 |
— | ||
|
68740
|
68740
68740-40020
Hinge Assy, Front Door, Lower Lh
[11.1967 - 03.1970] VG20 |
68740-40020 |
— | ||
|
69091
|
69091
69091-40020
Pulley Sub-Assy, Door Window Regulator
[11.1967 - 07.1970] VG20..A,C,D |
69091-40020 |
— | ||
|
69093
|
69093
69905-40020
Wire Sub-Assy, Door Window Regulator
[11.1967 - 07.1970] VG20..A,C,D |
69905-40020 |
— | ||
|
69094
|
69094
69092-40020
Tension Sub-Assy, Window Regulator, No.1
[11.1967 - 07.1970] VG20..A,C,D |
69092-40020 |
— | ||
|
69095
|
69095
69093-40020
Tension Sub-Assy, Window Regulator, No.2
[11.1967 - 07.1970] VG20..A,C,D |
69093-40020 |
— | ||
|
69801
|
69801
69801-40020
Regulator Sub-Assy, Front Door Window, Rh
[11.1967 - 06.1969] VG20..A,C,D *PW |
69801-40020 |
— | ||
| replacements | |||||
|
69801
|
69801
69801-40041
Regulator Sub-Assy, Front Door Window, Rh
[11.1967 - 06.1969] VG20..A,C,D *PW |
69801-40041 |
— | ||
|
69801
|
69801
69825-40021 Reinforcement, Front Door Regulator, Rh[11.1967 - 06.1969] VG20..A,C,D *PW |
69825-40021 |
US $78.62 |
||
|
69801
|
69801
85720-40024
Motor Assy, Power Window Regulator, Rh
[11.1967 - 06.1969] VG20..A,C,D *PW |
85720-40024 |
— | ||
|
69801
|
69801
93219-15020 New Genuine Part[11.1967 - 06.1969] VG20..A,C,D *PW |
93219-15020 |
US $1.28 |
||
|
69801
|
69801
94512-00500 New Genuine Part[11.1967 - 06.1969] VG20..A,C,D *PW |
94512-00500 |
US $1.89 |
||
|
69801
|
69801
69801-40021
Regulator Sub-Assy, Front Door Window, Rh
[06.1969 - 07.1970] VG20..A,C,D *PW |
69801-40021 |
— | ||
| replacements | |||||
|
69801
|
69801
69801-40041
Regulator Sub-Assy, Front Door Window, Rh
[06.1969 - 07.1970] VG20..A,C,D *PW |
69801-40041 |
— | ||
|
69801
|
69801
69825-40021 Reinforcement, Front Door Regulator, Rh[06.1969 - 07.1970] VG20..A,C,D *PW |
69825-40021 |
US $78.62 |
||
|
69801
|
69801
85720-40024
Motor Assy, Power Window Regulator, Rh
[06.1969 - 07.1970] VG20..A,C,D *PW |
85720-40024 |
— | ||
|
69801
|
69801
93219-15020 New Genuine Part[06.1969 - 07.1970] VG20..A,C,D *PW |
93219-15020 |
US $1.28 |
||
|
69801
|
69801
94512-00500 New Genuine Part[06.1969 - 07.1970] VG20..A,C,D *PW |
94512-00500 |
US $1.89 |
||
|
69801
|
69801
69801-40040
Regulator Sub-Assy, Front Door Window, Rh
[07.1970 - 05.1974] VG2#..A,C,D *PW |
69801-40040 |
— | ||
| replacement | |||||
|
69801
|
69801
69801-40041
Regulator Sub-Assy, Front Door Window, Rh
[07.1970 - 05.1974] VG2#..A,C,D *PW |
69801-40041 |
— | ||
|
69802
|
69802
69802-40020 Regulator Sub-Assy, Front Door Window, Lh[11.1967 - 06.1969] VG20..A,C,D *PW |
69802-40020 |
US $272.27 |
||
| replacements | |||||
|
69802
|
69802
69802-40041
Regulator Sub-Assy, Front Door Window, Lh
[11.1967 - 06.1969] VG20..A,C,D *PW |
69802-40041 |
— | ||
|
69802
|
69802
69826-40021 Reinforcement, Front Door Regulator, Lh[11.1967 - 06.1969] VG20..A,C,D *PW |
69826-40021 |
US $78.62 |
||
|
69802
|
69802
85710-40024
Motor Assy, Power Window Regulator, Rh
[11.1967 - 06.1969] VG20..A,C,D *PW |
85710-40024 |
— | ||
|
69802
|
69802
93219-15020 New Genuine Part[11.1967 - 06.1969] VG20..A,C,D *PW |
93219-15020 |
US $1.28 |
||
|
69802
|
69802
94512-00500 New Genuine Part[11.1967 - 06.1969] VG20..A,C,D *PW |
94512-00500 |
US $1.89 |
||
|
69802
|
69802
69802-40021 Regulator Sub-Assy, Front Door Window, Lh[06.1969 - 07.1970] VG20..A,C,D *PW |
69802-40021 |
US $272.27 |
||
| replacements | |||||
|
69802
|
69802
69802-40041
Regulator Sub-Assy, Front Door Window, Lh
[06.1969 - 07.1970] VG20..A,C,D *PW |
69802-40041 |
— | ||
|
69802
|
69802
69826-40021 Reinforcement, Front Door Regulator, Lh[06.1969 - 07.1970] VG20..A,C,D *PW |
69826-40021 |
US $78.62 |
||
|
69802
|
69802
85710-40024
Motor Assy, Power Window Regulator, Rh
[06.1969 - 07.1970] VG20..A,C,D *PW |
85710-40024 |
— | ||
|
69802
|
69802
93219-15020 New Genuine Part[06.1969 - 07.1970] VG20..A,C,D *PW |
93219-15020 |
US $1.28 |
||
|
69802
|
69802
94512-00500 New Genuine Part[06.1969 - 07.1970] VG20..A,C,D *PW |
94512-00500 |
US $1.89 |
||
|
69802
|
69802
69802-40040 Regulator Sub-Assy, Front Door Window, Lh[07.1970 - 05.1974] VG2#..A,C,D *PW |
69802-40040 |
US $272.27 |
||
| replacement | |||||
|
69802
|
69802
69802-40041
Regulator Sub-Assy, Front Door Window, Lh
[07.1970 - 05.1974] VG2#..A,C,D *PW |
69802-40041 |
— | ||
|
69815
|
69815
69815-40020
Coupling, Door Power Window Regulator(For Front Door)
[11.1967 - 07.1970] VG20..A,C,D |
69815-40020 |
— | ||
|
69825
|
69825
69825-40020 Reinforcement, Front Door Regulator, Rh[07.1970 - 04.1975] VG2# W/*PW |
69825-40020 |
US $78.62 |
||
| replacement | |||||
|
69825
|
69825
69825-40021 Reinforcement, Front Door Regulator, Rh[07.1970 - 04.1975] VG2# W/*PW |
69825-40021 |
US $78.62 |
||
|
69826
|
69826
69826-40020 Reinforcement, Front Door Regulator, Lh[07.1970 - 04.1975] VG2# W/*PW |
69826-40020 |
US $78.62 |
||
| replacement | |||||
|
69826
|
69826
69826-40021 Reinforcement, Front Door Regulator, Lh[07.1970 - 04.1975] VG2# W/*PW |
69826-40021 |
US $78.62 |
||
|
69848A
|
69848A
69848-30010
Gasket(For Front Door Window Regulator Handle)
[11.1967 - 09.1982] VG2#,3# |
69848-30010 |
— | ||
|
69901
|
69901
69901-40020
Channel Sub-Assy, Front Door Glass, Rh
[11.1967 - 07.1970] VG20..A,C,D W/*PW |
69901-40020 |
— | ||
|
69901
|
69901
69901-91401
Channel Sub-Assy, Front Door Glass, Rh
[11.1967 - 07.1970] VG20..A,C,D |
69901-91401 |
— | ||
|
69902
|
69902
69901-91401
Channel Sub-Assy, Front Door Glass, Rh
[11.1967 - 07.1970] VG20..A,C,D |
69901-91401 |
— | ||
|
69902
|
69902
69902-40020
Channel Sub-Assy, Front Door Glass, Lh
[11.1967 - 07.1970] VG20..A,C,D W/*PW |
69902-40020 |
— | ||
|
9111140614
|
9111140614
91111-40614
New Genuine Part
|
91111-40614 |
— | ||
| replacement | |||||
|
9111140614
|
9111140614
91111-50614 New Genuine Part |
91111-50614 |
US $3.20 |
||
|
9111171025
|
9111171025
91111-71025
Bolt(For Strut Bar Setting)
|
91111-71025 |
— | ||
|
9111171028
|
9111171028
91111-71028 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91111-71028 |
US $2.62 |
||
| replacement | |||||
|
9111171028
|
9111171028
91112-81028 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91112-81028 |
US $1.60 |
||
|
9111171032
|
9111171032
91111-71032
New Genuine Part
|
91111-71032 |
— | ||
| replacement | |||||
|
9111171032
|
9111171032
91112-71030
New Genuine Part
|
91112-71030 |
— | ||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
US $1.12 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.31 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
|
9165140618
|
9165140618
91651-40618 New Genuine Part |
91651-40618 |
US $2.80 |
||
|
9331116010
|
9331116010
93311-16010 Screw |
93311-16010 |
US $2.56 |
||
|
9338115025
|
9338115025
93381-15025
New Genuine Part
|
93381-15025 |
— | ||
|
9338115040
|
9338115040
93381-15040 New Genuine Part |
93381-15040 |
US $2.33 |
||
|
9338516020
|
9338516020
93385-16020
New Genuine Part
|
93385-16020 |
— | ||
| replacement | |||||
|
9338516020
|
9338516020
93385-26020 New Genuine Part |
93385-26020 |
US $1.44 |
||
|
9411040600
|
9411040600
94110-40600 Nut, Rock |
94110-40600 |
from US $0.70 |
||
|
9411500500
|
9411500500
94115-00500
New Genuine Part
|
94115-00500 |
— | ||
|
9451200500
|
9451200500
94512-00500 New Genuine Part |
94512-00500 |
US $1.89 |
||
|
9451200600
|
9451200600
94512-00600 Washer, Seal(For Head Cover Set) |
94512-00600 |
US $2.08 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.76 |
||
|
9451201000
|
9451201000
94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-01000 |
from US $0.76 |
||
|
9461211000
|
9461211000
94612-11000 Plate, Spring Set |
94612-11000 |
US $2.72 |
||
|
9461310600
|
9461310600
94613-10600 New Genuine Part |
94613-10600 |
US $2.72 |
||
