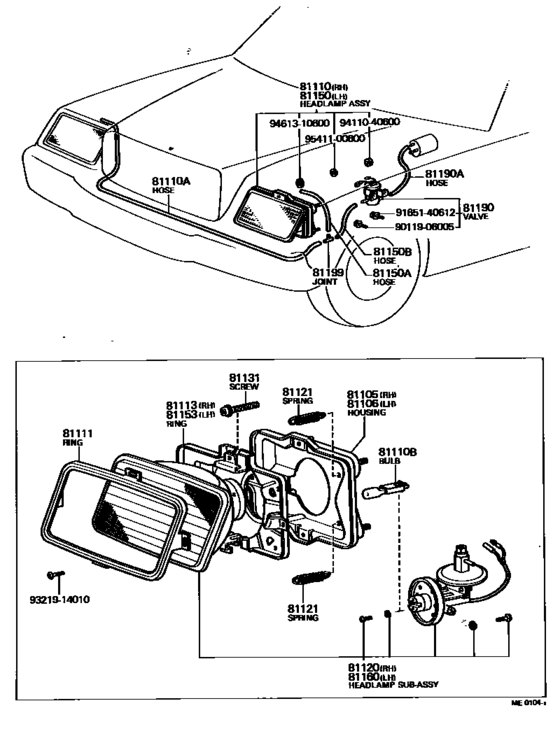

Headlamp ([11.1967 - ] (6711- )) Diagram Toyota CENTURY
- Year
- 1967 - 1973
- Sales region
- Japan
- Frame
- VG20
- ENGINE
- 3V
- TRANSMISSION
- ATM
- From
- 11.1967
- To
- 02.1973
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81105
|
81105
81105-40030
Housing Sub-Assy, Headlamp, Rh
[11.1967 - 09.1982] VG2#,3# |
81105-40030 |
— | ||
|
81106
|
81106
81106-40020
Housing Sub-Assy, Headlamp, Lh
[11.1967 - 09.1982] VG2#,3# |
81106-40020 |
— | ||
|
81110
|
81110
81110-49016 Headlamp Assy, Rh[11.1967 - 09.1982] VG2#,3# |
81110-49016 |
US $739.65 |
||
|
81110A
|
81110A
90445-07269
Hose(For Luggage Lock Release Valve)
[11.1967 - 02.1973] VG20 L=1800 |
90445-07269 |
— | ||
|
81110B
|
81110B
90981-11008
Bulb(For Headlamp, No.1)
[11.1967 - 09.1982] VG2#,3# 12V 75W |
90981-11008 |
— | ||
|
81111
|
81111
81111-40030
Ring, Sealed Beam Retaining
[11.1967 - 09.1982] VG2#,3# RH |
81111-40030 |
— | ||
|
81111
|
81111
81151-40020 Ring, Sealed Beam RetainingSEALED BEAM RETAINING [11.1967 - 09.1982] VG2#,3# LH |
81151-40020 |
US $60.57 |
||
|
81113
|
81113
81113-40030
Ring, Sealed Beam Mounting, No.1 Rh
[11.1967 - 05.1968] VG20 |
81113-40030 |
— | ||
|
81113
|
81113
81113-40031 Ring, Sealed Beam Mounting, No.1 Rh[05.1968 - 02.1973] VG20 |
81113-40031 |
US $47.90 |
||
| replacements | |||||
|
81113
|
81113
81113-40032
Ring, Sealed Beam Mounting, No.1 Rh
[05.1968 - 02.1973] VG20 |
81113-40032 |
— | ||
|
81113
|
81113
93219-14010 Screw[05.1968 - 02.1973] VG20 |
93219-14010 |
US $1.12 |
||
|
81120
|
81120
81120-40031 Headlamp Sub-Assy, Rh[11.1967 - 09.1982] VG2#,3# |
81120-40031 |
US $700.34 |
||
|
81121
|
81121
81121-40030
Spring, Headlamp Tension
[11.1967 - 09.1982] VG2#,3# LWR |
81121-40030 |
— | ||
|
81121
|
81121
81126-40030
Spring, Headlamp Tension
[05.1968 - 09.1982] VG2#,3# UPP |
81126-40030 |
— | ||
|
81131
|
81131
81131-40030
Screw, Headlamp Adjusting
[11.1967 - 09.1982] VG2#,3# |
81131-40030 |
— | ||
|
81150
|
81150
81150-49016 Headlamp Assy, Lh[11.1967 - 09.1982] VG2#,3# |
81150-49016 |
US $739.65 |
||
|
81150A
|
81150A
90445-07268
Hose(For Headlamp Lh To Joint)
[11.1967 - 09.1982] VG2#,3# L=580 |
90445-07268 |
— | ||
|
81150B
|
81150B
90445-07267 Hose, Fuel, No.1(For Charcoal Canister)[11.1967 - 05.1974] VG2# L=480 |
90445-07267 |
US $10.19 |
||
| replacement | |||||
|
81150B
|
81150B
90999-92003
Hose, Breather (For Transfer Case)
[11.1967 - 05.1974] VG2# L=480 |
90999-92003 |
— | ||
|
81153
|
81153
81153-40020
Ring, Sealed Beam Mounting, No.1 Lh
[11.1967 - 05.1968] VG20 |
81153-40020 |
— | ||
|
81153
|
81153
81153-40021 Ring, Sealed Beam Mounting, No.1 Lh[05.1968 - 02.1973] VG20 |
81153-40021 |
US $43.39 |
||
| replacements | |||||
|
81153
|
81153
81153-40022
Ring, Sealed Beam Mounting, No.1 Lh
[05.1968 - 02.1973] VG20 |
81153-40022 |
— | ||
|
81153
|
81153
93219-14010 Screw[05.1968 - 02.1973] VG20 |
93219-14010 |
US $1.12 |
||
|
81160
|
81160
81160-40021 Headlamp Sub-Assy, Lh[11.1967 - 09.1982] VG2#,3# |
81160-40021 |
US $736.74 |
||
|
81190
|
81190
81190-49015
Valve Assy, Headlamp Magnet
[11.1967 - 09.1982] VG2#,3# |
81190-49015 |
— | ||
|
81190A
|
81190A
90445-07241 Hose, Magnet Valve To Switch[11.1967 - 05.1974] VG2# L=1040 |
90445-07241 |
US $6.26 |
||
| replacement | |||||
|
81190A
|
81190A
90445-07279 Hose(For Headlamp Hose Joint To Magnet Valve)[11.1967 - 05.1974] VG2# L=1040 |
90445-07279 |
US $8.30 |
||
|
81199
|
81199
81199-40010 Joint, Headlamp Hose[11.1967 - 07.1979] VG2#,3# |
81199-40010 |
US $5.53 |
||
| replacement | |||||
|
81199
|
81199
90413-04073
Way, 3(For Luggage Lock Release Valve)
[11.1967 - 07.1979] VG2#,3# |
90413-04073 |
— | ||
|
9011906005
|
9011906005
90119-06005 New Genuine Part |
90119-06005 |
US $1.28 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
US $1.12 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.31 |
||
|
9321914010
|
9321914010
93219-14010 Screw |
93219-14010 |
US $1.12 |
||
|
9411040600
|
9411040600
94110-40600 Nut, Rock |
94110-40600 |
from US $0.70 |
||
|
9461310600
|
9461310600
94613-10600 New Genuine Part |
94613-10600 |
US $2.72 |
||
|
9541100600
|
9541100600
95411-00600
New Genuine Part
|
95411-00600 |
— | ||
