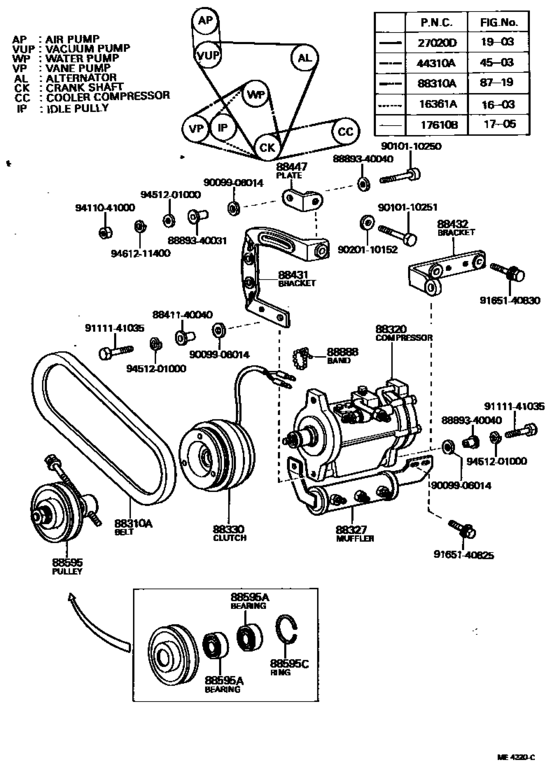

Heating & Air Conditioning - Compressor ([11.1967 - ] (6711- )) Diagram Toyota CENTURY
- Year
- 1967 - 1973
- Sales region
- Japan
- Frame
- VG20
- ENGINE
- 3V
- TRANSMISSION
- ATM
- From
- 11.1967
- To
- 02.1973
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16361A
|
16361A
99522-11000 Belt, V(For Fan & Alternator)[11.1967 - 02.1973] 3V..VG20 |
99522-11000 |
US $11.94 |
||
| replacement | |||||
|
16361A
|
16361A
99322-00995
Belt, V(For Fan & Alternator)
[11.1967 - 02.1973] 3V..VG20 |
99322-00995 |
— | ||
|
27020D
|
27020D
90916-02029 Belt, Fan(For Alternator)[11.1967 - 05.1975] 3V,4V..VG2# 12V 65A,80A |
90916-02029 |
US $21.11 |
||
| replacement | |||||
|
27020D
|
27020D
99322-01345
Belt, Fan(For Alternator)
[11.1967 - 05.1975] 3V,4V..VG2# 12V 65A,80A |
99322-01345 |
— | ||
|
44310A
|
44310A
99522-11164 Belt, V(For Vane Pump)[11.1967 - 02.1973] VG20 |
99522-11164 |
US $12.96 |
||
| replacement | |||||
|
44310A
|
44310A
99322-01155
Belt, V(For Air Pump)
[11.1967 - 02.1973] VG20 |
99322-01155 |
— | ||
|
88310A
|
88310A
99523-10875 Belt, V (Cooler Compressor To Crankshaft Pulley), No.1[11.1967 - 06.1969] VG20 |
99523-10875 |
US $18.78 |
||
| replacement | |||||
|
88310A
|
88310A
99323-00890
Belt, V (Cooler Compressor To Crankshaft Pulley), No.1
[11.1967 - 06.1969] VG20 |
99323-00890 |
— | ||
|
88310A
|
88310A
99523-10894 Belt, V (Cooler Compressor To Crankshaft Pulley), No.1[06.1969 - 11.1978] VG2#,30 |
99523-10894 |
US $18.78 |
||
| replacement | |||||
|
88310A
|
88310A
99323-00890
Belt, V (Cooler Compressor To Crankshaft Pulley), No.1
[06.1969 - 11.1978] VG2#,30 |
99323-00890 |
— | ||
|
88320
|
88320
88320-40030
Compressor Assy, Cooler
[11.1967 - 11.1968] VG20 |
88320-40030 |
— | ||
| replacement | |||||
|
88320
|
88320
88320-40035
Compressor Assy, Cooler
[11.1967 - 11.1968] VG20 |
88320-40035 |
— | ||
|
88320
|
88320
88320-40032
Compressor Assy, Cooler
[11.1968 - 03.1972] VG20 |
88320-40032 |
— | ||
| replacement | |||||
|
88320
|
88320
88320-40035
Compressor Assy, Cooler
[11.1968 - 03.1972] VG20 |
88320-40035 |
— | ||
|
88320
|
88320
88320-40034
Compressor Assy, Cooler
[03.1972 - 05.1975] VG2# |
88320-40034 |
— | ||
| replacement | |||||
|
88320
|
88320
88320-40035
Compressor Assy, Cooler
[03.1972 - 05.1975] VG2# |
88320-40035 |
— | ||
|
88327
|
88327
88357-40030
Muffler, Cooler Compressor
[07.1968 - 06.1969] VG20 |
88357-40030 |
— | ||
|
88327
|
88327
88357-40031
Muffler, Cooler Compressor
[06.1969 - 09.1982] VG2#,3# |
88357-40031 |
— | ||
|
88330
|
88330
88410-40031
Clutch Assy, Magnet
[11.1967 - 11.1968] VG20 |
88410-40031 |
— | ||
|
88330
|
88330
88410-40032 Clutch Assy, Magnet[11.1968 - 03.1969] VG20 |
88410-40032 |
US $496.50 |
||
| replacement | |||||
|
88330
|
88330
88410-40033
Clutch Assy, Magnet
[11.1968 - 03.1969] VG20 |
88410-40033 |
— | ||
|
88330
|
88330
88410-40033
Clutch Assy, Magnet
[03.1969 - 09.1982] VG2#,3# |
88410-40033 |
— | ||
|
88431
|
88431
88431-40030
Bracket, Compressor Mounting, No.1
[11.1967 - 02.1968] VG20 |
88431-40030 |
— | ||
|
88431
|
88431
88431-40031
Bracket, Compressor Mounting, No.1
[02.1968 - 06.1968] VG20 |
88431-40031 |
— | ||
| replacement | |||||
|
88431
|
88431
88431-40032
Bracket, Compressor Mounting, No.1
[02.1968 - 06.1968] VG20 |
88431-40032 |
— | ||
|
88431
|
88431
88431-40032
Bracket, Compressor Mounting, No.1
[06.1968 - 09.1982] VG2#,3# |
88431-40032 |
— | ||
|
88432
|
88432
88432-40030
Bracket, Compressor Mounting, No.2
[11.1967 - 02.1968] VG20 |
88432-40030 |
— | ||
| replacement | |||||
|
88432
|
88432
88432-40032
Bracket, Compressor Mounting, No.2
[11.1967 - 02.1968] VG20 |
88432-40032 |
— | ||
|
88432
|
88432
88432-40031
Bracket, Compressor Mounting, No.2
[02.1968 - 06.1968] VG20 |
88432-40031 |
— | ||
|
88432
|
88432
88432-40032
Bracket, Compressor Mounting, No.2
[06.1968 - 09.1982] VG2#,3# |
88432-40032 |
— | ||
|
88447
|
88447
88447-40030
Plate, Compressor Belt Adjusting
[02.1968 - 09.1982] VG2#,3# |
88447-40030 |
— | ||
|
88595
|
88595
88402-30151
Pulley, Cooler Compressor Idle
[11.1967 - 02.1973] VG20 |
88402-30151 |
— | ||
| replacement | |||||
|
88595
|
88595
88402-30152
Pulley, Cooler Compressor Idle
[11.1967 - 02.1973] VG20 |
88402-30152 |
— | ||
|
88595A
|
88595A
90099-10089
Bearing (For Cooler Idle Pulley)
[11.1967 - 02.1973] VG20 |
90099-10089 |
— | ||
|
88595C
|
88595C
90099-07102
Ring, Snap (For Cooler Idle Pulley)
[11.1967 - 02.1973] VG20 |
90099-07102 |
— | ||
|
88888
|
88888
88888-40040
Clamp (For Idle Up Divice), No.1
[11.1967 - 11.1978] VG2#,30 |
88888-40040 |
— | ||
|
8841140040
|
8841140040
88411-40040
New Genuine Part
|
88411-40040 |
— | ||
|
8889340031
|
8889340031
88893-40031
Collar (for Cooler Idler Pulley)
|
88893-40031 |
— | ||
|
8889340040
|
8889340040
88893-40040
Collar (for Cooler Idler Pulley)
|
88893-40040 |
— | ||
|
9009906014
|
9009906014
90099-06014
New Genuine Part
|
90099-06014 |
— | ||
|
9010110250
|
9010110250
90101-10250
New Genuine Part
|
90101-10250 |
— | ||
|
9010110251
|
9010110251
90101-10251
New Genuine Part
|
90101-10251 |
— | ||
|
9020110152
|
9020110152
90201-10152 WASHER |
90201-10152 |
from US $0.88 |
||
|
9111141035
|
9111141035
91111-41035 Bolt(For Clutch Pedal Stopper) |
91111-41035 |
US $0.79 |
||
|
9165140825
|
9165140825
91651-40825 Bolt(For Clutch Release Cylinder Setting) |
91651-40825 |
US $3.20 |
||
|
9165140830
|
9165140830
91651-40830 Bolt, Radiator Side Support Plate |
91651-40830 |
US $1.31 |
||
|
9411041000
|
9411041000
94110-41000 Nut(For Steering Damper) |
94110-41000 |
US $2.56 |
||
|
9451201000
|
9451201000
94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-01000 |
from US $0.76 |
||
|
9461211400
|
9461211400
94612-11400 WASHERPLATE |
94612-11400 |
US $2.56 |
||
