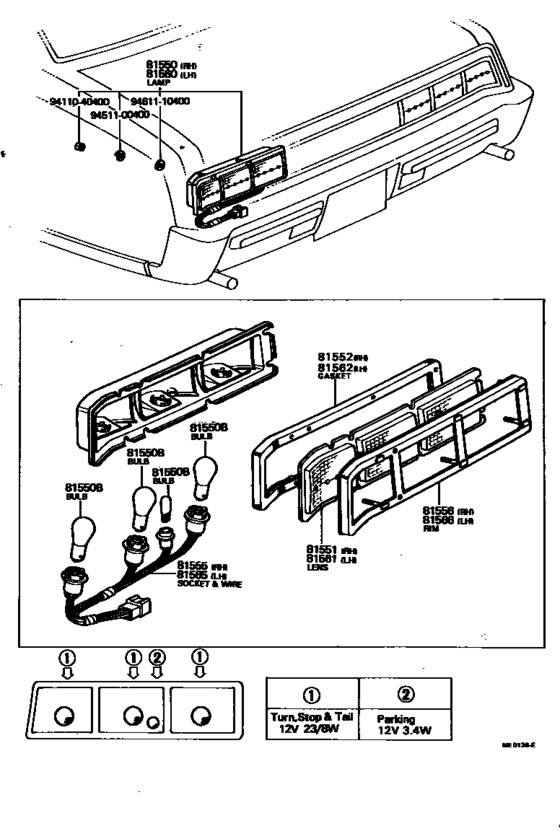

Rear Combination Lamp ([11.1967 - 02.1973] (6711-7302)) Diagram Toyota CENTURY
- Year
- 1967 - 1973
- Sales region
- Japan
- Frame
- VG20
- ENGINE
- 3V
- TRANSMISSION
- ATM
- From
- 11.1967
- To
- 02.1973
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81550
|
81550
81550-49015
Lamp Assy, Rear Combination, Rh
[11.1967 - 08.1969] VG20 RED |
81550-49015 |
— | ||
|
81550
|
81550
81550-49016
Lamp Assy, Rear Combination, Rh
[08.1969 - 02.1973] VG20 RED |
81550-49016 |
— | ||
|
81550B
|
81550B
99132-12034 Bulb, Position Indicator Lamp[08.1969 - 09.1982] VG2#,3# １２Ｖ ３．４Ｗ,12V 3.4W |
99132-12034 |
from US $1.60 |
||
| replacement | |||||
|
81550B
|
81550B
00234-00158 Bulb, Position Indicator Lamp[08.1969 - 09.1982] VG2#,3# １２Ｖ ３．４Ｗ,12V 3.4W |
00234-00158 |
US $1.59 |
||
|
81550B
|
81550B
99132-21230 Bulb (For Front Turn Signal Lamp)[08.1969 - 09.1982] VG2#,3# １２Ｖ ２３／８Ｗ,12V 23/8W |
99132-21230 |
US $3.04 |
||
|
81550B
|
81550B
99132-22250 Bulb (For Front Turn Signal Lamp)[11.1967 - 08.1969] VG20 12V 25/8W |
99132-22250 |
US $2.18 |
||
| replacement | |||||
|
81550B
|
81550B
99132-21230 Bulb (For Front Turn Signal Lamp)[11.1967 - 08.1969] VG20 12V 25/8W |
99132-21230 |
US $3.04 |
||
|
81551
|
81551
81551-40021
Lens, Rear Combination Lamp, Rh
[11.1967 - 02.1973] VG20 RED |
81551-40021 |
— | ||
|
81552
|
81552
81554-40021
Gasket, Rear Combination Lamp Lens, Rh
[11.1967 - 02.1973] VG20 |
81554-40021 |
— | ||
|
81555
|
81555
81555-40021
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[11.1967 - 02.1973] VG20 |
81555-40021 |
— | ||
|
81556
|
81556
81556-40021 Rim, Rear Combination Lamp, Rh[11.1967 - 02.1973] VG20 |
81556-40021 |
US $149.97 |
||
| replacements | |||||
|
81556
|
81556
90076-01001 NUT[11.1967 - 02.1973] VG20 |
90076-01001 |
US $2.08 |
||
|
81556
|
81556
81556-40023
Rim, Rear Combination Lamp, Rh
[11.1967 - 02.1973] VG20 |
81556-40023 |
— | ||
|
81560
|
81560
81560-49015
Lamp Assy, Rear Combination, Lh
[11.1967 - 08.1969] VG20 RED |
81560-49015 |
— | ||
|
81560
|
81560
81560-49016
Lamp Assy, Rear Combination, Lh
[08.1969 - 02.1973] VG20 RED |
81560-49016 |
— | ||
|
81561
|
81561
81561-40011
Lens, Rear Combination Lamp, Lh
[11.1967 - 02.1973] VG20 RED |
81561-40011 |
— | ||
|
81562
|
81562
81564-40011
Gasket, Rear Combination Lamp Lens, Lh
[11.1967 - 02.1973] VG20 |
81564-40011 |
— | ||
|
81565
|
81565
81555-40021
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[11.1967 - 02.1973] VG20 |
81555-40021 |
— | ||
|
81566
|
81566
81566-40011 Rim, Rear Combination Lamp, Lh[11.1967 - 02.1973] VG20 |
81566-40011 |
US $20.97 |
||
| replacements | |||||
|
81566
|
81566
90076-01001 NUT[11.1967 - 02.1973] VG20 |
90076-01001 |
US $2.08 |
||
|
81566
|
81566
81566-40013
Rim, Rear Combination Lamp, Lh
[11.1967 - 02.1973] VG20 |
81566-40013 |
— | ||
|
9411040400
|
9411040400
94110-40400 New Genuine Part |
94110-40400 |
US $2.18 |
||
|
9451100400
|
9451100400
94511-00400 WASHERSPRING |
94511-00400 |
US $3.20 |
||
|
9461110400
|
9461110400
94611-10400 New Genuine Part |
94611-10400 |
US $1.38 |
||
