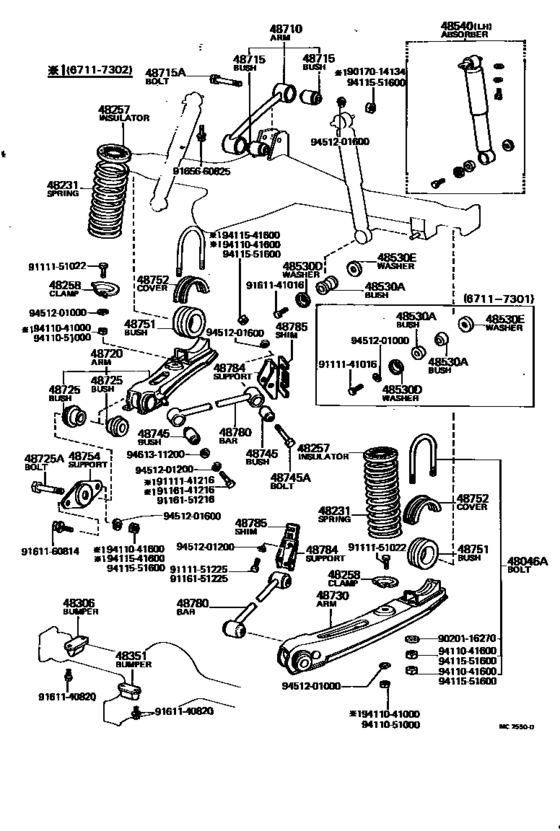

Rear Spring & Shock Absorber ([11.1967 - 01.1977] (6711-7701)) Diagram Toyota CENTURY
- Year
- 1967 - 1973
- Sales region
- Japan
- Frame
- VG20
- ENGINE
- 3V
- TRANSMISSION
- ATM
- From
- 11.1967
- To
- 02.1973
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48046A
|
48046A
90999-99008 Bolt, U(For Rear Spring)[11.1967 - 02.1973] VG20 |
90999-99008 |
US $26.35 |
||
| replacements | |||||
|
48046A
|
48046A
90117-16112 New Genuine Part[11.1967 - 02.1973] VG20 |
90117-16112 |
US $26.35 |
||
|
48046A
|
48046A
90201-16270
New Genuine Part
[11.1967 - 02.1973] VG20 |
90201-16270 |
— | ||
|
48046A
|
48046A
94115-51600
Nut, Hexagon(For Sector Shaft To Pitman Arm Setting)
[11.1967 - 02.1973] VG20 |
94115-51600 |
— | ||
|
48231
|
48231
48231-40042 Spring, Coil, Rear[11.1967 - 05.1975] VG2# |
48231-40042 |
US $206.75 |
||
| replacement | |||||
|
48231
|
48231
48231-40060
Spring, Coil, Rear
[11.1967 - 05.1975] VG2# |
48231-40060 |
— | ||
|
48257
|
48257
48257-40010 Insulator, Rear Coil SpringREAR COIL SPRING [11.1967 - 09.1982] VG2#,3# |
48257-40010 |
US $8.44 |
||
|
48258
|
48258
48258-40010
Clamp, Rear Coil Spring
[11.1967 - 09.1982] VG2#,3# |
48258-40010 |
— | ||
|
48306
|
48306
48306-40010
Bumper Sub-Assy, Rear Spring
[11.1967 - 05.1975] VG2# |
48306-40010 |
— | ||
|
48351
|
48351
48307-40010
Bumper, Differential Carrier
[11.1967 - 02.1973] VG20 |
48307-40010 |
— | ||
|
48530A
|
48530A
90385-16007 Cushion, Front Shock Absorber[11.1967 - 01.1973] VG20 |
90385-16007 |
from US $2.05 |
||
|
48530A
|
48530A
90385-16060 Bush(For Rear Shock Absorber)[01.1973 - 09.1982] VG2#,3# LWR |
90385-16060 |
US $8.74 |
||
| replacement | |||||
|
48530A
|
48530A
90385-16004 Cushion, Front Shock Absorber[01.1973 - 09.1982] VG2#,3# LWR |
90385-16004 |
from US $3.28 |
||
|
48530D
|
48530D
90948-03007 Washer, Front Shock Absorber Cushion, No.1[11.1967 - 09.1982] VG2#,3# |
90948-03007 |
US $1.76 |
||
|
48530E
|
48530E
90948-03004 Retainer, Cushion, No.1(For Front Shock Absorber)[11.1967 - 09.1982] VG2#,3# |
90948-03004 |
from US $1.42 |
||
|
48540
|
48540
48531-49015
Absorber Assy, Shock, Rear Rh
[11.1967 - 05.1975] VG2# |
48531-49015 |
— | ||
|
48710
|
48710
48710-40010 Arm Assy, Upper Control[11.1967 - 06.1968] VG20 |
48710-40010 |
US $115.02 |
||
| replacement | |||||
|
48710
|
48710
48710-40020
Arm Assy, Upper Control
[11.1967 - 06.1968] VG20 |
48710-40020 |
— | ||
|
48710
|
48710
48710-40020
Arm Assy, Upper Control
[06.1968 - 02.1973] VG20 |
48710-40020 |
— | ||
|
48715
|
48715
48702-40010 Bush, Upper Control Arm[11.1967 - 02.1973] VG20 |
48702-40010 |
US $30.87 |
||
| replacement | |||||
|
48715
|
48715
48702-40020
Bush, Upper Control Arm
[11.1967 - 02.1973] VG20 |
48702-40020 |
— | ||
|
48715A
|
48715A
90101-14201
Bolt, Hexagon(For Upper Control Arm)
[11.1967 - 02.1973] VG20 |
90101-14201 |
— | ||
|
48720
|
48720
48720-40010 Arm Assy, Lower Control, Rh[11.1967 - 08.1969] VG20 |
48720-40010 |
US $157.25 |
||
| replacements | |||||
|
48720
|
48720
91162-61216 New Genuine Part[11.1967 - 08.1969] VG20 |
91162-61216 |
US $1.60 |
||
|
48720
|
48720
48720-40011
Arm Assy, Lower Control, Rh
[11.1967 - 08.1969] VG20 |
48720-40011 |
— | ||
|
48720
|
48720
48720-40011
Arm Assy, Lower Control, Rh
[08.1969 - 09.1982] VG2#,3# ISO |
48720-40011 |
— | ||
|
48725
|
48725
48704-40010
Bush, Lower Control Arm
[11.1967 - 09.1982] VG2#,3# |
48704-40010 |
— | ||
|
48725A
|
48725A
90101-16193 Bolt(For Lower Control Arm)[11.1967 - 08.1969] VG20 |
90101-16193 |
US $4.66 |
||
| replacement | |||||
|
48725A
|
48725A
90101-16305
Bolt(For Lower Control Arm)
[11.1967 - 08.1969] VG20 |
90101-16305 |
— | ||
|
48725A
|
48725A
90101-16305
Bolt(For Lower Control Arm)
[08.1969 - 09.1982] VG2#,3# |
90101-16305 |
— | ||
|
48730
|
48730
48730-40010 Arm Assy, Lower Control, Lh[11.1967 - 08.1969] VG20 |
48730-40010 |
US $205.30 |
||
| replacements | |||||
|
48730
|
48730
91162-61216 New Genuine Part[11.1967 - 08.1969] VG20 |
91162-61216 |
US $1.60 |
||
|
48730
|
48730
48730-40011
Arm Assy, Lower Control, Lh
[11.1967 - 08.1969] VG20 |
48730-40011 |
— | ||
|
48730
|
48730
48730-40011
Arm Assy, Lower Control, Lh
[08.1969 - 09.1982] VG2#,3# |
48730-40011 |
— | ||
|
48745
|
48745
48706-30010 Bush, Lateral Control RodLATERAL CONTROL ROD [11.1967 - 09.1982] VG2#,3# |
48706-30010 |
US $17.18 |
||
|
48745A
|
48745A
90101-16202 Bolt, Hexagon(For Lateral Control Rod)[11.1967 - 08.1969] VG20 |
90101-16202 |
US $4.51 |
||
| replacement | |||||
|
48745A
|
48745A
90101-16306 Bolt, Hexagon(For Lateral Control Rod)[11.1967 - 08.1969] VG20 |
90101-16306 |
US $4.51 |
||
|
48745A
|
48745A
90101-16306 Bolt, Hexagon(For Lateral Control Rod)[08.1969 - 09.1982] VG2#,3# |
90101-16306 |
US $4.51 |
||
|
48751
|
48751
48751-40010 Bush, Rear Axle Mounting[11.1967 - 04.1974] VG2# |
48751-40010 |
US $45.28 |
||
| replacement | |||||
|
48751
|
48751
48751-40012 Bush, Rear Axle Mounting[11.1967 - 04.1974] VG2# |
48751-40012 |
US $45.43 |
||
|
48752
|
48752
48752-40010
Cover, Rear Axle Bush
[11.1967 - 09.1982] VG2#,3# |
48752-40010 |
— | ||
|
48754
|
48754
48754-40010
Support, Lower Arm Pin
[11.1967 - 09.1982] VG2#,3# |
48754-40010 |
— | ||
|
48780
|
48780
48780-40010
Bar Assy, Strut
[11.1967 - 09.1982] VG2#,3# |
48780-40010 |
— | ||
|
48784
|
48784
48784-40010
Support, Strut Bar Pin
[11.1967 - 09.1982] VG2#,3# |
48784-40010 |
— | ||
|
48785
|
48785
48785-40010
Shim, Strut Bar Adjust
[11.1967 - 09.1982] VG2#,3# T=2.0 |
48785-40010 |
— | ||
|
48785
|
48785
48786-40010
Shim, Strut Bar Adjust
[11.1967 - 09.1982] VG2#,3# T=1.0 |
48786-40010 |
— | ||
|
9017014134
|
9017014134
90170-14134 New Genuine Part |
90170-14134 |
US $8.88 |
||
|
9020116270
|
9020116270
90201-16270
New Genuine Part
|
90201-16270 |
— | ||
|
9111141016
|
9111141016
91111-41016
Bolt, Set (For Rear Brake Drum Setting)
|
91111-41016 |
— | ||
| replacement | |||||
|
9111141016
|
9111141016
91111-51016 Bolt, Set (For Rear Brake Drum Setting) |
91111-51016 |
US $2.04 |
||
|
9111141216
|
9111141216
91111-41216 New Genuine Part |
91111-41216 |
US $2.77 |
||
| replacement | |||||
|
9111141216
|
9111141216
91111-51216
New Genuine Part
|
91111-51216 |
— | ||
|
9111151022
|
9111151022
91111-51022 New Genuine Part |
91111-51022 |
US $2.91 |
||
|
9111151225
|
9111151225
91111-51225 New Genuine Part |
91111-51225 |
US $3.06 |
||
|
9116141216
|
9116141216
91161-41216
New Genuine Part
|
91161-41216 |
— | ||
| replacement | |||||
|
9116141216
|
9116141216
91162-61216 New Genuine Part |
91162-61216 |
US $1.60 |
||
|
9116151216
|
9116151216
91161-51216 New Genuine Part |
91161-51216 |
US $3.20 |
||
|
9116151225
|
9116151225
91161-51225
New Genuine Part
|
91161-51225 |
— | ||
|
9161140820
|
9161140820
91611-40820
Bolt(For Intake Manifold To Exhaust Manifold)
|
91611-40820 |
— | ||
|
9161141016
|
9161141016
91611-41016 Bolt(for Dust Cover To Steering Knuckle Arm Setting) |
91611-41016 |
US $2.91 |
||
| replacement | |||||
|
9161141016
|
9161141016
91612-61016 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91612-61016 |
US $2.24 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $1.60 |
||
|
9165660825
|
9165660825
91656-60825
Bolt, Hexagon(For Steering Column Bracket)
|
91656-60825 |
— | ||
| replacement | |||||
|
9165660825
|
9165660825
91651-B0825 Bolt, Hexagon(For Steering Column Bracket) |
91651-B0825 |
from US $0.84 |
||
|
9411041000
|
9411041000
94110-41000 Nut(For Steering Damper) |
94110-41000 |
US $2.56 |
||
|
9411041600
|
9411041600
94110-41600 Nut, Hexagon(For Sector Shaft To Pitman Arm Setting)HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING) |
94110-41600 |
US $2.04 |
||
| replacement | |||||
|
9411041600
|
9411041600
94130-61600 Nut, Hexagon(for Sector Shaft To Pitman Arm Setting) |
94130-61600 |
US $1.92 |
||
|
9411051000
|
9411051000
94110-51000 Nut(For Steering Center Arm) |
94110-51000 |
from US $2.08 |
||
|
9411541600
|
9411541600
94115-41600
Nut, Hexagon(for Sector Shaft To Pitman Arm Setting)
|
94115-41600 |
— | ||
| replacement | |||||
|
9411541600
|
9411541600
94130-61600 Nut, Hexagon(for Sector Shaft To Pitman Arm Setting) |
94130-61600 |
US $1.92 |
||
|
9411551600
|
9411551600
94115-51600
Nut, Hexagon(For Sector Shaft To Pitman Arm Setting)
|
94115-51600 |
— | ||
|
9451201000
|
9451201000
94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-01000 |
from US $0.76 |
||
|
9451201200
|
9451201200
94512-01200 Washer |
94512-01200 |
from US $0.76 |
||
|
9451201600
|
9451201600
94512-01600
Washer(For Center Arm Shaft)
|
94512-01600 |
— | ||
| replacement | |||||
|
9451201600
|
9451201600
90204-16001 Washer(For Center Arm Shaft) |
90204-16001 |
US $2.72 |
||
|
9461311200
|
9461311200
94613-11200 WASHER |
94613-11200 |
US $1.12 |
||
