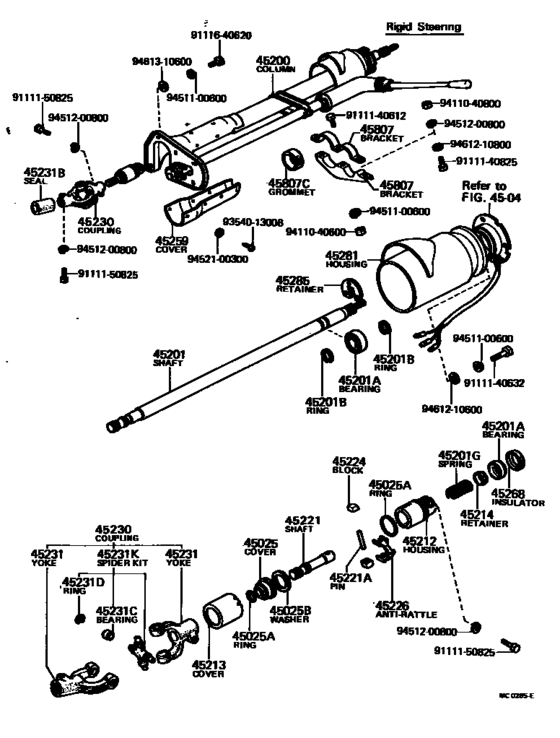

Steering Column & Shaft ([11.1967 - 03.1969] (6711-6903)B,C,D) Diagram Toyota CENTURY
- Year
- 1967 - 1973
- Sales region
- Japan
- Frame
- VG20
- ENGINE
- 3V
- TRANSMISSION
- ATM
- From
- 11.1967
- To
- 02.1973
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45025
|
45025
45025-40010
Cover, Steering Intermediate Shaft
[11.1967 - 03.1969] VG20 |
45025-40010 |
— | ||
|
45025A
|
45025A
90301-17011 Ring, O(For Clutch Release Bellcrank)[11.1967 - 03.1969] VG20 ID=17 |
90301-17011 |
US $5.12 |
||
|
45025A
|
45025A
90301-42036 Ring, O(For Steering Column Hole Cover)O(FOR STEERING MAIN SHAFT) [11.1967 - 03.1969] VG20 ID=42 |
90301-42036 |
US $4.22 |
||
|
45025B
|
45025B
90201-33133 Washer, Plate(For Steering Column Hole Cover)PLATE(FOR STEERING COLUMN HOLE COVER) [11.1967 - 03.1969] VG20 |
90201-33133 |
US $1.75 |
||
|
45200
|
45200
45250-40090
Post Assy, Steering
[11.1967 - 03.1969] VG20..ATM W/POWER STEERING |
45250-40090 |
— | ||
|
45200
|
45200
45250-40130 Post Assy, Steering[03.1969 - 02.1971] VG20..B,C,D W/COLLAPSIBLE STEERING |
45250-40130 |
US $710.53 |
||
| replacement | |||||
|
45200
|
45200
45250-40131
Post Assy, Steering
[03.1969 - 02.1971] VG20..B,C,D W/COLLAPSIBLE STEERING |
45250-40131 |
— | ||
|
45200
|
45200
45250-40131
Post Assy, Steering
[02.1971 - 02.1973] VG20..B,C,D W/COLLAPSIBLE STEERING |
45250-40131 |
— | ||
|
45201
|
45201
45210-40010
Shaft Sub-Assy, Steering Main
[03.1969 - 02.1973] VG20..B,C,D |
45210-40010 |
— | ||
|
45201
|
45201
45211-40030
Shaft Sub-Assy, Steering Main
[11.1967 - 03.1969] VG20..D |
45211-40030 |
— | ||
|
45201A
|
45201A
90363-18038 Bearing(For Steering Main Shaft)[11.1967 - 02.1973] VG20..B,C,D UPR |
90363-18038 |
US $10.56 |
||
|
45201A
|
45201A
90369-36003
Bearing(For Steering Main Shaft)
[11.1967 - 02.1969] VG20 LWR |
90369-36003 |
— | ||
|
45201B
|
45201B
90520-17042 Ring, Shaft Snap(For Steering Main Shaft)[11.1967 - 09.1982] VG2#,3# 厚さ＝１．２０,T=1.2 |
90520-17042 |
from US $0.86 |
||
|
45201G
|
45201G
90501-26357
Spring, Compression(For Steering Main Shaft)
[11.1967 - 03.1969] VG20 WD=2.6,CW=5 |
90501-26357 |
— | ||
|
45212
|
45212
45212-40010
Housing, Main Shaft Joint
[11.1967 - 03.1969] VG20 |
45212-40010 |
— | ||
|
45213
|
45213
45213-40010
Cover, Main Shaft Joint
[11.1967 - 03.1969] VG20 |
45213-40010 |
— | ||
|
45214
|
45214
45214-40010
Retainer, Main Shaft Spring
[11.1967 - 03.1969] VG20 |
45214-40010 |
— | ||
|
45221
|
45221
45221-40020
Shaft, Steering Intermediate
[11.1967 - 03.1969] VG20 |
45221-40020 |
— | ||
|
45221A
|
45221A
90250-10059 Pin(For Steering Intermediate Shaft)[11.1967 - 03.1969] VG20 |
90250-10059 |
US $9.05 |
||
|
45224
|
45224
45224-30011
Block, Bearing(For Steering Flexible Coupling)
[11.1967 - 03.1969] VG20 15.97X15.97 |
45224-30011 |
— | ||
|
45224
|
45224
45225-30011
Block, Bearing(For Steering Flexible Coupling)
[11.1967 - 03.1969] VG20 16.03X16.03 |
45225-30011 |
— | ||
|
45226
|
45226
45226-30010 Anti-Rattle(For Steering Flexible Coupling)[11.1967 - 03.1969] VG20 |
45226-30010 |
US $4.66 |
||
|
45230
|
45230
45230-62010
Coupling Assy, Flexible
[11.1967 - 03.1969] VG20 |
45230-62010 |
— | ||
|
45231
|
45231
45244-62010
Yoke, Main Shaft Flexible Coupling
[11.1967 - 03.1969] VG20 |
45244-62010 |
— | ||
|
45231B
|
45231B
90303-18034
Seal, Dust
[03.1969 - 09.1982] VG2#,3# |
90303-18034 |
— | ||
|
45231B
|
45231B
90303-25039
Seal, Dust
[11.1967 - 03.1969] VG20 |
90303-25039 |
— | ||
|
45231C
|
45231C
37402-10010
Bearing, Universal Joint Spider(For Steering Main Shaft)
[11.1967 - 03.1969] VG20 |
37402-10010 |
— | ||
|
45231D
|
45231D
90521-22011 Ring, Hole Snap (For Spider Bearing)[11.1967 - 03.1969] VG20 T=1.20 |
90521-22011 |
US $4 |
||
|
45231D
|
45231D
90521-22012 Ring, Hole Snap (For Spider Bearing)[11.1967 - 03.1969] VG20 T=1.25 |
90521-22012 |
US $3.35 |
||
|
45231D
|
45231D
90521-22013 Ring, Hole Snap (For Spider Bearing)[11.1967 - 03.1969] VG20 T=1.30 |
90521-22013 |
US $3.06 |
||
|
45231K
|
45231K
04371-10010
Spider Kit, Universal Joint(For Steering Main Shaft)
[11.1967 - 03.1969] VG20 |
04371-10010 |
— | ||
| replacement | |||||
|
45231K
|
45231K
04371-10011 Spider Kit, Universal Joint(For Propeller Shaft)[11.1967 - 03.1969] VG20 |
04371-10011 |
from US $39.72 |
||
|
45259
|
45259
45259-40010
Cover, Steering Column, Lower
[11.1967 - 03.1969] VG20 |
45259-40010 |
— | ||
|
45268
|
45268
45268-40010
Cover, Steering Inter Shaft Dust Seal
[11.1967 - 03.1969] VG20 |
45268-40010 |
— | ||
|
45281
|
45281
45208-40020
Housing, Steering Column
[11.1967 - 02.1973] VG20..B,C,D |
45208-40020 |
— | ||
|
45285
|
45285
45285-40010
Retainer, Contact Ring Housing
[11.1967 - 02.1973] VG20..B,C,D |
45285-40010 |
— | ||
|
45807
|
45807
45271-40010
Bracket Sub-Assy, Steering Column Upper Support
[11.1967 - 03.1969] VG20 UPR |
45271-40010 |
— | ||
|
45807
|
45807
45272-40010
Bracket Sub-Assy, Steering Column Upper Support
[11.1967 - 03.1969] VG20 LWR |
45272-40010 |
— | ||
|
45807
|
45807
45807-40010
Bracket Sub-Assy, Steering Column Upper Support
[03.1969 - 02.1973] VG20 |
45807-40010 |
— | ||
|
45807C
|
45807C
90480-50153
Grommet(For Steering Column Clamp)
[11.1967 - 03.1969] VG20 |
90480-50153 |
— | ||
|
9111140612
|
9111140612
91111-40612
New Genuine Part
|
91111-40612 |
— | ||
|
9111140632
|
9111140632
91111-40632 New Genuine Part |
91111-40632 |
US $2.33 |
||
| replacement | |||||
|
9111140632
|
9111140632
91111-50632 New Genuine Part |
91111-50632 |
US $2.33 |
||
|
9111140825
|
9111140825
91111-40825
Bolt(For Clutch Master Cylinder Setting)
|
91111-40825 |
— | ||
| replacement | |||||
|
9111140825
|
9111140825
91111-50825 Bolt(For Clutch Master Cylinder Setting) |
91111-50825 |
US $3.04 |
||
|
9111150825
|
9111150825
91111-50825 Bolt(For Clutch Master Cylinder Setting) |
91111-50825 |
US $3.04 |
||
|
9111640620
|
9111640620
91116-40620 New Genuine Part |
91116-40620 |
US $2.33 |
||
| replacement | |||||
|
9111640620
|
9111640620
91111-50616 New Genuine Part |
91111-50616 |
US $0.93 |
||
|
9354013008
|
9354013008
93540-13008 New Genuine Part |
93540-13008 |
US $2.33 |
||
|
9411040600
|
9411040600
94110-40600 Nut, Rock |
94110-40600 |
from US $0.70 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $1.09 |
||
|
9451100600
|
9451100600
94511-00600 Washer, Lock, No.2 |
94511-00600 |
US $1.92 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.80 |
||
|
9452100300
|
9452100300
94521-00300 New Genuine Part |
94521-00300 |
US $2.18 |
||
|
9461210600
|
9461210600
94612-10600 New Genuine Part |
94612-10600 |
US $3.84 |
||
|
9461210800
|
9461210800
94612-10800 Washer, Plate(For Repair Actuator Set) |
94612-10800 |
from US $0.86 |
||
|
9461310600
|
9461310600
94613-10600 New Genuine Part |
94613-10600 |
US $2.72 |
||
