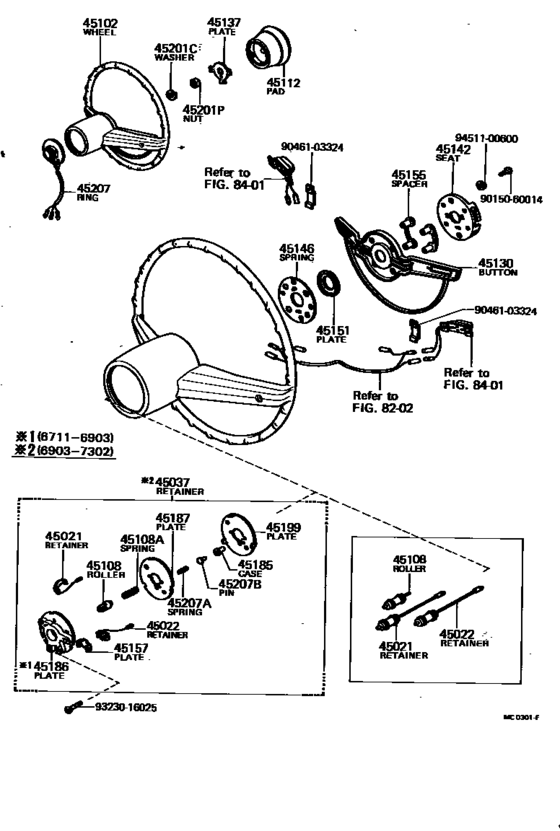

Steering Wheel ([11.1967 - 02.1973] (6711-7302)) Diagram Toyota CENTURY
- Year
- 1967 - 1973
- Sales region
- Japan
- Frame
- VG20
- ENGINE
- 3V
- TRANSMISSION
- ATM
- From
- 11.1967
- To
- 02.1973
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45021
|
45021
45021-40010
Retainer Sub-Assy, Rh Turn Signal Contact
[11.1967 - 03.1969] VG20..B,C,D |
45021-40010 |
— | ||
|
45021
|
45021
45021-40011
Retainer Sub-Assy, Rh Turn Signal Contact
[03.1969 - 02.1973] VG20..B,C,D |
45021-40011 |
— | ||
|
45022
|
45022
45022-40010
Retainer Sub-Assy, Lh Turn Signal Contact
[11.1967 - 02.1973] VG20..B,C,D |
45022-40010 |
— | ||
|
45037
|
45037
45037-40021
Retainer Sub-Assy, Contact Roller Holder No.1
[03.1969 - 02.1973] VG20..B,C,D |
45037-40021 |
— | ||
|
45102
|
45102
45101-40011 Wheel Sub-Assy, Steering[11.1967 - 03.1969] VG20..B,C,D |
45101-40011 |
US $548.91 |
||
| replacement | |||||
|
45102
|
45102
45101-40012
Wheel Sub-Assy, Steering
[11.1967 - 03.1969] VG20..B,C,D |
45101-40012 |
— | ||
|
45102
|
45102
45101-40012
Wheel Sub-Assy, Steering
[03.1969 - 02.1973] VG20..B,C,D |
45101-40012 |
— | ||
|
45108
|
45108
45108-40010
Roller Sub-Assy, Horn Contact
[11.1967 - 02.1973] VG20..B,C,D |
45108-40010 |
— | ||
|
45108A
|
45108A
90501-05358
Spring, Compression(For Horn Contact Roller)
[11.1967 - 02.1973] VG20..B,C,D |
90501-05358 |
— | ||
|
45112
|
45112
45019-40012 Pad, Steering Wheel[11.1967 - 11.1978] VG2#,30..B,C,D |
45019-40012 |
US $148.51 |
||
| replacement | |||||
|
45112
|
45112
45019-40012-01
Pad, Steering Wheel
[11.1967 - 11.1978] VG2#,30..B,C,D |
45019-40012-01 |
— | ||
|
45130
|
45130
45134-40010
Button Assy, Horn
[11.1967 - 02.1973] VG20 |
45134-40010 |
— | ||
|
45137
|
45137
45128-40010 Plate, Horn Button StopHORN BUTTON STOP [11.1967 - 09.1982] VG2#,3# |
45128-40010 |
US $5.39 |
||
|
45142
|
45142
45158-40011
Seat, Horn Button Contact, No.1
[11.1967 - 09.1982] VG2#,3# |
45158-40011 |
— | ||
|
45146
|
45146
45146-40010
Spring, Horn Button Contact
[11.1967 - 09.1982] VG2#,3# |
45146-40010 |
— | ||
|
45151
|
45151
45151-40010
Plate,horn Contact Spring Set
[11.1967 - 09.1982] VG2#,3# |
45151-40010 |
— | ||
|
45155
|
45155
45155-40011
Spacer, Horn Button Contact Plate
[11.1967 - 09.1982] VG2#,3# |
45155-40011 |
— | ||
|
45157
|
45157
45157-40010
Plate, Horn Lead Wire Contact
[11.1967 - 02.1973] VG20..B,C,D |
45157-40010 |
— | ||
|
45185
|
45185
45185-40010
Case, Horn Lead Spring
[11.1967 - 02.1973] VG20..B,C,D |
45185-40010 |
— | ||
|
45186
|
45186
45186-40010
Cover, Steering Wheel, Lower No.2
[11.1967 - 03.1969] VG20..B,C,D |
45186-40010 |
— | ||
|
45187
|
45187
45187-40010
Cover, Steering Wheel, Lower No.3
[11.1967 - 03.1969] VG20..B,C,D |
45187-40010 |
— | ||
|
45187
|
45187
45187-40011
Cover, Steering Wheel, Lower No.3
[03.1969 - 02.1973] VG20..B,C,D |
45187-40011 |
— | ||
|
45199
|
45199
45199-40020
Plate, Insulator Back Up, No.2
[03.1969 - 02.1973] VG20..B,C,D |
45199-40020 |
— | ||
|
45201C
|
45201C
90204-14032 Washer, Spring(For Steering Wheel Set)[11.1967 - 09.1982] VG2#,3# |
90204-14032 |
US $1.89 |
||
|
45201P
|
45201P
90170-14057 Nut, Hexagon (For Power Take-Off Cable)[11.1967 - 09.1982] VG2#,3# |
90170-14057 |
US $2.97 |
||
|
45207
|
45207
45018-40020
Ring, Horn Contact
[11.1967 - 02.1973] VG20..B,C,D |
45018-40020 |
— | ||
|
45207A
|
45207A
90501-06360
Spring, Compression(For Horn Earth)
[11.1967 - 02.1973] VG20..B,C,D |
90501-06360 |
— | ||
|
45207B
|
45207B
90241-02030 Pin, W/head(For Horn Earth)W/HEAD(FOR HORN EARTH) [11.1967 - 02.1973] VG20..B,C,D |
90241-02030 |
US $3.06 |
||
|
9015060014
|
9015060014
90150-60014
New Genuine Part
|
90150-60014 |
— | ||
|
9046103324
|
9046103324
90461-03324
New Genuine Part
|
90461-03324 |
— | ||
|
9323016025
|
9323016025
93230-16025 New Genuine Part |
93230-16025 |
US $3.35 |
||
|
9451100600
|
9451100600
94511-00600 Washer, Lock, No.2 |
94511-00600 |
US $1.92 |
||
