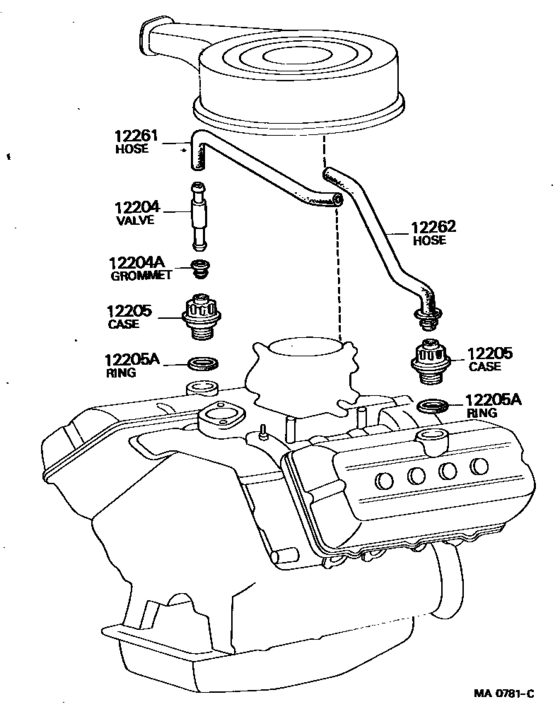

Ventilation Hose ([11.1967 - 11.1978] (6711-7811)) Diagram Toyota CENTURY
- Year
- 1967 - 1973
- Sales region
- Japan
- Frame
- VG20
- ENGINE
- 3V
- TRANSMISSION
- ATM
- From
- 11.1967
- To
- 02.1973
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12204
|
12204
12204-51010
Valve Sub-Assy, Ventilation
[11.1967 - 03.1970] 3V..VG20 |
12204-51010 |
— | ||
| replacement | |||||
|
12204
|
12204
12204-61010 Valve Sub-Assy, Ventilation[11.1967 - 03.1970] 3V..VG20 |
12204-61010 |
from US $27.26 |
||
|
12204
|
12204
12204-51011 Valve Sub-Assy, VentilationVENTILATION [03.1970 - 09.1972] 3V..VG20 |
12204-51011 |
US $44.99 |
||
| replacement | |||||
|
12204
|
12204
12204-61010 Valve Sub-Assy, Ventilation[03.1970 - 09.1972] 3V..VG20 |
12204-61010 |
from US $27.26 |
||
|
12204
|
12204
12204-51012
Valve Sub-Assy, Ventilation
[09.1972 - 09.1982] 3V,4V#..VG2#,3# |
12204-51012 |
— | ||
| replacement | |||||
|
12204
|
12204
12204-61010 Valve Sub-Assy, Ventilation[09.1972 - 09.1982] 3V,4V#..VG2#,3# |
12204-61010 |
from US $27.26 |
||
|
12204A
|
12204A
12246-51010
Grommet(For Ventilation System)
[11.1967 - 09.1982] 3V,4V#..VG2#,3# |
12246-51010 |
— | ||
|
12205
|
12205
12205-51010
Case Sub-Assy, Ventilation
[03.1969 - 09.1982] 3V,4V#..VG2#,3# RH |
12205-51010 |
— | ||
|
12205
|
12205
12205-51020
Case Sub-Assy, Ventilation
[03.1969 - 11.1978] 3V,4V#..VG2#,30 LH |
12205-51020 |
— | ||
|
12205A
|
12205A
90301-44049
Gasket(For Oil Filler Cap)
[11.1967 - 09.1982] 3V,4V#..VG2#,3# |
90301-44049 |
— | ||
|
12261
|
12261
12261-51010
Hose, Ventilation
[11.1967 - 11.1978] 3V,4V#..VG2#,30 |
12261-51010 |
— | ||
|
12262
|
12262
12262-51010
Hose, Ventilation, No.2
[11.1967 - 03.1969] 3V..VG20 |
12262-51010 |
— | ||
| replacements | |||||
|
12262
|
12262
12205-51020
Case Sub-Assy, Ventilation
[11.1967 - 03.1969] 3V..VG20 |
12205-51020 |
— | ||
|
12262
|
12262
12262-51011
Hose, Ventilation, No.2
[11.1967 - 03.1969] 3V..VG20 |
12262-51011 |
— | ||
|
12262
|
12262
12262-51011
Hose, Ventilation, No.2
[03.1969 - 11.1978] 3V,4V#..VG2#,30 |
12262-51011 |
— | ||
