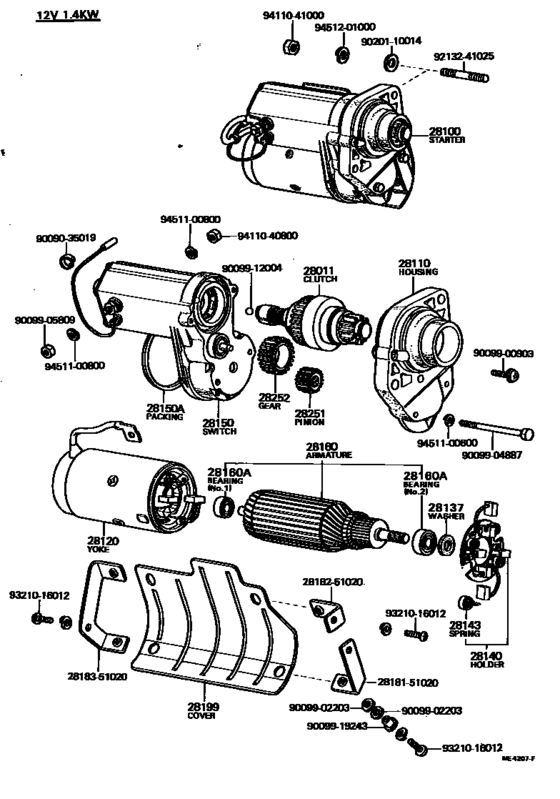

Starter ([05.1974 - 05.1975] (7405-7505)) Diagram Toyota CENTURY
- Year
- 1973 - 1975
- Sales region
- Japan
- Frame
- VG21
- ENGINE
- 4V
- TRANSMISSION
- ATM
- From
- 03.1973
- To
- 05.1975
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28011
|
28011
28011-41011 Clutch Sub-Assy, Starter[05.1968 - 09.1982] 3V,4V#..VG2#,3# 12V 1.0KW |
28011-41011 |
US $90.27 |
||
|
28011
|
28011
28011-51020
Clutch Sub-Assy, Starter
[05.1974 - 05.1975] 4V..VG21 12V 1.4KW |
28011-51020 |
— | ||
|
28100
|
28100
28100-51012 Starter Assy[05.1968 - 05.1974] 3V,4V..VG2# 12V 1.0KW |
28100-51012 |
US $1,026.48 |
||
| replacement | |||||
|
28100
|
28100
28100-51050
Starter Assy
[05.1968 - 05.1974] 3V,4V..VG2# 12V 1.0KW |
28100-51050 |
— | ||
|
28100
|
28100
28100-51013
Starter Assy
[05.1974 - 05.1975] 4V..VG21 12V 1.0KW |
28100-51013 |
— | ||
|
28100
|
28100
28100-51020
Starter Assy
[05.1974 - 05.1975] 4V..VG21 12V 1.4KW |
28100-51020 |
— | ||
|
28110
|
28110
28110-51012
Housing Assy, Starter Drive
[05.1968 - 09.1982] 3V,4V#..VG2#,3# 12V 1.0KW |
28110-51012 |
— | ||
|
28110
|
28110
28115-51020
Housing Assy, Starter Drive
[05.1974 - 05.1975] 4V..VG21 12V 1.4KW |
28115-51020 |
— | ||
|
28110
|
28110
28115-51030
Housing Assy, Starter Drive
[05.1975 - 09.1982] 4V#..VG21,3# 12V 1.4KW |
28115-51030 |
— | ||
|
28120
|
28120
28120-34030
Yoke Assy, Starter
[05.1975 - 09.1982] 4V#..VG21,3# 12V 1.4KW |
28120-34030 |
— | ||
|
28120
|
28120
28120-51012
Yoke Assy, Starter
[05.1968 - 05.1979] 3V,4V#..VG2#,3# 12V 1.0KW |
28120-51012 |
— | ||
| replacement | |||||
|
28120
|
28120
28120-51013
Yoke Assy, Starter
[05.1968 - 05.1979] 3V,4V#..VG2#,3# 12V 1.0KW |
28120-51013 |
— | ||
|
28120
|
28120
28120-51020
Yoke Assy, Starter
[05.1974 - 05.1975] 4V..VG21 12V 1.4KW |
28120-51020 |
— | ||
|
28137
|
28137
90099-02190
Washer, Felt, Starter
[05.1974 - 05.1975] 4V..VG21 12V 1.4KW |
90099-02190 |
— | ||
|
28137
|
28137
90099-02202 Washer, Felt, Starter[05.1975 - 09.1982] 4V#..VG21,3# 12V 1.4KW |
90099-02202 |
US $2.04 |
||
|
28140
|
28140
28140-34030
Holder Assy, Starter Brush
[05.1974 - 09.1982] 4V#..VG21,3# 12V 1.4KW |
28140-34030 |
— | ||
|
28140
|
28140
28140-41020
Holder Assy, Starter Brush
[05.1968 - 09.1982] 3V,4V#..VG2#,3# 12V 1.0KW |
28140-41020 |
— | ||
|
28143
|
28143
28143-40010
Spring, Starter Brush
[11.1967 - 09.1982] 3V,4V#..VG2#,3# 12V 1.0KW,1.3KW |
28143-40010 |
— | ||
| replacement | |||||
|
28143
|
28143
28143-40040
Spring, Starter Brush
[11.1967 - 09.1982] 3V,4V#..VG2#,3# 12V 1.0KW,1.3KW |
28143-40040 |
— | ||
|
28143
|
28143
90099-17112
Spring, Starter Brush
[05.1974 - 09.1982] 4V#..VG21,3# 12V 1.4KW |
90099-17112 |
— | ||
|
28150
|
28150
28150-41011
Switch Assy, Magnet Starter
[05.1968 - 05.1974] 3V,4V..VG2# 12V 1.0KW |
28150-41011 |
— | ||
| replacement | |||||
|
28150
|
28150
28150-33020 Switch Assy, Magnet Starter[05.1968 - 05.1974] 3V,4V..VG2# 12V 1.0KW |
28150-33020 |
US $135.41 |
||
|
28150
|
28150
28150-51010 Switch Assy, Magnet Starter[05.1975 - 09.1982] 4V#..VG21,3# 12V 1.0KW |
28150-51010 |
US $113.57 |
||
| replacement | |||||
|
28150
|
28150
28150-51013
Switch Assy, Magnet Starter
[05.1975 - 09.1982] 4V#..VG21,3# 12V 1.0KW |
28150-51013 |
— | ||
|
28150
|
28150
28150-51013
Switch Assy, Magnet Starter
[05.1974 - 05.1975] 4V..VG21 12V 1.0KW |
28150-51013 |
— | ||
|
28150
|
28150
28150-51020
Switch Assy, Magnet Starter
[05.1974 - 05.1975] 4V..VG21 12V 1.4KW |
28150-51020 |
— | ||
|
28150A
|
28150A
90099-06031
Rubber(For Starter Yoke)
[05.1974 - 09.1982] 4V#..VG21,3# 12V 1.4KW |
90099-06031 |
— | ||
|
28160
|
28160
28160-26050
Armature Assy, Starter
[05.1975 - 09.1982] 4V#..VG21,3# 12V 1.4KW |
28160-26050 |
— | ||
|
28160
|
28160
28160-45020
Armature Assy, Starter
[05.1974 - 05.1975] 4V..VG21 12V 1.4KW |
28160-45020 |
— | ||
|
28160
|
28160
28160-51010
Armature Assy, Starter
[05.1968 - 09.1982] 3V,4V#..VG2#,3# 12V 1.0KW |
28160-51010 |
— | ||
|
28160A
|
28160A
28252-45020
Bearing, Starter Armature
[05.1974 - 05.1975] 4V..VG21 12V 1.4KW,NO.2 |
28252-45020 |
— | ||
|
28160A
|
28160A
28253-45020
Bearing, Starter Armature
[05.1974 - 09.1982] 4V#..VG21,3# 12V 1.4KW,NO.1 |
28253-45020 |
— | ||
|
28160A
|
28160A
90099-10107 Bearing, Starter Armature[05.1975 - 09.1982] 4V#..VG21,3# 12V 1.4KW,NO.2 |
90099-10107 |
US $5.24 |
||
|
28199
|
28199
28199-51012
Cover, Starter
[05.1968 - 05.1974] 3V,4V..VG2# 12V 1.0KW |
28199-51012 |
— | ||
|
28199
|
28199
28199-51020
Cover, Starter
[05.1974 - 05.1975] 4V..VG21 12V 1.4KW |
28199-51020 |
— | ||
|
28251
|
28251
28251-45020
Pinion, Starter Drive
[05.1974 - 09.1982] 4V#..VG21,3# 12V 1.4KW |
28251-45020 |
— | ||
| replacement | |||||
|
28251
|
28251
28251-54070
Plate, Lead, Switch Connecting
[05.1974 - 09.1982] 4V#..VG21,3# 12V 1.4KW |
28251-54070 |
— | ||
|
28252
|
28252
28254-45020
Pinion, Starter Drive
[05.1974 - 09.1982] 4V#..VG21,3# 12V 1.4KW |
28254-45020 |
— | ||
|
2818151020
|
2818151020
28181-51020
Terminal, Starter
|
28181-51020 |
— | ||
|
2818251020
|
2818251020
28182-51020
Stay, Starter Commutator End Frame
|
28182-51020 |
— | ||
|
2818351020
|
2818351020
28183-51020
New Genuine Part
|
28183-51020 |
— | ||
|
9009035019
|
9009035019
90090-35019
New Genuine Part
|
90090-35019 |
— | ||
|
9009900903
|
9009900903
90099-00903
New Genuine Part
|
90099-00903 |
— | ||
|
9009902203
|
9009902203
90099-02203
New Genuine Part
|
90099-02203 |
— | ||
|
9009904887
|
9009904887
90099-04887
New Genuine Part
|
90099-04887 |
— | ||
|
9009905809
|
9009905809
90099-05809
New Genuine Part
|
90099-05809 |
— | ||
|
9009912004
|
9009912004
90099-12004
New Genuine Part
|
90099-12004 |
— | ||
|
9009919243
|
9009919243
90099-19243
New Genuine Part
|
90099-19243 |
— | ||
|
9020110014
|
9020110014
90201-10014 Plate, Spring Set |
90201-10014 |
US $2.18 |
||
| replacement | |||||
|
9020110014
|
9020110014
94612-11000 Plate, Spring Set |
94612-11000 |
US $2.72 |
||
|
9213241025
|
9213241025
92132-41025 Bolt, Stud(For Manifold To Exhaust Pipe) |
92132-41025 |
US $2.62 |
||
|
9321016012
|
9321016012
93210-16012 New Genuine Part |
93210-16012 |
US $1.22 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.90 |
||
|
9411041000
|
9411041000
94110-41000 Nut(For Steering Damper) |
94110-41000 |
US $2.56 |
||
|
9451100600
|
9451100600
94511-00600 Washer, Lock, No.2 |
94511-00600 |
US $1.92 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
from US $1.60 |
||
|
9451201000
|
9451201000
94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-01000 |
from US $0.76 |
||
