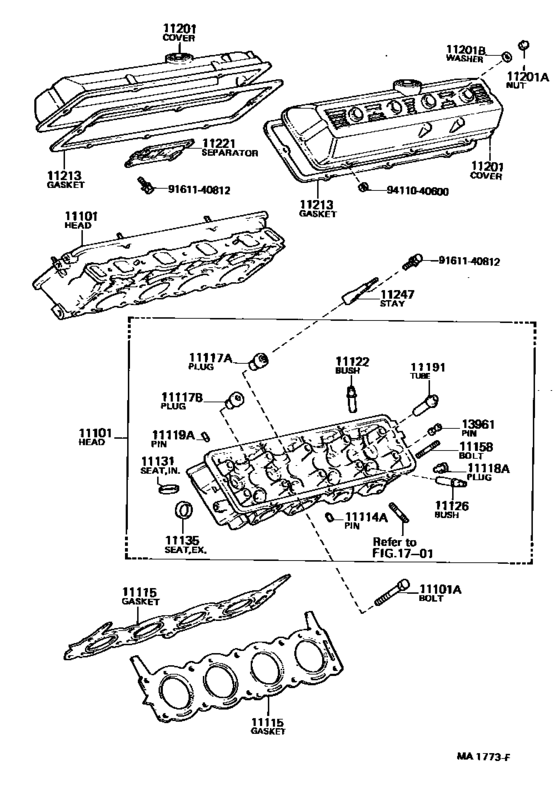

Cylinder Head ([05.1975 - 11.1978] (7505-7811)) Diagram Toyota CENTURY
- Year
- 1977 - 1978
- Sales region
- Japan
- Frame
- VG30
- ENGINE
- 4VU
- TRANSMISSION
- ATM
- From
- 01.1977
- To
- 11.1978
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-59035
Head Sub-Assy, Cylinder
[05.1975 - 11.1978] 4VU..VG21,30 |
11101-59035 |
— | ||
|
11101A
|
11101A
90910-02035 Bolt(For Cylinder Head Set)[02.1970 - 09.1982] 3V,4V#..VG2#,3# *12-1.5PX176-37 |
90910-02035 |
US $9.03 |
||
|
11114A
|
11114A
90334-07014 Pin, StraightSTRAIGHT [05.1975 - 11.1978] 4VU..VG21,30 L=8,OD=6.7 |
90334-07014 |
US $1.75 |
||
|
11115
|
11115
11115-52011 Gasket, Cylinder Head[01.1976 - 11.1978] 4VU..VG21,30 RH |
11115-52011 |
US $59.26 |
||
|
11115
|
11115
11116-52011 Gasket, Cylinder Head[01.1976 - 11.1978] 4VU..VG21,30 LH |
11116-52011 |
US $59.26 |
||
|
11117A
|
11117A
90341-24041 Plug, W/head Taper Screw, No.1[10.1968 - 09.1982] 3V,4V#..VG2#,3# L=12,S=12,OD=24 |
90341-24041 |
US $9.90 |
||
|
11117B
|
11117B
90341-24033 Plug, W/head Taper Screw, No.2[11.1967 - 09.1982] 3V,4V#..VG2#,3# L=12,S=10 |
90341-24033 |
US $4.37 |
||
|
11118A
|
11118A
90340-24001
Plug, Straight, No.1
[05.1975 - 11.1978] 4VU..VG21,30 |
90340-24001 |
— | ||
|
11119A
|
11119A
90254-07015 Pin, Slotted Spring, No.1[11.1967 - 09.1982] 3V,4V#..VG2#,3# L=11.5,OD=6.5 |
90254-07015 |
US $3.06 |
||
|
11122
|
11122
11122-51021 Bush, Intake Valve Guide[02.1970 - 09.1982] 3V,4V#..VG2#,3# ＳＴＤ,STD |
11122-51021 |
US $17.18 |
||
|
11126
|
11126
11122-51021 Bush, Intake Valve Guide[02.1970 - 09.1982] 3V,4V#..VG2#,3# ＳＴＤ,STD |
11122-51021 |
US $17.18 |
||
|
11131
|
11131
11131-51011 Seat, Intake Valve[12.1969 - 09.1982] 3V,4V#..VG2#,3# ＳＴＤ,STD |
11131-51011 |
US $22.13 |
||
|
11131
|
11131
11132-51010
Seat, Intake Valve
[12.1969 - 09.1982] 3V,4V#..VG2#,3# Ｏ／Ｓ ０．０３,O/S 0.03 |
11132-51010 |
— | ||
|
11135
|
11135
11135-51012 Seat, Exhaust Valve[05.1975 - 09.1982] 4V#..VG21,3# ＳＴＤ,STD |
11135-51012 |
US $15.58 |
||
|
11135
|
11135
11136-51011
Seat, Exhaust Valve
[05.1975 - 09.1982] 4V#..VG21,3# Ｏ／Ｓ ０．０３,O/S 0.03 |
11136-51011 |
— | ||
|
11158
|
11158
90116-06115 Bolt, Stud(For Head To Cylinder Head Cover)STUD(FOR HEAD TO CYLINDER HEAD COVER) [07.1977 - 05.1980] 4V#..VG3# L=28,S=10&10 |
90116-06115 |
US $2.04 |
||
|
11158
|
11158
92122-40620
Bolt, Stud(For Head To Cylinder Head Cover)
[03.1973 - 07.1977] 4V#..VG21,30 L=29,S=9&9 |
92122-40620 |
— | ||
|
11191
|
11191
11191-51011 Tube, Spark Plug[09.1969 - 08.1980] 3V,4V#..VG2#,3# |
11191-51011 |
US $28.68 |
||
| replacement | |||||
|
11191
|
11191
11191-52010 Tube, Spark Plug[09.1969 - 08.1980] 3V,4V#..VG2#,3# |
11191-52010 |
US $28.83 |
||
|
11201
|
11201
11211-52020
Cover Sub-Assy, Cylinder Head
[05.1975 - 11.1978] 4VU..VG21,30 RH |
11211-52020 |
— | ||
|
11201
|
11201
11212-52020
Cover Sub-Assy, Cylinder Head
[05.1975 - 11.1978] 4VU..VG21,30 LH |
11212-52020 |
— | ||
|
11201A
|
11201A
90176-08004
Nut, Cap(For Cylinder Head Cover)
[10.1968 - 05.1980] 3V,4V#..VG2#,3# |
90176-08004 |
— | ||
|
11201B
|
11201B
90210-08007 Washer, Seal(For Cylinder Head Cover)SEAL(FOR CYLINDER HEAD COVER) [10.1968 - 05.1980] 3V,4V#..VG2#,3# |
90210-08007 |
US $3.68 |
||
|
11213
|
11213
11213-51010 Gasket, Cylinder Head CoverCYLINDER HEAD COVER [11.1967 - 05.1980] 3V,4V#..VG2#,3# |
11213-51010 |
US $11.21 |
||
|
11221
|
11221
11221-51010
Separator, Cylinder Head Cover, No.1
[11.1967 - 11.1978] 3V,4V#..VG2#,30 |
11221-51010 |
— | ||
|
11247
|
11247
11247-51011 Stay, Cylinder Head Cover[02.1970 - 05.1980] 3V,4V#..VG2#,3# |
11247-51011 |
US $19.66 |
||
| replacement | |||||
|
11247
|
11247
11247-51012 Stay, Cylinder Head Cover[02.1970 - 05.1980] 3V,4V#..VG2#,3# |
11247-51012 |
US $19.80 |
||
|
13961
|
13961
13961-51010 Pin, Rocker Support[11.1967 - 09.1982] 3V,4V#..VG2#,3# |
13961-51010 |
US $4.08 |
||
|
9161140812
|
9161140812
91611-40812
Bolt(for Drive Plate & Torque Converter Setting)
|
91611-40812 |
— | ||
| replacement | |||||
|
9161140812
|
9161140812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9411040600
|
9411040600
94110-40600 Nut, Rock |
94110-40600 |
from US $0.70 |
||
