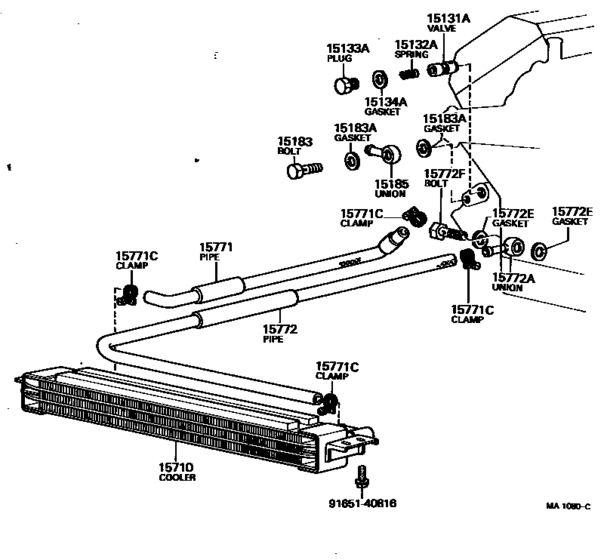

Engine Oil Cooler ([03.1973 - 11.1978] (7303-7811)) Diagram Toyota CENTURY
- Year
- 1977 - 1978
- Sales region
- Japan
- Frame
- VG30
- ENGINE
- 4VU
- TRANSMISSION
- ATM
- From
- 01.1977
- To
- 11.1978
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15131A
|
15131A
15131-41010
Valve, Oil Pump Relief
[03.1973 - 11.1978] 4V#..VG21,30 |
15131-41010 |
— | ||
|
15132A
|
15132A
15132-21010 Spring, Oil Cooler Relief Valve[03.1973 - 11.1978] 4V#..VG21,30 |
15132-21010 |
US $4.02 |
||
|
15133A
|
15133A
15133-20010 Plug, Oil Pump Relief Valve[03.1973 - 11.1978] 4V#..VG21,30 |
15133-20010 |
US $6.56 |
||
|
15134A
|
15134A
15134-20010 Gasket, Oil Pump Relief Valve[03.1973 - 11.1978] 4V#..VG21,30 |
15134-20010 |
from US $2.03 |
||
|
15183
|
15183
15183-52010
Bolt, Union(For Oil Pump)
[03.1973 - 11.1978] 4V#..VG21,30 |
15183-52010 |
— | ||
|
15183A
|
15183A
90430-14156 Gasket(For Oil Pump)[03.1973 - 11.1978] 4V#..VG21,30 |
90430-14156 |
US $2.04 |
||
|
15185
|
15185
15185-52010
Union(For Oil Pump)
[03.1973 - 11.1978] 4V#..VG21,30 |
15185-52010 |
— | ||
|
15710
|
15710
15710-52010
Cooler Assy, Oil
[03.1973 - 11.1978] 4V#..VG21,30 |
15710-52010 |
— | ||
|
15771
|
15771
15777-52010
Pipe, Oil, No.1
[03.1973 - 11.1978] 4V#..VG21,30 |
15777-52010 |
— | ||
|
15771C
|
15771C
96112-10180 Clamp(For Oil Pipe)[10.1973 - 11.1978] 4V#..VG21,30 |
96112-10180 |
US $2.24 |
||
|
15772
|
15772
15778-52010
Pipe, Oil, No.2
[03.1973 - 11.1978] 4V#..VG21,30 |
15778-52010 |
— | ||
|
15772A
|
15772A
90405-10153 Union(For Oil Pipe)[03.1973 - 11.1978] 4V#..VG21,30 |
90405-10153 |
US $7.28 |
||
|
15772E
|
15772E
90430-14235 Gasket, W/head Taper Screw Plug[06.1973 - 11.1978] 4V#..VG21,30 |
90430-14235 |
US $3.68 |
||
|
15772F
|
15772F
90401-14091 Bolt, Union(For Turbo Oil Inlet Pipe)[03.1973 - 11.1978] 4V#..VG21,30 |
90401-14091 |
US $8.39 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $1.03 |
