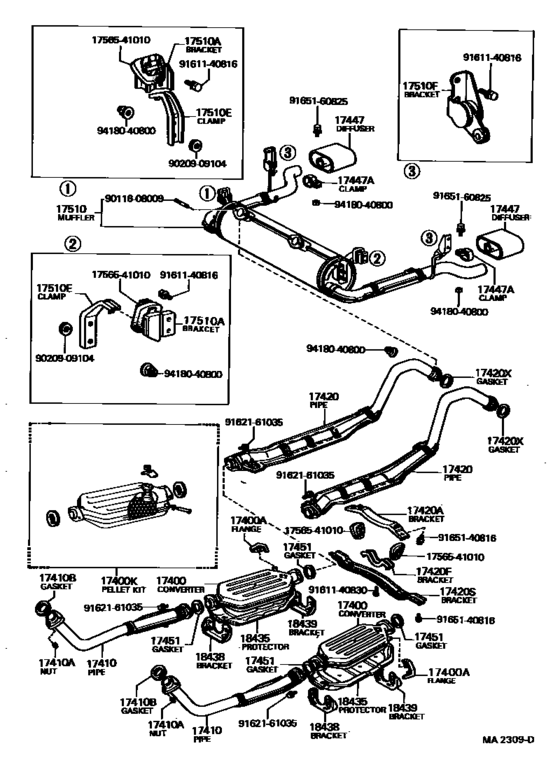

Exhaust Pipe ([01.1976 - 11.1978] (7601-7811)) Diagram Toyota CENTURY
- Year
- 1977 - 1978
- Sales region
- Japan
- Frame
- VG30
- ENGINE
- 4VU
- TRANSMISSION
- ATM
- From
- 01.1977
- To
- 11.1978
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17400
|
17400
17040-28012 Converter Assy, W/catalyst[04.1977 - 11.1978] 4VU..VG30 LH |
17040-28012 |
US $864.86 |
||
| replacement | |||||
|
17400
|
17400
17040-31023 Converter Assy, W/catalyst[04.1977 - 11.1978] 4VU..VG30 LH |
17040-31023 |
US $872.14 |
||
|
17400
|
17400
17040-52030
Converter Assy, W/catalyst
[01.1977 - 02.1977] 4VU..VG30 LH |
17040-52030 |
— | ||
| replacement | |||||
|
17400
|
17400
17040-31023 Converter Assy, W/catalyst[01.1977 - 02.1977] 4VU..VG30 LH |
17040-31023 |
US $872.14 |
||
|
17400
|
17400
17040-52031
Converter Assy, W/catalyst
[02.1977 - 04.1977] 4VU..VG30 LH |
17040-52031 |
— | ||
| replacement | |||||
|
17400
|
17400
17040-31023 Converter Assy, W/catalyst[02.1977 - 04.1977] 4VU..VG30 LH |
17040-31023 |
US $872.14 |
||
|
17400
|
17400
17400-52030 Converter Assy, W/catalyst[01.1977 - 02.1977] 4VU..VG30 RH |
17400-52030 |
US $784.78 |
||
| replacement | |||||
|
17400
|
17400
17400-38033 Converter Assy, W/catalyst[01.1977 - 02.1977] 4VU..VG30 RH |
17400-38033 |
US $1,108.02 |
||
|
17400
|
17400
17400-52031 Converter Assy, W/catalyst[02.1977 - 11.1978] 4VU..VG30 RH |
17400-52031 |
US $784.78 |
||
| replacement | |||||
|
17400
|
17400
17400-38033 Converter Assy, W/catalyst[02.1977 - 11.1978] 4VU..VG30 RH |
17400-38033 |
US $1,108.02 |
||
|
17400A
|
17400A
18491-38020 Flange, Thermosenser Inlet[01.1976 - 09.1982] 4V#..VG21,3# LH |
18491-38020 |
US $6.84 |
||
|
17400A
|
17400A
18491-38030 Flange, Thermosenser InletTHERMOSENSER INLET [01.1976 - 11.1978] 4VU..VG21,30 RH |
18491-38030 |
US $4.95 |
||
|
17400K
|
17400K
04181-34011 Pellet Kit[01.1977 - 11.1978] 4VU..VG30 |
04181-34011 |
US $200.93 |
||
| replacements | |||||
|
17400K
|
17400K
04181-34030 Pellet Kit[01.1977 - 11.1978] 4VU..VG30 |
04181-34030 |
US $254.80 |
||
|
17400K
|
17400K
04181-44050 Pellet Kit[01.1977 - 11.1978] 4VU..VG30 |
04181-44050 |
US $254.80 |
||
|
17410
|
17410
17401-52022 Pipe Assy, Exhaust, FrontEXHAUST, FRONT [01.1976 - 11.1978] 4VU..VG21,30 RH |
17401-52022 |
US $294.11 |
||
|
17410
|
17410
17402-52022
Pipe Assy, Exhaust, Front
[01.1976 - 11.1978] 4VU..VG21,30 LH |
17402-52022 |
— | ||
|
17410A
|
17410A
90179-10010 Nut, Exhaust Pipe Set Stud Bolt[08.1978 - 11.1978] 4VU..VG30 |
90179-10010 |
from US $1.58 |
||
|
17410A
|
17410A
90179-10118 Nut, Exhaust Pipe Set Stud BoltEXHAUST PIPE SET STUD BOLT [12.1970 - 08.1978] 3V,4V#..VG2#,30 |
90179-10118 |
US $4.32 |
||
|
17410B
|
17410B
90917-06005
Gasket, Exhaust Pipe
[05.1975 - 09.1982] 4V#..VG21,3# |
90917-06005 |
— | ||
| replacement | |||||
|
17410B
|
17410B
90917-06042 Gasket, Exhaust Pipe[05.1975 - 09.1982] 4V#..VG21,3# |
90917-06042 |
from US $5.21 |
||
|
17420
|
17420
17403-52012 Pipe Assy, Exhaust, CenterEXHAUST, CENTER [01.1976 - 09.1982] 4V#..VG21,3# RH |
17403-52012 |
US $436.80 |
||
|
17420
|
17420
17404-52012 Pipe Assy, Exhaust, CenterEXHAUST, CENTER [01.1976 - 09.1982] 4V#..VG21,3# LH |
17404-52012 |
US $436.80 |
||
|
17420A
|
17420A
17587-52010
Bracket, Exhaust Pipe Center, Front
[05.1975 - 09.1982] 4V#..VG21,3# |
17587-52010 |
— | ||
|
17420F
|
17420F
17564-52010
Bracket, Exhaust Pipe, Center
[05.1975 - 09.1982] 4V#..VG21,3# |
17564-52010 |
— | ||
|
17420S
|
17420S
17504-52010
Bracket, Exhaust Pipe Center, Rear
[05.1975 - 09.1982] 4V#..VG21,3# |
17504-52010 |
— | ||
|
17420X
|
17420X
90917-06001
Gasket(For Manifold Extension)
[11.1967 - 09.1982] 3V,4V#..VG2#,3# |
90917-06001 |
— | ||
| replacement | |||||
|
17420X
|
17420X
90917-06038 Gasket, Exhaust Pipe[11.1967 - 09.1982] 3V,4V#..VG2#,3# |
90917-06038 |
from US $2.83 |
||
|
17447
|
17447
17406-52010 Diffuser, Exhaust Gas[05.1975 - 09.1982] 4V#..VG21,3# |
17406-52010 |
US $44.55 |
||
| replacement | |||||
|
17447
|
17447
17406-15010 Diffuser, Exhaust GasEXHAUST GAS [05.1975 - 09.1982] 4V#..VG21,3# |
17406-15010 |
US $40.77 |
||
|
17447A
|
17447A
90461-23007 Clamp(For Exhaust Gas Diffuser Setting)[08.1975 - 09.1982] 4V#..VG21,3# |
90461-23007 |
US $7.86 |
||
|
17451
|
17451
90917-06004
Gasket(For Manifold Extension)
[05.1975 - 09.1982] 4V#..VG21,3# RR |
90917-06004 |
— | ||
| replacement | |||||
|
17451
|
17451
90917-06039 Gasket, Exhaust Pipe[05.1975 - 09.1982] 4V#..VG21,3# RR |
90917-06039 |
from US $2.36 |
||
|
17451
|
17451
90917-06018 Gasket, Exhaust Pipe[05.1975 - 09.1982] 4V#..VG21,3# FR |
90917-06018 |
US $6.26 |
||
| replacement | |||||
|
17451
|
17451
90917-06046 Gasket, Exhaust Pipe[05.1975 - 09.1982] 4V#..VG21,3# FR |
90917-06046 |
from US $3.96 |
||
|
17510
|
17510
17430-52011 Muffler Assy[01.1977 - 09.1982] 4V#..VG3# |
17430-52011 |
US $1,352.62 |
||
|
17510A
|
17510A
17506-52010
Bracket, Muffler, Front
[05.1975 - 09.1982] 4V#..VG21,3# RH |
17506-52010 |
— | ||
|
17510A
|
17510A
17507-52010
Bracket, Muffler, Front
[05.1975 - 09.1982] 4V#..VG21,3# LH |
17507-52010 |
— | ||
|
17510E
|
17510E
17561-52010
Clamp No.2, Muffler, Front
[05.1975 - 09.1982] 4V#..VG21,3# |
17561-52010 |
— | ||
|
17510F
|
17510F
17577-52010 Bracket, Muffler, RearMUFFLER, REAR [05.1975 - 09.1982] 4V#..VG21,3# |
17577-52010 |
US $35.24 |
||
|
18435
|
18435
18435-45012 Protector, Catalytic Converter[01.1977 - 12.1977] 4VU..VG30 |
18435-45012 |
US $75.71 |
||
| replacement | |||||
|
18435
|
18435
18435-45013 Protector, Catalytic Converter[01.1977 - 12.1977] 4VU..VG30 |
18435-45013 |
US $82.99 |
||
|
18435
|
18435
18435-45013 Protector, Catalytic Converter[12.1977 - 09.1982] 4V#..VG3# |
18435-45013 |
US $82.99 |
||
|
18438
|
18438
18408-26020
Bracket, Connector Protector, Front
[01.1976 - 09.1982] 4V#..VG21,3# LH |
18408-26020 |
— | ||
|
18438
|
18438
18408-52030 Bracket, Connector Protector, FrontCONNECTOR PROTECTOR, FRONT [01.1976 - 09.1982] 4V#..VG21,3# RH |
18408-52030 |
US $35.96 |
||
|
18439
|
18439
18409-26010 Bracket, Convertor Protector, Rear[01.1976 - 09.1982] 4V#..VG21,3# RH |
18409-26010 |
US $28.54 |
||
|
18439
|
18439
18409-52010 Bracket, Convertor Protector, RearCONVERTOR PROTECTOR, REAR [01.1976 - 09.1982] 4V#..VG21,3# LH |
18409-52010 |
US $28.25 |
||
|
1756541010
|
1756541010
17565-41010 Bolt Or Ring, Exhaust Tail Pipe (For Front)EXHAUST PIPE, NO.5 |
17565-41010 |
US $9.76 |
||
|
9011608009
|
9011608009
90116-08009 Bolt(For Intake Manifold To Exhaust Manifold)STUD(FOR MANIFOLD TO CARBURETOR) |
90116-08009 |
US $3.44 |
||
|
9020909104
|
9020909104
90209-09104 New Genuine Part |
90209-09104 |
US $5.10 |
||
|
9161140816
|
9161140816
91611-40816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-40816 |
— | ||
| replacement | |||||
|
9161140816
|
9161140816
91611-B0816 Bolt |
91611-B0816 |
from US $1.09 |
||
|
9161140830
|
9161140830
91611-40830
Bolt(For Clutch Release Cylinder Setting)
|
91611-40830 |
— | ||
| replacement | |||||
|
9161140830
|
9161140830
91611-60830 Bolt(For Clutch Release Cylinder Setting) |
91611-60830 |
from US $1.50 |
||
|
9162161035
|
9162161035
91621-61035 BOLT |
91621-61035 |
from US $2.28 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $1.03 |
||
|
9165160825
|
9165160825
91651-60825
Bolt, Hexagon(For Steering Column Bracket)
|
91651-60825 |
— | ||
| replacement | |||||
|
9165160825
|
9165160825
91651-B0825 Bolt, Hexagon(For Steering Column Bracket) |
91651-B0825 |
from US $0.88 |
||
|
9418040800
|
9418040800
94180-40800 NUT |
94180-40800 |
from US $1.70 |
||
