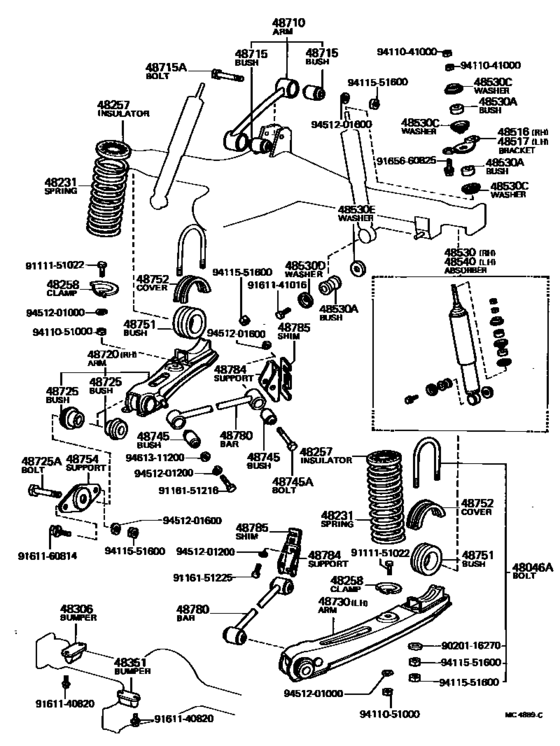

Rear Spring & Shock Absorber ([01.1977 - ] (7701- )) Diagram Toyota CENTURY
- Year
- 1977 - 1978
- Sales region
- Japan
- Frame
- VG30
- ENGINE
- 4VU
- TRANSMISSION
- ATM
- From
- 01.1977
- To
- 11.1978
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48046A
|
48046A
90118-16120 Bolt, U(For Rear Spring)[03.1973 - 09.1982] VG21,3# |
90118-16120 |
US $26.35 |
||
| replacements | |||||
|
48046A
|
48046A
90117-16112 New Genuine Part[03.1973 - 09.1982] VG21,3# |
90117-16112 |
US $26.35 |
||
|
48046A
|
48046A
90201-16270
New Genuine Part
[03.1973 - 09.1982] VG21,3# |
90201-16270 |
— | ||
|
48046A
|
48046A
94115-51600
Nut, Hexagon(For Sector Shaft To Pitman Arm Setting)
[03.1973 - 09.1982] VG21,3# |
94115-51600 |
— | ||
|
48231
|
48231
48231-40080
Spring, Coil, Rear
[01.1977 - 09.1982] VG3# |
48231-40080 |
— | ||
|
48257
|
48257
48257-40010 Insulator, Rear Coil SpringREAR COIL SPRING [11.1967 - 09.1982] VG2#,3# |
48257-40010 |
US $8.44 |
||
|
48258
|
48258
48258-40010
Clamp, Rear Coil Spring
[11.1967 - 09.1982] VG2#,3# |
48258-40010 |
— | ||
|
48306
|
48306
48306-40020
Bumper Sub-Assy, Rear Spring
[05.1975 - 09.1982] VG21,3# |
48306-40020 |
— | ||
|
48351
|
48351
48351-40010 Bumper, Differential Carrier[03.1973 - 09.1982] VG21,3# |
48351-40010 |
US $30.87 |
||
|
48516
|
48516
48516-40010
Bracket, Rear Shock Absorber, Upper Rh
[01.1977 - 09.1982] VG3# |
48516-40010 |
— | ||
|
48517
|
48517
48516-40010
Bracket, Rear Shock Absorber, Upper Rh
[01.1977 - 09.1982] VG3# |
48516-40010 |
— | ||
|
48530
|
48530
48531-49035
Absorber Assy, Shock, Rear Rh
[01.1977 - 09.1982] VG3# |
48531-49035 |
— | ||
|
48530A
|
48530A
90385-16060 Bush(For Rear Shock Absorber)[01.1973 - 09.1982] VG2#,3# LWR |
90385-16060 |
US $8.74 |
||
| replacement | |||||
|
48530A
|
48530A
90385-16004 Cushion, Front Shock Absorber[01.1973 - 09.1982] VG2#,3# LWR |
90385-16004 |
from US $3.32 |
||
|
48530A
|
48530A
90948-01003 Rubber Cushion[01.1977 - 09.1982] VG3# UPR |
90948-01003 |
from US $1.85 |
||
|
48530C
|
48530C
90948-02002 Retainer, Steering Damper Cushion[01.1977 - 09.1982] VG3# UPR & LWR |
90948-02002 |
from US $1.25 |
||
|
48530C
|
48530C
90948-02007 Retainer, Steering Damper Cushion[01.1977 - 09.1982] VG3# CTR |
90948-02007 |
US $2.72 |
||
|
48530D
|
48530D
90948-03007 Washer, Front Shock Absorber Cushion, No.1[11.1967 - 09.1982] VG2#,3# |
90948-03007 |
US $1.76 |
||
|
48530E
|
48530E
90948-03004 Retainer, Cushion, No.1(For Front Shock Absorber)[11.1967 - 09.1982] VG2#,3# |
90948-03004 |
from US $1.42 |
||
|
48540
|
48540
48531-49035
Absorber Assy, Shock, Rear Rh
[01.1977 - 09.1982] VG3# |
48531-49035 |
— | ||
|
48710
|
48710
48710-40031
Arm Assy, Upper Control
[05.1975 - 09.1982] VG21,3# |
48710-40031 |
— | ||
|
48715
|
48715
48702-40031 Bush, Upper Control Arm[05.1975 - 04.1980] VG21,3# |
48702-40031 |
US $90.27 |
||
| replacement | |||||
|
48715
|
48715
48702-40032 Bush, Upper Control Arm[05.1975 - 04.1980] VG21,3# |
48702-40032 |
US $91.73 |
||
|
48715A
|
48715A
90101-16442 Bolt, Hexagon(For Upper Control Arm)[03.1973 - 09.1982] VG21,3# |
90101-16442 |
US $17.47 |
||
|
48720
|
48720
48720-40011
Arm Assy, Lower Control, Rh
[08.1969 - 09.1982] VG2#,3# ISO |
48720-40011 |
— | ||
|
48725
|
48725
48704-40010
Bush, Lower Control Arm
[11.1967 - 09.1982] VG2#,3# |
48704-40010 |
— | ||
|
48725A
|
48725A
90101-16305
Bolt(For Lower Control Arm)
[08.1969 - 09.1982] VG2#,3# |
90101-16305 |
— | ||
|
48730
|
48730
48730-40011
Arm Assy, Lower Control, Lh
[08.1969 - 09.1982] VG2#,3# |
48730-40011 |
— | ||
|
48745
|
48745
48706-30010 Bush, Lateral Control RodLATERAL CONTROL ROD [11.1967 - 09.1982] VG2#,3# |
48706-30010 |
US $17.18 |
||
|
48745A
|
48745A
90101-16306 Bolt, Hexagon(For Lateral Control Rod)[08.1969 - 09.1982] VG2#,3# |
90101-16306 |
US $4.51 |
||
|
48751
|
48751
48751-40011 Bush, Rear Axle Mounting[04.1974 - 11.1978] VG21,30 |
48751-40011 |
US $45.28 |
||
| replacement | |||||
|
48751
|
48751
48751-40012 Bush, Rear Axle Mounting[04.1974 - 11.1978] VG21,30 |
48751-40012 |
US $45.43 |
||
|
48752
|
48752
48752-40010
Cover, Rear Axle Bush
[11.1967 - 09.1982] VG2#,3# |
48752-40010 |
— | ||
|
48754
|
48754
48754-40010
Support, Lower Arm Pin
[11.1967 - 09.1982] VG2#,3# |
48754-40010 |
— | ||
|
48780
|
48780
48780-40010
Bar Assy, Strut
[11.1967 - 09.1982] VG2#,3# |
48780-40010 |
— | ||
|
48784
|
48784
48784-40010
Support, Strut Bar Pin
[11.1967 - 09.1982] VG2#,3# |
48784-40010 |
— | ||
|
48785
|
48785
48785-40010
Shim, Strut Bar Adjust
[11.1967 - 09.1982] VG2#,3# T=2.0 |
48785-40010 |
— | ||
|
48785
|
48785
48786-40010
Shim, Strut Bar Adjust
[11.1967 - 09.1982] VG2#,3# T=1.0 |
48786-40010 |
— | ||
|
9020116270
|
9020116270
90201-16270
New Genuine Part
|
90201-16270 |
— | ||
|
9111151022
|
9111151022
91111-51022 New Genuine Part |
91111-51022 |
US $2.91 |
||
|
9116151216
|
9116151216
91161-51216 New Genuine Part |
91161-51216 |
US $3.20 |
||
|
9116151225
|
9116151225
91161-51225
New Genuine Part
|
91161-51225 |
— | ||
|
9161140820
|
9161140820
91611-40820
Bolt(For Intake Manifold To Exhaust Manifold)
|
91611-40820 |
— | ||
|
9161141016
|
9161141016
91611-41016 Bolt(for Dust Cover To Steering Knuckle Arm Setting) |
91611-41016 |
US $2.91 |
||
| replacement | |||||
|
9161141016
|
9161141016
91612-61016 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91612-61016 |
US $2.24 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.80 |
||
|
9165660825
|
9165660825
91656-60825
Bolt, Hexagon(For Steering Column Bracket)
|
91656-60825 |
— | ||
| replacement | |||||
|
9165660825
|
9165660825
91651-B0825 Bolt, Hexagon(For Steering Column Bracket) |
91651-B0825 |
from US $0.88 |
||
|
9411041000
|
9411041000
94110-41000 Nut(For Steering Damper) |
94110-41000 |
US $2.56 |
||
|
9411051000
|
9411051000
94110-51000 Nut(For Steering Center Arm) |
94110-51000 |
from US $2.08 |
||
|
9411551600
|
9411551600
94115-51600
Nut, Hexagon(For Sector Shaft To Pitman Arm Setting)
|
94115-51600 |
— | ||
|
9451201000
|
9451201000
94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-01000 |
from US $0.76 |
||
|
9451201200
|
9451201200
94512-01200 Washer |
94512-01200 |
from US $0.76 |
||
|
9451201600
|
9451201600
94512-01600
Washer(For Center Arm Shaft)
|
94512-01600 |
— | ||
| replacement | |||||
|
9451201600
|
9451201600
90204-16001 Washer(For Center Arm Shaft) |
90204-16001 |
US $2.72 |
||
|
9461311200
|
9461311200
94613-11200 WASHER |
94613-11200 |
US $1.12 |
||
