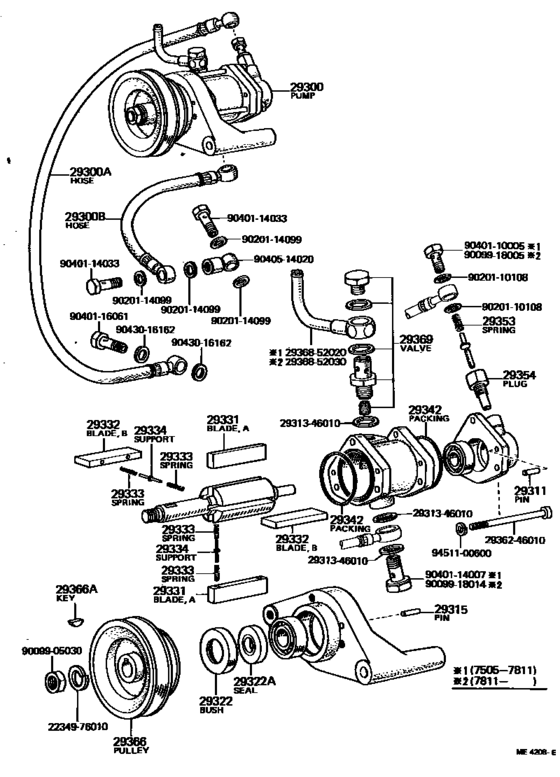

Vacuum Pump ([05.1975 - ] (7505- )) Diagram Toyota CENTURY
- Year
- 1977 - 1978
- Sales region
- Japan
- Frame
- VG30
- ENGINE
- 4VU
- TRANSMISSION
- ATM
- From
- 01.1977
- To
- 11.1978
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
29300
|
29300
29300-52020
Pump Assy, Vacuum
[05.1975 - 11.1978] 4VU..VG21,30 |
29300-52020 |
— | ||
|
29300A
|
29300A
90923-02045 Hose, Vacuum Pump Oil InletVACUUM PUMP OIL INLET [05.1975 - 09.1982] 4V#..VG21,3# |
90923-02045 |
US $44.55 |
||
|
29300B
|
29300B
90923-02047 Hose, Vacuum Pump Oil OutletVACUUM PUMP OIL OUTLET [05.1975 - 09.1982] 4V#..VG21,3# |
90923-02047 |
US $27.23 |
||
|
29311
|
29311
29311-46010
Pin, Vacuum Pump Dowel, No.1
[11.1967 - 09.1982] 3V,4V#..VG2#,3# |
29311-46010 |
— | ||
|
29315
|
29315
29315-46010
Pin, Vacuum Pump Dowel, No.2
[11.1967 - 09.1982] 3V,4V#..VG2#,3# |
29315-46010 |
— | ||
|
29322
|
29322
29322-52010
Bush, Oil Seal, Vacuum Pump
[05.1974 - 09.1982] 4V#..VG21,3# |
29322-52010 |
— | ||
|
29322A
|
29322A
29341-77011 Seal, Vacuum Pump Oil[05.1975 - 09.1982] 4V#..VG21,3# |
29341-77011 |
US $21.69 |
||
|
29331
|
29331
29331-46010
Blade, Vacuum Pump, A
[11.1967 - 09.1982] 3V,4V#..VG2#,3# |
29331-46010 |
— | ||
|
29332
|
29332
29332-46010 Blade, Vacuum Pump, BVACUUM PUMP, B [11.1967 - 09.1982] 3V,4V#..VG2#,3# |
29332-46010 |
US $8.30 |
||
|
29333
|
29333
29333-46010
Spring, Vacuum Pump Blade
[11.1967 - 09.1982] 3V,4V#..VG2#,3# |
29333-46010 |
— | ||
|
29334
|
29334
29334-46010
Support, Vacuum Pump Blade Spring
[11.1967 - 09.1982] 3V,4V#..VG2#,3# |
29334-46010 |
— | ||
|
29342
|
29342
29342-46010 Packing, Vacuum PumpVACUUM PUMP [11.1967 - 09.1982] 3V,4V#..VG2#,3# |
29342-46010 |
US $4.80 |
||
|
29353
|
29353
29353-76010 Spring, Oil ValveOIL VALVE [11.1967 - 09.1982] 3V,4V#..VG2#,3# |
29353-76010 |
US $2.04 |
||
|
29354
|
29354
29354-46010
Plug, Vacuum Pump Oil
[11.1967 - 09.1982] 3V,4V#..VG2#,3# |
29354-46010 |
— | ||
|
29366
|
29366
29366-52020
Pulley, Vacuum Pump
[05.1974 - 11.1978] 4V#..VG21,30 |
29366-52020 |
— | ||
|
29366A
|
29366A
90099-00405
Key(For Alternator Pulley)
[11.1967 - 09.1982] 3V,4V#..VG2#,3# |
90099-00405 |
— | ||
| replacement | |||||
|
29366A
|
29366A
95161-10413
Key(For Alternator Pulley)
[11.1967 - 09.1982] 3V,4V#..VG2#,3# |
95161-10413 |
— | ||
|
29369
|
29369
29369-51011
Valve Sub-Assy, Check
[05.1970 - 11.1978] 3V,4V#..VG2#,30 |
29369-51011 |
— | ||
|
2234976010
|
2234976010
22349-76010
Washer, Spring(For Drive Gear)
|
22349-76010 |
— | ||
|
2931346010
|
2931346010
29313-46010
New Genuine Part
|
29313-46010 |
— | ||
|
2936246010
|
2936246010
29362-46010
New Genuine Part
|
29362-46010 |
— | ||
|
2936852020
|
2936852020
29368-52020
New Genuine Part
|
29368-52020 |
— | ||
|
2936852030
|
2936852030
29368-52030
New Genuine Part
|
29368-52030 |
— | ||
|
9009905030
|
9009905030
90099-05030
New Genuine Part
|
90099-05030 |
— | ||
|
9009918005
|
9009918005
90099-18005
Screw, Fuel Inlet Follow
|
90099-18005 |
— | ||
|
9009918014
|
9009918014
90099-18014
New Genuine Part
|
90099-18014 |
— | ||
|
9020110108
|
9020110108
90201-10108 Washer(For Over Flow Nipple) |
90201-10108 |
US $3.52 |
||
|
9020114099
|
9020114099
90201-14099 Gasket(For Vacuum Pump Union) |
90201-14099 |
from US $1.56 |
||
|
9040110005
|
9040110005
90401-10005
Bolt, Union
|
90401-10005 |
— | ||
| replacement | |||||
|
9040110005
|
9040110005
90401-10008
Bolt, Union
|
90401-10008 |
— | ||
|
9040114007
|
9040114007
90401-14007 Union, Nipple(For Fuel Filter Inlet) |
90401-14007 |
US $5.68 |
||
| replacement | |||||
|
9040114007
|
9040114007
90099-18010 Screw, Fuel Pipe Follow |
90099-18010 |
US $3.32 |
||
|
9040114033
|
9040114033
90401-14033
Bolt, Union
|
90401-14033 |
— | ||
|
9040116061
|
9040116061
90401-16061 New Genuine Part |
90401-16061 |
US $3.93 |
||
|
9040514020
|
9040514020
90405-14020
New Genuine Part
|
90405-14020 |
— | ||
|
9043016162
|
9043016162
90430-16162
Gasket(For Chain Tensioner Body)
|
90430-16162 |
— | ||
|
9451100600
|
9451100600
94511-00600 Washer, Lock, No.2 |
94511-00600 |
US $1.92 |
||
