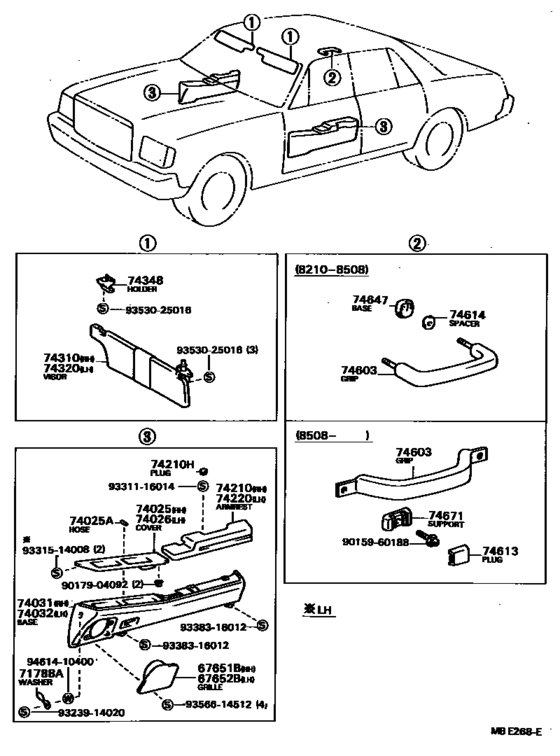

Armrest & Visor ([10.1982 - ] (8210- )) Diagram Toyota CENTURY
- Year
- 1982 - 1987
- Sales region
- Japan
- Frame
- VG40
- grade
- D
- ENGINE
- 5VEU
- TRANSMISSION
- ATM
- From
- 10.1982
- To
- 09.1987
- Gear Shift Type
- 3HC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
67651B
|
67651B
67651-91405-03 Grille, Speaker Door, Rh[10.1982 - 09.1987] VG40 GRAY,GRAY,TRIM1# |
67651-91405-03 |
US $218.40 |
||
|
67651B
|
67651B
67651-91405-04 Grille, Speaker Door, Rh[10.1982 - 09.1987] VG40 BLUE,BLUE,TRIM8# |
67651-91405-04 |
US $218.40 |
||
|
67652B
|
67652B
67652-91407-03 Grille, Speaker Door, Lh[10.1982 - 09.1987] VG40 GRAY,GRAY,TRIM1# |
67652-91407-03 |
US $218.40 |
||
|
67652B
|
67652B
67652-91407-04 Grille, Speaker Door, Lh[10.1982 - 09.1987] VG40 BLUE,BLUE,TRIM8# |
67652-91407-04 |
US $218.40 |
||
|
71788A
|
71788A
71788-22010-04 Washer, Front Seat Back Board Setting[10.1982 - 09.1987] VG40 BLUE,BLUE,TRIM8# |
71788-22010-04 |
US $3.06 |
||
| replacement | |||||
|
71788A
|
71788A
71788-22010-B1 Cap(For Front Seat Back Board)[10.1982 - 09.1987] VG40 BLUE,BLUE,TRIM8# |
71788-22010-B1 |
US $2.62 |
||
|
71788A
|
71788A
71788-22010-23 Washer, Door Armrest Panel[10.1982 - 09.1987] VG40 GRAY,GRAY,TRIM1# |
71788-22010-23 |
US $3.06 |
||
|
74025
|
74025
74201-91407 Cover Sub-Assy, Front Door Armrest Upper, Rh[10.1982 - 09.1986] VG40 |
74201-91407 |
US $1,006.10 |
||
| replacement | |||||
|
74025
|
74025
74201-91408 Cover Sub-Assy, Front Door Armrest Upper, Rh[10.1982 - 09.1986] VG40 |
74201-91408 |
US $1,003.18 |
||
|
74025
|
74025
74201-91408 Cover Sub-Assy, Front Door Armrest Upper, Rh[09.1986 - 09.1987] VG40 |
74201-91408 |
US $1,003.18 |
||
|
74025A
|
74025A
90445-08179 Hose, Front Door Courtesy Lamp[10.1982 - 09.1987] VG40 |
90445-08179 |
US $6.70 |
||
| replacement | |||||
|
74025A
|
74025A
90999-92002
Air Hose (300 mm)
[10.1982 - 09.1987] VG40 |
90999-92002 |
— | ||
|
74026
|
74026
74202-91405 Cover Sub-Assy, Front Door Armrest Upper, Lh[10.1982 - 09.1986] VG40 |
74202-91405 |
US $1,006.10 |
||
| replacement | |||||
|
74026
|
74026
74202-91407 Cover Sub-Assy, Front Door Armrest Upper, Lh[10.1982 - 09.1986] VG40 |
74202-91407 |
US $1,003.18 |
||
|
74026
|
74026
74202-91407 Cover Sub-Assy, Front Door Armrest Upper, Lh[09.1986 - 09.1987] VG40 |
74202-91407 |
US $1,003.18 |
||
|
74031
|
74031
74025-91406-03
Base Sub-Assy, Front Door Armrest Lower, Rh
[10.1982 - 08.1985] VG40..D GRAY,GRAY,TRIM1# |
74025-91406-03 |
— | ||
|
74031
|
74031
74025-91406-04
Base Sub-Assy, Front Door Armrest Lower, Rh
[10.1982 - 08.1985] VG40..D BLUE,BLUE,TRIM8# |
74025-91406-04 |
— | ||
|
74031
|
74031
74025-91410-03
Base Sub-Assy, Front Door Armrest Lower, Rh
[08.1985 - 09.1987] VG40..D GRAY,GRAY,TRIM1# |
74025-91410-03 |
— | ||
|
74031
|
74031
74025-91410-04
Base Sub-Assy, Front Door Armrest Lower, Rh
[08.1985 - 09.1987] VG40..D BLUE,BLUE,TRIM8# |
74025-91410-04 |
— | ||
|
74032
|
74032
74026-91406-03
Base Sub-Assy, Front Door Armrest Lower, Lh
[10.1982 - 08.1985] VG40..D GRAY,GRAY,TRIM1# |
74026-91406-03 |
— | ||
|
74032
|
74032
74026-91406-04
Base Sub-Assy, Front Door Armrest Lower, Lh
[10.1982 - 08.1985] VG40..D BLUE,BLUE,TRIM8# |
74026-91406-04 |
— | ||
|
74032
|
74032
74026-91410-03
Base Sub-Assy, Front Door Armrest Lower, Lh
[08.1985 - 09.1987] VG40..D GRAY,GRAY,TRIM1# |
74026-91410-03 |
— | ||
|
74032
|
74032
74026-91410-04
Base Sub-Assy, Front Door Armrest Lower, Lh
[08.1985 - 09.1987] VG40..D BLUE,BLUE,TRIM8# |
74026-91410-04 |
— | ||
|
74210
|
74210
74210-91422-03 Armrest Assy, Front, Rh[10.1982 - 09.1987] VG40 GRAY,GRAY,TRIM1# |
74210-91422-03 |
US $403.31 |
||
|
74210
|
74210
74210-91422-04
Armrest Assy, Front, Rh
[10.1982 - 09.1987] VG40 BLUE,BLUE,TRIM8# |
74210-91422-04 |
— | ||
|
74210H
|
74210H
90950-01104-03 Plug, Hole (For Door Armrest)[10.1982 - 09.1987] VG40 GRAY,GRAY,TRIM1# |
90950-01104-03 |
US $2.48 |
||
| replacement | |||||
|
74210H
|
74210H
90950-01104-01 Plug, Hole (For Door Armrest)[10.1982 - 09.1987] VG40 GRAY,GRAY,TRIM1# |
90950-01104-01 |
US $2.48 |
||
|
74210H
|
74210H
90950-01104-04 Plug, Hole (For Door Armrest)[10.1982 - 09.1987] VG40 BLUE,BLUE,TRIM8# |
90950-01104-04 |
US $2.48 |
||
| replacement | |||||
|
74210H
|
74210H
90950-01104-01 Plug, Hole (For Door Armrest)[10.1982 - 09.1987] VG40 BLUE,BLUE,TRIM8# |
90950-01104-01 |
US $2.48 |
||
|
74220
|
74220
74220-91419-03 Armrest Assy, Front, Lh[10.1982 - 09.1987] VG40 GRAY,GRAY,TRIM1# |
74220-91419-03 |
US $403.31 |
||
|
74220
|
74220
74220-91419-04
Armrest Assy, Front, Lh
[10.1982 - 09.1987] VG40 BLUE,BLUE,TRIM8# |
74220-91419-04 |
— | ||
|
74310
|
74310
74310-91407-03
Visor Assy, Rh
[10.1982 - 08.1985] VG40 GRAY,GRAY,TRIM1# |
74310-91407-03 |
— | ||
|
74310
|
74310
74310-91407-04
Visor Assy, Rh
[10.1982 - 08.1985] VG40 BLUE,BLUE,TRIM8# |
74310-91407-04 |
— | ||
|
74310
|
74310
74310-91408-03
Visor Assy, Rh
[08.1985 - 09.1987] VG40 GRAY,GRAY,TRIM1# |
74310-91408-03 |
— | ||
|
74310
|
74310
74310-91408-04
Visor Assy, Rh
[08.1985 - 09.1987] VG40 BLUE,LIGHT BLUE,TRIM8# |
74310-91408-04 |
— | ||
|
74320
|
74320
74320-91406-03
Visor Assy, Lh
[10.1982 - 08.1985] VG40 GRAY,GRAY,TRIM1# |
74320-91406-03 |
— | ||
|
74320
|
74320
74320-91406-04
Visor Assy, Lh
[10.1982 - 08.1985] VG40 BLUE,BLUE,TRIM8# |
74320-91406-04 |
— | ||
|
74320
|
74320
74320-91407-03
Visor Assy, Lh
[08.1985 - 09.1987] VG40 GRAY,GRAY,TRIM1# |
74320-91407-03 |
— | ||
|
74320
|
74320
74320-91407-04
Visor Assy, Lh
[08.1985 - 09.1987] VG40 BLUE,LIGHT BLUE,TRIM8# |
74320-91407-04 |
— | ||
|
74348
|
74348
74348-12010-04 Holder, Visor[10.1982 - 09.1987] VG40 BLUE,BLUE,TRIM8# |
74348-12010-04 |
US $4.95 |
||
| replacement | |||||
|
74348
|
74348
74348-30010-01 Holder, Visor (BLACK)[10.1982 - 09.1987] VG40 BLUE,BLUE,TRIM8# |
74348-30010-01 |
US $6.08 |
||
|
74348
|
74348
74348-12010-13 Holder, Visor[10.1982 - 09.1987] VG40 GRAY,GRAY,TRIM1# |
74348-12010-13 |
US $4.95 |
||
| replacement | |||||
|
74348
|
74348
74348-12010-33 Holder, Visor[10.1982 - 09.1987] VG40 GRAY,GRAY,TRIM1# |
74348-12010-33 |
US $4.66 |
||
|
74603
|
74603
74604-91403-03 Grip Sub-Assy, Assist, Front[10.1982 - 08.1985] VG40 GRAY,GRAY,TRIM1# |
74604-91403-03 |
US $91.73 |
||
|
74603
|
74603
74604-91403-14
Grip Sub-Assy, Assist, Front
[10.1982 - 08.1985] VG40 BLUE,BLUE,TRIM8# |
74604-91403-14 |
— | ||
|
74603
|
74603
74610-91404-03 Grip Sub-Assy, Assist, Front[08.1985 - 09.1987] VG40 GRAY,GRAY,TRIM1# |
74610-91404-03 |
US $91.73 |
||
|
74603
|
74603
74610-91404-04
Grip Sub-Assy, Assist, Front
[08.1985 - 09.1987] VG40 BLUE,LIGHT GRAY,TRIM8# |
74610-91404-04 |
— | ||
|
74613
|
74613
74617-24010-03
Plug, Assist Grip
[08.1985 - 09.1987] VG40 GRAY,GRAY,TRIM1# |
74617-24010-03 |
— | ||
| replacement | |||||
|
74613
|
74613
74617-24010-13 Plug, Assist Grip[08.1985 - 09.1987] VG40 GRAY,GRAY,TRIM1# |
74617-24010-13 |
US $8.59 |
||
|
74613
|
74613
74617-24010-04 Plug, Assist Grip[08.1985 - 09.1987] VG40 BLUE,BLUE,TRIM8# |
74617-24010-04 |
US $8.59 |
||
| replacement | |||||
|
74613
|
74613
74617-24010-13 Plug, Assist Grip[08.1985 - 09.1987] VG40 BLUE,BLUE,TRIM8# |
74617-24010-13 |
US $8.59 |
||
|
74614
|
74614
71964-91402 Spacer, Assist Grip[10.1982 - 08.1985] VG40 |
71964-91402 |
US $4.08 |
||
|
74647
|
74647
74647-91401 Base, Assist Grip[10.1982 - 08.1985] VG40 |
74647-91401 |
US $11.50 |
||
|
74671
|
74671
74671-24010 Support, Assist Grip[08.1985 - 09.1987] VG40 |
74671-24010 |
US $19.51 |
||
|
9015960188
|
9015960188
90159-60188 SCREW |
90159-60188 |
US $1.05 |
||
|
9017904092
|
9017904092
90179-04092
NUT
|
90179-04092 |
— | ||
| replacement | |||||
|
9017904092
|
9017904092
90179-04001 NUT |
90179-04001 |
US $2.88 |
||
|
9323914020
|
9323914020
93239-14020 New Genuine Part |
93239-14020 |
US $0.87 |
||
|
9331116014
|
9331116014
93311-16014 Screw |
93311-16014 |
US $1.12 |
||
|
9331514008
|
9331514008
93315-14008 New Genuine Part |
93315-14008 |
US $1.16 |
||
|
9338316012
|
9338316012
93383-16012 New Genuine Part |
93383-16012 |
US $0.61 |
||
|
9353025016
|
9353025016
93530-25016 New Genuine Part |
93530-25016 |
US $2.72 |
||
|
9356614512
|
9356614512
93566-14512
SCREW
|
93566-14512 |
— | ||
| replacement | |||||
|
9356614512
|
9356614512
93568-54512 SCREW |
93568-54512 |
US $1.12 |
||
|
9461410400
|
9461410400
94614-10400 New Genuine Part |
94614-10400 |
US $1.02 |
||
