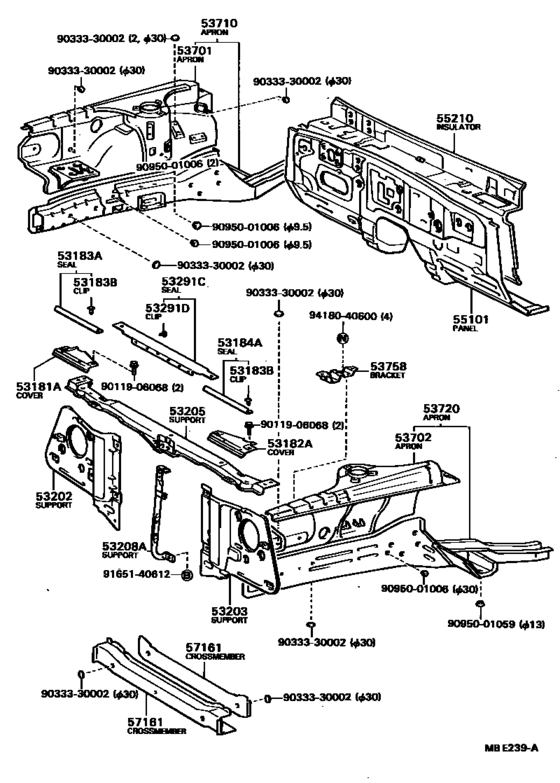

Front Fender Apron & Dash Panel ([10.1982 - ] (8210- )) Diagram Toyota CENTURY
- Year
- 1982 - 1987
- Sales region
- Japan
- Frame
- VG40
- grade
- D
- ENGINE
- 5VEU
- TRANSMISSION
- ATM
- From
- 10.1982
- To
- 09.1987
- Gear Shift Type
- 3HC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53181A
|
53181A
53181-91401 Cover, Headlamp, Rh[10.1982 - 09.1987] VG40 |
53181-91401 |
US $77.17 |
||
|
53182A
|
53182A
53182-91401 Cover, Headlamp, Lh[10.1982 - 09.1987] VG40 |
53182-91401 |
US $77.17 |
||
|
53183A
|
53183A
53183-91401 Seal, Headlamp Cover, Rh[10.1982 - 09.1987] VG40 |
53183-91401 |
US $5.97 |
||
|
53183B
|
53183B
90467-08011 Clip(For Headlamp Cover Seal)[10.1982 - 09.1987] VG40 |
90467-08011 |
from US $0.36 |
||
| replacements | |||||
|
53183B
|
53183B
90467-08011-TH CLIP[10.1982 - 09.1987] VG40 |
90467-08011-TH |
US $0.33 |
||
|
53183B
|
53183B
90467-08011-83 Clip(For Headlamp Cover Seal)Clip(For Headlamp Cover Seal) [10.1982 - 09.1987] VG40 |
90467-08011-83 |
US $3.60 |
||
|
53184A
|
53184A
53183-91401 Seal, Headlamp Cover, Rh[10.1982 - 09.1987] VG40 |
53183-91401 |
US $5.97 |
||
|
53202
|
53202
53202-91403 Support Sub-Assy, Radiator, Rh[10.1982 - 09.1987] VG40 |
53202-91403 |
US $200.93 |
||
|
53203
|
53203
53203-91402 Support Sub-Assy, Radiator, Lh[10.1982 - 09.1987] VG40 |
53203-91402 |
US $200.93 |
||
|
53205
|
53205
53205-91402
Support Sub-Assy, Radiator, Upper
[10.1982 - 09.1987] VG40 |
53205-91402 |
— | ||
|
53208A
|
53208A
53208-91404 Support Sub-Assy, Hood Lock[10.1982 - 09.1987] VG40 |
53208-91404 |
US $170.35 |
||
|
53291C
|
53291C
53291-91401 Seal, Radiator Support To Frame[10.1982 - 09.1987] VG40 |
53291-91401 |
US $28.10 |
||
|
53291D
|
53291D
90467-08011 Clip(For Headlamp Cover Seal)[10.1982 - 09.1987] VG40 |
90467-08011 |
from US $0.36 |
||
| replacements | |||||
|
53291D
|
53291D
90467-08011-TH CLIP[10.1982 - 09.1987] VG40 |
90467-08011-TH |
US $0.33 |
||
|
53291D
|
53291D
90467-08011-83 Clip(For Headlamp Cover Seal)Clip(For Headlamp Cover Seal) [10.1982 - 09.1987] VG40 |
90467-08011-83 |
US $3.60 |
||
|
53701
|
53701
53701-91408 Apron Sub-Assy, Front Fender, Rh[10.1982 - 09.1987] VG40 |
53701-91408 |
US $771.68 |
||
| replacement | |||||
|
53701
|
53701
53701-40040 Apron Sub-Assy, Front Fender, Rh[10.1982 - 09.1987] VG40 |
53701-40040 |
US $889.62 |
||
|
53702
|
53702
53702-91410 Apron Sub-Assy, Front Fender, Lh[10.1982 - 09.1987] VG40 |
53702-91410 |
US $771.68 |
||
|
53710
|
53710
53710-91402 Apron Assy, W/front Side Member, Rh[10.1982 - 09.1987] VG40 |
53710-91402 |
US $1,319.14 |
||
| replacements | |||||
|
53710
|
53710
53701-40040 Apron Sub-Assy, Front Fender, Rh[10.1982 - 09.1987] VG40 |
53701-40040 |
US $889.62 |
||
|
53710
|
53710
90333-40001 Plate, Noise Control, No.1[10.1982 - 09.1987] VG40 |
90333-40001 |
from US $1.60 |
||
|
53710
|
53710
57101-91409 Member Sub-Assy, Front Side, Rh[10.1982 - 09.1987] VG40 |
57101-91409 |
US $729.46 |
||
|
53720
|
53720
53720-91401 Apron Assy, W/front Side Member, Lh[10.1982 - 09.1987] VG40 |
53720-91401 |
US $1,319.14 |
||
|
53758
|
53758
53758-91402 Bracket, Ignition Coil Mounting[10.1982 - 09.1987] VG40 |
53758-91402 |
US $251.89 |
||
|
55101
|
55101
55101-91490 Panel Sub-Assy, Dash[10.1982 - 09.1987] VG40 |
55101-91490 |
US $1,288.56 |
||
|
55210
|
55210
55210-91401 Insulator Assy, Dash Panel[10.1982 - 09.1987] VG40 |
55210-91401 |
US $340.70 |
||
|
57161
|
57161
57104-91401 Crossmember, Front[10.1982 - 09.1987] VG40 RR |
57104-91401 |
US $307.22 |
||
| replacement | |||||
|
57161
|
57161
57104-91402 Member, Front Cross, Front[10.1982 - 09.1987] VG40 RR |
57104-91402 |
US $304.30 |
||
|
57161
|
57161
57161-91401 Crossmember, Front[10.1982 - 09.1987] VG40 FR |
57161-91401 |
US $320.32 |
||
|
9011906068
|
9011906068
90119-06068
New Genuine Part
|
90119-06068 |
— | ||
| replacement | |||||
|
9011906068
|
9011906068
90119-06311 BOLT |
90119-06311 |
US $1.60 |
||
|
9033330002
|
9033330002
90333-30002 Cover, Front Floor Hole |
90333-30002 |
from US $1.05 |
||
|
9095001006
|
9095001006
90950-01006 Plug, Hole(For Front Fender) |
90950-01006 |
from US $2.16 |
||
|
9095001059
|
9095001059
90950-01059
Grommet, Safety Band Anchorage Nut
|
90950-01059 |
— | ||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.94 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.31 |
||
|
9418040600
|
9418040600
94180-40600 Retainer, Roof Window Hinge |
94180-40600 |
from US $1.44 |
||
