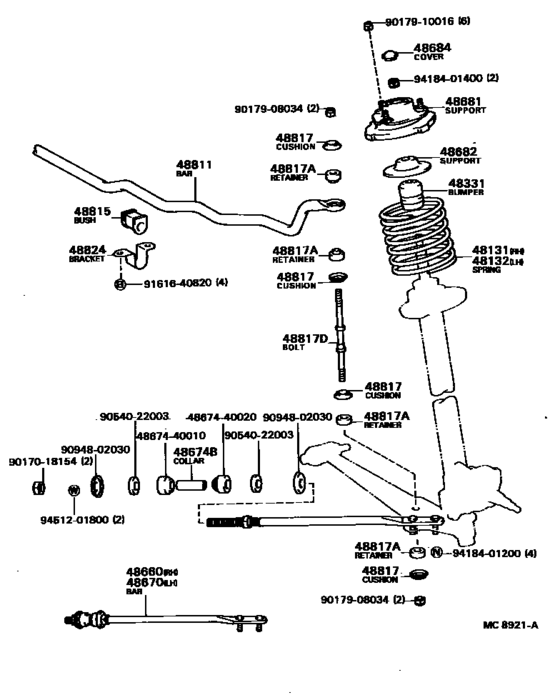

Front Spring & Shock Absorber ([10.1982 - ] (8210- )) Diagram Toyota CENTURY
- Year
- 1982 - 1987
- Sales region
- Japan
- Frame
- VG40
- grade
- D
- ENGINE
- 5VEU
- TRANSMISSION
- ATM
- From
- 10.1982
- To
- 09.1987
- Gear Shift Type
- 3HC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48131
|
48131
48131-40030 Spring, Front Coil, Rh[10.1982 - 09.1987] VG40 |
48131-40030 |
US $225.68 |
||
|
48132
|
48132
48131-40040
Spring, Front Coil, Lh
[10.1982 - 09.1987] VG40 |
48131-40040 |
— | ||
| replacement | |||||
|
48132
|
48132
48131-40031
Spring, Front Coil, Rh
[10.1982 - 09.1987] VG40 |
48131-40031 |
— | ||
|
48331
|
48331
48331-40020
Bumper, Front Spring, No.1
[10.1982 - 09.1987] VG40 |
48331-40020 |
— | ||
|
48660
|
48660
48660-49015 Bar Assy, Strut, Rh[10.1982 - 09.1987] VG40 |
48660-49015 |
US $198.02 |
||
| replacement | |||||
|
48660
|
48660
48660-40010
Bar Assy, Strut, Rh
[10.1982 - 09.1987] VG40 |
48660-40010 |
— | ||
|
48670
|
48670
48660-49015 Bar Assy, Strut, Rh[10.1982 - 09.1987] VG40 |
48660-49015 |
US $198.02 |
||
| replacement | |||||
|
48670
|
48670
48660-40010
Bar Assy, Strut, Rh
[10.1982 - 09.1987] VG40 |
48660-40010 |
— | ||
|
48674B
|
48674B
90387-18004 Collar(For Strut Bar Cushion)[10.1982 - 09.1987] VG40 |
90387-18004 |
US $4.37 |
||
|
48681
|
48681
48681-40040
Support, Front Suspension, No.1
[10.1982 - 09.1987] VG40 |
48681-40040 |
— | ||
|
48682
|
48682
48682-40020
Support, Front Suspension, No.2
[10.1982 - 09.1987] VG40 |
48682-40020 |
— | ||
|
48684
|
48684
48684-40020 Cover, Bearing Dust[10.1982 - 09.1987] VG40 |
48684-40020 |
US $20.82 |
||
|
48811
|
48811
48811-40040 Bar, Stabilizer, Front[10.1982 - 09.1987] VG40 |
48811-40040 |
US $214.03 |
||
|
48815
|
48815
48815-40020 Bush, Front Stabilizer Bar, No.1[10.1982 - 09.1987] VG40 |
48815-40020 |
US $22.71 |
||
|
48817
|
48817
48817-30020 Rear stabilizer link cushion[10.1982 - 09.1987] VG40 |
48817-30020 |
from US $3.10 |
||
|
48817A
|
48817A
90948-02032 Retainer, Cushion, No.1(For Front Stabilizer Bar)[10.1982 - 09.1987] VG40 |
90948-02032 |
US $3.20 |
||
|
48817D
|
48817D
48819-30020
Bolt(For Front Stabilizer)
[10.1982 - 09.1987] VG40 |
48819-30020 |
— | ||
|
48824
|
48824
48824-30050 Cover, Front Stabilizer Bracket[08.1983 - 09.1987] VG40 |
48824-30050 |
from US $4.19 |
||
|
48824
|
48824
48824-40020 Bracket, Stabilizer, Front[10.1982 - 08.1983] VG40 |
48824-40020 |
US $3.93 |
||
| replacement | |||||
|
48824
|
48824
48824-30050 Cover, Front Stabilizer Bracket[10.1982 - 08.1983] VG40 |
48824-30050 |
from US $4.19 |
||
|
4867440010
|
4867440010
48674-40010 Cushion, Strut Bar |
48674-40010 |
US $11.07 |
||
|
4867440020
|
4867440020
48674-40020 Cushion, Strut Bar |
48674-40020 |
US $10.77 |
||
|
9017018154
|
9017018154
90170-18154 New Genuine Part |
90170-18154 |
from US $2.59 |
||
|
9017908034
|
9017908034
90179-08034 Nut(For Front Stabilizer Link) |
90179-08034 |
US $2.08 |
||
|
9017910016
|
9017910016
90179-10016
Nut(For Counter Gear Shaft)
|
90179-10016 |
— | ||
| replacement | |||||
|
9017910016
|
9017910016
90179-10132 Nut |
90179-10132 |
from US $0.98 |
||
|
9054022003
|
9054022003
90540-22003 New Genuine Part |
90540-22003 |
US $18.20 |
||
|
9094802030
|
9094802030
90948-02030 Retainer, Cushion(For Strut Bar Cushion) |
90948-02030 |
US $5.76 |
||
|
9161640820
|
9161640820
91616-40820 Bolt, Engine Rear Cover Hinge Set |
91616-40820 |
US $1.40 |
||
|
9418401200
|
9418401200
94184-01200
New Genuine Part
|
94184-01200 |
— | ||
|
9418401400
|
9418401400
94184-01400 NUT |
94184-01400 |
US $4.80 |
||
|
9451201800
|
9451201800
94512-01800 WASHER |
94512-01800 |
US $1.63 |
||
