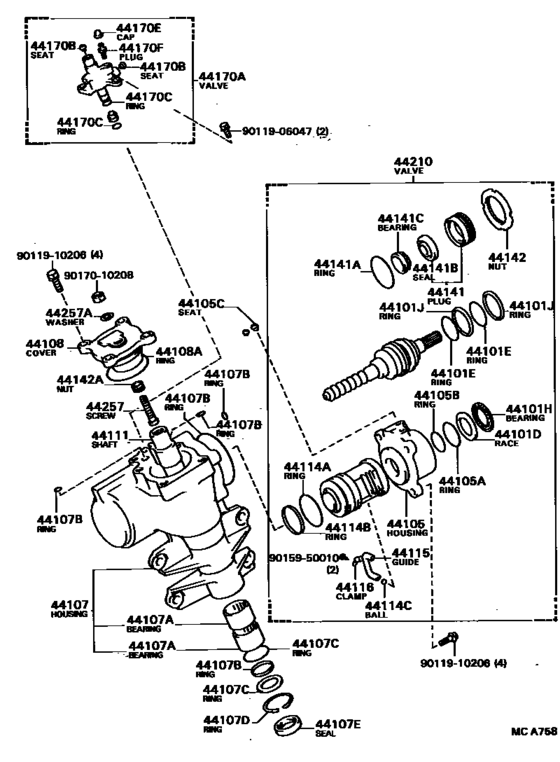

Front Steering Gear & Link ([10.1982 - ] (8210- )) Diagram Toyota CENTURY
- Year
- 1982 - 1987
- Sales region
- Japan
- Frame
- VG40
- grade
- D
- ENGINE
- 5VEU
- TRANSMISSION
- ATM
- From
- 10.1982
- To
- 09.1987
- Gear Shift Type
- 3HC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44101D
|
44101D
90201-30003 Washer, Plate(For Steering Worm)[10.1982 - 09.1987] VG40 |
90201-30003 |
US $13.10 |
||
|
44101E
|
44101E
90301-44001
Ring, O(For Steering Worm)
[10.1982 - 09.1987] VG40 |
90301-44001 |
— | ||
|
44101H
|
44101H
90374-30003 Bearing, Thrust Needle Roller(For Steering Worm)[10.1982 - 09.1987] VG40 |
90374-30003 |
US $8.91 |
||
|
44101J
|
44101J
90562-47002
Ring(For Steering Worm)
[10.1982 - 09.1987] VG40 |
90562-47002 |
— | ||
|
44105
|
44105
44105-40010 Housing Sub-Assy, Valve[10.1982 - 09.1987] VG40 |
44105-40010 |
US $232.96 |
||
|
44105A
|
44105A
90301-32002 Ring, O(For Valve Housing)[10.1982 - 09.1987] VG40 |
90301-32002 |
US $4.37 |
||
|
44105B
|
44105B
90562-30002 Ring(For Valve Housing)[10.1982 - 09.1987] VG40 |
90562-30002 |
US $39.65 |
||
|
44105C
|
44105C
90410-03004 Seat, Union(For Valve Body Housing)[10.1982 - 09.1987] VG40 RETURN PORT SIDE |
90410-03004 |
US $3.20 |
||
|
44105C
|
44105C
90410-06030
Seat, Union(For Valve Body Housing)
[10.1982 - 09.1987] VG40 PRESSURE PORT SIDE |
90410-06030 |
— | ||
|
44107
|
44107
44107-40010 Housing Sub-Assy, Power Steering Gear[10.1982 - 09.1987] VG40 |
44107-40010 |
US $918.74 |
||
|
44107A
|
44107A
90364-32003 Bearing, Needle Roller(For Power Steering Gear Housing)[10.1982 - 09.1987] VG40 |
90364-32003 |
US $16.25 |
||
|
44107B
|
44107B
90301-33002 Ring, O (For Oil Pump Inner Bush)[10.1982 - 09.1987] VG40 内径＝３３．７，外径＝４０．７,OD=40.7,T=3.5 |
90301-33002 |
from US $3.49 |
||
|
44107B
|
44107B
90301-82001 Ring, O(For Valve Housing)[10.1982 - 09.1987] VG40 |
90301-82001 |
US $8.74 |
||
|
44107B
|
44107B
96711-19005 Ring, O(For Power Steering Gear Housing)[10.1982 - 09.1987] VG40 OD=8.6,T=1.9 |
96711-19005 |
from US $1.31 |
||
|
44107B
|
44107B
96711-19010 Ring, O(For Oil Level Gage Guide)[10.1982 - 09.1987] VG40 外径＝１３．６，内径＝９．８,OD=13,T=1.9 |
96711-19010 |
from US $2.36 |
||
|
44107C
|
44107C
90562-31002 Ring(For Power Steering Gear Housing)[10.1982 - 09.1987] VG40 内径＝３１．７，外径＝３４．１，厚さ＝４,OD=34,T=4 |
90562-31002 |
US $8.91 |
||
|
44107C
|
44107C
90562-32002 Ring(For Power Steering Gear Housing)[10.1982 - 09.1987] VG40 内径＝３２，外径＝４０,OD=40,T=3 |
90562-32002 |
US $8.21 |
||
|
44107D
|
44107D
90521-44002 Ring, Hole Snap(For Power Steering Gear Housing)[10.1982 - 09.1987] VG40 |
90521-44002 |
US $8.21 |
||
|
44107E
|
44107E
90312-32002 Seal, Oil(For Power Steering Gear Housing)[10.1982 - 09.1987] VG40 |
90312-32002 |
from US $3.14 |
||
|
44108
|
44108
44108-40010 Cover Sub-Assy, Side[10.1982 - 09.1987] VG40 |
44108-40010 |
US $132.50 |
||
|
44108A
|
44108A
90301-64002 Ring, O(For Side Cover)[10.1982 - 09.1987] VG40 |
90301-64002 |
from US $2.34 |
||
|
44111
|
44111
44111-40030 Shaft, Cross[10.1982 - 09.1987] VG40 |
44111-40030 |
US $831.38 |
||
|
44114A
|
44114A
90562-77001 Ring(For Power Piston Nut)[10.1982 - 09.1987] VG40 |
90562-77001 |
US $15.29 |
||
|
44114B
|
44114B
90301-72001 Ring, O(For Power Piston Nut)[10.1982 - 09.1987] VG40 |
90301-72001 |
US $9.03 |
||
|
44114C
|
44114C
90360-06021 Ball(For Power Piston Nut)[10.1982 - 09.1987] VG40 |
90360-06021 |
US $2.24 |
||
|
44115
|
44115
44115-22010
Guide, Ball
[10.1982 - 09.1987] VG40 |
44115-22010 |
— | ||
|
44116
|
44116
44116-22010 Clamp, Ball Guide[10.1982 - 09.1987] VG40 |
44116-22010 |
US $1.89 |
||
|
44141
|
44141
44104-22011 Plug Sub-Assy, Adjuster[10.1982 - 09.1987] VG40 |
44104-22011 |
US $33.20 |
||
|
44141A
|
44141A
90301-51001 Ring, O(For Adjuster Plug)[10.1982 - 09.1987] VG40 |
90301-51001 |
from US $2.77 |
||
|
44141B
|
44141B
90311-19002 Seal, Oil(For Adjuster Plug)[10.1982 - 09.1987] VG40 |
90311-19002 |
from US $3.04 |
||
|
44141C
|
44141C
90369-22001 Bearing(For Adjuster Plug)[10.1982 - 11.1984] VG40 |
90369-22001 |
US $35.24 |
||
| replacement | |||||
|
44141C
|
44141C
90369-22004 Bearing(For Adjuster Plug)[10.1982 - 11.1984] VG40 |
90369-22004 |
US $22.89 |
||
|
44141C
|
44141C
90369-22004 Bearing(For Adjuster Plug)[11.1984 - 09.1987] VG40 |
90369-22004 |
US $22.89 |
||
|
44142
|
44142
44142-22010 Nut, Lock[10.1982 - 09.1987] VG40 |
44142-22010 |
US $20.44 |
||
|
44142A
|
44142A
44142-22020 Nut, Lock[10.1982 - 09.1987] VG40 |
44142-22020 |
US $6.29 |
||
|
44170A
|
44170A
44170-40010 Valve Assy, Power Steering By-Pass[10.1982 - 09.1987] VG40 |
44170-40010 |
US $647.92 |
||
|
44170B
|
44170B
96390-71000 Seat, Union(For Power Steering By-Pass Valve)[10.1982 - 09.1987] VG40 |
96390-71000 |
US $3.35 |
||
|
44170C
|
44170C
90301-07005 Ring, O(For Power Steering By-Pass Valve)[10.1982 - 09.1987] VG40 |
90301-07005 |
US $7.86 |
||
|
44170E
|
44170E
44157-30010
Cap, Bleeder Plug(For Power Steering Gear Housing)
[10.1982 - 09.1987] VG40 |
44157-30010 |
— | ||
|
44170F
|
44170F
47547-20030 Plug, Bleeder(For Power Steering By-Pass Valve)[10.1982 - 09.1987] VG40 |
47547-20030 |
from US $3.68 |
||
|
44210
|
44210
44120-40010 Valve Assy, Power Steering Control[10.1982 - 09.1987] VG40 |
44120-40010 |
US $690.14 |
||
|
44257
|
44257
45357-22010
Screw, Cross Shaft Adjusting
[10.1982 - 09.1987] VG40 |
45357-22010 |
— | ||
| replacement | |||||
|
44257
|
44257
45357-60030 Screw, Cross Shaft Adjusting[10.1982 - 09.1987] VG40 |
45357-60030 |
from US $3.36 |
||
|
44257A
|
44257A
90210-10001 Washer, Seal(For Cross Shaft Adjusting Screw)[10.1982 - 09.1987] VG40 |
90210-10001 |
from US $5.85 |
||
|
9011906047
|
9011906047
90119-06047 New Genuine Part |
90119-06047 |
US $1.60 |
||
|
9011910206
|
9011910206
90119-10206 Bolt, Hexagon(For Rear Caliper) |
90119-10206 |
US $3.20 |
||
|
9015950010
|
9015950010
90159-50010 New Genuine Part |
90159-50010 |
US $1.76 |
||
|
9017010208
|
9017010208
90170-10208 NUT |
90170-10208 |
US $1.28 |
||
