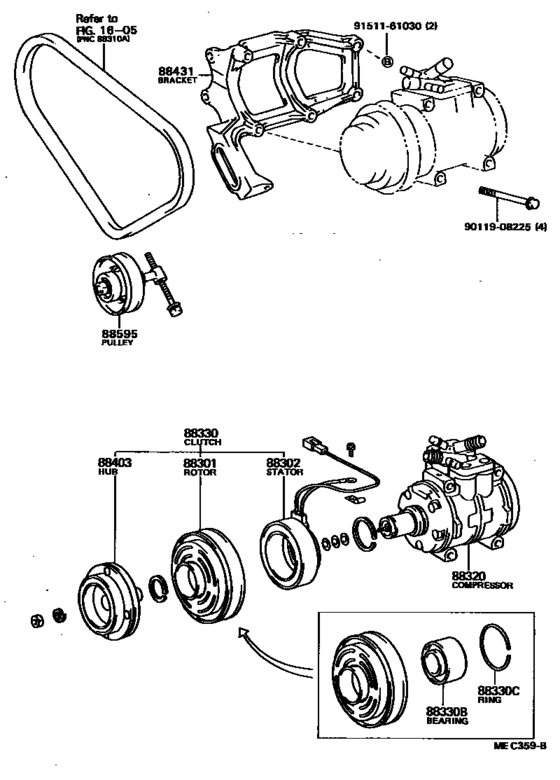

Heating & Air Conditioning - Compressor ([10.1982 - ] (8210- )) Diagram Toyota CENTURY
- Year
- 1982 - 1987
- Sales region
- Japan
- Frame
- VG40
- grade
- D
- ENGINE
- 5VEU
- TRANSMISSION
- ATM
- From
- 10.1982
- To
- 09.1987
- Gear Shift Type
- 3HC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88301
|
88301
88412-14010
Rotor Sub-Assy, Magnet Clutch
[10.1982 - 09.1987] VG40 |
88412-14010 |
— | ||
|
88302
|
88302
88411-14050
Stator Sub-Assy, Magnet Clutch
[10.1982 - 09.1987] VG40 |
88411-14050 |
— | ||
|
88320
|
88320
88320-40040
Compressor Assy, Cooler
[10.1982 - 09.1987] VG40 |
88320-40040 |
— | ||
| replacement | |||||
|
88320
|
88320
88320-40041
Compressor Assy, Cooler
[10.1982 - 09.1987] VG40 |
88320-40041 |
— | ||
|
88330
|
88330
88410-14090 Clutch Assy, Magnet[10.1982 - 09.1987] VG40 |
88410-14090 |
US $551.82 |
||
|
88330B
|
88330B
90099-10133 Bearing, Ball(For Clutch Pully)[10.1982 - 09.1987] VG40 |
90099-10133 |
US $12.15 |
||
|
88330C
|
88330C
90099-07114 Ring, Snap (For Magnet Clutch)[10.1982 - 09.1987] VG40 |
90099-07114 |
from US $1.21 |
||
|
88403
|
88403
88403-14030
Hub Sub-Assy, Magnet Clutch
[10.1982 - 09.1987] VG40 |
88403-14030 |
— | ||
| replacement | |||||
|
88403
|
88403
88403-12030
Hub Sub-Assy, Magnet Clutch
[10.1982 - 09.1987] VG40 |
88403-12030 |
— | ||
|
88431
|
88431
88431-40040
Bracket, Compressor Mounting, No.1
[10.1982 - 09.1987] VG40 |
88431-40040 |
— | ||
|
88595
|
88595
88440-40010
Pulley, Cooler Compressor Idle
[10.1982 - 09.1987] VG40 |
88440-40010 |
— | ||
|
9011908225
|
9011908225
90119-08225
BOLT
|
90119-08225 |
— | ||
|
9151161030
|
9151161030
91511-61030 Bolt (For Transaxle Case Upper Cover) |
91511-61030 |
US $3.84 |
||
| replacement | |||||
|
9151161030
|
9151161030
91512-61030 Bolt (For Transaxle Case Upper Cover) |
91512-61030 |
US $2.72 |
||
