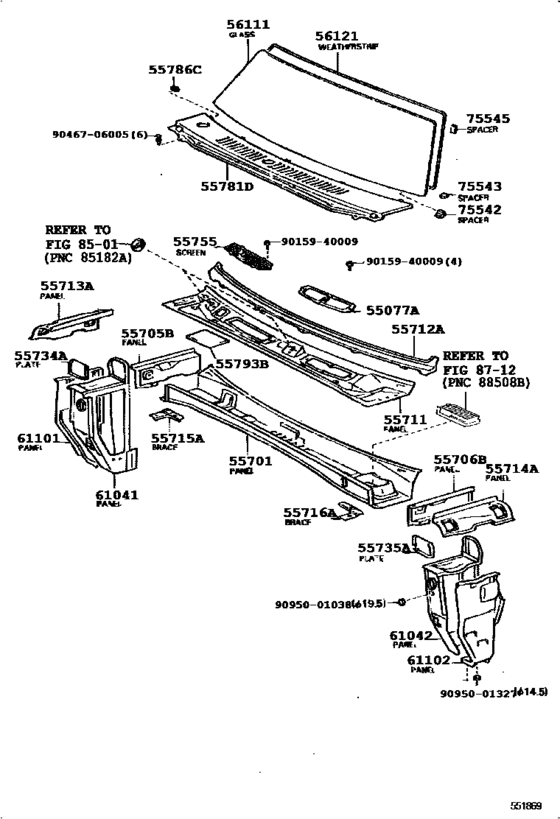

Cowl Panel & Windshield Glass ([09.1987 - ] (8709- )) Diagram Toyota CENTURY
- Year
- 1990 - 1997
- Sales region
- Japan
- Frame
- VG45
- grade
- L
- ENGINE
- 5VEU
- From
- 09.1990
- To
- 01.1997
- Gear Shift Type
- 4HC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55077A
|
55077A
55077-22040
Cover Sub-Assy, Heater Air Duct Hole
[09.1987 - 01.1997] VG4# |
55077-22040 |
— | ||
|
55701
|
55701
55703-91410 Panel Sub-Assy, Cowl[09.1987 - 01.1997] VG4# |
55703-91410 |
US $368.37 |
||
|
55705B
|
55705B
55705-91401 Panel Sub-Assy, Cowl Top Side, Rh[09.1987 - 01.1997] VG4# |
55705-91401 |
US $205.30 |
||
|
55706B
|
55706B
55706-91401 Panel Sub-Assy, Cowl Top Side, Lh[09.1987 - 01.1997] VG4# |
55706-91401 |
US $187.82 |
||
|
55711
|
55711
55702-91401 Panel, Cowl Top, Outer[09.1987 - 01.1997] VG4# |
55702-91401 |
US $310.13 |
||
|
55712A
|
55712A
55712-91405 Panel, Cowl Top Outside, Front[09.1987 - 01.1997] VG4# |
55712-91405 |
US $324.69 |
||
|
55713A
|
55713A
55713-91407 Panel, Cowl Top Side, Rh[09.1987 - 01.1997] VG4# |
55713-91407 |
US $149.97 |
||
|
55714A
|
55714A
55714-91401 Panel, Cowl Top Side, Lh[09.1987 - 01.1997] VG4# |
55714-91401 |
US $149.97 |
||
|
55715A
|
55715A
55715-91403 Brace, Cowl Top To Apron, Rh[09.1987 - 01.1997] VG4# |
55715-91403 |
US $21.99 |
||
|
55716A
|
55716A
55716-91402 Brace, Cowl Top To Apron, Lh[09.1987 - 01.1997] VG4# |
55716-91402 |
US $21.99 |
||
|
55734A
|
55734A
55734-91401 Plate, Water Guard, Rh[09.1987 - 01.1997] VG4# |
55734-91401 |
US $31.16 |
||
|
55735A
|
55735A
55735-91402 Plate, Water Guard, Lh[09.1987 - 01.1997] VG4# |
55735-91402 |
US $31.16 |
||
|
55755
|
55755
55731-91401 Screen, Heater Air Duct[09.1987 - 01.1997] VG4# |
55731-91401 |
US $34.51 |
||
|
55781D
|
55781D
55781-91402 Louver, Cowl Ventilator[09.1987 - 01.1997] VG4# |
55781-91402 |
US $304.30 |
||
|
55786C
|
55786C
55786-20020
Cap, Cowl Ventilator Louver
[09.1987 - 01.1997] VG4# |
55786-20020 |
— | ||
|
55793B
|
55793B
55793-91401 Cover, Wiper Motor Service Hole[09.1987 - 01.1997] VG4# |
55793-91401 |
US $4.08 |
||
|
56111
|
56111
56111-91414
Glass, Windshield
[09.1990 - 01.1997] VG45 ＊ＳＥＲＬ，Ｔ＝５．３，グレー |
56111-91414 |
— | ||
|
56121
|
56121
56102-91401
Stop Sub-Assy, Window Shield
[09.1987 - 01.1997] VG4# |
56102-91401 |
— | ||
|
61041
|
61041
61041-91401 Panel Sub-Assy, Cowl Side, Inner Rh[09.1987 - 01.1997] VG4# |
61041-91401 |
US $646.46 |
||
|
61042
|
61042
61042-91401 Panel Sub-Assy, Cowl Side, Inner Lh[09.1987 - 01.1997] VG4# |
61042-91401 |
US $646.46 |
||
|
61101
|
61101
61101-91401 Panel Sub-Assy, Cowl Side, Rh[09.1987 - 01.1997] VG4# |
61101-91401 |
US $234.42 |
||
|
61102
|
61102
61102-91401 Panel Sub-Assy, Cowl Side, Lh[09.1987 - 01.1997] VG4# |
61102-91401 |
US $225.68 |
||
|
75542
|
75542
75542-91405
Spacer, Step Rubber Windshield Glass
[09.1987 - 01.1997] VG4# |
75542-91405 |
— | ||
|
75543
|
75543
75543-91402
Spacer, Flat Rubber Windshield Glass
[09.1987 - 01.1997] VG4# |
75543-91402 |
— | ||
|
75545
|
75545
75545-91401 Spacer, Windshield Glass[09.1987 - 01.1997] VG4# |
75545-91401 |
US $2.48 |
||
|
9015940009
|
9015940009
90159-40009 New Genuine Part |
90159-40009 |
from US $2.97 |
||
|
9046706005
|
9046706005
90467-06005 Clip, Radiator Support To Frame |
90467-06005 |
from US $1.48 |
||
|
9095001038
|
9095001038
90950-01038 Plug, Hole(For Instrument Lower Panel) |
90950-01038 |
US $4.32 |
||
|
9095001327
|
9095001327
90950-01327 Plug, Hole(For Front Fender Apron) |
90950-01327 |
US $5.76 |
