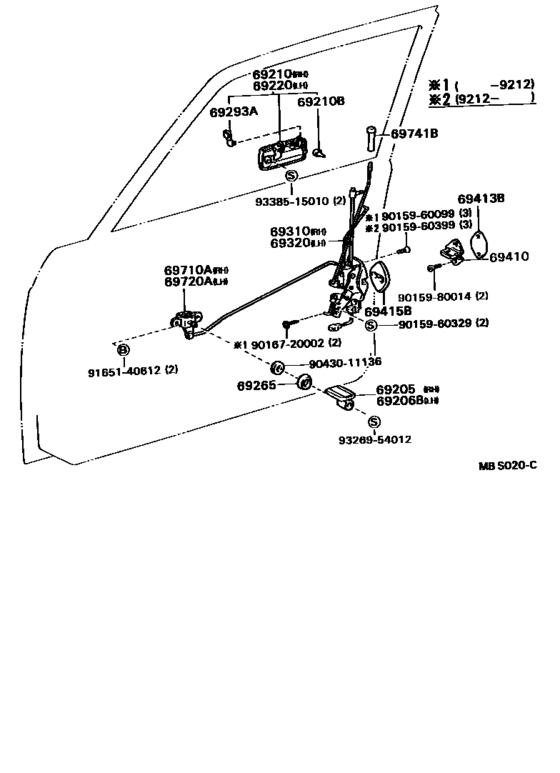

Front Door Lock & Handle ([09.1987 - ] (8709- )) Diagram Toyota CENTURY
- Year
- 1990 - 1997
- Sales region
- Japan
- Frame
- VG45
- grade
- L
- ENGINE
- 5VEU
- From
- 09.1990
- To
- 01.1997
- Gear Shift Type
- 4HC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69205
|
69205
69206-91401 Handle Sub-Assy, Front Door Inside, Rh[09.1987 - 01.1997] VG4# |
69206-91401 |
US $37.56 |
||
|
69206B
|
69206B
69207-91402 Handle Sub-Assy, Front Door Inside, Lh[09.1987 - 01.1997] VG4# |
69207-91402 |
US $37.56 |
||
|
69210
|
69210
69210-40030 Handle Assy, Front Door, Outside Rh[09.1987 - 01.1997] VG4# |
69210-40030 |
US $123.76 |
||
|
69210B
|
69210B
90541-03021 Cushion(For Front Door Outside Handle)[09.1987 - 01.1997] VG4# |
90541-03021 |
US $4.96 |
||
|
69220
|
69220
69220-40030 Handle Assy, Front Door Outside, Lh[09.1987 - 01.1997] VG4# |
69220-40030 |
US $123.76 |
||
|
69265
|
69265
69265-91401 Seal(For Front Door Inside Handle)[09.1987 - 01.1997] VG4# |
69265-91401 |
US $2.77 |
||
|
69293A
|
69293A
69293-12010 Snap, Front Door Outside Handle[09.1987 - 01.1997] VG4# 右側 |
69293-12010 |
US $3.49 |
||
|
69293A
|
69293A
69293-12020 Snap, Front Door Outside Handle[09.1987 - 01.1997] VG4# 左側 |
69293-12020 |
US $4.16 |
||
|
69310
|
69310
69310-40100 Lock Assy, Front Door, Rh[09.1987 - 12.1992] VG4# |
69310-40100 |
US $163.07 |
||
|
69310
|
69310
69310-40101 Lock Assy, Front Door, Rh[12.1992 - 01.1993] VG4# |
69310-40101 |
US $147.06 |
||
|
69310
|
69310
69310-40120 Lock Assy, Front Door, Rh[01.1993 - 01.1997] VG4# |
69310-40120 |
US $160.16 |
||
|
69320
|
69320
69320-40100 Lock Assy, Front Door, Lh[09.1987 - 12.1992] VG4# |
69320-40100 |
US $163.07 |
||
|
69320
|
69320
69320-40101 Lock Assy, Front Door, Lh[12.1992 - 01.1993] VG4# |
69320-40101 |
US $147.06 |
||
|
69320
|
69320
69320-40120 Lock Assy, Front Door, Lh[01.1993 - 01.1997] VG4# |
69320-40120 |
US $147.06 |
||
|
69410
|
69410
69410-50010 Plate Assy, Front Door Lock Striker[10.1992 - 01.1997] VG4# |
69410-50010 |
US $12.23 |
||
|
69410
|
69410
69410-90B02
Striker Assy, Back Door, Center
[09.1987 - 10.1992] VG4# |
69410-90B02 |
— | ||
|
69413B
|
69413B
69413-30010 Shim, Front Door Lock Striker Plate[09.1987 - 10.1992] VG4# |
69413-30010 |
US $10.77 |
||
|
69415B
|
69415B
69415-50010 Cover, Door Lock Striker, Front[10.1992 - 01.1997] VG4# |
69415-50010 |
US $5.28 |
||
|
69710A
|
69710A
69710-40030 Link Assy, Front Door Open Control, Rh[09.1987 - 01.1997] VG4# |
69710-40030 |
US $18.78 |
||
|
69720A
|
69720A
69720-40030 Link Assy, Front Door Open Control, Lh[09.1987 - 01.1997] VG4# |
69720-40030 |
US $18.78 |
||
|
69741B
|
69741B
69077-91401 Knob, Front Door Lock Control[09.1987 - 01.1997] VG4# |
69077-91401 |
US $9.61 |
||
|
9015960099
|
9015960099
90159-60099 New Genuine Part |
90159-60099 |
US $1.60 |
||
|
9015960329
|
9015960329
90159-60329 New Genuine Part |
90159-60329 |
US $1.60 |
||
|
9015960399
|
9015960399
90159-60399 New Genuine Part |
90159-60399 |
US $1.60 |
||
|
9015980014
|
9015980014
90159-80014 SCREW |
90159-80014 |
US $1.92 |
||
|
9016720002
|
9016720002
90167-20002 New Genuine Part |
90167-20002 |
US $1.02 |
||
|
9043011136
|
9043011136
90430-11136 Gasket(For Front Door Inside Handle) |
90430-11136 |
US $3.20 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
US $1.12 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.31 |
||
|
9326954012
|
9326954012
93269-54012 SCREW |
93269-54012 |
US $1.12 |
||
|
9338515010
|
9338515010
93385-15010 Screw(For Steering Tilt Lever) |
93385-15010 |
US $1.12 |
||
