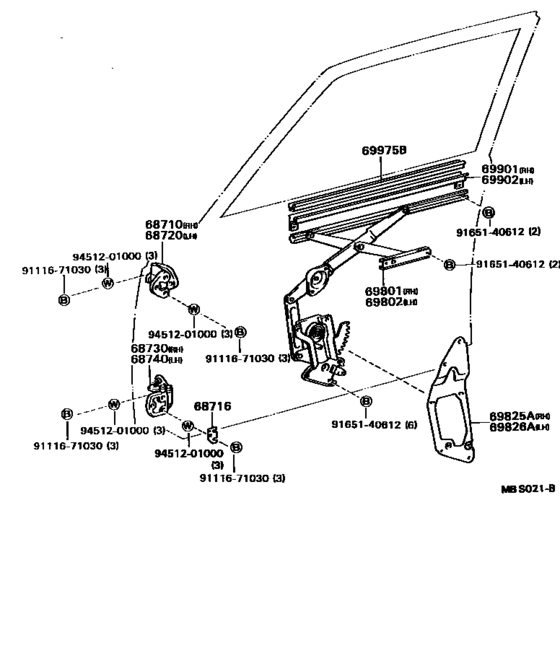

Front Door Window Regulator & Hinge ([09.1987 - ] (8709- )) Diagram Toyota CENTURY
- Year
- 1990 - 1997
- Sales region
- Japan
- Frame
- VG45
- grade
- L
- ENGINE
- 5VEU
- From
- 09.1990
- To
- 01.1997
- Gear Shift Type
- 4HC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
68710
|
68710
68710-40050 Hinge Assy, Front Door, Upper Rh[09.1987 - 01.1997] VG4# |
68710-40050 |
US $104.83 |
||
|
68716
|
68716
68716-91401 Plate, Front Door Hinge, Lower[09.1990 - 01.1997] VG4# |
68716-91401 |
US $5.53 |
||
|
68720
|
68720
68710-40050 Hinge Assy, Front Door, Upper Rh[09.1987 - 01.1997] VG4# |
68710-40050 |
US $104.83 |
||
|
68730
|
68730
68730-40030 Hinge Assy, Front Door, Lower Rh[09.1987 - 12.1992] VG4# |
68730-40030 |
US $104.83 |
||
| replacement | |||||
|
68730
|
68730
68730-40031 Hinge Assy, Front Door, Lower Rh[09.1987 - 12.1992] VG4# |
68730-40031 |
US $100.46 |
||
|
68730
|
68730
68730-40031 Hinge Assy, Front Door, Lower Rh[12.1992 - 01.1997] VG4# |
68730-40031 |
US $100.46 |
||
|
68740
|
68740
68740-40030 Hinge Assy, Front Door, Lower Lh[09.1987 - 12.1992] VG4# |
68740-40030 |
US $104.83 |
||
| replacement | |||||
|
68740
|
68740
68740-40031 Hinge Assy, Front Door, Lower Lh[09.1987 - 12.1992] VG4# |
68740-40031 |
US $100.46 |
||
|
68740
|
68740
68740-40031 Hinge Assy, Front Door, Lower Lh[12.1992 - 01.1997] VG4# |
68740-40031 |
US $100.46 |
||
|
69801
|
69801
69801-40041
Regulator Sub-Assy, Front Door Window, Rh
[09.1987 - 01.1997] VG4# |
69801-40041 |
— | ||
|
69802
|
69802
69802-40041
Regulator Sub-Assy, Front Door Window, Lh
[09.1987 - 01.1997] VG4# |
69802-40041 |
— | ||
|
69825A
|
69825A
69825-40021 Reinforcement, Front Door Regulator, Rh[09.1987 - 01.1997] VG4# |
69825-40021 |
US $78.62 |
||
|
69826A
|
69826A
69826-40021 Reinforcement, Front Door Regulator, Lh[09.1987 - 01.1997] VG4# |
69826-40021 |
US $78.62 |
||
|
69901
|
69901
69905-91401 Channel Sub-Assy, Front Door Glass, Rh[09.1987 - 01.1997] VG4# |
69905-91401 |
US $16.89 |
||
|
69902
|
69902
69905-91401 Channel Sub-Assy, Front Door Glass, Rh[09.1987 - 01.1997] VG4# |
69905-91401 |
US $16.89 |
||
|
69975B
|
69975B
69975-91403 Filler, Front Door Glass Channel[09.1987 - 01.1997] VG4# |
69975-91403 |
US $7.43 |
||
| replacement | |||||
|
69975B
|
69975B
69971-90K00 Filler, Front Door Glass Channel[09.1987 - 01.1997] VG4# |
69971-90K00 |
from US $8.81 |
||
|
9111671030
|
9111671030
91116-71030 New Genuine Part |
91116-71030 |
US $4.37 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
US $1.12 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.31 |
||
|
9451201000
|
9451201000
94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-01000 |
from US $0.76 |
||
