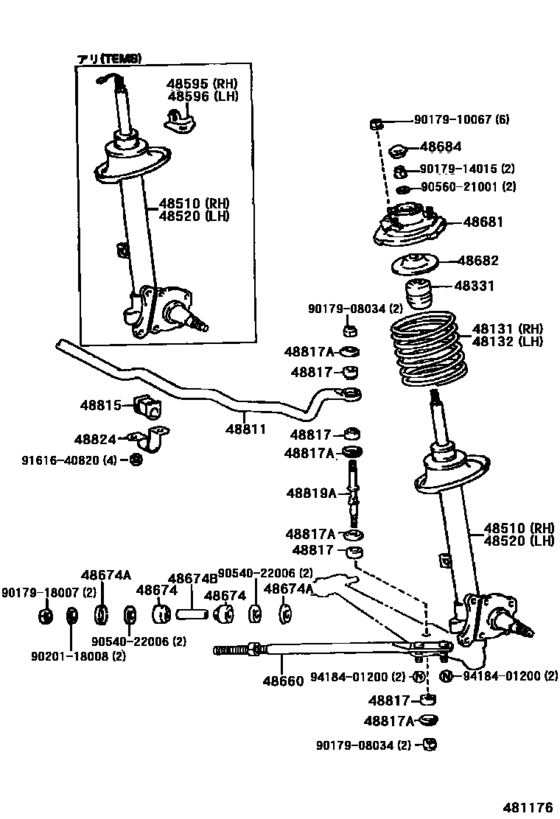

Front Spring & Shock Absorber ([09.1987 - 12.1992] (8709-9212)) Diagram Toyota CENTURY
- Year
- 1990 - 1997
- Sales region
- Japan
- Frame
- VG45
- grade
- L
- ENGINE
- 5VEU
- From
- 09.1990
- To
- 01.1997
- Gear Shift Type
- 4HC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48131
|
48131
48131-40151
Spring, Front Coil, Rh
[09.1990 - 01.1997] VG45..4HC ﾘﾑｼﾞﾝ H,S |
48131-40151 |
— | ||
|
48131
|
48131
48131-40170
Spring, Front Coil, Rh
[09.1990 - 01.1997] VG45 |
48131-40170 |
— | ||
|
48132
|
48132
48131-40161
Spring, Front Coil, Lh
[09.1990 - 01.1997] VG45..4HC ﾘﾑｼﾞﾝ H,S |
48131-40161 |
— | ||
|
48132
|
48132
48131-40180
Spring, Front Coil, Lh
[09.1990 - 01.1997] VG45 |
48131-40180 |
— | ||
| replacement | |||||
|
48132
|
48132
48131-40031
Spring, Front Coil, Rh
[09.1990 - 01.1997] VG45 |
48131-40031 |
— | ||
|
48331
|
48331
48331-40020
Bumper, Front Spring, No.1
[09.1987 - 01.1997] VG4# |
48331-40020 |
— | ||
|
48510
|
48510
48510-40070
Absorber Assy, Shock, Front Rh
[09.1990 - 01.1997] VG45..4HC ﾘﾑｼﾞﾝ ALL |
48510-40070 |
— | ||
|
48510
|
48510
48510-40091
Absorber Assy, Shock, Front Rh
[09.1990 - 12.1992] VG4#..E,L |
48510-40091 |
— | ||
|
48510
|
48510
48510-40110
Absorber Assy, Shock, Front Rh
[12.1992 - 01.1997] VG4#..E,L |
48510-40110 |
— | ||
|
48520
|
48520
48520-40070
Absorber Assy, Shock, Front Lh
[09.1990 - 01.1997] VG45..4HC ﾘﾑｼﾞﾝ ALL |
48520-40070 |
— | ||
|
48520
|
48520
48520-40091
Absorber Assy, Shock, Front Lh
[09.1990 - 12.1992] VG4#..E,L |
48520-40091 |
— | ||
|
48520
|
48520
48520-40110
Absorber Assy, Shock, Front Lh
[12.1992 - 01.1997] VG4#..E,L |
48520-40110 |
— | ||
|
48595
|
48595
48595-40011 Clamp, Actuator Harness, Rh[04.1988 - 01.1997] VG4#..E,L |
48595-40011 |
US $5.39 |
||
|
48596
|
48596
48596-40010 Clamp, Actuator Harness, Lh[09.1987 - 01.1997] VG4#..E,L |
48596-40010 |
US $5.39 |
||
|
48660
|
48660
48660-40010
Bar Assy, Strut, Rh
[09.1987 - 01.1997] VG4# |
48660-40010 |
— | ||
|
48674
|
48674
48674-40030
Cushion, Strut Bar
[09.1987 - 12.1992] VG4# |
48674-40030 |
— | ||
|
48674
|
48674
48674-40040
Cushion, Strut Bar
[12.1992 - 01.1997] VG4# |
48674-40040 |
— | ||
|
48674
|
48674
48674-50030 Cushion, Strut Bar[12.1992 - 01.1997] VG45..4HC ﾘﾑｼﾞﾝH |
48674-50030 |
US $67.49 |
||
|
48674A
|
48674A
90948-02112 Retainer, Cushion(For Strut Bar Cushion)[09.1987 - 12.1992] VG4# |
90948-02112 |
US $6.84 |
||
|
48674B
|
48674B
90387-18013 Collar(For Strut Bar Cushion)[09.1987 - 12.1992] VG4# |
90387-18013 |
US $8.32 |
||
|
48681
|
48681
48681-40030
Support, Front Suspension, No.1
[09.1987 - 01.1997] VG4# |
48681-40030 |
— | ||
|
48682
|
48682
48682-40031
Support, Front Suspension, No.2
[08.1988 - 01.1997] VG4# |
48682-40031 |
— | ||
|
48684
|
48684
48684-40030 Cover, Bearing Dust[09.1987 - 01.1997] VG4#..E,L |
48684-40030 |
US $9.03 |
||
|
48811
|
48811
48811-40050 Bar, Stabilizer, Front[09.1990 - 01.1997] VG4#..E,L |
48811-40050 |
US $208.21 |
||
|
48811
|
48811
48811-40060 Bar, Stabilizer, Front[09.1990 - 01.1997] VG45..4HC ﾘﾑｼﾞﾝ H,S |
48811-40060 |
US $219.86 |
||
|
48815
|
48815
48815-30100 Bush, Front Stabilizer Bar, No.1[09.1990 - 01.1997] VG4#..E,L |
48815-30100 |
from US $8.39 |
||
|
48815
|
48815
48815-40050 Bush, Front Stabilizer Bar, No.1[09.1990 - 01.1997] VG45..4HC ﾘﾑｼﾞﾝ H,S |
48815-40050 |
US $6.70 |
||
| replacement | |||||
|
48815
|
48815
48815-60060 Bush, Front Stabilizer Bar, No.1[09.1990 - 01.1997] VG45..4HC ﾘﾑｼﾞﾝ H,S |
48815-60060 |
from US $3.06 |
||
|
48817
|
48817
48817-30020 Rear stabilizer link cushion[09.1987 - 01.1997] VG4# |
48817-30020 |
from US $3.10 |
||
|
48817A
|
48817A
90948-02032 Retainer, Cushion, No.1(For Front Stabilizer Bar)[09.1987 - 01.1997] VG4# |
90948-02032 |
US $3.20 |
||
|
48819A
|
48819A
48819-30020
Bolt(For Front Stabilizer)
[09.1987 - 01.1997] VG4# |
48819-30020 |
— | ||
|
48824
|
48824
48824-30050 Cover, Front Stabilizer Bracket[09.1987 - 01.1997] VG4# |
48824-30050 |
from US $4.19 |
||
|
9017908034
|
9017908034
90179-08034 Nut(For Front Stabilizer Link) |
90179-08034 |
US $2.08 |
||
|
9017910067
|
9017910067
90179-10067 Nut (For Rear Axle Shaft) |
90179-10067 |
US $1.44 |
||
|
9017914015
|
9017914015
90179-14015 Nut, Castle (For Front Lower Ball Joint Setting) |
90179-14015 |
from US $1.09 |
||
|
9017918007
|
9017918007
90179-18007 NUT |
90179-18007 |
US $4.02 |
||
|
9020118008
|
9020118008
90201-18008 New Genuine Part |
90201-18008 |
US $2.77 |
||
| replacement | |||||
|
9020118008
|
9020118008
90201-18014 New Genuine Part |
90201-18014 |
US $8.30 |
||
|
9054022006
|
9054022006
90540-22006 Cushion(For Strut Bar Cushion) |
90540-22006 |
US $3.30 |
||
|
9056021001
|
9056021001
90560-21001 New Genuine Part |
90560-21001 |
US $3.06 |
||
|
9161640820
|
9161640820
91616-40820 Bolt, Engine Rear Cover Hinge Set |
91616-40820 |
US $1.40 |
||
|
9418401200
|
9418401200
94184-01200
New Genuine Part
|
94184-01200 |
— | ||
