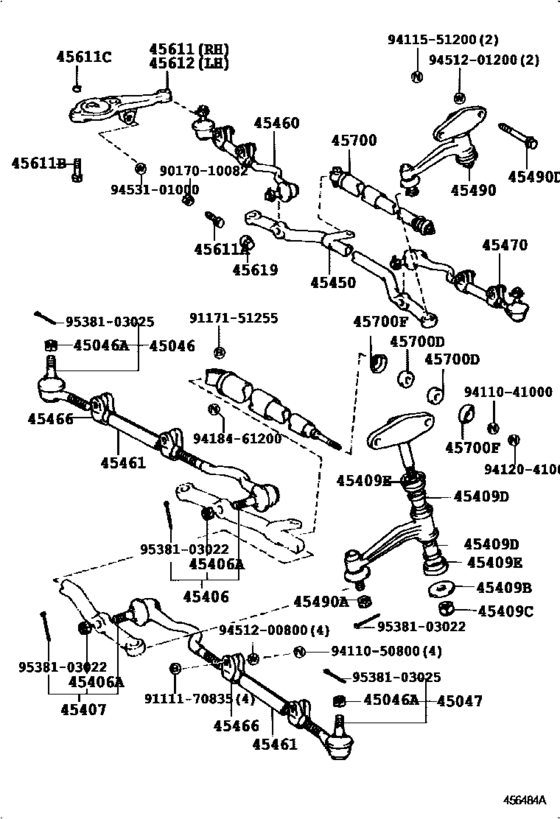

Front Steering Gear & Link ([09.1987 - ] (8709- )) Diagram Toyota CENTURY
- Year
- 1990 - 1997
- Sales region
- Japan
- Frame
- VG45
- grade
- L
- ENGINE
- 5VEU
- From
- 09.1990
- To
- 01.1997
- Gear Shift Type
- 4HC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45046
|
45046
45046-49065 End Sub-Assy, Tie Rod[09.1987 - 01.1997] VG4# |
45046-49065 |
from US $66.44 |
||
|
45046A
|
45046A
90171-14002 Nut (For Rear Steering Knuckle Arm)[09.1987 - 01.1997] VG4# |
90171-14002 |
US $3.84 |
||
|
45047
|
45047
45046-49065 End Sub-Assy, Tie Rod[09.1987 - 01.1997] VG4# |
45046-49065 |
from US $66.44 |
||
|
45406
|
45406
45406-49045
Rod Sub-Assy, Tie
[09.1987 - 01.1997] VG4# |
45406-49045 |
— | ||
|
45406A
|
45406A
90171-14042 Nut, Castle(For Pitman Arm)[09.1987 - 01.1997] VG4# |
90171-14042 |
from US $2.30 |
||
|
45407
|
45407
45406-49045
Rod Sub-Assy, Tie
[09.1987 - 01.1997] VG4# |
45406-49045 |
— | ||
|
45409B
|
45409B
90201-14519
Washer, Plate(For Idler Arm Rubber Bush)
[09.1987 - 01.1997] VG4# |
90201-14519 |
— | ||
|
45409C
|
45409C
94182-11400 Nut(For Idler Arm Support)[09.1987 - 01.1997] VG4# |
94182-11400 |
US $4.96 |
||
|
45409D
|
45409D
90385-18068 Bush(For Idler Arm)[09.1987 - 12.1992] VG4# |
90385-18068 |
from US $2.30 |
||
|
45409D
|
45409D
90386-18002 Bush(For Idler Arm)[12.1992 - 01.1997] VG4# |
90386-18002 |
from US $2.48 |
||
|
45409E
|
45409E
90304-31012 Seal, Dust(For Idler Arm Support)[09.1987 - 01.1997] VG4# |
90304-31012 |
from US $7.13 |
||
|
45450
|
45450
45450-49065 Rod Assy, Steering Relay[09.1987 - 01.1997] VG4# |
45450-49065 |
US $235.87 |
||
|
45460
|
45460
45460-49015
Rod Assy, Tie
[09.1987 - 01.1997] VG4# |
45460-49015 |
— | ||
|
45461
|
45461
45465-30010
Rod, Steering Tie
[09.1987 - 01.1997] VG4# |
45465-30010 |
— | ||
|
45466
|
45466
45466-30020 Clamp, Tie Rod End[09.1987 - 01.1997] VG4# |
45466-30020 |
from US $3.55 |
||
|
45470
|
45470
45460-49015
Rod Assy, Tie
[09.1987 - 01.1997] VG4# |
45460-49015 |
— | ||
|
45490
|
45490
45490-49015
Arm Assy, Steering Idler
[09.1987 - 12.1992] VG4# |
45490-49015 |
— | ||
| replacement | |||||
|
45490
|
45490
45490-49025
Arm Assy, Steering Idler
[09.1987 - 12.1992] VG4# |
45490-49025 |
— | ||
|
45490
|
45490
45490-49025
Arm Assy, Steering Idler
[12.1992 - 01.1997] VG4# |
45490-49025 |
— | ||
|
45490A
|
45490A
90171-12028 Nut, Castle(For Pitman Arm)[09.1987 - 01.1997] VG4# |
90171-12028 |
from US $1.42 |
||
|
45490D
|
45490D
90105-12024 Bolt(For Idler Arm)[09.1987 - 01.1997] VG4# |
90105-12024 |
US $6.99 |
||
|
45611
|
45611
45611-40020 Arm, Steering Knuckle, Rh[09.1987 - 01.1997] VG4# |
45611-40020 |
US $205.30 |
||
|
45611A
|
45611A
90106-10032 Bolt, Round Hexagon (For Steering Knuckle Stopper)[09.1987 - 01.1997] VG4# |
90106-10032 |
US $2.72 |
||
|
45611B
|
45611B
90101-14020
Bolt, Hexagon(For Steering Knuckle To Shock Absorber)
[09.1987 - 01.1997] VG4# |
90101-14020 |
— | ||
|
45611C
|
45611C
90253-17007
Pin, Ring(For Crankshaft Bearing Cap Set)
[09.1987 - 01.1997] VG4# |
90253-17007 |
— | ||
|
45612
|
45612
45612-40010 Arm, Steering Knuckle, Lh[09.1987 - 01.1997] VG4# |
45612-40010 |
US $205.30 |
||
|
45619
|
45619
45619-14020 Cover, Front Knuckle Stopper[09.1987 - 01.1997] VG4# |
45619-14020 |
from US $5.01 |
||
|
45700
|
45700
45700-49025
Damper Assy, Steering
[09.1987 - 01.1997] VG4# |
45700-49025 |
— | ||
|
45700D
|
45700D
90948-01003 Rubber Cushion[09.1987 - 01.1997] VG4# |
90948-01003 |
from US $1.66 |
||
|
45700F
|
45700F
90948-02002 Retainer, Steering Damper Cushion[09.1987 - 01.1997] VG4# |
90948-02002 |
from US $1.25 |
||
|
9017010082
|
9017010082
90170-10082 Nut, Hexagon (For Control Rod Setting) |
90170-10082 |
from US $2.56 |
||
|
9111170835
|
9111170835
91111-70835 New Genuine Part |
91111-70835 |
US $2.18 |
||
|
9117151255
|
9117151255
91171-51255 New Genuine Part |
91171-51255 |
US $3.93 |
||
|
9411041000
|
9411041000
94110-41000 Nut(For Steering Damper) |
94110-41000 |
US $2.56 |
||
|
9411050800
|
9411050800
94110-50800 Nut(For Repair Actuator Set) |
94110-50800 |
US $1.28 |
||
|
9411551200
|
9411551200
94115-51200 Nut(For Backing Plate To Steering Knuckle Setting) |
94115-51200 |
US $2.72 |
||
|
9412041000
|
9412041000
94120-41000 Nut(For Clutch Pedal Stopper) |
94120-41000 |
from US $0.80 |
||
| replacement | |||||
|
9412041000
|
9412041000
90170-A0002 Nut |
90170-A0002 |
US $2.33 |
||
|
9418461200
|
9418461200
94184-61200 Nut, Lock(For Power Steering Control Valve) |
94184-61200 |
from US $1.19 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.80 |
||
|
9451201200
|
9451201200
94512-01200 Washer |
94512-01200 |
from US $0.76 |
||
|
9453101000
|
9453101000
94531-01000 WASHER |
94531-01000 |
from US $1.44 |
||
|
9538103022
|
9538103022
95381-03022 Cotter pin |
95381-03022 |
US $1.76 |
||
|
9538103025
|
9538103025
95381-03025 PIN |
95381-03025 |
from US $0.84 |
||
