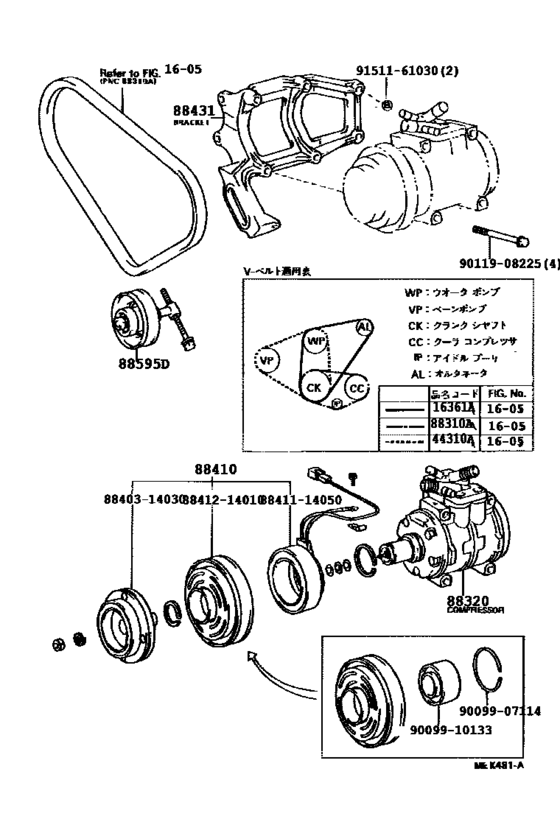

Heating & Air Conditioning - Compressor ([09.1987 - 12.1992] (8709-9212)) Diagram Toyota CENTURY
- Year
- 1990 - 1997
- Sales region
- Japan
- Frame
- VG45
- grade
- L
- ENGINE
- 5VEU
- From
- 09.1990
- To
- 01.1997
- Gear Shift Type
- 4HC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88320
|
88320
88320-40040
Compressor Assy, Cooler
[09.1987 - 12.1992] VG4# |
88320-40040 |
— | ||
| replacement | |||||
|
88320
|
88320
88320-40041
Compressor Assy, Cooler
[09.1987 - 12.1992] VG4# |
88320-40041 |
— | ||
|
88320
|
88320
88320-40050
Compressor Assy, Cooler
[12.1992 - 01.1997] VG4# |
88320-40050 |
— | ||
|
88320
|
88320
88320-40060
Compressor Assy, Cooler
[12.1992 - 01.1997] VG45..4HC ﾘﾑｼﾞﾝ S,H |
88320-40060 |
— | ||
| replacement | |||||
|
88320
|
88320
88320-60H94
Compressor Assy, Cooler
[12.1992 - 01.1997] VG45..4HC ﾘﾑｼﾞﾝ S,H |
88320-60H94 |
— | ||
|
88320
|
88320
88320-91401
Compressor Assy, Cooler
[09.1990 - 12.1992] VG45..4HC ﾘﾑｼﾞﾝ S,H |
88320-91401 |
— | ||
|
88410
|
88410
88410-14090 Clutch Assy, Magnet[09.1987 - 12.1992] VG4# |
88410-14090 |
US $551.82 |
||
|
88410
|
88410
88410-40060 Clutch Assy, Magnet[12.1992 - 01.1997] VG4# |
88410-40060 |
US $495.04 |
||
|
88410
|
88410
88410-91401
Clutch Assy, Magnet
[09.1990 - 12.1992] VG45..4HC ﾘﾑｼﾞﾝ S,H |
88410-91401 |
— | ||
|
88431
|
88431
88431-40040
Bracket, Compressor Mounting, No.1
[09.1987 - 12.1992] VG4# |
88431-40040 |
— | ||
|
88431
|
88431
88431-40050
Bracket, Compressor Mounting, No.1
[12.1992 - 01.1997] VG4# |
88431-40050 |
— | ||
|
88431
|
88431
88431-91401
Bracket, Compressor Mounting, No.1
[09.1990 - 01.1997] VG45..4HC ﾘﾑｼﾞﾝ S,H |
88431-91401 |
— | ||
|
88595D
|
88595D
88440-40010
Pulley, Cooler Compressor Idle
[09.1987 - 01.1997] VG4# |
88440-40010 |
— | ||
|
8840314030
|
8840314030
88403-14030
Hub Sub-Assy, Magnet Clutch
|
88403-14030 |
— | ||
| replacement | |||||
|
8840314030
|
8840314030
88403-12030
Hub Sub-Assy, Magnet Clutch
|
88403-12030 |
— | ||
|
8841114050
|
8841114050
88411-14050
Stator Sub-Assy, Magnet Clutch
|
88411-14050 |
— | ||
|
8841214010
|
8841214010
88412-14010
Rotor Sub-Assy, Magnet Clutch
|
88412-14010 |
— | ||
|
9009907114
|
9009907114
90099-07114 Ring, Snap (For Magnet Clutch) |
90099-07114 |
from US $1.21 |
||
|
9009910133
|
9009910133
90099-10133 Bearing, Ball(For Clutch Pully) |
90099-10133 |
US $12.15 |
||
|
9011908225
|
9011908225
90119-08225
BOLT
|
90119-08225 |
— | ||
|
9151161030
|
9151161030
91511-61030 Bolt (For Transaxle Case Upper Cover) |
91511-61030 |
US $3.84 |
||
| replacement | |||||
|
9151161030
|
9151161030
91512-61030 Bolt (For Transaxle Case Upper Cover) |
91512-61030 |
US $2.72 |
||
