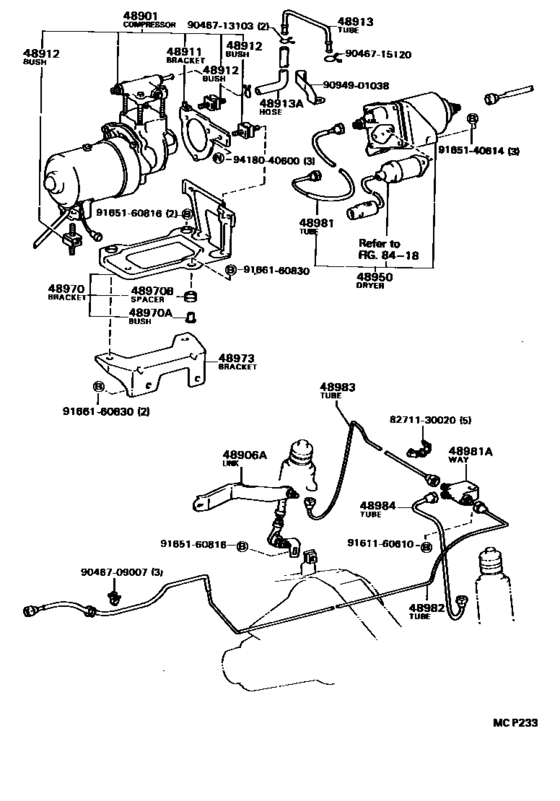

Height Control (Auto-Leveler) ([05.1992 - ] (9205- )) Diagram Toyota CENTURY
- Year
- 1990 - 1997
- Sales region
- Japan
- Frame
- VG45
- grade
- L
- ENGINE
- 5VEU
- From
- 09.1990
- To
- 01.1997
- Gear Shift Type
- 4HC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48901
|
48901
48901-40050 Compressor Sub-Assy, Height Control[09.1987 - 01.1997] VG4#..E,L |
48901-40050 |
US $1,274 |
||
|
48906A
|
48906A
48906-40032 Link Sub-Assy, Height Control Sensor, Rear[09.1987 - 12.1992] VG4#..E,L |
48906-40032 |
US $152.88 |
||
|
48906A
|
48906A
48906-40060 Link Sub-Assy, Height Control Sensor, Rear[09.1990 - 12.1992] VG45..4HC ﾘﾑｼﾞﾝ H,S |
48906-40060 |
US $152.88 |
||
|
48906A
|
48906A
48906-40070 Link Sub-Assy, Height Control Sensor, Rear[12.1992 - 01.1997] VG4#..E,L |
48906-40070 |
US $154.34 |
||
|
48906A
|
48906A
48906-40080 Link Sub-Assy, Height Control Sensor, Rear[12.1992 - 01.1997] VG45..4HC ﾘﾑｼﾞﾝ H,S |
48906-40080 |
US $154.34 |
||
|
48911
|
48911
48911-40050 Bracket, Height Control Compressor[09.1987 - 01.1997] VG4#..E,L |
48911-40050 |
US $57.37 |
||
|
48912
|
48912
48912-40050 Bush, Compressor[09.1987 - 01.1997] VG4#..E,L |
48912-40050 |
US $10.63 |
||
|
48913
|
48913
48913-40030 Tube, Suction[09.1987 - 01.1997] VG4#..E,L |
48913-40030 |
US $5.39 |
||
|
48913A
|
48913A
90445-14089 Hose(For Suction Tube)[09.1987 - 01.1997] VG4#..E,L |
90445-14089 |
US $8.01 |
||
|
48950
|
48950
48950-40011 Dryer Assy, Height Control[06.1989 - 01.1997] VG4#..E,L |
48950-40011 |
US $1,006.10 |
||
|
48970
|
48970
48970-40010 Bracket Assy, Height Control Compressor[09.1987 - 01.1997] VG4#..E,L |
48970-40010 |
US $158.70 |
||
|
48970A
|
48970A
90385-10002
Bush(For Brake Traction Actuator Bracket)
[09.1987 - 01.1997] VG4#..E,L |
90385-10002 |
— | ||
|
48970B
|
48970B
90561-08002 Spacer(For Brake Traction Actuator Bracket)[09.1987 - 01.1997] VG4#..E,L |
90561-08002 |
US $4.89 |
||
|
48973
|
48973
48973-40010 Bracket, Compressor Side Member[09.1987 - 01.1997] VG4#..E,L |
48973-40010 |
US $78.62 |
||
|
48981
|
48981
48981-40020 Tube, Height Control, No.1[03.1989 - 01.1997] VG4#..E,L |
48981-40020 |
US $68.87 |
||
|
48981A
|
48981A
90413-10149 Way, 3(For Height Control Tube)[09.1987 - 01.1997] VG4#..E,L |
90413-10149 |
US $56.49 |
||
|
48982
|
48982
48982-40020 Tube, Height Control, No.2[09.1990 - 01.1997] VG45 |
48982-40020 |
US $90.27 |
||
|
48982
|
48982
48982-40030 Tube, Height Control, No.2[09.1990 - 01.1997] VG45..4HC ﾘﾑｼﾞﾝ H,S |
48982-40030 |
US $94.64 |
||
|
48983
|
48983
48983-40020
Tube, Height Control, No.3
[09.1987 - 01.1997] VG4#..E,L |
48983-40020 |
— | ||
|
48984
|
48984
48984-40020 Tube, Height Control, No.4[09.1987 - 01.1997] VG4#..E,L |
48984-40020 |
US $68.87 |
||
|
8271130020
|
8271130020
82711-30020 Wire, Fuse To Fuse(for Combustion Heater) |
82711-30020 |
US $3.93 |
||
|
9046709007
|
9046709007
90467-09007 New Genuine Part |
90467-09007 |
US $1.44 |
||
|
9046713103
|
9046713103
90467-13103 Clip Or Clamp(For Ventilation Hose) |
90467-13103 |
from US $1.76 |
||
|
9046715120
|
9046715120
90467-15120 Clip Or Clamp(For Ventilation Hose) |
90467-15120 |
US $1.60 |
||
|
9094901038
|
9094901038
90949-01038 New Genuine Part |
90949-01038 |
US $6.99 |
||
|
9161160610
|
9161160610
91611-60610
Bolt (For Transfer Oil Receiver No.1)
|
91611-60610 |
— | ||
| replacement | |||||
|
9161160610
|
9161160610
91611-B0610 Bolt (For Transfer Oil Receiver No.1) |
91611-B0610 |
US $1.12 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $2.05 |
||
|
9165160816
|
9165160816
91651-60816 BOLT |
91651-60816 |
from US $1.07 |
||
| replacement | |||||
|
9165160816
|
9165160816
90080-11396 Bolt |
90080-11396 |
US $3.72 |
||
|
9166160830
|
9166160830
91661-60830 Bolt |
91661-60830 |
from US $1.44 |
||
|
9418040600
|
9418040600
94180-40600 Retainer, Roof Window Hinge |
94180-40600 |
from US $1.44 |
||
