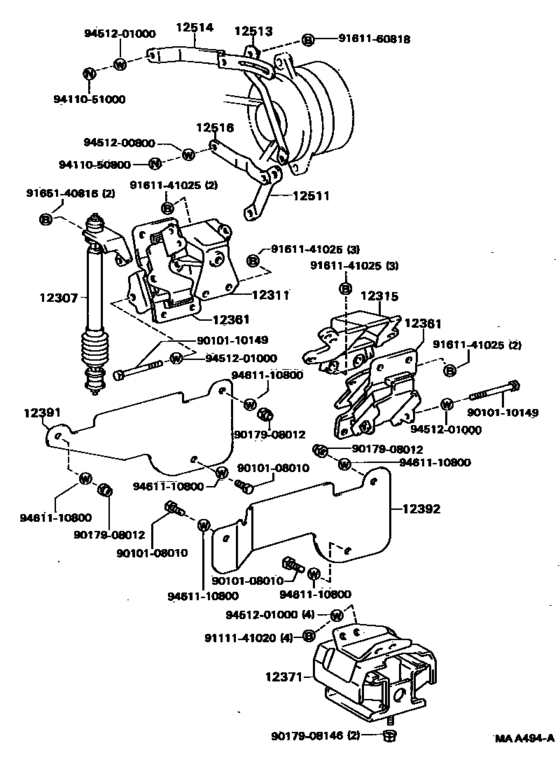

Mounting ([09.1987 - ] (8709- )) Diagram Toyota CENTURY
- Year
- 1990 - 1997
- Sales region
- Japan
- Frame
- VG45
- grade
- L
- ENGINE
- 5VEU
- From
- 09.1990
- To
- 01.1997
- Gear Shift Type
- 4HC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12307
|
12307
12307-52010 Absorber Sub-Assy, Engine Mounting[09.1987 - 01.1997] 5VEU..VG4# |
12307-52010 |
US $173.26 |
||
|
12311
|
12311
12311-52020 Bracket, Engine Mounting, Front No.1 Rh[09.1987 - 01.1997] 5VEU..VG4# |
12311-52020 |
US $74.26 |
||
|
12315
|
12315
12315-52020 Bracket, Engine Mounting, Front No.1 Lh[09.1987 - 01.1997] 5VEU..VG4# |
12315-52020 |
US $74.26 |
||
|
12361
|
12361
12361-52030
Insulator, Engine Mounting, Front
[09.1987 - 01.1997] 5VEU..VG4# |
12361-52030 |
— | ||
|
12371
|
12371
12371-52011 Insulator, Engine Mounting, Rear No.1[09.1987 - 01.1997] 5VEU..VG4# |
12371-52011 |
US $189.28 |
||
|
12391
|
12391
12391-52031 Insulator, Engine Mounting Front, Heat, Rh[09.1990 - 01.1997] 5VEU..VG4# |
12391-52031 |
US $25.63 |
||
|
12392
|
12392
12392-52021 Insulator, Engine Mounting Heat, Front Lh[09.1990 - 01.1997] 5VEU..VG4# |
12392-52021 |
US $26.94 |
||
|
12511
|
12511
12511-51010 Bracket, Alternator, No.1[09.1987 - 01.1997] 5VEU..VG4# |
12511-51010 |
US $11.65 |
||
|
12513
|
12513
12513-52010 Bracket, Alternator, No.3[09.1987 - 01.1997] 5VEU..VG4# |
12513-52010 |
US $37.27 |
||
|
12514
|
12514
12514-52010 Bar, Alternator Belt Adjusting[09.1987 - 01.1997] 5VEU..VG4# |
12514-52010 |
US $34.36 |
||
|
12516
|
12516
12516-51010 Bracket, Alternator, No.2[09.1987 - 01.1997] 5VEU..VG4# |
12516-51010 |
US $8.59 |
||
|
9010108010
|
9010108010
90101-08010 New Genuine Part |
90101-08010 |
US $1.60 |
||
|
9010110149
|
9010110149
90101-10149 Bolt, Hexagon (For Rear Spring Seat Bolt) |
90101-10149 |
US $4.66 |
||
|
9017908012
|
9017908012
90179-08012 NUT |
90179-08012 |
US $3.68 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.05 |
||
|
9111141020
|
9111141020
91111-41020
New Genuine Part
|
91111-41020 |
— | ||
| replacement | |||||
|
9111141020
|
9111141020
91111-51020 New Genuine Part |
91111-51020 |
US $2.88 |
||
|
9161141025
|
9161141025
91611-41025
Bolt(for Transaxle & Engine Setting)
|
91611-41025 |
— | ||
| replacement | |||||
|
9161141025
|
9161141025
91612-61025 Bolt (For Control Shaft Cover) |
91612-61025 |
from US $1.13 |
||
|
9161160818
|
9161160818
91611-60818
Bolt(For Oil Receiver Pipe)
|
91611-60818 |
— | ||
| replacement | |||||
|
9161160818
|
9161160818
90119-08830 Bolt(For Oil Receiver Pipe) |
90119-08830 |
US $1.60 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $1.03 |
||
|
9411050800
|
9411050800
94110-50800 Nut(For Repair Actuator Set) |
94110-50800 |
US $1.28 |
||
|
9411051000
|
9411051000
94110-51000 Nut(For Steering Center Arm) |
94110-51000 |
from US $2.08 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.80 |
||
|
9451201000
|
9451201000
94512-01000 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-01000 |
from US $0.76 |
||
|
9461110800
|
9461110800
94611-10800 Washer, Plate (For Transmission Control Cable) |
94611-10800 |
from US $0.96 |
||
