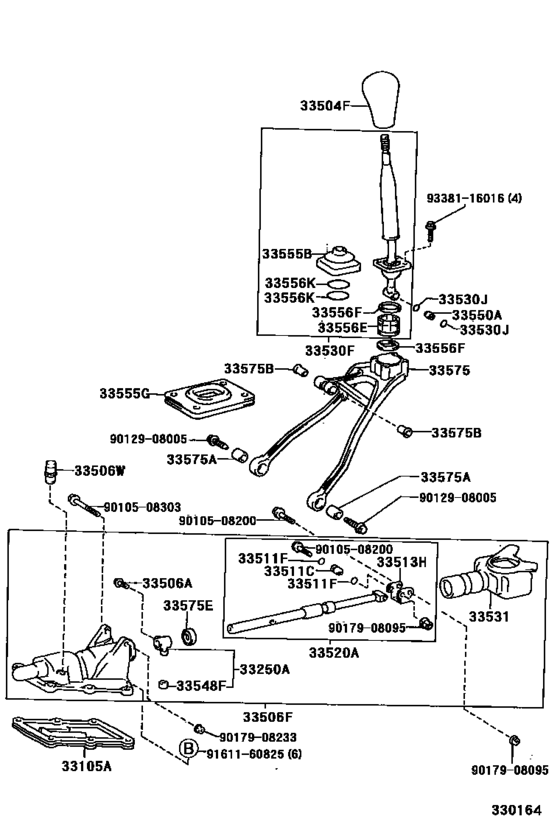

Shift Lever & Retainer ([09.1996 - ] (9609- )GX100..5F) Diagram Toyota CHASER
- Year
- 1998 - 2001
- Sales region
- Japan
- Frame
- GX100
- grade
- TOU
- ENGINE
- 1GFE
- TRANSMISSION
- MTM
- From
- 08.1998
- To
- 06.2001
- Gear Shift Type
- 5F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33105A
|
33105A
33105-22010 Deflector Sub-Assy, Extension Housing Oil(Mtm)[09.1996 -] GX100..5F |
33105-22010 |
US $15.38 |
||
|
33250A
|
33250A
33250-22011 Lever Assy, Shift, Inner No.2[09.1996 -] GX100..5F |
33250-22011 |
US $22.63 |
||
|
33504F
|
33504F
33504-12180-C0 Knob Sub-Assy, Shift Lever[08.1998 - 06.2001] GX100..5F..TOU BLACK,TRIM2# |
33504-12180-C0 |
US $51.25 |
||
| replacement | |||||
|
33504F
|
33504F
33504-12180-B7 Knob Sub-Assy, Shift Lever[08.1998 - 06.2001] GX100..5F..TOU BLACK,TRIM2# |
33504-12180-B7 |
from US $40.15 |
||
|
33504F
|
33504F
33504-22140-C1 Knob Sub-Assy, Shift Lever[01.1999 - 07.1999] GX100..5F..TOU ｸﾞﾗﾝﾄﾞ ﾊﾟﾂｹ-ｼﾞ *(V),BLACK,TRIM20 |
33504-22140-C1 |
US $100.46 |
||
| replacement | |||||
|
33504F
|
33504F
33504-22140-C0 Knob Sub-Assy, Shift Lever[01.1999 - 07.1999] GX100..5F..TOU ｸﾞﾗﾝﾄﾞ ﾊﾟﾂｹ-ｼﾞ *(V),BLACK,TRIM20 |
33504-22140-C0 |
US $123 |
||
|
33506A
|
33506A
90105-08079 Bolt(For 5Th Shift Arm)[09.1996 -] GX100,JZX100..5F |
90105-08079 |
from US $0.82 |
||
|
33506F
|
33506F
33570-22091 Retainer Sub-Assy, Control Shift Lever (For Floor Shift)[09.1996 -] GX100..5F |
33570-22091 |
US $384.38 |
||
|
33506W
|
33506W
90930-03114 Plug, Breather(For Manual Transmission)[09.1996 -] GX100..5F |
90930-03114 |
US $4.89 |
||
|
33511C
|
33511C
90387-08134 Collar (For Control Shaft)[09.1996 -] GX100,JZX100..5F |
90387-08134 |
from US $2.32 |
||
|
33511F
|
33511F
90301-11015 Ring, O (For Floor Shift Control Shaft)[09.1996 -] GX100,JZX100..5F |
90301-11015 |
from US $3.80 |
||
|
33513H
|
33513H
33513-22030 Yoke, Control Shaft, No.1[09.1996 -] GX100,JZX100..5F |
33513-22030 |
US $14.52 |
||
|
33520A
|
33520A
33520-22181 Shaft Assy, Floor Shift Control[09.1996 -] GX100..5F |
33520-22181 |
US $215.49 |
||
|
33530F
|
33530F
33530-24050 Lever Assy, Shift (For Floor Shift)[09.1996 -] GX100,JZX100..5F |
33530-24050 |
US $127.92 |
||
|
33530J
|
33530J
90301-11015 Ring, O (For Floor Shift Control Shaft)[09.1996 -] GX100,JZX100..5F |
90301-11015 |
from US $3.80 |
||
|
33531
|
33531
33531-22021 Boot, Dust (For Control Shift Lever)[09.1996 -] GX100..5F |
33531-22021 |
US $39.66 |
||
|
33548F
|
33548F
33548-22020 Bush, No.1, Shift Lever (For Floor Shift)[09.1996 -] GX100,JZX100..5F |
33548-22020 |
from US $2.30 |
||
|
33550A
|
33550A
90387-08134 Collar (For Control Shaft)[09.1996 -] GX100,JZX100..5F |
90387-08134 |
from US $2.32 |
||
|
33555B
|
33555B
33555-22130 Boot, Shift & Select Lever[09.1996 -] GX100,JZX100..5F |
33555-22130 |
from US $8.06 |
||
|
33555G
|
33555G
33555-22110 Boot, Shift & Select Lever, No.3[09.1996 -] GX100,JZX100..5F |
33555-22110 |
US $15.05 |
||
|
33556E
|
33556E
33556-14031 Cushion (For Transmission Shift Lever Ball Seat)[09.1996 -] GX100,JZX100..5F |
33556-14031 |
US $14.34 |
||
|
33556F
|
33556F
33556-14041 Seat, Transmission Shift Lever Ball[09.1996 -] GX100,JZX100..5F 上側 |
33556-14041 |
US $3.23 |
||
|
33556F
|
33556F
33556-14050 Seat, Transmission Shift Lever Ball[09.1996 -] GX100,JZX100..5F 下側 |
33556-14050 |
US $3.23 |
||
|
33556K
|
33556K
96711-19033 Ring, O (For Shift Lever)[09.1996 -] GX100,JZX100..5F |
96711-19033 |
US $4.84 |
||
|
33575
|
33575
33575-22212 Retainer, Control Shift Lever (For Floor Shift)[09.1996 -] GX100..5F |
33575-22212 |
US $104.83 |
||
|
33575A
|
33575A
33546-22010 Bush, No.1 (For Control Shift Lever Retainer)[09.1996 -] GX100,JZX100..5F |
33546-22010 |
from US $18.14 |
||
|
33575B
|
33575B
33546-22020 Bush, No.2 (For Control Shift Lever Retainer)[09.1996 -] GX100,JZX100..5F |
33546-22020 |
from US $16.87 |
||
|
33575E
|
33575E
90311-20006 Seal, Oil(For Shift Lever Shaft)[09.1996 -] GX100,JZX100..5F |
90311-20006 |
from US $3.40 |
||
|
9010508200
|
9010508200
90105-08200 Bolt(For Cylinder Head Set Sub) |
90105-08200 |
from US $1.40 |
||
|
9010508303
|
9010508303
90105-08303 New Genuine Part |
90105-08303 |
US $4.22 |
||
| replacement | |||||
|
9010508303
|
9010508303
90105-08176 BOLT |
90105-08176 |
US $2.87 |
||
|
9012908005
|
9012908005
90129-08005
New Genuine Part
|
90129-08005 |
— | ||
| replacement | |||||
|
9012908005
|
9012908005
90119-08757 New Genuine Part |
90119-08757 |
US $1.14 |
||
|
9017908095
|
9017908095
90179-08095 Nut(For Rear Suspension Support) |
90179-08095 |
US $3.23 |
||
|
9017908233
|
9017908233
90179-08233 NUT |
90179-08233 |
from US $1.31 |
||
|
9161160825
|
9161160825
91611-60825
Bolt(For Head To Camshaft Bearing Cap)
|
91611-60825 |
— | ||
| replacement | |||||
|
9161160825
|
9161160825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.11 |
||
|
9338116016
|
9338116016
93381-16016 SCREWWWASHER |
93381-16016 |
US $3.05 |
||
