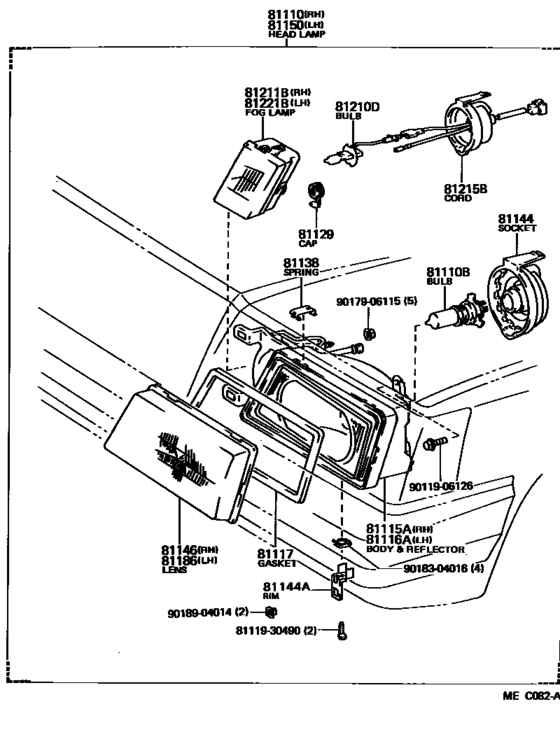

Headlamp ([08.1982 - ] (8208- )SED) Diagram Toyota CHASER
- Year
- 1983 - 1984
- Sales region
- Japan
- Frame
- GX61
- grade
- AVT
- body
- SED
- ENGINE
- 1GGEU
- TRANSMISSION
- ATM
- From
- 02.1983
- To
- 07.1984
- Gear Shift Type
- 4FC
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81110
|
81110
81110-80239 Headlamp Assy, RhRH [08.1982 - 07.1984] GX61,LX6#,MX61,SX60..SED |
81110-80239 |
US $640.64 |
||
|
81110B
|
81110B
90981-13015
Bulb(For Headlamp, No.1)
[09.1980 - 07.1984] GX6#,LX6#,MX61,RX6#,SX60,TX60 １２Ｖ ６０／５５Ｗ，＊ＨＡＬ ＊ＷＨ,12V 60/55W |
90981-13015 |
— | ||
| replacement | |||||
|
81110B
|
81110B
90981-13058 Bulb(For Headlamp, No.1) (HB2, 12V, 60W 55W)HB2, 12V, 60W 55W [09.1980 - 07.1984] GX6#,LX6#,MX61,RX6#,SX60,TX60 １２Ｖ ６０／５５Ｗ，＊ＨＡＬ ＊ＷＨ,12V 60/55W |
90981-13058 |
from US $33.60 |
||
|
81115A
|
81115A
81135-22411 Body And Reflector Sub-Assy, Headlamp, RhHEADLAMP, RH [08.1982 - 07.1984] GX61,LX6#,MX61,SX60..SED |
81135-22411 |
US $337.79 |
||
|
81116A
|
81116A
81175-22411 Body And Reflector Sub-Assy, Headlamp, LhHEADLAMP, LH [08.1982 - 07.1984] GX61,LX6#,MX61,SX60..SED |
81175-22411 |
US $337.79 |
||
|
81117
|
81117
81147-32020 Packing, Headlamp HousingHEADLAMP HOUSING [08.1982 - 07.1984] GX61,LX6#,MX61,SX60..SED |
81147-32020 |
US $22.13 |
||
|
81129
|
81129
81129-22411
Cap, Fog Lamp
[08.1982 - 07.1984] GX61,LX6#,MX61,SX60..SED |
81129-22411 |
— | ||
|
81138
|
81138
81138-20550 Spring, Headlamp[09.1980 - 07.1984] GX6#,LX6#,MX61,RX6#,SX60,TX60 |
81138-20550 |
US $3.20 |
||
|
81144
|
81144
81139-30481 Cover, Headlamp, No.1[08.1982 - 07.1984] GX61,LX6#,MX61,SX60 |
81139-30481 |
US $16.89 |
||
|
81144A
|
81144A
81144-22341 Rim, Headlamp FittingHEADLAMP FITTING [08.1982 - 07.1984] GX61,LX6#,MX61,SX60..SED |
81144-22341 |
US $6.12 |
||
|
81146
|
81146
81146-32020 Lens, Headlamp, RhHEADLAMP, RH [08.1982 - 07.1984] GX61,LX6#,MX61,SX60..SED |
81146-32020 |
US $107.74 |
||
|
81150
|
81150
81150-80236 Headlamp Assy, LhLH [08.1982 - 07.1984] GX61,LX6#,MX61,SX60..SED |
81150-80236 |
US $640.64 |
||
|
81186
|
81186
81186-32020 Lens, Headlamp, LhHEADLAMP, LH [08.1982 - 07.1984] GX61,LX6#,MX61,SX60..SED |
81186-32020 |
US $107.74 |
||
|
81210D
|
81210D
90981-13018 Bulb, Fog Lamp[08.1982 - 07.1984] GX61,LX6#,MX61,SX60 １２Ｖ ５５Ｗ，ハロゲン,12V 55W |
90981-13018 |
from US $14.47 |
||
|
81211B
|
81211B
81211-22411 Fog Lamp, RhRH [08.1982 - 07.1984] GX61,LX6#,MX61,SX60..SED |
81211-22411 |
US $206.75 |
||
|
81215B
|
81215B
81215-22301
Cord, Fog Lamp
[08.1982 - 07.1984] GX61,LX6#,MX61,SX60..SED |
81215-22301 |
— | ||
|
81221B
|
81221B
81221-22411 Fog Lamp, LhLH [08.1982 - 07.1984] GX61,LX6#,MX61,SX60..SED |
81221-22411 |
US $206.75 |
||
|
8111930490
|
8111930490
81119-30490 Screw, Headlamp |
81119-30490 |
US $2.33 |
||
|
9011906126
|
9011906126
90119-06126 BOLT |
90119-06126 |
US $1.25 |
||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
US $2.15 |
||
|
9018304016
|
9018304016
90183-04016 Nut, Spring |
90183-04016 |
US $1.02 |
||
| replacement | |||||
|
9018304016
|
9018304016
90183-04020
Nut, Spring
|
90183-04020 |
— | ||
|
9018904014
|
9018904014
90189-04014 CLIP |
90189-04014 |
from US $0.98 |
||
