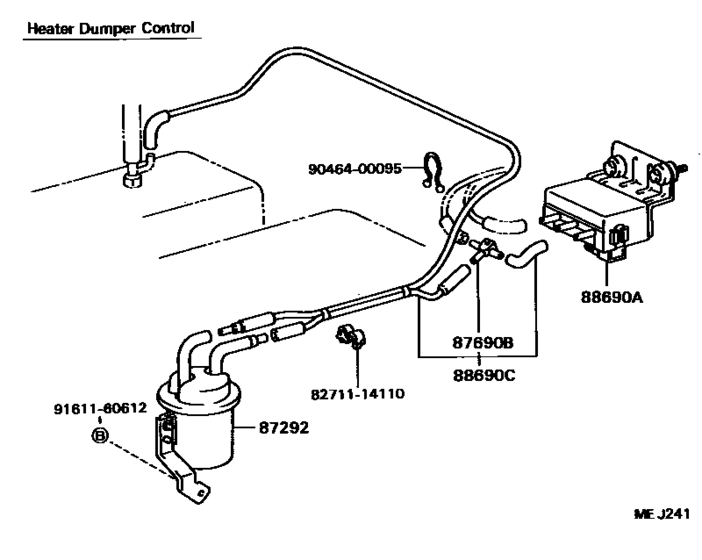

Heating & Air Conditioning - Vacuum Piping ([08.1984 - ] (8408- )AVT..EFI) Diagram Toyota CHASER
- Year
- 1984 - 1988
- Sales region
- Japan
- Frame
- GX71
- grade
- AVT
- body
- HT
- ENGINE
- 1GEU
- TRANSMISSION
- ATM
- From
- 08.1984
- To
- 08.1988
- Gear Shift Type
- 4FC
- Fuel Induction
- EFI
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87292
|
87292
87292-22040
Tank, Vacuum
[08.1984 - 08.1988] GX71,MX71..AVT,GT |
87292-22040 |
— | ||
|
87690B
|
87690B
90413-03001 Way, 3[08.1984 - 08.1986] GX71..AVT |
90413-03001 |
US $4.08 |
||
|
88690A
|
88690A
88690-22320
Valve Assy, Combination
[08.1984 - 08.1986] GX71,MX71,SX70..AVT,GT,SXL,XG W/*AAC |
88690-22320 |
— | ||
| replacement | |||||
|
88690A
|
88690A
88690-22321
Valve Assy, Combination
[08.1984 - 08.1986] GX71,MX71,SX70..AVT,GT,SXL,XG W/*AAC |
88690-22321 |
— | ||
|
88690A
|
88690A
88690-22321
Valve Assy, Combination
[08.1986 - 08.1988] GX71..AVT,GT |
88690-22321 |
— | ||
|
88690C
|
88690C
88807-22050
Hose, Vacuum, No.1 (For Heater Or Air Conditioner)
[08.1984 - 08.1988] GX71..AVT..EFI |
88807-22050 |
— | ||
|
8271114110
|
8271114110
82711-14110 Clamp(For Hood Lock Control Cable) |
82711-14110 |
US $3.05 |
||
|
9046400095
|
9046400095
90464-00095 New Genuine Part |
90464-00095 |
US $1.31 |
||
|
9161160612
|
9161160612
91611-60612
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91611-60612 |
— | ||
| replacement | |||||
|
9161160612
|
9161160612
91611-G0612 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91611-G0612 |
from US $0.78 |
||
