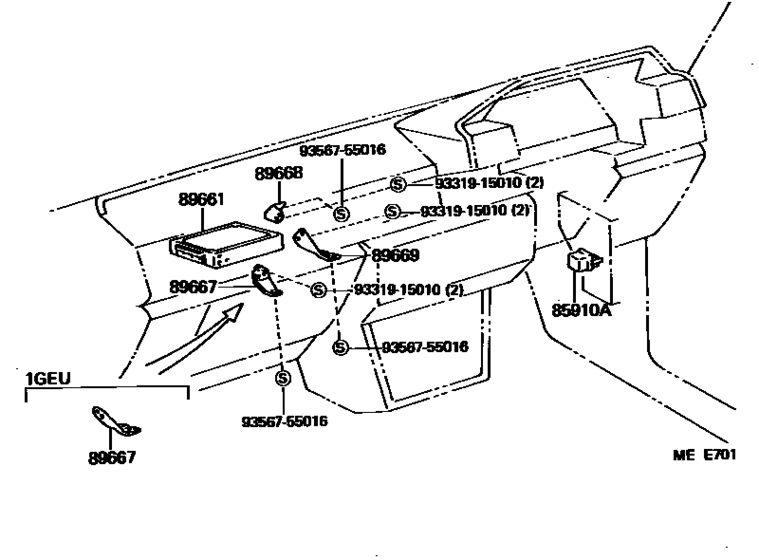

Electronic Fuel Injection System ([08.1984 - ] (8408- )GX71,MX71) Diagram Toyota CHASER
- Year
- 1984 - 1988
- Sales region
- Japan
- Frame
- GX71
- grade
- AVT
- body
- HT
- ENGINE
- 1GGEU
- TRANSMISSION
- ATM
- From
- 08.1984
- To
- 08.1988
- Gear Shift Type
- 4FC
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85910A
|
85910A
85910-30050 Relay Assy, Circuit Opening (For Efi)[08.1984 - 08.1988] GX71,MX71 |
85910-30050 |
US $93.48 |
||
|
89661
|
89661
89661-22140 Computer, Engine Control[08.1984 - 07.1985] GX71..TWC |
89661-22140 |
US $1,514.24 |
||
| replacement | |||||
|
89661
|
89661
89661-22191 Computer, Engine Control[08.1984 - 07.1985] GX71..TWC |
89661-22191 |
US $1,514.24 |
||
|
89661
|
89661
89661-22141 Computer Set, Fuel Injection[07.1985 - 03.1986] GX71..TWC DENSO |
89661-22141 |
US $1,514.24 |
||
| replacement | |||||
|
89661
|
89661
89661-22191 Computer, Engine Control[07.1985 - 03.1986] GX71..TWC DENSO |
89661-22191 |
US $1,514.24 |
||
|
89661
|
89661
89661-22180 Computer, Engine Control[01.1985 - 03.1986] GX71..TWC TEN |
89661-22180 |
US $1,514.24 |
||
| replacement | |||||
|
89661
|
89661
89661-22181 Computer, Engine Control[01.1985 - 03.1986] GX71..TWC TEN |
89661-22181 |
US $1,514.24 |
||
|
89661
|
89661
89661-22181 Computer, Engine Control[03.1986 - 08.1986] GX71..TWC TEN |
89661-22181 |
US $1,514.24 |
||
|
89661
|
89661
89661-22191 Computer, Engine Control[03.1986 - 08.1986] GX71..TWC DENSO |
89661-22191 |
US $1,514.24 |
||
|
89661
|
89661
89661-22220 Computer, Engine Control[08.1986 - 08.1988] GX71..TWC |
89661-22220 |
US $1,805.44 |
||
|
89667
|
89667
89667-22050
Bracket, Engine Control Computer
[08.1984 - 08.1986] GX71,MX71..TBO,TWC |
89667-22050 |
— | ||
|
89667
|
89667
89667-22120
Bracket, Engine Control Computer
[08.1986 - 08.1988] GX71..TWC |
89667-22120 |
— | ||
|
89668
|
89668
89668-22090
Bracket, Emission Computer, No.2
[08.1984 - 08.1988] GX71,MX71 |
89668-22090 |
— | ||
|
89669
|
89669
89669-22100
Bracket, Emission Computer, No.3
[08.1984 - 08.1988] GX71,MX71 |
89669-22100 |
— | ||
|
9331915010
|
9331915010
93319-15010 SCREW |
93319-15010 |
US $0.83 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $0.51 |
||
