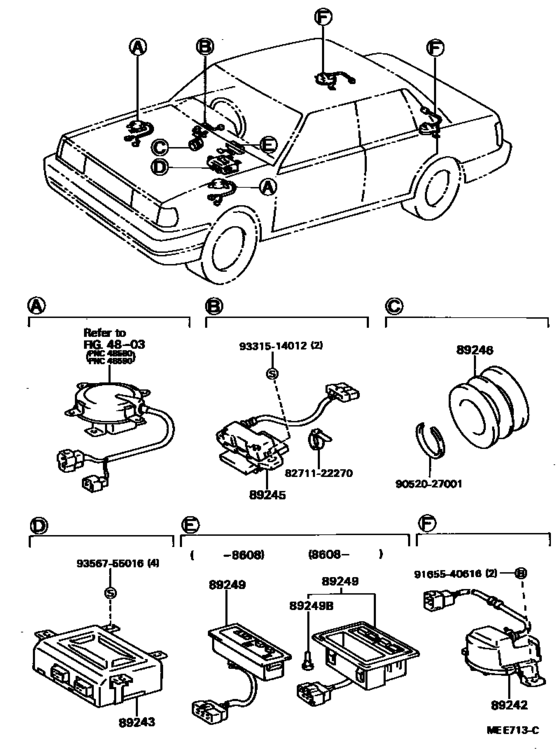

Electronic Modulated Suspension ([08.1984 - ] (8408- )TWC) Diagram Toyota CHASER
- Year
- 1984 - 1988
- Sales region
- Japan
- Frame
- GX71
- grade
- AVT
- body
- HT
- ENGINE
- 1GGEU
- TRANSMISSION
- ATM
- From
- 08.1984
- To
- 08.1988
- Gear Shift Type
- 4FC
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
89242
|
89242
89242-22010 Actuator, Absorber Control, Rr[08.1984 - 08.1988] GX71..TWC |
89242-22010 |
US $257.71 |
||
|
89243
|
89243
89243-22010 Computer, Absorber Control[08.1984 - 12.1984] GX71..TWC |
89243-22010 |
US $1,849.12 |
||
| replacement | |||||
|
89243
|
89243
89243-22011 Computer, Absorber Control[08.1984 - 12.1984] GX71..TWC |
89243-22011 |
US $1,849.12 |
||
|
89243
|
89243
89243-22011 Computer, Absorber Control[12.1984 - 08.1986] GX71..TWC |
89243-22011 |
US $1,849.12 |
||
|
89243
|
89243
89243-22030 Computer, Absorber Control[08.1986 - 08.1988] GX71..TWC |
89243-22030 |
US $1,805.44 |
||
|
89245
|
89245
89245-22020 Sensor, Steering[08.1984 - 08.1988] GX71..TWC |
89245-22020 |
US $560.56 |
||
|
89246
|
89246
89246-22010 Disc, Sensor Steering[08.1984 - 08.1988] GX71..TWC |
89246-22010 |
US $132.50 |
||
|
89249
|
89249
89249-22010 Switch, Absorber Control[08.1984 - 08.1986] GX71..TWC |
89249-22010 |
US $157.25 |
||
|
89249
|
89249
89249-22030 Switch, Absorber Control[08.1986 - 08.1988] GX71..TWC |
89249-22030 |
US $158.70 |
||
|
89249B
|
89249B
84999-10090 Bulb, Air Conditioner Control[08.1986 - 08.1988] GX71..TWC １２Ｖ １．８Ｗ,12V 1.8W |
84999-10090 |
from US $7.61 |
||
|
8271122270
|
8271122270
82711-22270 Clamp(For Transfer Vacuum Tube) |
82711-22270 |
US $3.58 |
||
|
9052027001
|
9052027001
90520-27001 Ring, Shaft Snap(For Driven Sprocket Set) |
90520-27001 |
US $2.33 |
||
|
9165540616
|
9165540616
91655-40616
Bolt
|
91655-40616 |
— | ||
| replacement | |||||
|
9165540616
|
9165540616
91651-60614 Bolt |
91651-60614 |
from US $1.19 |
||
|
9331514012
|
9331514012
93315-14012 Screw with washer |
93315-14012 |
from US $0.78 |
||
|
9356755016
|
9356755016
93567-55016
Screw
|
93567-55016 |
— | ||
| replacement | |||||
|
9356755016
|
9356755016
93568-55016 Screw |
93568-55016 |
from US $0.51 |
||
