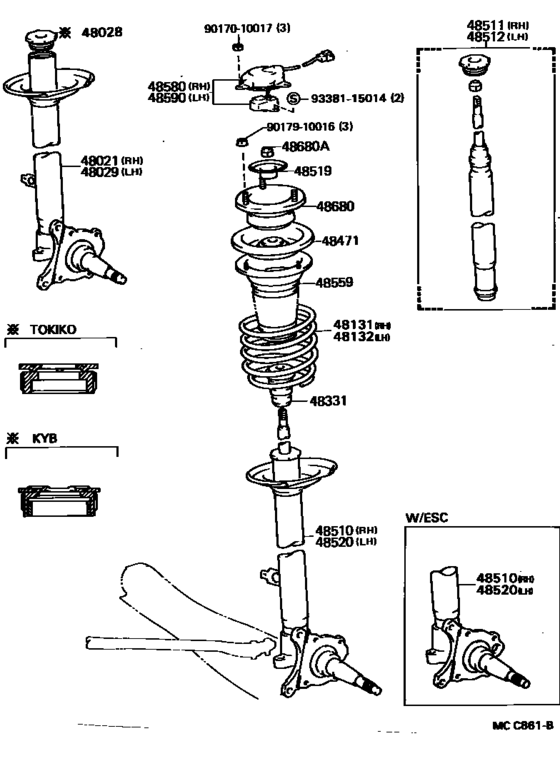

Front Spring & Shock Absorber ([08.1984 - ] (8408- )TWC) Diagram Toyota CHASER
- Year
- 1984 - 1988
- Sales region
- Japan
- Frame
- GX71
- grade
- AVT
- body
- HT
- ENGINE
- 1GGEU
- TRANSMISSION
- ATM
- From
- 08.1984
- To
- 08.1988
- Gear Shift Type
- 4FC
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48021
|
48021
48021-22090
Shell Sub-Assy, W/steering Knuckle, Rh
[08.1984 - 08.1988] GX71..TWC |
48021-22090 |
— | ||
|
48021
|
48021
48021-22100
Shell Sub-Assy, W/steering Knuckle, Rh
[08.1984 - 08.1988] GX71..4FC..TWC W/ESC |
48021-22100 |
— | ||
|
48028
|
48028
48028-22030 Nut Sub-Assy, Shock Absorber Ring[08.1984 - 08.1988] GX71..TWC TOKICO |
48028-22030 |
US $27.81 |
||
| replacement | |||||
|
48028
|
48028
48028-24031 Nut Sub-Assy, Shock Absorber Ring[08.1984 - 08.1988] GX71..TWC TOKICO |
48028-24031 |
US $28.83 |
||
|
48028
|
48028
48028-24030 Nut Sub-Assy, Shock Absorber Ring[08.1984 - 08.1988] GX71..TWC KYB |
48028-24030 |
US $28.83 |
||
| replacement | |||||
|
48028
|
48028
48028-24031 Nut Sub-Assy, Shock Absorber Ring[08.1984 - 08.1988] GX71..TWC KYB |
48028-24031 |
US $28.83 |
||
|
48029
|
48029
48029-22090
Shell Sub-Assy, W/steering Knuckle, Lh
[08.1984 - 08.1988] GX71..TWC |
48029-22090 |
— | ||
|
48029
|
48029
48029-22100
Shell Sub-Assy, W/steering Knuckle, Lh
[08.1984 - 08.1988] GX71..4FC..TWC W/ESC |
48029-22100 |
— | ||
|
48131
|
48131
48131-2A220 Spring, Front Coil, Rh[08.1984 - 08.1988] GX71..AVT |
48131-2A220 |
from US $98.71 |
||
|
48132
|
48132
48131-2A210
Spring, Front Coil, Rh
[08.1984 - 08.1986] GX71..AVT |
48131-2A210 |
— | ||
|
48132
|
48132
48131-2A220 Spring, Front Coil, Rh[08.1986 - 08.1988] GX71..AVT |
48131-2A220 |
from US $98.71 |
||
|
48331
|
48331
48331-24010 Bumper, Front Spring, No.1[08.1984 - 08.1988] GX71..TWC |
48331-24010 |
US $47.47 |
||
|
48471
|
48471
48044-24020 Seat, Front Spring, Upper[08.1984 - 08.1988] GX71..TWC |
48044-24020 |
US $60.28 |
||
|
48510
|
48510
48510-22230 Absorber Assy, Shock, Front Rh[08.1984 - 08.1988] GX71..TWC KYB |
48510-22230 |
US $655.20 |
||
| replacement | |||||
|
48510
|
48510
48510-22281 Absorber Assy, Shock, Front Rh[08.1984 - 08.1988] GX71..TWC KYB |
48510-22281 |
US $653.74 |
||
|
48510
|
48510
48510-22250 Absorber Assy, Shock, Front Rh[08.1984 - 04.1986] GX71..4FC..TWC W/ESC,KYB |
48510-22250 |
US $655.20 |
||
| replacement | |||||
|
48510
|
48510
48510-22261 Absorber Assy, Shock, Front Rh[08.1984 - 04.1986] GX71..4FC..TWC W/ESC,KYB |
48510-22261 |
US $653.74 |
||
|
48510
|
48510
48510-22260 Absorber Assy, Shock, Front Rh[08.1984 - 04.1986] GX71..4FC..TWC W/ESC,TOKIKO |
48510-22260 |
US $655.20 |
||
| replacement | |||||
|
48510
|
48510
48510-22261 Absorber Assy, Shock, Front Rh[08.1984 - 04.1986] GX71..4FC..TWC W/ESC,TOKIKO |
48510-22261 |
US $653.74 |
||
|
48510
|
48510
48510-22270 Absorber Assy, Shock, Front Rh[08.1984 - 04.1986] GX71..TWC TOKICO |
48510-22270 |
US $655.20 |
||
| replacement | |||||
|
48510
|
48510
48510-22281 Absorber Assy, Shock, Front Rh[08.1984 - 04.1986] GX71..TWC TOKICO |
48510-22281 |
US $653.74 |
||
|
48511
|
48511
48511-29215 Absorber, Shock Front, Rh(For Cartridge Type)[08.1984 - 08.1988] GX71..TWC |
48511-29215 |
US $388.75 |
||
|
48512
|
48512
48511-29215 Absorber, Shock Front, Rh(For Cartridge Type)[08.1984 - 08.1988] GX71..TWC |
48511-29215 |
US $388.75 |
||
|
48519
|
48519
48519-24010 Bracket, Actuator Support, Front[08.1984 - 08.1988] GX71..TWC |
48519-24010 |
US $35.53 |
||
|
48520
|
48520
48520-22230 Absorber Assy, Shock, Front Lh[08.1984 - 08.1988] GX71..TWC KYB |
48520-22230 |
US $655.20 |
||
| replacement | |||||
|
48520
|
48520
48520-22281 Absorber Assy, Shock, Front Lh[08.1984 - 08.1988] GX71..TWC KYB |
48520-22281 |
US $653.74 |
||
|
48520
|
48520
48520-22250 Absorber Assy, Shock, Front Lh[08.1984 - 04.1986] GX71..4FC..TWC W/ESC,KYB |
48520-22250 |
US $655.20 |
||
| replacement | |||||
|
48520
|
48520
48520-22261 Absorber Assy, Shock, Front Lh[08.1984 - 04.1986] GX71..4FC..TWC W/ESC,KYB |
48520-22261 |
US $653.74 |
||
|
48520
|
48520
48520-22260 Absorber Assy, Shock, Front Lh[08.1984 - 04.1986] GX71..4FC..TWC W/ESC,TOKIKO |
48520-22260 |
US $655.20 |
||
| replacement | |||||
|
48520
|
48520
48520-22261 Absorber Assy, Shock, Front Lh[08.1984 - 04.1986] GX71..4FC..TWC W/ESC,TOKIKO |
48520-22261 |
US $653.74 |
||
|
48520
|
48520
48520-22270 Absorber Assy, Shock, Front Lh[08.1984 - 04.1986] GX71..TWC TOKICO |
48520-22270 |
US $655.20 |
||
| replacement | |||||
|
48520
|
48520
48520-22281 Absorber Assy, Shock, Front Lh[08.1984 - 04.1986] GX71..TWC TOKICO |
48520-22281 |
US $653.74 |
||
|
48559
|
48559
48559-24010 Cover, Shock Absorber, Dust[08.1984 - 08.1988] GX71..TWC |
48559-24010 |
US $94.64 |
||
|
48580
|
48580
48580-22010 Cap Assy, Shock Absorber, W/actuator, Rh[08.1984 - 08.1988] GX71..TWC |
48580-22010 |
US $256.26 |
||
|
48590
|
48590
48580-22010 Cap Assy, Shock Absorber, W/actuator, Rh[08.1984 - 08.1988] GX71..TWC |
48580-22010 |
US $256.26 |
||
|
48680
|
48680
48609-24020 Support Assy, Front Suspension[08.1984 - 08.1988] GX71..TWC |
48609-24020 |
US $99.01 |
||
| replacement | |||||
|
48680
|
48680
48609-22080 Support Sub-Assy, Front Suspension[08.1984 - 08.1988] GX71..TWC |
48609-22080 |
US $99.01 |
||
|
48680A
|
48680A
94182-11400 Nut(For Idler Arm Support)[08.1984 - 08.1988] GX71,LX70,MX71,SX70,YX7# |
94182-11400 |
US $4.96 |
||
|
9017010017
|
9017010017
90170-10017 Nut(For Clutch Pedal Stopper) |
90170-10017 |
US $1.60 |
||
|
9017910016
|
9017910016
90179-10016
Nut(For Counter Gear Shaft)
|
90179-10016 |
— | ||
| replacement | |||||
|
9017910016
|
9017910016
90179-10132 Nut |
90179-10132 |
from US $0.94 |
||
|
9338115014
|
9338115014
93381-15014 New Genuine Part |
93381-15014 |
US $1.16 |
||
