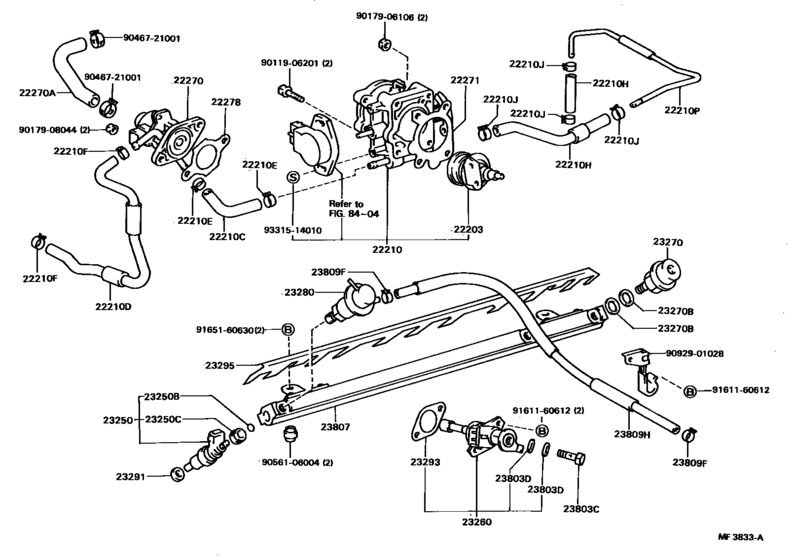

Fuel Injection System ([08.1986 - ] (8608- )1GGEU) Diagram Toyota CHASER
- Year
- 1984 - 1988
- Sales region
- Japan
- Frame
- GX71
- grade
- AVT
- body
- HT
- ENGINE
- 1GGEU
- TRANSMISSION
- ATM
- From
- 08.1984
- To
- 08.1988
- Gear Shift Type
- 4FC
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22203
|
22203
22203-70020 Dash Pot Sub-Assy(For Throttle Body)[08.1984 - 08.1986] 1GGEU..GX71 |
22203-70020 |
US $84.45 |
||
|
22203
|
22203
22203-70050 Dash Pot Sub-Assy(For Throttle Body)[08.1986 - 08.1988] 1GGEU..GX71 |
22203-70050 |
US $90.27 |
||
|
22210
|
22210
22210-70130 Body Assy, Throttle[08.1984 - 08.1986] 1GGEU..GX71..4FC |
22210-70130 |
US $748.38 |
||
|
22210
|
22210
22210-70180 Body Assy, Throttle[08.1986 - 08.1988] 1GGEU..GX71..4FC |
22210-70180 |
US $685.78 |
||
|
22210C
|
22210C
16267-88301 Hose, Water By-Pass, No.1[08.1984 - 08.1986] 1GGEU..GX71 |
16267-88301 |
US $9.03 |
||
|
22210C
|
22210C
16267-88302 Hose, Water By-Pass, No.3[08.1986 - 08.1988] 1GGEU..GX71 |
16267-88302 |
US $9.17 |
||
|
22210D
|
22210D
16264-88301 Hose, Water By-Pass, No.2[08.1984 - 08.1986] 1GGEU..GX71 |
16264-88301 |
US $22.86 |
||
|
22210D
|
22210D
16264-88302 Hose, Water By-Pass, No.2[08.1986 - 08.1988] 1GGEU..GX71 |
16264-88302 |
US $18.35 |
||
|
22210E
|
22210E
90467-13001
Clamp Or Clip, Hose(For Water By-Pass Hose)
[08.1984 - 08.1988] 1GGEU..GX71; MTEU..MX71 |
90467-13001 |
— | ||
| replacement | |||||
|
22210E
|
22210E
96135-51300 Clamp, Hose[08.1984 - 08.1988] 1GGEU..GX71; MTEU..MX71 |
96135-51300 |
from US $2.13 |
||
|
22210F
|
22210F
90467-13001
Clamp Or Clip, Hose(For Water By-Pass Hose)
[08.1984 - 08.1988] 1GGEU..GX71; MTEU..MX71 |
90467-13001 |
— | ||
| replacement | |||||
|
22210F
|
22210F
96135-51300 Clamp, Hose[08.1984 - 08.1988] 1GGEU..GX71; MTEU..MX71 |
96135-51300 |
from US $2.13 |
||
|
22210H
|
22210H
16281-88301 Hose, Water By-Pass, No.3[08.1986 - 08.1988] 1GGEU..GX71 THROTTLE BODY SIDE |
16281-88301 |
US $9.90 |
||
|
22210H
|
22210H
90445-15009 Hose, Water By-Pass, No.1[08.1986 - 08.1988] 1GGEU..GX71 PIPE SIDE |
90445-15009 |
US $6.99 |
||
|
22210J
|
22210J
90467-13001
Clamp Or Clip, Hose(For Water By-Pass Hose)
[08.1984 - 08.1988] 1GGEU..GX71 |
90467-13001 |
— | ||
| replacement | |||||
|
22210J
|
22210J
96135-51300 Clamp, Hose[08.1984 - 08.1988] 1GGEU..GX71 |
96135-51300 |
from US $2.13 |
||
|
22210P
|
22210P
16279-88303 Pipe, Water By-Pass[08.1984 - 01.1985] 1GGEU..GX71 |
16279-88303 |
US $29.12 |
||
| replacement | |||||
|
22210P
|
22210P
16279-88305 Pipe, Water By-Pass[08.1984 - 01.1985] 1GGEU..GX71 |
16279-88305 |
US $31.30 |
||
|
22210P
|
22210P
16279-88305 Pipe, Water By-Pass[01.1985 - 08.1986] 1GGEU..GX71 |
16279-88305 |
US $31.30 |
||
|
22210P
|
22210P
16279-88306 Pipe, Water By-Pass[08.1986 - 08.1988] 1GGEU..GX71 |
16279-88306 |
US $29.27 |
||
|
22270
|
22270
22270-70030 Valve Assy, Idle Speed Control(For Thlottle Body)[08.1984 - 08.1986] 1GGEU..GX71 |
22270-70030 |
US $1,246.34 |
||
|
22270
|
22270
22270-70090
Valve Assy, Idle Speed Control(For Thlottle Body)
[08.1986 - 08.1988] 1GGEU..GX71 |
22270-70090 |
— | ||
|
22270A
|
22270A
17344-88300 Hose, Air, No.1(For Idle Speed Control Valve)[08.1984 - 08.1986] 1GGEU..GX71 |
17344-88300 |
US $25.33 |
||
|
22270A
|
22270A
17344-88301 Hose, Air, No.1(For Idle Speed Control Valve)[08.1986 - 08.1988] 1GGEU..GX71 |
17344-88301 |
US $18.64 |
||
|
22271
|
22271
22271-88301 Gasket, Throttle Body[08.1984 - 08.1988] 1GGEU..GX71 |
22271-88301 |
US $6.27 |
||
|
22278
|
22278
22278-88300
Gasket, Idle Speed Control Valve
[08.1984 - 12.1984] 1GGEU..GX71 |
22278-88300 |
— | ||
|
22278
|
22278
22278-88301 Gasket, Idle Speed Control Valve[12.1984 - 08.1986] 1GGEU..GX71 |
22278-88301 |
US $5.39 |
||
|
22278
|
22278
22278-88340
Gasket, Idle Speed Control Valve
[08.1986 - 08.1988] 1GGEU..GX71 |
22278-88340 |
— | ||
|
23250
|
23250
23209-70020 Injector Assy, Fuel[08.1984 - 08.1986] 1GGEU..GX71 |
23209-70020 |
US $276.64 |
||
|
23250
|
23250
23209-70050 Injector Assy, Fuel[08.1986 - 08.1988] 1GGEU..GX71 |
23209-70050 |
US $276.64 |
||
|
23250B
|
23250B
90301-07001 Ring, O(For Fuel Injector)[08.1984 - 08.1988] MTEU..MX71; 1GEU,1GG#..GX71 |
90301-07001 |
from US $2.81 |
||
|
23250C
|
23250C
90480-13005 Grommet(For Fuel Injector)[08.1984 - 08.1988] MTEU..MX71; 1GEU,1GG#..GX71 |
90480-13005 |
from US $2.42 |
||
|
23260
|
23260
23260-79035 Injector Assy, Cold Start Fuel[08.1984 - 08.1986] 1GGEU..GX71 |
23260-79035 |
US $145.60 |
||
| replacement | |||||
|
23260
|
23260
23260-79036 Injector Assy, Cold Start Fuel[08.1984 - 08.1986] 1GGEU..GX71 |
23260-79036 |
US $138.32 |
||
|
23260
|
23260
23260-79125 Injector Assy, Cold Start Fuel[08.1986 - 08.1988] 1GGEU..GX71 |
23260-79125 |
US $142.69 |
||
| replacement | |||||
|
23260
|
23260
23260-79126 Injector Assy, Cold Start Fuel[08.1986 - 08.1988] 1GGEU..GX71 |
23260-79126 |
US $138.32 |
||
|
23270
|
23270
23270-52011
Damper Assy, Fuel Pressure Pulsation
[08.1984 - 08.1988] 1GGEU..GX71 |
23270-52011 |
— | ||
| replacement | |||||
|
23270
|
23270
23207-16020
Damper Assy, Fuel Pressure Pulsation
[08.1984 - 08.1988] 1GGEU..GX71 |
23207-16020 |
— | ||
|
23270B
|
23270B
23232-28010
Gasket(For Fuel Pump Hose)
[08.1984 - 08.1988] 1GG#..GX71 DAMPER SIDE |
23232-28010 |
— | ||
| replacement | |||||
|
23270B
|
23270B
23232-41081 Gasket(For Fuel Pump Hose)[08.1984 - 08.1988] 1GG#..GX71 DAMPER SIDE |
23232-41081 |
from US $1.40 |
||
|
23270B
|
23270B
90430-12005 Gasket(For Water Hole)[08.1984 - 08.1988] 1GG#..GX71 DELIVERY PIPE SIDE |
90430-12005 |
from US $0.68 |
||
|
23280
|
23280
23280-70030 Regulator Assy, Fuel Pressure[08.1984 - 08.1988] 1GGEU..GX71 |
23280-70030 |
US $131.04 |
||
|
23291
|
23291
23291-41010 Insulator, Injector Vibration[08.1984 - 08.1988] MTEU..MX71; 1GEU,1GG#..GX71 |
23291-41010 |
from US $2.65 |
||
|
23293
|
23293
23293-74010
Gasket, Cold Start Injector
[08.1986 - 08.1988] 1GGEU..GX71 |
23293-74010 |
— | ||
| replacement | |||||
|
23293
|
23293
23293-42010 Gasket, Cold Start Injector[08.1986 - 08.1988] 1GGEU..GX71 |
23293-42010 |
US $6.27 |
||
|
23293
|
23293
23293-88280 Gasket, Cold Start Injector[08.1984 - 08.1986] 1GGEU..GX71 |
23293-88280 |
US $5.39 |
||
|
23295
|
23295
23295-70011 Holder, Injector, No.1[08.1986 - 01.1987] 1GGEU..GX71 |
23295-70011 |
US $31.89 |
||
|
23803C
|
23803C
90401-08003 Bolt, Union[08.1984 - 08.1988] 1GEU,1GG#..GX71 |
90401-08003 |
US $2.51 |
||
|
23803D
|
23803D
90430-08005 Gasket[08.1984 - 08.1988] 1GEU,1GG#..GX71 |
90430-08005 |
US $2.51 |
||
|
23807
|
23807
23807-88300
Pipe Sub-Assy, Fuel Delivery
[08.1984 - 01.1987] 1GG#..GX71 |
23807-88300 |
— | ||
|
23807
|
23807
23807-88301 Pipe Sub-Assy, Fuel Delivery[01.1987 - 08.1988] 1GGEU..GX71 |
23807-88301 |
US $270.82 |
||
|
23809F
|
23809F
90467-13001
Clamp Or Clip, Hose(For Water By-Pass Hose)
[08.1984 - 08.1988] 1GG#..GX71; MTEU..MX71 |
90467-13001 |
— | ||
| replacement | |||||
|
23809F
|
23809F
96135-51300 Clamp, Hose[08.1984 - 08.1988] 1GG#..GX71; MTEU..MX71 |
96135-51300 |
from US $2.13 |
||
|
23809H
|
23809H
90447-15003 Hose, Fuel Pipe Support To Regulator[08.1984 - 08.1986] 1GGEU..GX71 |
90447-15003 |
US $24.61 |
||
| replacement | |||||
|
23809H
|
23809H
23271-70020 Hose, Fuel Pipe Support To Regulator[08.1984 - 08.1986] 1GGEU..GX71 |
23271-70020 |
US $24.17 |
||
|
23809H
|
23809H
90447-15016 Hose, Fuel Pipe Support To Regulator[08.1986 - 08.1988] 1GGEU..GX71 |
90447-15016 |
US $25.77 |
||
|
9011906201
|
9011906201
90119-06201 New Genuine Part |
90119-06201 |
US $1.89 |
||
|
9017906106
|
9017906106
90179-06106 NUT |
90179-06106 |
US $2.15 |
||
|
9017908044
|
9017908044
90179-08044 NUT |
90179-08044 |
from US $2.20 |
||
|
9046721001
|
9046721001
90467-21001 Clamp Or Clip, Hose(For Water By-Pass Hose) |
90467-21001 |
US $2.77 |
||
| replacement | |||||
|
9046721001
|
9046721001
90467-21006 Clip(For Ventilation Hose No.2) |
90467-21006 |
US $2.87 |
||
|
9056106004
|
9056106004
90561-06004 New Genuine Part |
90561-06004 |
US $6.99 |
||
|
9092901028
|
9092901028
90929-01028 New Genuine Part |
90929-01028 |
US $12.52 |
||
|
9161160612
|
9161160612
91611-60612
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91611-60612 |
— | ||
| replacement | |||||
|
9161160612
|
9161160612
91611-G0612 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91611-G0612 |
from US $0.78 |
||
|
9165160630
|
9165160630
91651-60630 New Genuine Part |
91651-60630 |
US $1.89 |
||
| replacement | |||||
|
9165160630
|
9165160630
91652-60630 New Genuine Part |
91652-60630 |
US $1.60 |
||
|
9331514010
|
9331514010
93315-14010 SCREW |
93315-14010 |
from US $0.76 |
||
