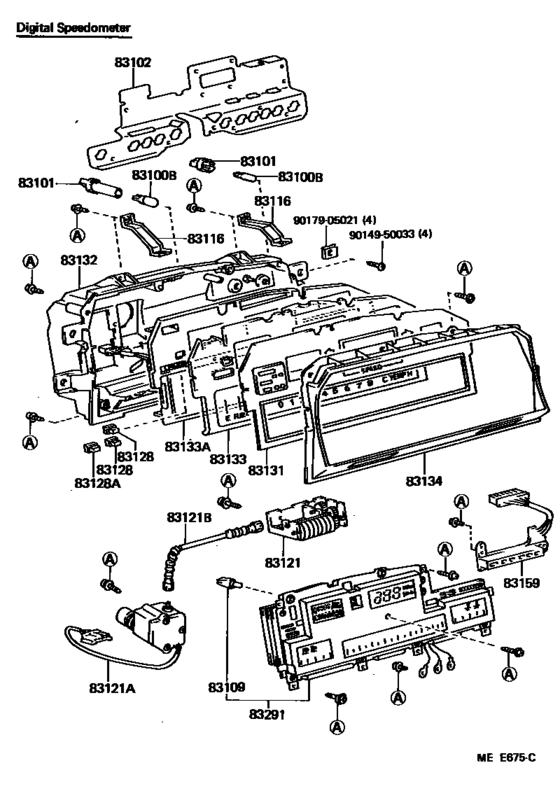

Meter ([08.1984 - ] (8408- )AVT,GT) Diagram Toyota CHASER
- Year
- 1984 - 1988
- Sales region
- Japan
- Frame
- GX71
- grade
- AVT
- body
- HT
- ENGINE
- 1GGEU
- TRANSMISSION
- ATM
- From
- 08.1984
- To
- 08.1988
- Gear Shift Type
- 4FC
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100B
|
83100B
83109-22010 Bulb, Combination Meter, No.1[08.1984 - 08.1988] GX71,MX71..AVT,GT 12V 1.2W,W/*DS |
83109-22010 |
US $11.50 |
||
|
83100B
|
83100B
90981-11018 Bulb, Position Indicator Lamp[08.1984 - 08.1988] GX71,LX70,MX71,SX70,YX7# １２Ｖ １．２Ｗ ソケット無し,12V 1.4W |
90981-11018 |
from US $2.09 |
||
|
83100B
|
83100B
99132-12034 Bulb, Position Indicator Lamp[08.1984 - 08.1988] GX71,LX70,MX71,SX70,YX7# １２Ｖ ３．４Ｗ,12V 3.4W |
99132-12034 |
from US $1.79 |
||
| replacement | |||||
|
83100B
|
83100B
00234-00158 Bulb, Position Indicator Lamp[08.1984 - 08.1988] GX71,LX70,MX71,SX70,YX7# １２Ｖ ３．４Ｗ,12V 3.4W |
00234-00158 |
US $1.59 |
||
|
83101
|
83101
83101-14030 Socket Sub-Assy, Combination Meter Bulb[08.1984 - 08.1988] GX71,LX70,MX71,SX70,YX7# BULB=12V 3.4W |
83101-14030 |
from US $1.54 |
||
|
83101
|
83101
83101-14040 Socket, Indicator Lamp[08.1984 - 08.1988] GX71,LX70,MX71,SX70,YX7# BULB=12V 1.4W |
83101-14040 |
US $2.44 |
||
|
83101
|
83101
83101-32010
Socket Sub-Assy, Combination Meter Bulb
[08.1984 - 08.1988] GX71,MX71..AVT,GT BULB=12V 1.2W,W/*DS |
83101-32010 |
— | ||
|
83102
|
83102
83247-2A140 Plate Sub-Assy, Combination Meter Circuit, No.1[08.1984 - 08.1988] GX71,MX71..AVT,GT W/*DS |
83247-2A140 |
US $101.92 |
||
|
83102
|
83102
83247-2A390
Plate Sub-Assy, Combination Meter Circuit, No.1
[08.1984 - 08.1986] GX71..4FC..TWC W/*AS |
83247-2A390 |
— | ||
|
83102
|
83102
83247-2A590
Plate Sub-Assy, Combination Meter Circuit, No.1
[08.1986 - 08.1988] GX71..4FC..TWC W/*AS |
83247-2A590 |
— | ||
|
83109
|
83109
83109-22020 Bulb, Combination Meter, No.2[08.1984 - 08.1988] GX71,MX71..AVT,GT 12V 1.12W,W/*DS |
83109-22020 |
US $15.43 |
||
|
83109
|
83109
83109-24020 Bulb, Combination Meter, No.1[08.1984 - 08.1988] GX71,LX70,MX71,SX70,YX7# １２Ｖ ３．４Ｗ キャップ付き,W/GREEN CAP,12V 3.4W |
83109-24020 |
from US $5.87 |
||
|
83109
|
83109
83109-24040 Bulb, Combination Meter, No.1[08.1984 - 08.1988] LX70..4FC １２Ｖ １．４Ｗ グリーン キャップ付き,W/GREEN CAP,12V 1.4W; GX71,MX71,SX70..4FC １２Ｖ １．４Ｗ グリーン キャップ付き,W/GREEN CAP,12V 1.4W |
83109-24040 |
US $2.36 |
||
|
83116
|
83116
83116-2A020 Bracket, Speedometer[08.1984 - 08.1988] GX71,MX71..AVT,GT LH |
83116-2A020 |
US $11.36 |
||
|
83116
|
83116
83116-2A040 Bracket, Speedometer[08.1984 - 08.1988] GX71,MX71..AVT,GT RH |
83116-2A040 |
US $11.36 |
||
|
83121
|
83121
83121-2A040 Counter, Total[08.1984 - 08.1986] GX71,MX71..AVT,GT |
83121-2A040 |
US $77.17 |
||
|
83121
|
83121
83121-2A100 Counter, Total[08.1986 - 08.1988] GX71..AVT,GT |
83121-2A100 |
US $77.17 |
||
|
83121A
|
83121A
83121-2A060 Sensor, Speed[08.1984 - 08.1986] GX71,MX71..AVT,GT |
83121-2A060 |
US $123.76 |
||
|
83121A
|
83121A
83121-2A120 Sensor, Speed[08.1986 - 08.1988] GX71..AVT,GT |
83121-2A120 |
US $125.22 |
||
|
83121B
|
83121B
83121-2A080 Cable, Counter And Sensor[08.1984 - 08.1988] GX71,MX71..AVT,GT |
83121-2A080 |
US $50.23 |
||
|
83128
|
83128
83128-2A040 Knob, Trip Counter[08.1984 - 08.1986] GX71,MX71..AVT,GT |
83128-2A040 |
US $4.08 |
||
|
83128
|
83128
83128-2A080 Knob, Trip Counter[08.1986 - 08.1988] GX71..AVT,GT |
83128-2A080 |
US $4.95 |
||
|
83128A
|
83128A
83128-2A020
Knob, Meter
[08.1984 - 08.1986] GX71,MX71..AVT,GT |
83128-2A020 |
— | ||
|
83128A
|
83128A
83128-2A060 Knob, Meter[08.1986 - 08.1988] GX71..AVT,GT |
83128-2A060 |
US $5.39 |
||
|
83131
|
83131
83145-2A200 Dial, Meter, No.1[08.1984 - 08.1986] GX71..4FC..TWC |
83145-2A200 |
US $60.42 |
||
|
83131
|
83131
83145-2A300 Dial, Meter, No.1[08.1986 - 08.1988] GX71..4FC..TWC |
83145-2A300 |
US $60.57 |
||
|
83132
|
83132
83132-22690
Case, Combination Meter
[08.1984 - 08.1986] GX71,MX71..4FC..(TBO,TWC,TWT) W/*AS |
83132-22690 |
— | ||
|
83132
|
83132
83132-22790
Case, Combination Meter
[08.1986 - 08.1988] GX71..4FC..(TWC,TWT) W/*AS |
83132-22790 |
— | ||
|
83132
|
83132
83132-2A100 Case, Combination Meter[08.1984 - 08.1988] GX71,MX71..AVT,GT W/*DS |
83132-2A100 |
US $88.82 |
||
|
83133
|
83133
83134-2A240 Plate, Combination Meter, No.1[08.1984 - 08.1986] GX71,MX71..AVT,GT |
83134-2A240 |
US $30.43 |
||
|
83133
|
83133
83134-2A300 Plate, Combination Meter, No.1[08.1986 - 08.1988] GX71..AVT,GT |
83134-2A300 |
US $117.94 |
||
|
83133A
|
83133A
83134-2A140 Plate, Combination Meter, No.2[08.1984 - 08.1986] GX71,MX71..AVT,GT |
83134-2A140 |
US $117.94 |
||
|
83133A
|
83133A
83134-2A320 Plate, Combination Meter, No.2[08.1986 - 08.1988] GX71..AVT,GT |
83134-2A320 |
US $117.94 |
||
|
83134
|
83134
83134-2A100 Cover, Combination Meter, No.1[08.1984 - 08.1988] GX71,MX71..AVT,GT |
83134-2A100 |
US $46.01 |
||
|
83159
|
83159
83159-2A040 Switch, Meter, No.1[08.1984 - 08.1986] GX71..4FC..TWC LED ASSY |
83159-2A040 |
US $66.10 |
||
|
83159
|
83159
83159-2A120 Switch, Meter, No.1[08.1986 - 08.1988] GX71..4FC..TWC LED ASSY |
83159-2A120 |
US $69.01 |
||
|
83291
|
83291
83291-22140 Computer, Combination Meter[08.1984 - 08.1986] GX71..4FC..TWC |
83291-22140 |
US $2,067.52 |
||
|
83291
|
83291
83291-22141 Computer, Combination Meter[08.1986 - 08.1988] GX71..4FC..TWC |
83291-22141 |
US $2,082.08 |
||
|
9014950033
|
9014950033
90149-50033 New Genuine Part |
90149-50033 |
US $0.87 |
||
|
9017905021
|
9017905021
90179-05021 NUT |
90179-05021 |
US $1 |
||
