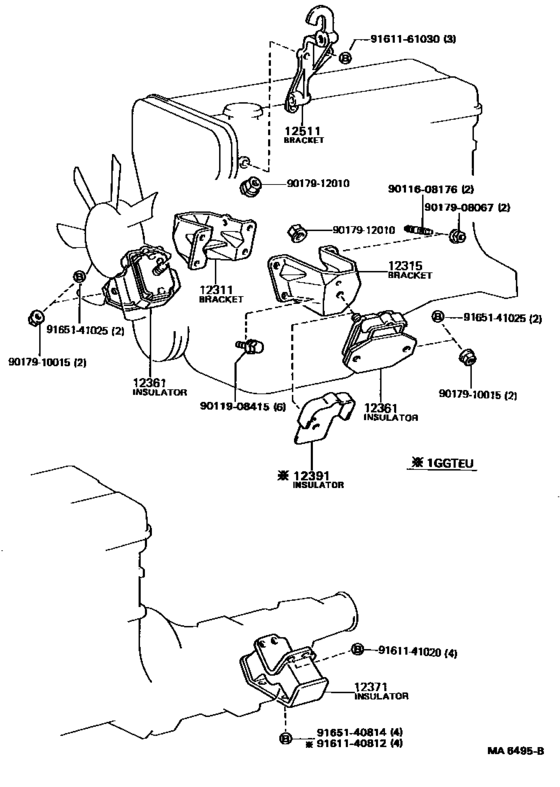

Mounting ([08.1984 - 08.1986] (8408-8608)1GGEU ; (8510- )1GGTEU) Diagram Toyota CHASER
- Year
- 1984 - 1988
- Sales region
- Japan
- Frame
- GX71
- grade
- AVT
- body
- HT
- ENGINE
- 1GGEU
- TRANSMISSION
- ATM
- From
- 08.1984
- To
- 08.1988
- Gear Shift Type
- 4FC
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12311
|
12311
12311-70050
Bracket, Engine Mounting, Front No.1 Rh
[08.1984 - 08.1986] 1GEU,1GGEU..GX71 |
12311-70050 |
— | ||
|
12311
|
12311
12311-70090 Bracket, Engine Mounting, Front No.1 Rh[08.1986 - 08.1988] 1GGEU..GX71 |
12311-70090 |
US $51.25 |
||
|
12315
|
12315
12315-70011
Bracket, Engine Mounting, Front No.1 Lh
[08.1984 - 08.1986] 1GEU,1GGEU..GX71 |
12315-70011 |
— | ||
|
12315
|
12315
12315-70060 Bracket, Engine Mounting, Front No.1 Lh[08.1986 - 08.1988] 1GGEU..GX71 |
12315-70060 |
US $61.30 |
||
| replacement | |||||
|
12315
|
12315
12315-70061 Bracket, Engine Mounting, Front No.1 Lh[08.1986 - 08.1988] 1GGEU..GX71 |
12315-70061 |
US $61.44 |
||
|
12361
|
12361
12361-70030 Insulator, Engine Mounting, Front[08.1984 - 08.1986] 1GG#..GX71 |
12361-70030 |
US $85.90 |
||
| replacement | |||||
|
12361
|
12361
12361-70031
Insulator, Engine Mounting, Front
[08.1984 - 08.1986] 1GG#..GX71 |
12361-70031 |
— | ||
|
12361
|
12361
12361-70070 Insulator, Engine Mounting, Front[08.1986 - 08.1988] 1GGEU..GX71 |
12361-70070 |
US $116.48 |
||
|
12371
|
12371
12371-34020 Insulator, Engine Mounting, Rear No.1[08.1984 - 08.1988] MTEU..MX71; 1GEU,1GG#..GX71 |
12371-34020 |
US $49.73 |
||
|
12511
|
12511
12511-88301 Bracket, Alternator, No.1[08.1984 - 08.1988] 1GG#..GX71 |
12511-88301 |
US $68.43 |
||
|
9011608176
|
9011608176
90116-08176 New Genuine Part |
90116-08176 |
US $3.64 |
||
|
9011908415
|
9011908415
90119-08415 New Genuine Part |
90119-08415 |
US $1.61 |
||
|
9017908067
|
9017908067
90179-08067 New Genuine Part |
90179-08067 |
US $1.75 |
||
|
9017910015
|
9017910015
90179-10015 NUT |
90179-10015 |
from US $1.03 |
||
|
9017912010
|
9017912010
90179-12010 NUT |
90179-12010 |
US $3.40 |
||
|
9161140812
|
9161140812
91611-40812
Bolt(for Drive Plate & Torque Converter Setting)
|
91611-40812 |
— | ||
| replacement | |||||
|
9161140812
|
9161140812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9161141020
|
9161141020
91611-41020
Bolt(for Transaxle & Engine Setting)
|
91611-41020 |
— | ||
| replacement | |||||
|
9161141020
|
9161141020
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
from US $1.07 |
||
|
9161161030
|
9161161030
91611-61030
Bolt (For Transmission Control Cable Bracket)
|
91611-61030 |
— | ||
| replacement | |||||
|
9161161030
|
9161161030
91612-61030 Bolt (For Transmission Control Cable Bracket) |
91612-61030 |
from US $1.07 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $1.23 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
|
9165141025
|
9165141025
91651-41025
Bolt(For Transaxle Case & Engine Setting)
|
91651-41025 |
— | ||
| replacement | |||||
|
9165141025
|
9165141025
91651-61025 Bolt with washer |
91651-61025 |
from US $1.52 |
||
