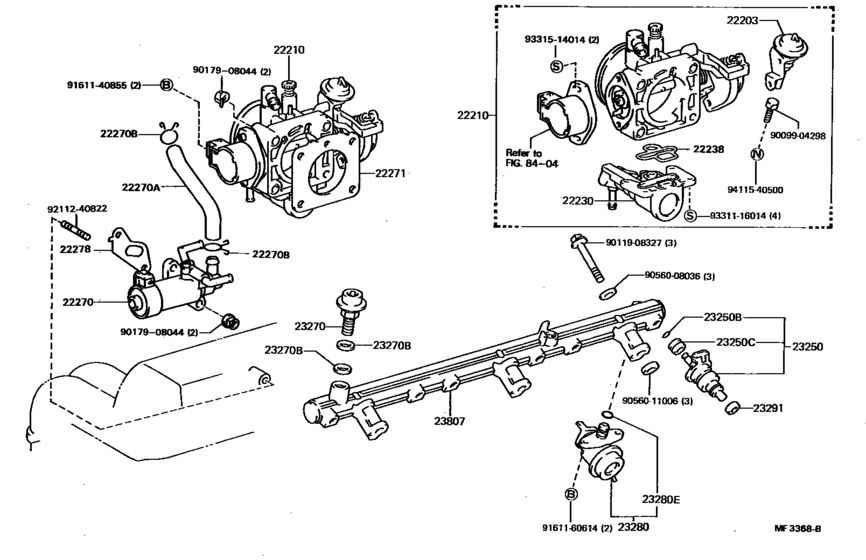

Fuel Injection System ([08.1984 - ] (8408- )1GEU) Diagram Toyota CHASER
- Year
- 1984 - 1988
- Sales region
- Japan
- Frame
- GX71
- grade
- SXL
- body
- HT
- ENGINE
- 1GEU
- TRANSMISSION
- ATM
- From
- 08.1984
- To
- 08.1988
- Gear Shift Type
- 4FC
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22203
|
22203
22203-70030 Dash Pot Sub-Assy(For Throttle Body)[08.1984 - 08.1988] 1GEU..GX71 |
22203-70030 |
US $90.27 |
||
|
22210
|
22210
22210-70080 Body Assy, Throttle[08.1984 - 08.1988] 1GEU..GX71 |
22210-70080 |
US $678.50 |
||
|
22230
|
22230
22230-70040 Valve Assy, Auxiliary Air[08.1984 - 08.1988] 1GEU..GX71 |
22230-70040 |
US $282.46 |
||
|
22238
|
22238
22238-70010 Gasket, Auxiliary Air Valve[08.1984 - 08.1988] 1GEU..GX71 |
22238-70010 |
US $3.06 |
||
|
22270
|
22270
22270-70040
Valve Assy, Idle Speed Control(For Thlottle Body)
[08.1984 - 08.1988] 1GEU..GX71 |
22270-70040 |
— | ||
|
22270A
|
22270A
17343-70020 Hose, Air, No.1(For Idle Speed Control Valve)[08.1984 - 08.1988] 1GEU..GX71 |
17343-70020 |
US $21.99 |
||
|
22270B
|
22270B
90467-20002 Clip(For Ventilation Tube)[08.1984 - 08.1988] 1GEU..GX71 |
90467-20002 |
from US $1.15 |
||
|
22271
|
22271
22271-70010
Gasket, Throttle Body
[08.1984 - 08.1988] 1GEU..GX71 |
22271-70010 |
— | ||
|
22278
|
22278
22278-70010 Gasket, Idle Speed Control Valve[08.1984 - 08.1988] 1GEU..GX71 |
22278-70010 |
US $4.66 |
||
|
23250
|
23250
23209-70010 Injector Assy, Fuel[08.1984 - 08.1988] 1GEU..GX71 |
23209-70010 |
US $279.55 |
||
| replacement | |||||
|
23250
|
23250
23209-70060 Injector Assy, FuelFUEL [08.1984 - 08.1988] 1GEU..GX71 |
23209-70060 |
US $279.55 |
||
|
23250B
|
23250B
90301-07001 Ring, O(For Fuel Injector)[08.1984 - 08.1988] MTEU..MX71; 1GEU,1GG#..GX71 |
90301-07001 |
from US $2.81 |
||
|
23250C
|
23250C
90480-13005 Grommet(For Fuel Injector)[08.1984 - 08.1988] MTEU..MX71; 1GEU,1GG#..GX71 |
90480-13005 |
from US $2.42 |
||
|
23270
|
23270
23270-70010 Damper Assy, Fuel Pressure Pulsation[08.1984 - 08.1988] 1GEU..GX71; MTEU..MX71 |
23270-70010 |
US $104.96 |
||
|
23270B
|
23270B
90430-14002 Gasket(For Pulsation Damper Hose)[08.1984 - 08.1988] 1GEU..GX71 ID=14.2 |
90430-14002 |
US $3.23 |
||
|
23270B
|
23270B
90430-17002 Gasket(For Pulsation Damper Hose)[08.1984 - 08.1988] 1GEU..GX71 ID=17.3; MTEU..MX71 ID=17.3 |
90430-17002 |
US $3.76 |
||
|
23280
|
23280
23280-70020 Regulator Assy, Fuel Pressure[08.1984 - 08.1988] 1GEU..GX71 |
23280-70020 |
US $132.50 |
||
|
23280E
|
23280E
90301-07001 Ring, O(For Fuel Injector)[08.1984 - 08.1988] 1GEU..GX71 |
90301-07001 |
from US $2.81 |
||
|
23291
|
23291
23291-41010 Insulator, Injector Vibration[08.1984 - 08.1988] MTEU..MX71; 1GEU,1GG#..GX71 |
23291-41010 |
from US $2.69 |
||
|
23807
|
23807
23807-70020 Pipe Sub-Assy, Fuel Delivery[08.1984 - 08.1988] 1GEU..GX71 |
23807-70020 |
US $269.36 |
||
|
9009904298
|
9009904298
90099-04298
New Genuine Part
|
90099-04298 |
— | ||
|
9011908327
|
9011908327
90119-08327 New Genuine Part |
90119-08327 |
US $3.20 |
||
|
9017908044
|
9017908044
90179-08044 NUT |
90179-08044 |
from US $2.20 |
||
|
9056008036
|
9056008036
90560-08036 New Genuine Part |
90560-08036 |
US $4.66 |
||
|
9056011006
|
9056011006
90560-11006 Spacer, No.1(For Delivery Pipe) |
90560-11006 |
US $4.37 |
||
|
9161140855
|
9161140855
91611-40855
Bolt(For Rocker Support Set)
|
91611-40855 |
— | ||
| replacement | |||||
|
9161140855
|
9161140855
91611-60855 Bolt(For Rocker Support Set) |
91611-60855 |
US $1.79 |
||
|
9161160614
|
9161160614
91611-60614
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60614 |
— | ||
| replacement | |||||
|
9161160614
|
9161160614
91611-B0614 Bolt (For Rear Differential Breather Plug Oil Deflector) |
91611-B0614 |
from US $0.80 |
||
|
9211240822
|
9211240822
92112-40822 New Genuine Part |
92112-40822 |
US $2.18 |
||
|
9331116014
|
9331116014
93311-16014 Screw |
93311-16014 |
US $1.25 |
||
|
9331514014
|
9331514014
93315-14014 SCREW |
93315-14014 |
US $1.25 |
||
|
9411540500
|
9411540500
94115-40500 Nut(For Lpg Filter Stud Bolt Set) |
94115-40500 |
US $1.97 |
||
