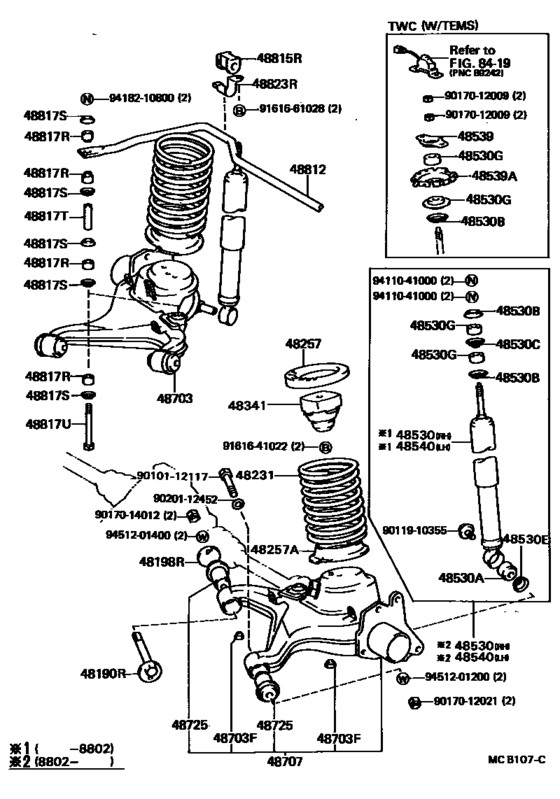

Rear Spring & Shock Absorber ([08.1984 - ] (8408- )GX71,MX71) Diagram Toyota CHASER
- Year
- 1984 - 1988
- Sales region
- Japan
- Frame
- GX71
- grade
- SXL
- body
- HT
- ENGINE
- 1GEU
- TRANSMISSION
- ATM
- From
- 08.1984
- To
- 08.1988
- Gear Shift Type
- 4FC
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
48190R
|
48190R
48190-22010
Cam Assy, Camber Adjust
[08.1984 - 08.1988] GX71,MX71 |
48190-22010 |
— | ||
|
48198R
|
48198R
48198-22010
Cam, Rear Suspension Camber Adjust, No.2
[08.1984 - 08.1988] GX71,MX71 |
48198-22010 |
— | ||
|
48231
|
48231
48231-22730 Spring, Coil, Rear[08.1984 - 08.1986] GX71..EFI |
48231-22730 |
US $193.65 |
||
|
48231
|
48231
48231-22731 Spring, Coil, Rear[08.1986 - 08.1988] GX71..EFI |
48231-22731 |
US $196.56 |
||
|
48257
|
48257
48257-22030 Insulator, Rear Coil Spring[08.1984 - 08.1988] GX71,MX71 |
48257-22030 |
US $21.84 |
||
|
48257A
|
48257A
48258-22041 Insulator, Rear Coil Spring, Lower, Rh[08.1984 - 08.1988] GX71,MX71 RH |
48258-22041 |
US $12.01 |
||
|
48257A
|
48257A
48258-22050 Insulator, Rear Coil Spring, Lower, Lh[08.1984 - 08.1988] GX71,MX71 LH |
48258-22050 |
US $12.01 |
||
|
48341
|
48341
48341-24010
Bumper Sub-Assy, Rear Spring
[08.1984 - 08.1988] GX71,MX71 |
48341-24010 |
— | ||
|
48530
|
48530
48531-22550 Absorber Assy, Shock, Rear Rh[08.1984 - 02.1988] GX71,MX71..EFI,TBO |
48531-22550 |
US $107.74 |
||
| replacement | |||||
|
48530
|
48530
48531-80189 Absorber Assy, Shock, Rear Rh[08.1984 - 02.1988] GX71,MX71..EFI,TBO |
48531-80189 |
US $116.48 |
||
|
48530
|
48530
48531-80345 Absorber Assy, Shock, Rear Rh[02.1988 - 08.1988] GX71..EFI |
48531-80345 |
US $116.48 |
||
| replacement | |||||
|
48530
|
48530
48531-80189 Absorber Assy, Shock, Rear Rh[02.1988 - 08.1988] GX71..EFI |
48531-80189 |
US $116.48 |
||
|
48530A
|
48530A
90385-16004 Cushion, Front Shock Absorber[08.1984 - 08.1988] GX71,LX70,MX71,SX70,YX7# |
90385-16004 |
from US $3.26 |
||
|
48530B
|
48530B
90948-02002 Retainer, Steering Damper Cushion[08.1984 - 08.1988] LX70,MX71,SX70,YX7#; GX71..EFI,TWT |
90948-02002 |
from US $1.21 |
||
|
48530C
|
48530C
90948-02075 Washer, Rear Shock Absorber Cushion, No.1[08.1984 - 08.1988] LX70,MX71,SX70,YX7#; GX71..EFI,TWT |
90948-02075 |
US $2.62 |
||
|
48530E
|
48530E
90948-03004 Retainer, Cushion, No.1(For Front Shock Absorber)[08.1984 - 08.1988] GX71,LX70,MX71,SX70,YX7# |
90948-03004 |
from US $1.29 |
||
|
48530G
|
48530G
90540-10004 Bush(For Rear Shock Absorber)[08.1984 - 08.1988] LX70,MX71,SX70,YX7# LWR; GX71..EFI,TWT LWR |
90540-10004 |
US $4.12 |
||
|
48530G
|
48530G
90948-01003 Rubber Cushion[08.1984 - 08.1986] GX71..EFI,TWT UPR |
90948-01003 |
from US $1.54 |
||
|
48540
|
48540
48531-22550 Absorber Assy, Shock, Rear Rh[08.1984 - 02.1988] GX71,MX71..EFI,TBO |
48531-22550 |
US $107.74 |
||
| replacement | |||||
|
48540
|
48540
48531-80189 Absorber Assy, Shock, Rear Rh[08.1984 - 02.1988] GX71,MX71..EFI,TBO |
48531-80189 |
US $116.48 |
||
|
48540
|
48540
48531-80345 Absorber Assy, Shock, Rear Rh[02.1988 - 08.1988] GX71..EFI |
48531-80345 |
US $116.48 |
||
| replacement | |||||
|
48540
|
48540
48531-80189 Absorber Assy, Shock, Rear Rh[02.1988 - 08.1988] GX71..EFI |
48531-80189 |
US $116.48 |
||
|
48703
|
48703
48703-22902 Arm Sub-Assy, Rear Suspension, Rh[08.1984 - 10.1987] GX71..SXL |
48703-22902 |
US $665.39 |
||
| replacement | |||||
|
48703
|
48703
48703-22921 Arm Sub-Assy, Rear Suspension, Rh[08.1984 - 10.1987] GX71..SXL |
48703-22921 |
US $665.39 |
||
|
48703
|
48703
48703-22921 Arm Sub-Assy, Rear Suspension, Rh[10.1987 - 08.1988] GX71..SXL |
48703-22921 |
US $665.39 |
||
|
48703F
|
48703F
47491-22020 Plug, Shoe Adjusting Hole (For Parking Brake)[08.1984 - 08.1988] GX71,MX71 OD=16 |
47491-22020 |
from US $1.77 |
||
|
48703F
|
48703F
90950-01228
Plug, Hole(For Rear Suspension Arm)
[08.1984 - 08.1988] GX71,MX71 OD=30 |
90950-01228 |
— | ||
|
48707
|
48707
48707-22902 Arm Sub-Assy, Rear Suspension, Lh[08.1984 - 10.1987] GX71..SXL |
48707-22902 |
US $665.39 |
||
| replacement | |||||
|
48707
|
48707
48707-22921 Arm Sub-Assy, Rear Suspension, Lh[08.1984 - 10.1987] GX71..SXL |
48707-22921 |
US $665.39 |
||
|
48707
|
48707
48707-22921 Arm Sub-Assy, Rear Suspension, Lh[10.1987 - 08.1988] GX71..SXL |
48707-22921 |
US $665.39 |
||
|
48725
|
48725
48725-22070
Bush, Lower Control Arm
[08.1984 - 02.1987] GX71,MX71..AVT,SXL OUTER |
48725-22070 |
— | ||
| replacement | |||||
|
48725
|
48725
48725-22071
Bush, Lower Control Arm
[08.1984 - 02.1987] GX71,MX71..AVT,SXL OUTER |
48725-22071 |
— | ||
|
48725
|
48725
48725-22071
Bush, Lower Control Arm
[02.1987 - 08.1988] GX71..EFI,TWC OUTER |
48725-22071 |
— | ||
|
48725
|
48725
48725-22080
Bush, Lower Control Arm
[08.1984 - 02.1987] GX71,MX71..AVT,SXL INNER |
48725-22080 |
— | ||
| replacement | |||||
|
48725
|
48725
48725-22081
Bush, Lower Control Arm
[08.1984 - 02.1987] GX71,MX71..AVT,SXL INNER |
48725-22081 |
— | ||
|
48725
|
48725
48725-22081
Bush, Lower Control Arm
[02.1987 - 08.1988] GX71..EFI,TWC INNER |
48725-22081 |
— | ||
|
48812
|
48812
48812-22160 Bar, Stabilizer, Rear[08.1984 - 08.1988] GX71..EFI |
48812-22160 |
US $97.55 |
||
|
48815R
|
48815R
48815-22090 Bush, Stabilizer(For Rear)[08.1984 - 08.1988] GX71..EFI |
48815-22090 |
US $6.64 |
||
|
48817R
|
48817R
48817-12010 Cushion, Stabilizer[08.1984 - 08.1988] GX71,LX70,MX71..EFI,TBO,TD,TWC,TWT |
48817-12010 |
from US $2.26 |
||
|
48817S
|
48817S
90948-02024 Retainer, Cushion, No.1(For Front Stabilizer Bar)[08.1984 - 08.1988] GX71,LX70,MX71..EFI,TBO,TD,TWC,TWT T=1.2 |
90948-02024 |
US $3.23 |
||
|
48817S
|
48817S
90948-02025 Retainer, Cushion, No.1(For Front Stabilizer Bar)[08.1984 - 08.1988] GX71,LX70,MX71..EFI,TBO,TD,TWC,TWT T=1.0 |
90948-02025 |
US $3.58 |
||
|
48817T
|
48817T
90387-09014 Collar(For Stabilizer Rear Bar)[08.1984 - 08.1988] GX71,MX71 |
90387-09014 |
US $4.19 |
||
|
48817U
|
48817U
90101-08095 Bolt(For Rear Stabilizer)[08.1984 - 08.1988] GX71,MX71 |
90101-08095 |
US $5.56 |
||
|
48823R
|
48823R
48832-22030 Cover, Stabilizer Link(For Rear)[08.1984 - 08.1988] GX71,MX71 |
48832-22030 |
US $3.93 |
||
|
9010112117
|
9010112117
90101-12117
New Genuine Part
|
90101-12117 |
— | ||
|
9011910355
|
9011910355
90119-10355 Washer, Rear Shock Absorber Cushion, No.2 |
90119-10355 |
from US $0.99 |
||
|
9017012009
|
9017012009
90170-12009 Nut(For Front Support To Front Shock Absorber) |
90170-12009 |
US $1.43 |
||
|
9017012021
|
9017012021
90170-12021 NUT, HEXAGON |
90170-12021 |
from US $1.09 |
||
|
9017014012
|
9017014012
90170-14012 Nut, Rack End Lock |
90170-14012 |
from US $1.07 |
||
|
9020112452
|
9020112452
90201-12452 Nut(For Backing Plate To Steering Knuckle Setting) |
90201-12452 |
from US $1.11 |
||
|
9161641022
|
9161641022
91616-41022 Bolt(for Transaxle & Engine Setting) |
91616-41022 |
US $2.18 |
||
| replacement | |||||
|
9161641022
|
9161641022
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
from US $1.07 |
||
|
9161661028
|
9161661028
91616-61028 Bolt(for Transaxle & Engine Setting) |
91616-61028 |
US $2.18 |
||
| replacement | |||||
|
9161661028
|
9161661028
91612-61025 Bolt (For Control Shaft Cover) |
91612-61025 |
from US $0.96 |
||
|
9411041000
|
9411041000
94110-41000 Nut(For Steering Damper) |
94110-41000 |
US $2.87 |
||
|
9418210800
|
9418210800
94182-10800 Nut |
94182-10800 |
from US $1.38 |
||
|
9451201200
|
9451201200
94512-01200 Washer |
94512-01200 |
from US $0.72 |
||
|
9451201400
|
9451201400
94512-01400 Washer(For Rear Spring U Bolt) |
94512-01400 |
US $1.79 |
||
