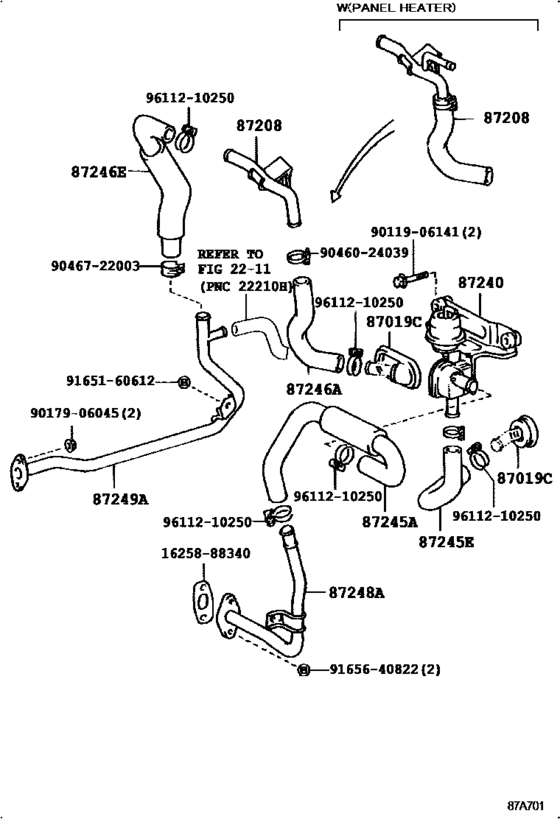

Heating & Air Conditioning - Water Piping ([10.1985 - ] (8510- )TWT) Diagram Toyota CHASER
- Year
- 1985 - 1988
- Sales region
- Japan
- Frame
- GX71
- grade
- GT
- body
- HT
- ENGINE
- 1GGTEU
- TRANSMISSION
- ATM
- From
- 10.1985
- To
- 08.1988
- Gear Shift Type
- 4FC
- Fuel Induction
- TWT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87019C
|
87019C
90480-01272
Grommet, Heater Hose
[08.1984 - 08.1988] GX71,LX70,MX71,SX70,YX7# OUTLET |
90480-01272 |
— | ||
|
87019C
|
87019C
90480-36011
Grommet, Heater Hose
[08.1984 - 08.1988] GX71,LX70,MX71,SX70,YX7# INLET |
90480-36011 |
— | ||
|
87208
|
87208
87208-22160
Pipe Sub-Assy, Heater Water
[10.1985 - 08.1988] GX71..TWT |
87208-22160 |
— | ||
|
87208
|
87208
87209-22120
Pipe Sub-Assy, Heater Water
[08.1986 - 08.1988] GX71..TWT W/PANEL HEATER |
87209-22120 |
— | ||
|
87240
|
87240
87240-22250 Valve Assy, Heater Water[08.1984 - 08.1988] GX71,MX71..TBO,TWT HEATER RADIATOR |
87240-22250 |
US $90.27 |
||
|
87240
|
87240
87240-22310 Valve Assy, Heater Water[08.1985 - 08.1988] GX71,LX70,MX71,SX70,YX7# PANEL HEATER |
87240-22310 |
US $42.95 |
||
|
87245A
|
87245A
87245-22890 Hose, Heater Water, Inlet A[10.1985 - 08.1988] GX71..TWT |
87245-22890 |
US $41.64 |
||
|
87245E
|
87245E
87245-22610 Hose, Heater Water, Inlet E[08.1984 - 08.1988] GX71,MX71..TBO,TWT |
87245-22610 |
US $10.77 |
||
|
87246A
|
87246A
87245-22850 Hose, Heater Water, Outlet A[10.1985 - 08.1988] GX71..TWT |
87245-22850 |
US $11.94 |
||
|
87246E
|
87246E
87245-22840 Hose, Heater Water, Outlet E[10.1985 - 08.1988] GX71..TWT |
87245-22840 |
US $22.71 |
||
|
87248A
|
87248A
87208-22150
Pipe, Heater Water Inlet, A
[10.1985 - 08.1986] GX71..TWT |
87208-22150 |
— | ||
|
87248A
|
87248A
87208-22170
Pipe, Heater Water Inlet, A
[08.1986 - 08.1988] GX71..TWT |
87208-22170 |
— | ||
| replacement | |||||
|
87248A
|
87248A
87208-22171
Pipe, Heater Water Inlet, A
[08.1986 - 08.1988] GX71..TWT |
87208-22171 |
— | ||
|
87249A
|
87249A
87208-22141
Pipe, Heater Water Outlet, A
[10.1985 - 08.1988] GX71..TWT |
87208-22141 |
— | ||
|
1625888340
|
1625888340
16258-88340
Gasket(for Heater Return)
|
16258-88340 |
— | ||
|
9011906141
|
9011906141
90119-06141
New Genuine Part
|
90119-06141 |
— | ||
| replacement | |||||
|
9011906141
|
9011906141
91651-40628 New Genuine Part |
91651-40628 |
US $0.61 |
||
|
9017906045
|
9017906045
90179-06045 New Genuine Part |
90179-06045 |
from US $2.15 |
||
|
9046024039
|
9046024039
90460-24039 Clamp Or Clip, Hose(For Oil Cooler Hose) |
90460-24039 |
US $1.54 |
||
| replacement | |||||
|
9046024039
|
9046024039
90467-21010 Clip(For Ventilation Hose No.2) |
90467-21010 |
from US $2.54 |
||
|
9046722003
|
9046722003
90467-22003
Clip(For Ventilation Hose No.2)
|
90467-22003 |
— | ||
| replacement | |||||
|
9046722003
|
9046722003
90467-21010 Clip(For Ventilation Hose No.2) |
90467-21010 |
from US $2.54 |
||
|
9165160612
|
9165160612
91651-60612 BOLT |
91651-60612 |
US $1.61 |
||
|
9165640822
|
9165640822
91656-40822
New Genuine Part
|
91656-40822 |
— | ||
| replacement | |||||
|
9165640822
|
9165640822
91651-60818 BOLTWWASHER |
91651-60818 |
from US $1.11 |
||
|
9611210250
|
9611210250
96112-10250 Clamp Or Clip, Hose(For Oil Cooler Hose) |
96112-10250 |
from US $2.28 |
||
