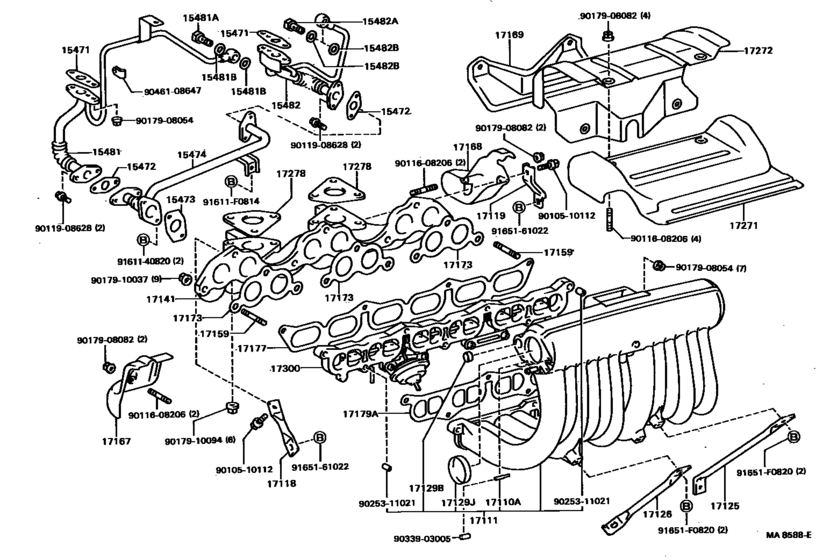

Manifold ([10.1985 - ] (8510- )1GGTEU) Diagram Toyota CHASER
- Year
- 1985 - 1988
- Sales region
- Japan
- Frame
- GX71
- grade
- GT
- body
- HT
- ENGINE
- 1GGTEU
- TRANSMISSION
- ATM
- From
- 10.1985
- To
- 08.1988
- Gear Shift Type
- 4FC
- Fuel Induction
- TWT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15471
|
15471
15471-88341
Gasket, Turbo Oil Inlet
[10.1985 - 08.1988] 1GGTEU..GX71 |
15471-88341 |
— | ||
|
15472
|
15472
15472-88340
Gasket, Turbo Oil Outlet, No.1
[10.1985 - 08.1988] 1GGTEU..GX71 |
15472-88340 |
— | ||
|
15473
|
15473
15473-88340
Gasket, Turbo Oil Outlet, No.2
[10.1985 - 08.1988] 1GGTEU..GX71 |
15473-88340 |
— | ||
|
15474
|
15474
15474-88340 Pipe, Turbo Oil Outlet[10.1985 - 08.1988] 1GGTEU..GX71 |
15474-88340 |
US $138.32 |
||
|
15481
|
15481
15481-88340 Pipe, Turbo Oil, No.1[10.1985 - 08.1988] 1GGTEU..GX71 |
15481-88340 |
US $149.97 |
||
|
15481A
|
15481A
90401-12009 Bolt, Union, No.1[10.1985 - 08.1987] 1GGTEU..GX71 |
90401-12009 |
US $4.66 |
||
|
15481A
|
15481A
90401-12018 Bolt, Union, No.1[08.1987 - 08.1988] 1GGTEU..GX71 |
90401-12018 |
US $7.13 |
||
| replacement | |||||
|
15481A
|
15481A
90401-12097 Bolt, Union(For Turbo Oil Inlet Pipe)[08.1987 - 08.1988] 1GGTEU..GX71 |
90401-12097 |
from US $2.94 |
||
|
15481B
|
15481B
90430-12110 Gasket(For Turbo Oil Inlet Pipe)[10.1985 - 08.1988] 1GGTEU..GX71 |
90430-12110 |
US $3.05 |
||
|
15482
|
15482
15482-88340 Pipe, Turbo Oil, No.2[10.1985 - 08.1988] 1GGTEU..GX71 |
15482-88340 |
US $125.22 |
||
| replacement | |||||
|
15482
|
15482
15482-88341 Pipe, Turbo Oil, No.2[10.1985 - 08.1988] 1GGTEU..GX71 |
15482-88341 |
US $122.30 |
||
|
15482A
|
15482A
90401-12018 Bolt, Union, No.1[10.1985 - 08.1988] 1GGTEU..GX71 |
90401-12018 |
US $7.13 |
||
| replacement | |||||
|
15482A
|
15482A
90401-12097 Bolt, Union(For Turbo Oil Inlet Pipe)[10.1985 - 08.1988] 1GGTEU..GX71 |
90401-12097 |
from US $2.94 |
||
|
15482B
|
15482B
90430-12110 Gasket(For Turbo Oil Inlet Pipe)[10.1985 - 08.1988] 1GGTEU..GX71 |
90430-12110 |
US $3.05 |
||
|
17110A
|
17110A
90405-04002
Union, Vacuum Hose
[10.1985 - 08.1988] 1GGTEU..GX71 |
90405-04002 |
— | ||
|
17111
|
17111
17120-88340 Manifold, Intake[10.1985 - 08.1988] 1GGTEU..GX71 |
17120-88340 |
US $978.43 |
||
|
17118
|
17118
17118-88340
Stay, Manifold
[10.1985 - 08.1988] 1GGTEU..GX71 |
17118-88340 |
— | ||
|
17119
|
17119
17139-88341 Stay, Manifold, No.2[10.1985 - 08.1988] 1GGTEU..GX71 |
17139-88341 |
US $34.36 |
||
|
17125
|
17125
17125-88340 Stay, Surge Tank, No.1[10.1985 - 08.1988] 1GGTEU..GX71 |
17125-88340 |
US $72.36 |
||
|
17126
|
17126
17126-88340 Stay, Surge Tank, No.2[10.1985 - 08.1988] 1GGTEU..GX71 |
17126-88340 |
US $54.60 |
||
|
17129B
|
17129B
96411-11600 Plug[08.1984 - 07.1988] 1GG#..GX71 OD=16 |
96411-11600 |
US $4.66 |
||
|
17129B
|
17129B
96411-21600 Plug[07.1988 - 08.1988] 1GGTEU..GX71 |
96411-21600 |
US $4.22 |
||
| replacement | |||||
|
17129B
|
17129B
96411-11600 Plug[07.1988 - 08.1988] 1GGTEU..GX71 |
96411-11600 |
US $4.66 |
||
|
17129J
|
17129J
96411-34000 Plug, Tight(For Intake Air Surge Tank)[07.1988 - 08.1988] 1GGTEU..GX71 外径＝４０ |
96411-34000 |
US $3.64 |
||
| replacement | |||||
|
17129J
|
17129J
96411-44000 Plug, Tight, No.1[07.1988 - 08.1988] 1GGTEU..GX71 外径＝４０ |
96411-44000 |
from US $4.02 |
||
|
17129J
|
17129J
96411-44000 Plug, Tight, No.1[10.1985 - 07.1988] 1GGTEU..GX71 外径＝４０ |
96411-44000 |
from US $4.02 |
||
|
17141
|
17141
17141-88340 Manifold, Exhaust[10.1985 - 12.1987] 1GGTEU..GX71 |
17141-88340 |
US $666.85 |
||
| replacement | |||||
|
17141
|
17141
17141-88341 Manifold, Exhaust[10.1985 - 12.1987] 1GGTEU..GX71 |
17141-88341 |
US $662.48 |
||
|
17141
|
17141
17141-88341 Manifold, Exhaust[12.1987 - 08.1988] 1GGTEU..GX71 |
17141-88341 |
US $662.48 |
||
|
17159
|
17159
90116-08186 Bolt, Stud(For Manifold To Cylinder Head)[10.1984 - 08.1986] 1GG#..GX71 INTAKE MANIFOLD,*54 |
90116-08186 |
US $3.32 |
||
|
17159
|
17159
90116-10063 Bolt, Stud(For Exhaust Manifold To Cylinder Head)[08.1984 - 08.1988] 1GG#..GX71 EXHAUST MANIFOLD |
90116-10063 |
from US $0.98 |
||
|
17167
|
17167
17167-88340 Insulator, Exhaust Manifold Heat, No.1[10.1985 - 08.1988] 1GGTEU..GX71 |
17167-88340 |
US $81.54 |
||
|
17168
|
17168
17168-88340 Insulator, Exhaust Manifold Heat, No.2[10.1985 - 08.1988] 1GGTEU..GX71 |
17168-88340 |
US $70.18 |
||
|
17169
|
17169
17169-88340 Insulator, Exhaust Manifold Heat, No.3[10.1985 - 08.1986] 1GGTEU..GX71 |
17169-88340 |
US $32.18 |
||
| replacement | |||||
|
17169
|
17169
17169-88341 Insulator, Exhaust Manifold Heat, No.3[10.1985 - 08.1986] 1GGTEU..GX71 |
17169-88341 |
US $31.89 |
||
|
17169
|
17169
17169-88341 Insulator, Exhaust Manifold Heat, No.3[08.1986 - 08.1988] 1GGTEU..GX71 |
17169-88341 |
US $31.89 |
||
|
17173
|
17173
17173-88340
Gasket, Exhaust Manifold To Head
[10.1985 - 08.1988] 1GGTEU..GX71 |
17173-88340 |
— | ||
|
17177
|
17177
17177-88301
Gasket, Intake Manifold To Head, No.1
[08.1985 - 08.1986] 1GG#..GX71 |
17177-88301 |
— | ||
| replacement | |||||
|
17177
|
17177
17177-88302 Gasket, Intake Manifold To Head, No.1[08.1985 - 08.1986] 1GG#..GX71 |
17177-88302 |
US $17.98 |
||
|
17179A
|
17179A
17179-88340
Gasket, Intake Manifold, No.2
[10.1985 - 08.1988] 1GGTEU..GX71 |
17179-88340 |
— | ||
| replacement | |||||
|
17179A
|
17179A
17179-88341
Gasket, Intake Manifold, No.2
[10.1985 - 08.1988] 1GGTEU..GX71 |
17179-88341 |
— | ||
|
17271
|
17271
17271-88340 Insulator, Turbo, No.1[10.1985 - 08.1988] 1GGTEU..GX71 |
17271-88340 |
US $113.57 |
||
|
17272
|
17272
17272-88340 Insulator, Turbo, No.2[10.1985 - 08.1988] 1GGTEU..GX71 |
17272-88340 |
US $155.79 |
||
|
17278
|
17278
17278-88340
Gasket, Turbo To Exhaust Manifold
[10.1985 - 08.1988] 1GGTEU..GX71 |
17278-88340 |
— | ||
|
17300
|
17300
17300-88340 Valve Assy, Intake Air Control[10.1985 - 08.1988] 1GGTEU..GX71 |
17300-88340 |
US $1,892.80 |
||
|
91611F0814
|
91611F0814
91611-F0814 Bolt |
91611-F0814 |
US $1.61 |
||
|
91651F0820
|
91651F0820
91651-F0820 New Genuine Part |
91651-F0820 |
US $2.18 |
||
| replacement | |||||
|
91651F0820
|
91651F0820
90119-08842 BOLT WWASHER |
90119-08842 |
US $1.61 |
||
|
9010510112
|
9010510112
90105-10112
New Genuine Part
|
90105-10112 |
— | ||
|
9011608206
|
9011608206
90116-08206
New Genuine Part
|
90116-08206 |
— | ||
|
9011908628
|
9011908628
90119-08628 New Genuine Part |
90119-08628 |
US $2.18 |
||
|
9017908054
|
9017908054
90179-08054 Nut (For Connecting Rod Swivel) |
90179-08054 |
US $1.79 |
||
|
9017908082
|
9017908082
90179-08082 New Genuine Part |
90179-08082 |
US $2.87 |
||
|
9017910037
|
9017910037
90179-10037 NUT |
90179-10037 |
from US $2.30 |
||
| replacement | |||||
|
9017910037
|
9017910037
90179-10128 NUT |
90179-10128 |
from US $1.46 |
||
|
9017910094
|
9017910094
90179-10094 NUT |
90179-10094 |
from US $2.46 |
||
|
9025311021
|
9025311021
90253-11021 Pin, Ring |
90253-11021 |
from US $1.44 |
||
|
9033903005
|
9033903005
90339-03005 Plug, No.1 |
90339-03005 |
from US $1.77 |
||
|
9046108647
|
9046108647
90461-08647 New Genuine Part |
90461-08647 |
US $3.20 |
||
|
9161140820
|
9161140820
91611-40820
Bolt(For Intake Manifold To Exhaust Manifold)
|
91611-40820 |
— | ||
|
9165161022
|
9165161022
91651-61022 Bolt(For Transaxle & Engine Setting) |
91651-61022 |
US $1.10 |
||
