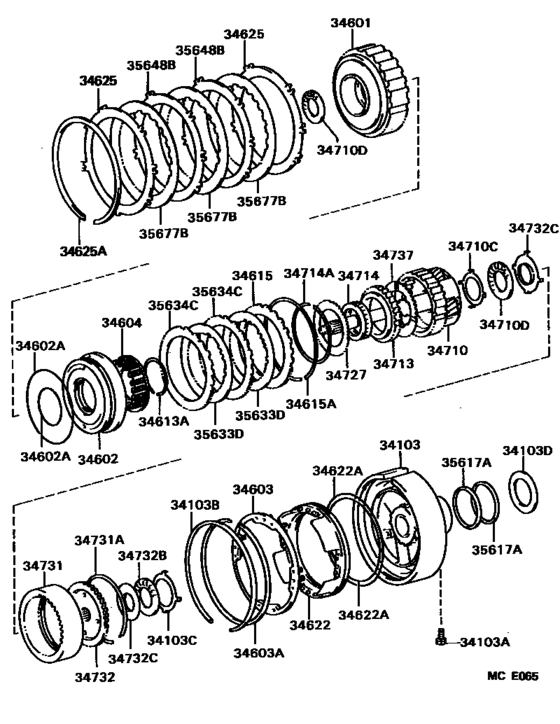

Overdrive Gear (Atm) ([10.1985 - ] (8510- )4FC..TWT) Diagram Toyota CHASER
- Year
- 1985 - 1988
- Sales region
- Japan
- Frame
- GX71
- grade
- GT
- body
- HT
- ENGINE
- 1GGTEU
- TRANSMISSION
- ATM
- From
- 10.1985
- To
- 08.1988
- Gear Shift Type
- 4FC
- Fuel Induction
- TWT
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
34103
|
34103
34103-30011 Support Sub-Assy, Overdrive[10.1985 - 08.1988] GX71..4FC..TWT |
34103-30011 |
US $345.07 |
||
|
34103A
|
34103A
90105-08065 Bolt (For Overdrive Support)[10.1985 - 08.1988] GX71..4FC..TWT |
90105-08065 |
US $2.04 |
||
|
34103B
|
34103B
90521-99033 Ring, Hole Snap (For Overdrive Support)[10.1985 - 08.1988] GX71..4FC..TWT |
90521-99033 |
from US $3.65 |
||
|
34103C
|
34103C
35789-30080 Race, Thrust Bearing (For Overdrive Support Front)[10.1985 - 08.1988] GX71..4FC..TWT |
35789-30080 |
US $5.02 |
||
|
34103D
|
34103D
35789-30090 Race, Thrust Bearing (For Overdrive Support Rear)[10.1985 - 08.1988] GX71..4FC..TWT |
35789-30090 |
US $5.39 |
||
|
34601
|
34601
34601-30030
Drum Sub-Assy, Overdrive Direct Clutch
[10.1985 - 08.1988] GX71..4FC..TWT |
34601-30030 |
— | ||
|
34602
|
34602
34602-30020 Piston Sub-Assy, Overdrive Direct Clutch[10.1985 - 08.1988] GX71..4FC..TWT |
34602-30020 |
US $41.35 |
||
|
34602A
|
34602A
90301-65005 Ring, O (For Overdrive Direct Clutch Piston)[10.1985 - 08.1988] GX71..4FC..TWT INNER,ID=65 |
90301-65005 |
US $4.80 |
||
| replacement | |||||
|
34602A
|
34602A
90301-65006 Ring, O (For Overdrive Direct Clutch Piston)[10.1985 - 08.1988] GX71..4FC..TWT INNER,ID=65 |
90301-65006 |
US $5.38 |
||
|
34602A
|
34602A
90301-99036
Ring, O (For Overdrive Direct Clutch Piston)
[10.1985 - 08.1988] GX71..4FC..TWT OUTER,ID=112.5 |
90301-99036 |
— | ||
| replacement | |||||
|
34602A
|
34602A
90301-99086 Ring, O (For Overdrive Direct Clutch Piston)[10.1985 - 08.1988] GX71..4FC..TWT OUTER,ID=112.5 |
90301-99086 |
US $2.62 |
||
|
34603
|
34603
34603-30010 Spring Sub-Assy, Overdrive Brake Return[10.1985 - 08.1988] GX71..4FC..TWT |
34603-30010 |
US $31.16 |
||
|
34603A
|
34603A
90521-99031 Ring, Hole Snap (For Overdrive Brake Return Spring)[10.1985 - 08.1988] GX71..4FC..TWT |
90521-99031 |
US $4.08 |
||
|
34604
|
34604
34604-30010 Spring Sub-Assy, Overdrive Clutch Return[10.1985 - 08.1988] GX71..4FC..TWT |
34604-30010 |
US $15.43 |
||
|
34613A
|
34613A
90520-58001 Ring, Shaft Snap (For Overdrive Direct Clutch Return Spring)[10.1985 - 08.1988] GX71..4FC..TWT |
90520-58001 |
US $1.89 |
||
|
34615
|
34615
34615-30020 Flange, Overdrive Clutch[10.1985 - 08.1988] GX71..4FC..TWT 厚さ＝３．６,T=3.6 |
34615-30020 |
US $68.58 |
||
| replacement | |||||
|
34615
|
34615
34615-50050 Flange, Overdrive Clutch[10.1985 - 08.1988] GX71..4FC..TWT 厚さ＝３．６,T=3.6 |
34615-50050 |
US $26.79 |
||
|
34615
|
34615
34615-30030 Flange, Overdrive Clutch[10.1985 - 08.1988] GX71..4FC..TWT 厚さ＝３．５,T=3.5 |
34615-30030 |
US $68.58 |
||
| replacement | |||||
|
34615
|
34615
34615-50040 Flange, Overdrive Clutch[10.1985 - 08.1988] GX71..4FC..TWT 厚さ＝３．５,T=3.5 |
34615-50040 |
US $26.50 |
||
|
34615
|
34615
34615-30040 Flange, Overdrive Clutch[10.1985 - 08.1988] GX71..4FC..TWT 厚さ＝３．４,T=3.4 |
34615-30040 |
US $68.58 |
||
| replacement | |||||
|
34615
|
34615
34615-50030 Flange, Overdrive Clutch[10.1985 - 08.1988] GX71..4FC..TWT 厚さ＝３．４,T=3.4 |
34615-50030 |
US $26.06 |
||
|
34615
|
34615
34615-30050 Flange, Overdrive Clutch[10.1985 - 08.1988] GX71..4FC..TWT 厚さ＝３．３,T=3.3 |
34615-30050 |
US $68.58 |
||
| replacement | |||||
|
34615
|
34615
34615-22030 Flange, Overdrive Clutch[10.1985 - 08.1988] GX71..4FC..TWT 厚さ＝３．３,T=3.3 |
34615-22030 |
from US $45.43 |
||
|
34615
|
34615
34615-30060 Flange, Overdrive Clutch[10.1985 - 08.1988] GX71..4FC..TWT 厚さ＝３．２,T=3.2 |
34615-30060 |
US $68.58 |
||
| replacement | |||||
|
34615
|
34615
34615-22020 Flange, Overdrive Clutch[10.1985 - 08.1988] GX71..4FC..TWT 厚さ＝３．２,T=3.2 |
34615-22020 |
US $45.43 |
||
|
34615
|
34615
34615-30070 Flange, Overdrive Clutch[10.1985 - 08.1988] GX71..4FC..TWT 厚さ＝３．１,T=3.1 |
34615-30070 |
US $68.58 |
||
| replacement | |||||
|
34615
|
34615
34615-22010 Flange, Overdrive Clutch[10.1985 - 08.1988] GX71..4FC..TWT 厚さ＝３．１,T=3.1 |
34615-22010 |
US $44.20 |
||
|
34615A
|
34615A
90521-99001 Ring, Hole Snap, No.2 (For Overdrive)[10.1985 - 08.1988] GX71..4FC..TWT |
90521-99001 |
US $4.54 |
||
|
34622
|
34622
34622-30030 Piston, Overdrive Brake[10.1985 - 08.1988] GX71..4FC..TWT |
34622-30030 |
US $72.22 |
||
|
34622A
|
34622A
90301-99035 Ring, O (For Overdrive Brake Piston)[10.1985 - 08.1988] GX71..4FC..TWT INNER,ID=131.6 |
90301-99035 |
US $7.72 |
||
| replacement | |||||
|
34622A
|
34622A
90301-99087 Ring, O (For Overdrive Brake Piston)[10.1985 - 08.1988] GX71..4FC..TWT INNER,ID=131.6 |
90301-99087 |
from US $2.62 |
||
|
34622A
|
34622A
90301-99037 Ring, O (For Overdrive Brake Piston)[10.1985 - 08.1988] GX71..4FC..TWT OUTER,ID=145.6 |
90301-99037 |
US $8.74 |
||
|
34625
|
34625
34625-30030 Flange, Overdrive Brake, No.1[10.1985 - 08.1988] GX71..4FC..TWT 厚さ＝４．０，マーク １,MARK 1,T=4.0 |
34625-30030 |
US $80.08 |
||
| replacement | |||||
|
34625
|
34625
34625-30110 Flange, Overdrive Brake, No.1[10.1985 - 08.1988] GX71..4FC..TWT 厚さ＝４．０，マーク １,MARK 1,T=4.0 |
34625-30110 |
US $66.39 |
||
|
34625
|
34625
34625-30040 Flange, Overdrive Brake, No.1[10.1985 - 08.1988] GX71..4FC..TWT 厚さ＝３．９,MARK 23,T=3.9 |
34625-30040 |
US $82.99 |
||
| replacement | |||||
|
34625
|
34625
34625-22050 Flange, Overdrive Brake, No.1[10.1985 - 08.1988] GX71..4FC..TWT 厚さ＝３．９,MARK 23,T=3.9 |
34625-22050 |
US $51.98 |
||
|
34625
|
34625
34625-30050 Flange, Overdrive Brake, No.1[10.1985 - 08.1988] GX71..4FC..TWT 厚さ＝３．８,MARK 11,T=3.8 |
34625-30050 |
US $82.99 |
||
| replacement | |||||
|
34625
|
34625
34625-22040 Flange, Overdrive Brake, No.1[10.1985 - 08.1988] GX71..4FC..TWT 厚さ＝３．８,MARK 11,T=3.8 |
34625-22040 |
from US $50.23 |
||
|
34625
|
34625
34625-30060 Flange, Overdrive Brake, No.1[10.1985 - 08.1988] GX71..4FC..TWT 厚さ＝３．７,MARK 24,T=3.7 |
34625-30060 |
US $82.99 |
||
| replacement | |||||
|
34625
|
34625
34625-50040 Flange, Overdrive Brake, No.1[10.1985 - 08.1988] GX71..4FC..TWT 厚さ＝３．７,MARK 24,T=3.7 |
34625-50040 |
US $44.41 |
||
|
34625
|
34625
34625-30070 Flange, Overdrive Brake, No.1[10.1985 - 08.1988] GX71..4FC..TWT 厚さ＝３．６,MARK 12,T=3.6 |
34625-30070 |
US $82.99 |
||
| replacement | |||||
|
34625
|
34625
34625-50030 Flange, Overdrive Brake, No.1[10.1985 - 08.1988] GX71..4FC..TWT 厚さ＝３．６,MARK 12,T=3.6 |
34625-50030 |
US $43.83 |
||
|
34625
|
34625
34625-30080 Flange, Overdrive Brake, No.1[10.1985 - 08.1988] GX71..4FC..TWT 厚さ＝３．５,MARK 25,T=3.5 |
34625-30080 |
US $82.99 |
||
| replacement | |||||
|
34625
|
34625
34625-50020 Flange, Overdrive Brake, No.1[10.1985 - 08.1988] GX71..4FC..TWT 厚さ＝３．５,MARK 25,T=3.5 |
34625-50020 |
US $43.24 |
||
|
34625
|
34625
34625-30090 Flange, Overdrive Brake, No.1[10.1985 - 08.1988] GX71..4FC..TWT 厚さ＝３．３,MARK 26,T=3.3 |
34625-30090 |
US $82.99 |
||
| replacement | |||||
|
34625
|
34625
34625-22030 Flange, Overdrive Brake, No.1[10.1985 - 08.1988] GX71..4FC..TWT 厚さ＝３．３,MARK 26,T=3.3 |
34625-22030 |
US $50.49 |
||
|
34625
|
34625
34625-30100 Flange, Overdrive Brake, No.1[01.1987 - 08.1988] GX71..4FC..TWT 厚さ＝４．０，マーク無し,NO MARK,T=4.0 |
34625-30100 |
US $81.54 |
||
| replacement | |||||
|
34625
|
34625
34625-22060 Flange, Overdrive Brake, No.1[01.1987 - 08.1988] GX71..4FC..TWT 厚さ＝４．０，マーク無し,NO MARK,T=4.0 |
34625-22060 |
from US $51.83 |
||
|
34625A
|
34625A
90521-99027 Ring, Hole Snap (For Overdrive Brake Flange)[10.1985 - 08.1988] GX71..4FC..TWT |
90521-99027 |
US $2.62 |
||
|
34710
|
34710
34710-30030 Gear Assy, Overdrive Planetary[10.1985 - 08.1988] GX71..4FC..TWT |
34710-30030 |
US $1,035.22 |
||
| replacements | |||||
|
34710
|
34710
34710-30031 Gear Assy, Overdrive Planetary[10.1985 - 08.1988] GX71..4FC..TWT |
34710-30031 |
US $1,035.22 |
||
|
34710
|
34710
34732-22011 Flange, Overdrive Planetary Ring Gear[10.1985 - 08.1988] GX71..4FC..TWT |
34732-22011 |
US $36.69 |
||
|
34710
|
34710
35789-30052 Race, Thrust Bearing(For Overdrive Planetary Gear)[10.1985 - 08.1988] GX71..4FC..TWT |
35789-30052 |
US $6.70 |
||
|
34710
|
34710
90374-31008 Bearing, Thrust Needle Roller(For Overdrive Planetary Gear)[10.1985 - 08.1988] GX71..4FC..TWT |
90374-31008 |
US $19.22 |
||
|
34710C
|
34710C
35789-30050 Race, Thrust Bearing(For Overdrive Planetary Gear)[10.1985 - 08.1988] GX71..4FC..TWT |
35789-30050 |
US $8.59 |
||
|
34710D
|
34710D
90374-25005 Bearing, Thrust Needle Roller(For Overdrive Planetary Gear)[10.1985 - 08.1988] GX71..4FC..TWT RR |
90374-25005 |
US $13.25 |
||
|
34710D
|
34710D
90374-28008 Bearing,thrust Needle Roller(For Overdrive Direct Clutch)[10.1985 - 08.1988] GX71..4FC..TWT FR |
90374-28008 |
US $19.22 |
||
|
34713
|
34713
34713-32010 Race, 1 Way Clutch Outer (For Overdrive)[10.1985 - 08.1988] GX71..4FC..TWT |
34713-32010 |
US $65.67 |
||
|
34714
|
34714
35791-30040
Clutch, 1 Way(For Overdrive)
[10.1985 - 08.1988] GX71..4FC..TWT |
35791-30040 |
— | ||
| replacement | |||||
|
34714
|
34714
35791-50010
Clutch, 1 Way(For Overdrive)
[10.1985 - 08.1988] GX71..4FC..TWT |
35791-50010 |
— | ||
|
34714A
|
34714A
90521-99028 Ring, Hole Snap(For 1 Way Clutch)[10.1985 - 08.1988] GX71..4FC..TWT |
90521-99028 |
from US $2.62 |
||
|
34727
|
34727
34727-32010 Plate, Retaining (For Overdrive)[10.1985 - 08.1988] GX71..4FC..TWT |
34727-32010 |
US $3.64 |
||
|
34731
|
34731
34731-30030 Gear, Overdrive Planetary Ring[10.1985 - 08.1988] GX71..4FC..TWT |
34731-30030 |
US $91.73 |
||
|
34731A
|
34731A
90521-99024 Ring, Hole Snap (For Overdrive Planetary Ring Gear)[10.1985 - 08.1988] GX71..4FC..TWT |
90521-99024 |
US $2.62 |
||
|
34732
|
34732
34732-30030 Flange, Overdrive Planetary Ring Gear[10.1985 - 08.1988] GX71..4FC..TWT |
34732-30030 |
US $70.76 |
||
|
34732B
|
34732B
90374-32004 Bearing, Thrust(For Overdrive Planetary Ring Gear Flange)[10.1985 - 08.1988] GX71..4FC..TWT |
90374-32004 |
US $13.98 |
||
| replacement | |||||
|
34732B
|
34732B
90374-35004 Bearing, Thrust Needle Roller (For Front Planetary Ring)[10.1985 - 08.1988] GX71..4FC..TWT |
90374-35004 |
US $11.94 |
||
|
34732C
|
34732C
35789-30060
Race, Thrust Bearing (For Overdrive Planetary Ring Gear)
[10.1985 - 08.1988] GX71..4FC..TWT FR |
35789-30060 |
— | ||
|
34732C
|
34732C
35789-30070 Race, Thrust Bearing (For Overdrive Planetary Ring Gear)[10.1985 - 08.1988] GX71..4FC..TWT RR |
35789-30070 |
US $8.74 |
||
|
34737
|
34737
34737-30030 Washer, Overdrive Planetary Gear Thrust, No.3[10.1985 - 08.1988] GX71..4FC..TWT |
34737-30030 |
US $7.28 |
||
|
35617A
|
35617A
35617-30020 Ring, Clutch Drum Oil Seal[10.1985 - 08.1988] GX71..4FC..TWT |
35617-30020 |
US $28.39 |
||
|
35633D
|
35633D
35633-30040
Disc, Clutch (For Forward Multiple Disc Clutch)
[10.1985 - 08.1988] GX71..4FC..TWT |
35633-30040 |
— | ||
| replacement | |||||
|
35633D
|
35633D
35633-14010 Disc, Clutch (For Overdrive Direct Clutch)[10.1985 - 08.1988] GX71..4FC..TWT |
35633-14010 |
US $31.08 |
||
|
35634C
|
35634C
34616-30010 Plate, Clutch (For Overdrive Direct Clutch)[10.1985 - 08.1988] GX71..4FC..TWT 厚さ＝２．０ |
34616-30010 |
US $26.31 |
||
|
35648B
|
35648B
34634-30020 Plate, Overdrive Brake[10.1985 - 08.1988] GX71..4FC..TWT |
34634-30020 |
US $42.37 |
||
| replacement | |||||
|
35648B
|
35648B
34634-30021 Plate, Overdrive Brake[10.1985 - 08.1988] GX71..4FC..TWT |
34634-30021 |
US $26.03 |
||
|
35677B
|
35677B
34633-30010 Disc, Clutch (For Overdrive Brake)[10.1985 - 08.1988] GX71..4FC..TWT |
34633-30010 |
US $39.66 |
||
