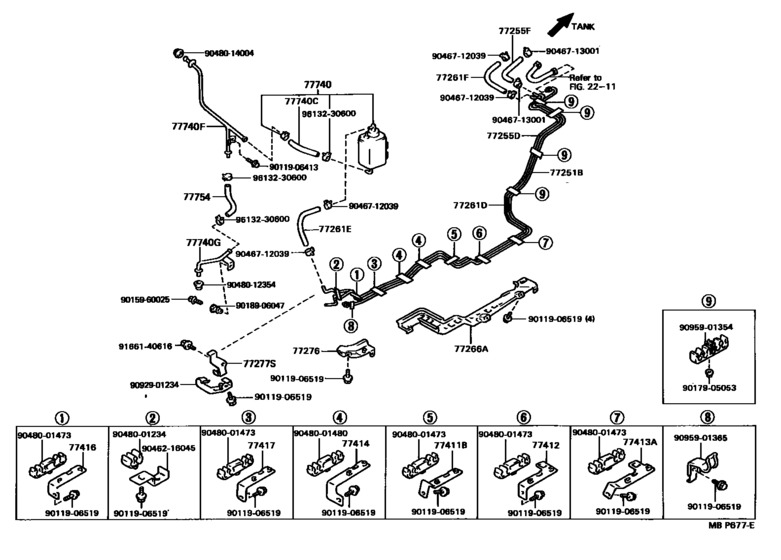

Fuel Tank & Tube ([08.1988 - 10.1992] (8808-9210)GX81..HTWC,TWC,TWT) Diagram Toyota CHASER
- Year
- 1988 - 1992
- Sales region
- Japan
- Frame
- GX81
- grade
- SXL
- body
- HT
- ENGINE
- 1GFE
- TRANSMISSION
- MTM
- From
- 08.1988
- To
- 10.1992
- Gear Shift Type
- 5F
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
77251B
|
77251B
77251-22380 Tube, Fuel Main[08.1988 - 10.1992] GX81..HTWC,TWC,TWT |
77251-22380 |
US $77.17 |
||
|
77255D
|
77255D
77255-22290 Tube, Fuel Return[08.1988 - 10.1992] GX81..HTWC,TWC,TWT |
77255-22290 |
US $77.17 |
||
|
77255F
|
77255F
77419-22040 Hose, Fuel, No.2 (For Fuel Return Tube)[08.1988 - 10.1992] GX81,JZX81,MX83 長さ＝１８０，内径＝８ |
77419-22040 |
US $8.88 |
||
|
77261D
|
77261D
77261-22180 Tube, Fuel Tank To Canister[08.1988 - 10.1992] GX81..HTWC,TWC,TWT |
77261-22180 |
US $65.37 |
||
|
77261E
|
77261E
95333-06020
Hose, Fuel(For Injection Pump To Fuel Pipe)
[08.1988 - 10.1992] GX81,JZX81,MX83,SX80 ＊Ｈ，Ｌ＝２００ |
95333-06020 |
— | ||
| replacement | |||||
|
77261E
|
77261E
95337-06020 Hose, Differential Pressure Control[08.1988 - 10.1992] GX81,JZX81,MX83,SX80 ＊Ｈ，Ｌ＝２００ |
95337-06020 |
from US $10.21 |
||
|
77261F
|
77261F
77259-22080 Hose, Fuel, No.2 (For Fuel Tank To Canister Tube)[08.1988 - 10.1992] GX81,JZX81,MX83,SX80 長さ＝２２０ |
77259-22080 |
US $9.17 |
||
|
77266A
|
77266A
77266-22070 Protector, Fuel Tube, No.1[08.1988 - 10.1992] GX81,JZX81,LX80,MX83 |
77266-22070 |
US $24.46 |
||
|
77276
|
77276
77276-22050 Protector, Fuel Hose[08.1988 - 10.1992] GX81,JZX81,MX83 |
77276-22050 |
US $9.61 |
||
|
77277S
|
77277S
23881-70010 Bracket, Fuel Hose[08.1988 - 10.1992] GX81,JZX81,MX83..HTWC,TWC,TWT |
23881-70010 |
US $5.24 |
||
|
77411B
|
77411B
77411-22010 Support, Fuel Tube Grommet, No.1[08.1988 - 10.1992] GX81,JZX81,LX80,MX83,SX80,YX80 |
77411-22010 |
US $9.46 |
||
|
77412
|
77412
77412-22010 Support, Fuel Tube Grommet, No.2[08.1988 - 10.1992] GX81,JZX81,LX80,MX83,SX80,YX80 |
77412-22010 |
US $9.46 |
||
|
77413A
|
77413A
77413-22010 Support, Fuel Tube Grommet, No.3[08.1988 - 10.1992] GX81,JZX81,LX80,MX83,SX80,YX80 |
77413-22010 |
US $9.46 |
||
|
77414
|
77414
77414-22010 Support, Fuel Tube Grommet, No.4[08.1988 - 10.1992] GX81,JZX81,LX80,MX83,SX80,YX80 |
77414-22010 |
US $9.46 |
||
|
77416
|
77416
77416-22010 Support, Fuel Tube Grommet, No.6[08.1988 - 10.1992] GX81,JZX81,LX80,MX83 |
77416-22010 |
US $9.46 |
||
|
77417
|
77417
77417-22010 Support, Fuel Tube Grommet, No.7[08.1988 - 10.1992] GX81,JZX81,LX80,MX83,SX80,YX80 |
77417-22010 |
US $9.46 |
||
|
77740
|
77740
77740-22370
Canister Assy, Charcoal
[08.1988 - 10.1992] GX81,JZX81,MX83 |
77740-22370 |
— | ||
|
77740C
|
77740C
90445-12230 Hose, Fuel, No.3(For Charcoal Canister)[08.1988 - 10.1992] GX81,JZX81,MX83 長さ＝１４０ |
90445-12230 |
US $4.95 |
||
|
77740F
|
77740F
77747-22020 Tube, Fuel, No.1(For Charcoal Canister)[08.1988 - 10.1992] GX81 |
77747-22020 |
US $17.18 |
||
|
77740G
|
77740G
77748-22010 Tube, Fuel, No.2(For Charcoal Canister)[08.1988 - 10.1992] GX81 |
77748-22010 |
US $17.18 |
||
|
77754
|
77754
77754-22040 Hose, Charcoal Canister Outlet, No.1[08.1988 - 10.1992] GX81 |
77754-22040 |
US $4.66 |
||
|
9011906413
|
9011906413
90119-06413 New Genuine Part |
90119-06413 |
US $1.60 |
||
|
9011906519
|
9011906519
90119-06519 New Genuine Part |
90119-06519 |
US $2.61 |
||
|
9015960025
|
9015960025
90159-60025 SCREW W-WASHER |
90159-60025 |
US $3.58 |
||
|
9017905053
|
9017905053
90179-05053 New Genuine Part |
90179-05053 |
US $1.60 |
||
|
9018906047
|
9018906047
90189-06047 GROMMET |
90189-06047 |
from US $0.60 |
||
|
9046216045
|
9046216045
90462-16045 New Genuine Part |
90462-16045 |
US $1.75 |
||
|
9046712039
|
9046712039
90467-12039 Clip, No.1(For Idle-Up Hose) |
90467-12039 |
US $2.48 |
||
| replacement | |||||
|
9046712039
|
9046712039
96132-51100 Clip (For Hose) |
96132-51100 |
from US $1.42 |
||
|
9046713001
|
9046713001
90467-13001
Clamp Or Clip, Hose(For Water By-Pass Hose)
|
90467-13001 |
— | ||
| replacement | |||||
|
9046713001
|
9046713001
96135-51300 Clamp, Hose |
96135-51300 |
from US $2.13 |
||
|
9048001234
|
9048001234
90480-01234 New Genuine Part |
90480-01234 |
US $2.62 |
||
|
9048001473
|
9048001473
90480-01473 New Genuine Part |
90480-01473 |
US $2.77 |
||
|
9048001480
|
9048001480
90480-01480 New Genuine Part |
90480-01480 |
US $2.77 |
||
|
9048012354
|
9048012354
90480-12354 New Genuine Part |
90480-12354 |
US $2.48 |
||
|
9048014004
|
9048014004
90480-14004
Grommet (For Floor Shift Control Shaft)
|
90480-14004 |
— | ||
|
9092901234
|
9092901234
90929-01234 New Genuine Part |
90929-01234 |
US $6.84 |
||
|
9095901354
|
9095901354
90959-01354
New Genuine Part
|
90959-01354 |
— | ||
| replacement | |||||
|
9095901354
|
9095901354
90959-01355 New Genuine Part |
90959-01355 |
US $4.51 |
||
|
9095901365
|
9095901365
90959-01365 New Genuine Part |
90959-01365 |
US $4.22 |
||
|
9166140616
|
9166140616
91661-40616 New Genuine Part |
91661-40616 |
US $1.43 |
||
|
9613230600
|
9613230600
96132-30600
Clip(For Actuator Hose)
|
96132-30600 |
— | ||
| replacement | |||||
|
9613230600
|
9613230600
96132-51100 Clip (For Hose) |
96132-51100 |
from US $1.42 |
||
