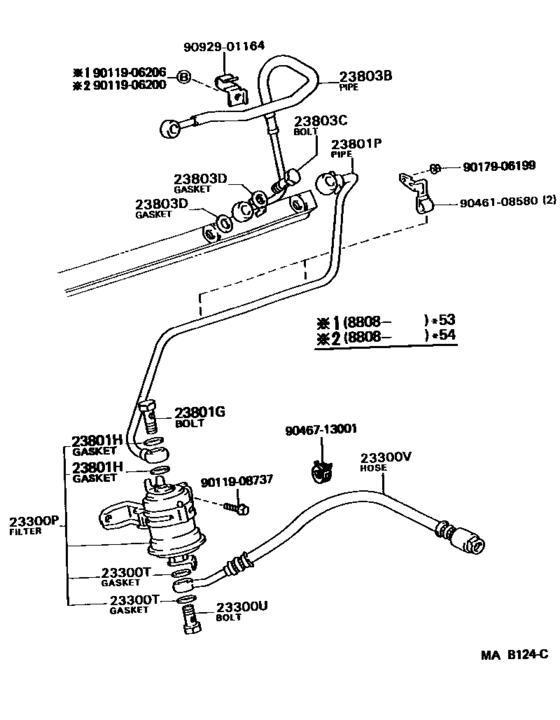

Fuel Injection System ([08.1988 - 02.1993] (8808-9302)1GGE) Diagram Toyota CHASER
- Year
- 1988 - 1992
- Sales region
- Japan
- Frame
- GX81
- grade
- AVT
- body
- HT
- ENGINE
- 1GGE
- TRANSMISSION
- MTM
- From
- 08.1988
- To
- 10.1992
- Gear Shift Type
- 5F
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23300P
|
23300P
23300-79205
Filter, Fuel(For Efi)
[08.1988 - 08.1990] 1GG#..GX81 |
23300-79205 |
— | ||
| replacement | |||||
|
23300P
|
23300P
23300-79206
Filter, Fuel(For Efi)
[08.1988 - 08.1990] 1GG#..GX81 |
23300-79206 |
— | ||
|
23300P
|
23300P
23300-79206
Filter, Fuel(For Efi)
[08.1990 - 10.1992] 1GGE..GX81 |
23300-79206 |
— | ||
|
23300T
|
23300T
90430-12005 Gasket(For Water Hole)[08.1988 - 07.1991] 4SF#..SX80; 1GFE,1GG#..GX81; 1JZ#..JZX81 |
90430-12005 |
from US $0.68 |
||
|
23300T
|
23300T
90430-12026 Gasket[07.1991 - 08.1991] 1JZ#..JZX81; 1G#..GX81 |
90430-12026 |
from US $0.82 |
||
|
23300U
|
23300U
90401-12097 Bolt, Union(For Turbo Oil Inlet Pipe)[08.1988 - 10.1992] 1JZGTE..JZX81; 4SF#..SX80; 1GFE,1GG#..GX81 |
90401-12097 |
from US $2.94 |
||
|
23300V
|
23300V
90923-01328
Hose, Fuel(For Fuel Inlet)
[08.1988 - 10.1992] 1GFE,1GG#..GX81 |
90923-01328 |
— | ||
|
23801G
|
23801G
90401-12097 Bolt, Union(For Turbo Oil Inlet Pipe)[08.1988 - 01.1989] 1GFE,1GG#..GX81 |
90401-12097 |
from US $2.94 |
||
|
23801H
|
23801H
90430-12005 Gasket(For Water Hole)[08.1988 - 02.1990] 7MGE..MX83; 4SFI..SX80; 1GFE,1GG#..GX81 |
90430-12005 |
from US $0.68 |
||
|
23801H
|
23801H
90430-12026 Gasket[02.1990 - 07.1990] 1GFE,1GGE,1GGZE..GX81 *53 |
90430-12026 |
from US $0.82 |
||
|
23801P
|
23801P
23801-88304 Pipe Sub-Assy, Fuel, No.1[08.1988 - 10.1992] 1GGE..GX81 |
23801-88304 |
US $74.26 |
||
|
23803B
|
23803B
23803-88301 Pipe Sub-Assy, Fuel, No.3[08.1988 - 10.1992] 1GGE..GX81 |
23803-88301 |
US $43.24 |
||
|
23803C
|
23803C
90401-08003 Bolt, Union[04.1989 - 08.1990] 1GFE,1GG#..GX81 |
90401-08003 |
US $2.51 |
||
|
23803C
|
23803C
90401-08006 Bolt, Union[08.1988 - 04.1989] 1GFE,1GG#..GX81 |
90401-08006 |
US $2.18 |
||
| replacement | |||||
|
23803C
|
23803C
90401-08003 Bolt, Union[08.1988 - 04.1989] 1GFE,1GG#..GX81 |
90401-08003 |
US $2.51 |
||
|
23803D
|
23803D
90430-08005 Gasket[08.1988 - 02.1990] 1GFE,1GG#..GX81 |
90430-08005 |
US $2.51 |
||
|
23803D
|
23803D
90430-08012 Gasket[02.1990 - 08.1990] 1GFE,1GGE,1GGZE..GX81 *53 |
90430-08012 |
US $2.15 |
||
|
9011906200
|
9011906200
90119-06200 New Genuine Part |
90119-06200 |
from US $2.91 |
||
|
9011906206
|
9011906206
90119-06206 New Genuine Part |
90119-06206 |
US $2.51 |
||
|
9011908737
|
9011908737
90119-08737 New Genuine Part |
90119-08737 |
US $1.31 |
||
|
9017906199
|
9017906199
90179-06199 NUT |
90179-06199 |
US $1.25 |
||
|
9046108580
|
9046108580
90461-08580 New Genuine Part |
90461-08580 |
US $6.99 |
||
|
9046713001
|
9046713001
90467-13001
Clamp Or Clip, Hose(For Water By-Pass Hose)
|
90467-13001 |
— | ||
| replacement | |||||
|
9046713001
|
9046713001
96135-51300 Clamp, Hose |
96135-51300 |
from US $2.13 |
||
|
9092901164
|
9092901164
90929-01164 New Genuine Part |
90929-01164 |
US $3.64 |
||
