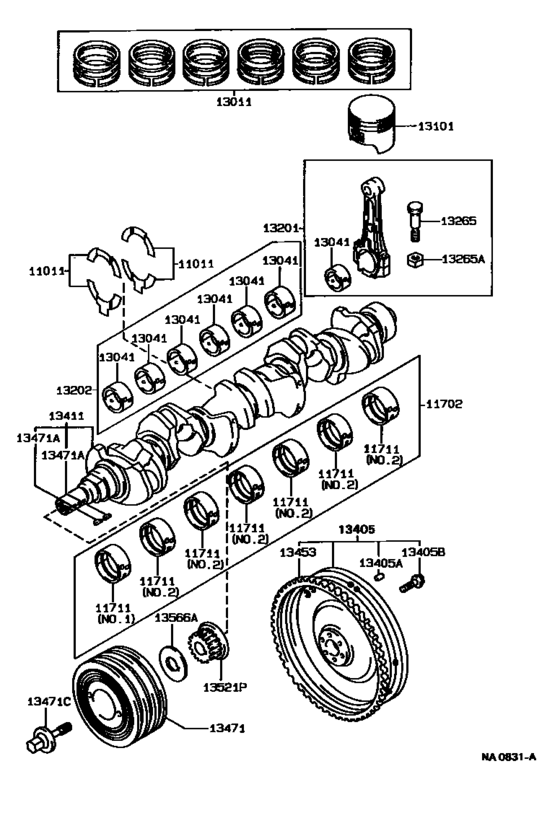

Crankshaft & Piston ([08.1988 - ] (8808- )1GFE) Diagram Toyota CHASER
- Year
- 1988 - 1992
- Sales region
- Japan
- Frame
- GX81
- grade
- AVT
- body
- HT
- ENGINE
- 1GFE
- TRANSMISSION
- ATM
- From
- 08.1988
- To
- 10.1992
- Gear Shift Type
- 4FC
- Fuel Induction
- HTWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-70010 Washer Set, Crankshaft Thrust[08.1988 - 10.1992] 1GFE,1GG#..GX81 ＳＴＤ |
11011-70010 |
US $12.66 |
||
|
11702
|
11702
11704-70022 Bearing Set, Crankshaft[08.1988 - 10.1992] 1GFE,1GGE,1GGZE..GX81 Ｕ／Ｓ ０．２５,*53 |
11704-70022 |
US $313.04 |
||
|
11711
|
11711
11071-70012-01 Bearing, Crankshaft[08.1988 - 08.1990] 1GFE,1GGE,1GGZE..GX81 MARK 1,*53 NO.1 |
11071-70012-01 |
US $48.78 |
||
| replacement | |||||
|
11711
|
11711
11071-70013-01 Bearing, Crankshaft[08.1988 - 08.1990] 1GFE,1GGE,1GGZE..GX81 MARK 1,*53 NO.1 |
11071-70013-01 |
US $49.07 |
||
|
11711
|
11711
11071-70012-02 Bearing, Crankshaft[08.1988 - 08.1990] 1GFE,1GGE,1GGZE..GX81 MARK 2,*53 NO.1 |
11071-70012-02 |
US $48.78 |
||
| replacement | |||||
|
11711
|
11711
11071-70013-02 Bearing, Crankshaft[08.1988 - 08.1990] 1GFE,1GGE,1GGZE..GX81 MARK 2,*53 NO.1 |
11071-70013-02 |
US $49.07 |
||
|
11711
|
11711
11071-70012-03 Bearing, Crankshaft[08.1988 - 08.1990] 1GFE,1GGE,1GGZE..GX81 MARK 3,*53 NO.1 |
11071-70012-03 |
US $48.78 |
||
| replacement | |||||
|
11711
|
11711
11071-70013-03 Bearing, Crankshaft[08.1988 - 08.1990] 1GFE,1GGE,1GGZE..GX81 MARK 3,*53 NO.1 |
11071-70013-03 |
from US $20.59 |
||
|
11711
|
11711
11071-70012-04 Bearing, Crankshaft[08.1988 - 08.1990] 1GFE,1GGE,1GGZE..GX81 MARK 4,*53 NO.1 |
11071-70012-04 |
US $48.78 |
||
| replacement | |||||
|
11711
|
11711
11071-70013-04 Bearing, Crankshaft[08.1988 - 08.1990] 1GFE,1GGE,1GGZE..GX81 MARK 4,*53 NO.1 |
11071-70013-04 |
US $49.07 |
||
|
11711
|
11711
11071-70012-05 Bearing, Crankshaft[08.1988 - 08.1990] 1GFE,1GGE,1GGZE..GX81 MARK 5,*53 NO.1 |
11071-70012-05 |
US $48.78 |
||
| replacement | |||||
|
11711
|
11711
11071-70013-05 Bearing, Crankshaft[08.1988 - 08.1990] 1GFE,1GGE,1GGZE..GX81 MARK 5,*53 NO.1 |
11071-70013-05 |
US $49.07 |
||
|
11711
|
11711
11701-70021-01 Bearing, Crankshaft[08.1988 - 08.1990] 1GFE,1GGE,1GGZE..GX81 MARK 1,*53 NO.2 |
11701-70021-01 |
US $48.78 |
||
| replacement | |||||
|
11711
|
11711
11701-70022-01 Bearing, Crankshaft[08.1988 - 08.1990] 1GFE,1GGE,1GGZE..GX81 MARK 1,*53 NO.2 |
11701-70022-01 |
US $49.07 |
||
|
11711
|
11711
11701-70021-02 Bearing, Crankshaft[08.1988 - 08.1990] 1GFE,1GGE,1GGZE..GX81 MARK 2,*53 NO.2 |
11701-70021-02 |
US $48.78 |
||
| replacement | |||||
|
11711
|
11711
11701-70022-02 Bearing, Crankshaft[08.1988 - 08.1990] 1GFE,1GGE,1GGZE..GX81 MARK 2,*53 NO.2 |
11701-70022-02 |
US $49.07 |
||
|
11711
|
11711
11701-70021-03 Bearing, Crankshaft[08.1988 - 08.1990] 1GFE,1GGE,1GGZE..GX81 MARK 3,*53 NO.2 |
11701-70021-03 |
US $48.78 |
||
| replacement | |||||
|
11711
|
11711
11701-70022-03 Bearing, Crankshaft[08.1988 - 08.1990] 1GFE,1GGE,1GGZE..GX81 MARK 3,*53 NO.2 |
11701-70022-03 |
US $49.07 |
||
|
11711
|
11711
11701-70021-04 Bearing, Crankshaft[08.1988 - 08.1990] 1GFE,1GGE,1GGZE..GX81 MARK 4,*53 NO.2 |
11701-70021-04 |
US $48.78 |
||
| replacement | |||||
|
11711
|
11711
11701-70022-04 Bearing, Crankshaft[08.1988 - 08.1990] 1GFE,1GGE,1GGZE..GX81 MARK 4,*53 NO.2 |
11701-70022-04 |
US $49.07 |
||
|
11711
|
11711
11701-70021-05 Bearing, Crankshaft[08.1988 - 08.1990] 1GFE,1GGE,1GGZE..GX81 MARK 5,*53 NO.2 |
11701-70021-05 |
US $48.78 |
||
| replacement | |||||
|
11711
|
11711
11701-70022-05 Bearing, Crankshaft[08.1988 - 08.1990] 1GFE,1GGE,1GGZE..GX81 MARK 5,*53 NO.2 |
11701-70022-05 |
US $49.07 |
||
|
13011
|
13011
13011-70090 Ring Set, Piston[08.1988 - 10.1992] 1GFE..GX81 ＳＴＤ |
13011-70090 |
US $228.59 |
||
|
13011
|
13011
13013-70090 Ring Set, Piston[08.1988 - 10.1992] 1GFE..GX81 Ｏ／Ｓ ０．５０ |
13013-70090 |
from US $144.14 |
||
|
13041
|
13041
13041-70020-03
Bearing, Connecting Rod
[08.1988 - 10.1992] 1GFE..GX81 MARK 3 |
13041-70020-03 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-70021-03 Bearing, Connecting Rod[08.1988 - 10.1992] 1GFE..GX81 MARK 3 |
13041-70021-03 |
from US $16.34 |
||
|
13041
|
13041
13041-70020-04
Bearing, Connecting Rod
[08.1988 - 10.1992] 1GFE..GX81 MARK 4 |
13041-70020-04 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-70021-04 Bearing, Connecting Rod[08.1988 - 10.1992] 1GFE..GX81 MARK 4 |
13041-70021-04 |
from US $16.34 |
||
|
13041
|
13041
13041-70020-05
Bearing, Connecting Rod
[08.1988 - 10.1992] 1GFE..GX81 MARK 5 |
13041-70020-05 |
— | ||
| replacement | |||||
|
13041
|
13041
13041-70021-05 Bearing, Connecting Rod[08.1988 - 10.1992] 1GFE..GX81 MARK 5 |
13041-70021-05 |
US $36.79 |
||
|
13101
|
13101
13101-70070-01 Piston Sub-Assy, W/pin[08.1988 - 10.1992] 1GFE..GX81 ＳＴＤ,MARK 1 |
13101-70070-01 |
from US $59.26 |
||
|
13101
|
13101
13101-70070-02 Piston Sub-Assy, W/pin[08.1988 - 10.1992] 1GFE..GX81 ＳＴＤ,MARK 2 |
13101-70070-02 |
from US $54.33 |
||
|
13101
|
13101
13101-70070-03 Piston Sub-Assy, W/pin[08.1988 - 10.1992] 1GFE..GX81 ＳＴＤ,MARK 3 |
13101-70070-03 |
US $81.54 |
||
|
13101
|
13101
13103-70070
Piston Sub-Assy, W/pin
[08.1988 - 10.1992] 1GFE..GX81 Ｏ／Ｓ ０．５０ |
13103-70070 |
— | ||
|
13201
|
13201
13201-79115
Rod Sub-Assy, Connecting
[08.1988 - 10.1992] 1GFE..GX81 |
13201-79115 |
— | ||
| replacement | |||||
|
13201
|
13201
13201-79116
Rod Sub-Assy, Connecting
[08.1988 - 10.1992] 1GFE..GX81 |
13201-79116 |
— | ||
|
13202
|
13202
13204-70020
Bearing Set, Connecting Rod
[08.1988 - 10.1992] 1GFE..GX81 Ｕ／Ｓ ０．２５ |
13204-70020 |
— | ||
| replacement | |||||
|
13202
|
13202
13204-70021
Bearing Set, Connecting Rod
[08.1988 - 10.1992] 1GFE..GX81 Ｕ／Ｓ ０．２５ |
13204-70021 |
— | ||
|
13265
|
13265
13265-70020 Bolt, Connecting Rod[08.1988 - 10.1992] 1GFE,1GG#..GX81 |
13265-70020 |
from US $3.20 |
||
|
13265A
|
13265A
90179-09006 Nut, Hexagon(For Connecting Rod Bolt)[08.1988 - 10.1992] 1GFE,1GG#..GX81 |
90179-09006 |
US $1.22 |
||
|
13411
|
13411
13411-70908
Crankshaft
[08.1988 - 10.1992] 1GFE,1GG#..GX81 |
13411-70908 |
— | ||
|
13471
|
13471
13407-70080 Pulley, Crankshaft[08.1988 - 10.1992] 1GFE..GX81 |
13407-70080 |
US $417.87 |
||
|
13471A
|
13471A
90280-05005 Key(For Oil Pump Drive Spline)[05.1992 - 10.1992] 1G#..GX81 |
90280-05005 |
from US $0.94 |
||
|
13471A
|
13471A
95161-20519 Key, Crankshaft(For Crankshaft Pulley Set)[08.1988 - 05.1992] 1GFE,1GG#..GX81 |
95161-20519 |
from US $1.25 |
||
|
13471C
|
13471C
90105-18004 Bolt(For Crankshaft Pulley Set)[08.1988 - 10.1992] 1GFE..GX81 |
90105-18004 |
US $11.65 |
||
| replacement | |||||
|
13471C
|
13471C
90105-18001 Bolt(For Crankshaft Pulley Set)[08.1988 - 10.1992] 1GFE..GX81 |
90105-18001 |
US $15.59 |
||
|
13521P
|
13521P
13521-70040 Pulley, Crankshaft Timing[08.1988 - 10.1992] 1GFE..GX81 |
13521-70040 |
from US $39.94 |
||
|
13566A
|
13566A
13566-70030 Guide, Timing Belt[08.1988 - 07.1989] 1GFE..GX81 |
13566-70030 |
US $11.79 |
||
| replacement | |||||
|
13566A
|
13566A
13566-70031 Guide, Timing Belt[08.1988 - 07.1989] 1GFE..GX81 |
13566-70031 |
US $11.88 |
||
|
13566A
|
13566A
13566-70031 Guide, Timing Belt[07.1989 - 10.1992] 1GFE..GX81 |
13566-70031 |
US $11.88 |
||
